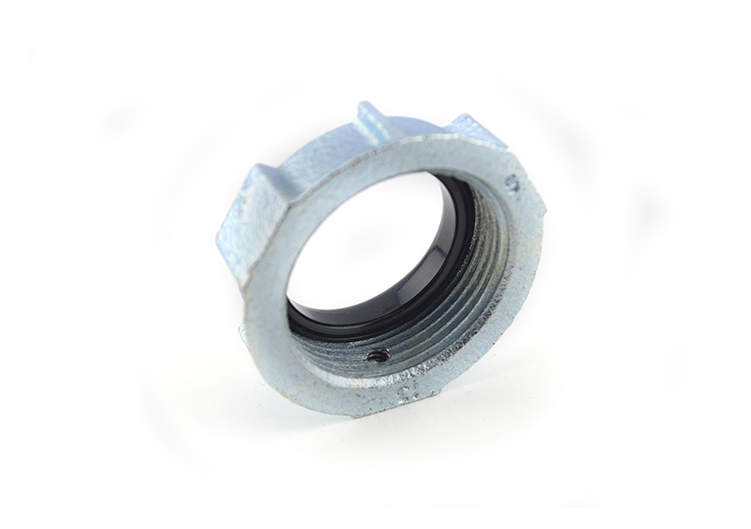

Insulated Bushing, 1-1/4″, Malleable Iron for Box Termination

#364

The Bridgeport 1-1/4″ Malleable Iron Insulated Bushing can terminate threaded rigid or IMC to a box using a simple locknut. It features a plastic metaliner that prevents damage to wire insulation.

  • Impact Resistant Iron Body: The natural strength, rigidity and ductility of malleable iron offers the highest protection from physical damage caused by crushing or abrasion
  • Zinc Electroplating: Zinc electroplated body provides extended resistance to corrosion
  • Heat Rating: The bushing is temperature rated to 150°C for use in industrial environments
  • Easy to Use: The threaded coupling makes easy connections for rigid or IMC conduits
  • Professional Performance: All Bridgeport fittings meet OSHA-recognized, NRTL-certified electrical standards and meets the stringent bonding and grounding requirements of 514B cULus

Product Information

Material Malleable Iron
Finish Zinc Plated
Color Grey with Black Insulator
Pack Qty 100
GTIN 00781747003645
UPC 781747003645
EAN 0781747003645
UNSPSC 39121312
Ul Standard UL-514B

Resources

Documents

  • BPT_364_ProDraw.pdf Download
  • BPT_RigidConduit_RCF_ProdBro_Digital.pdf Download
  • BPT_Bush_CCF_ProdBro_Digital.pdf Download
