Insulated Bushing, 1″, Zinc Die Cast to Protect Conductors

Name: Insulated Bushing, 1", Zinc Die Cast to Protect Conductors
Brand: Bridgeport
SKU: 363-DC

Rigid Bushings

#363-DC

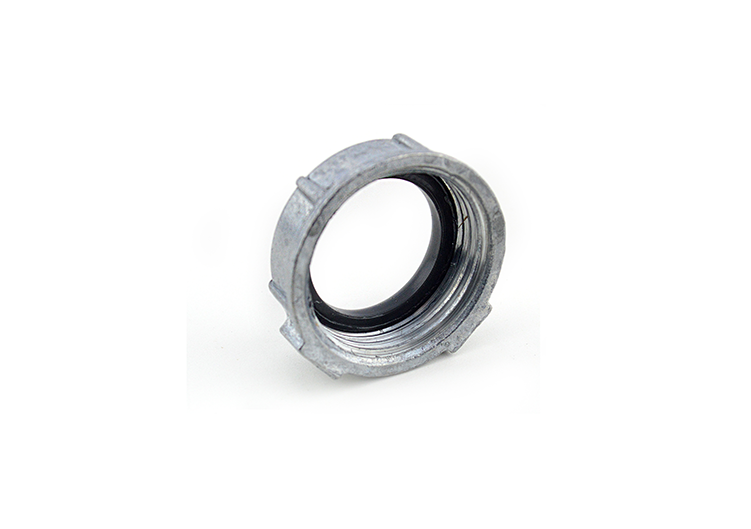

The Bridgeport 1″ Zinc Die Cast Insulated Bushing can terminate threaded rigid or IMC to a box using a simple locknut. It features a plastic metaliner that prevents damage to wire insulation.

Eco-Friendly: The byproducts of zinc casting can be melted down and recast to make new metals without property degradation
Heat Rating: The bushing is temperature rated to 150°C for use in industrial environments
Easy to Use: The threaded coupling makes easy connections for rigid or IMC conduits
Professional Performance: All Bridgeport fittings meet OSHA-recognized, NRTL-certified electrical standards and meets the stringent bonding and grounding requirements of 514B cULus

Product Information

Material	Zinc Die Cast
Color	Grey with Black Insulator
Pack Qty	500
GTIN	00781747093639
UPC	781747093639
EAN	0781747093639
UNSPSC	39121312
Origin Country	CN
Ul Standard	UL-514B
Ul File No	E9391
Application	Used with locknut to protect conductors inside threaded rigid or IMC conduit entering a box. Plastic liner prevents damage to wire insulation. Plastic Metaliner – 150 Degree
