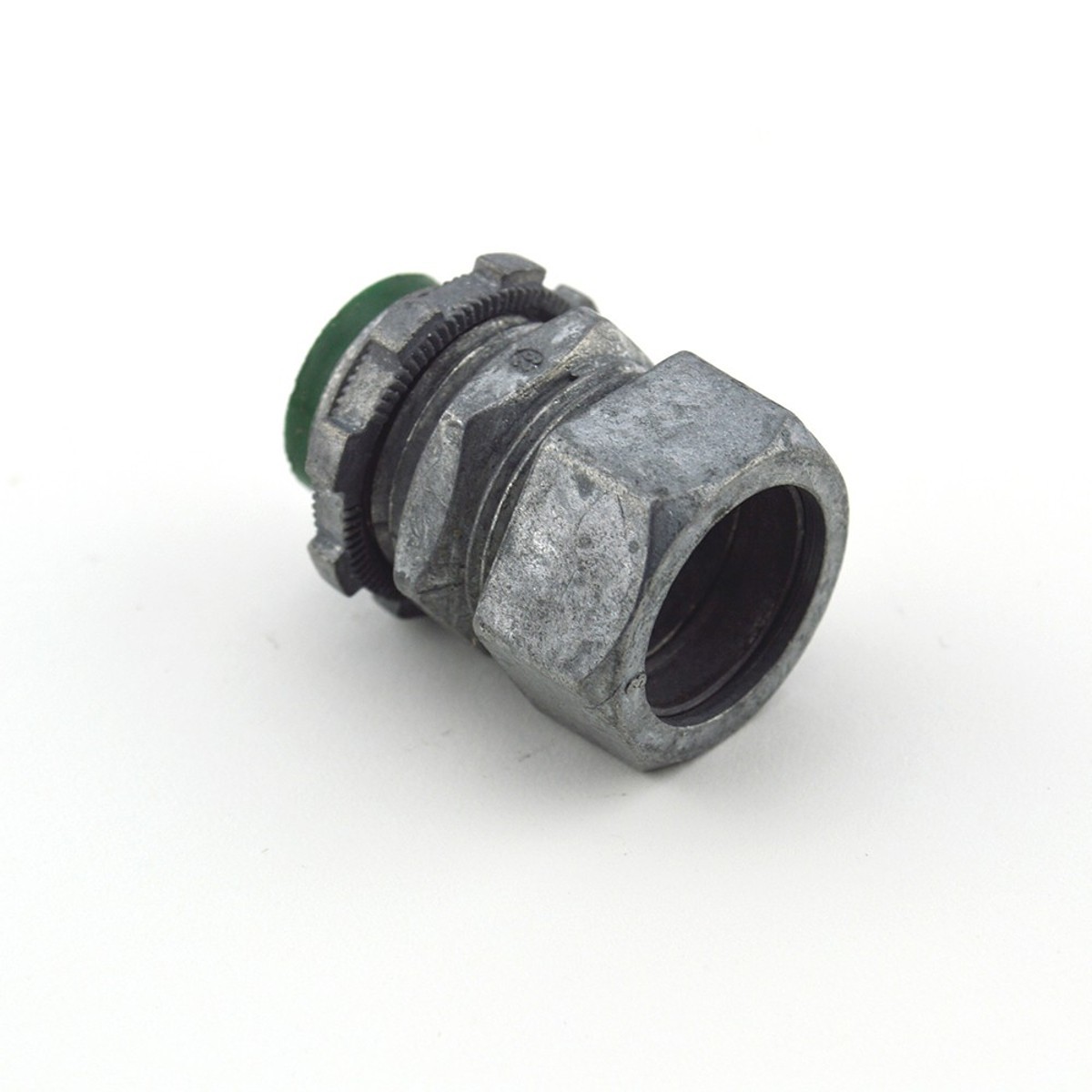

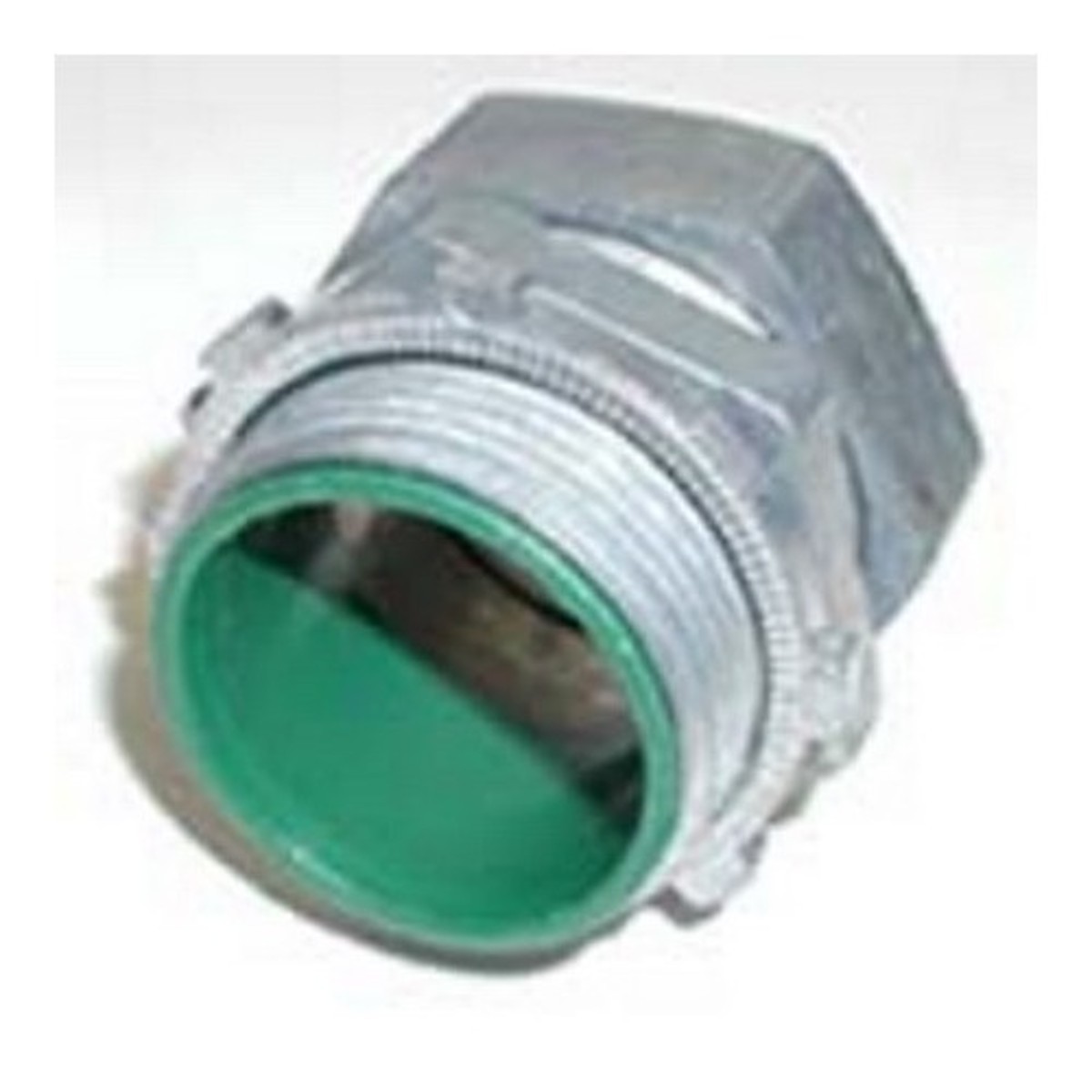

Insulated EMT Compression Connector 1/2″, Die Cast Zinc

EMT Connectors

#250-DCI2

Use Bridgeport screw-on insulated EMT compression connectors to join electrical metallic tubing to an electrical box or enclosure for a concrete-tight seal. An insulated throat protects inner wiring from abrasion and is rated up to 105°C.

• Insulated Connector: An insulated throat offers superior protection against cable abrasion and is rated up to a temperature of 105℃
• Zinc Body: Die cast zinc connectors feature a precise fit and finish for trouble-free performance, ease of assembly and excellent corrosion resistance in harsh environments
• Tighter Seals: Zinc EMT compression connectors are UL Listed concrete-tight without the use of tape. They are also CSA Listed concrete-tight and raintight
• Installation Flexibility: Zinc EMT compression connectors are suitable for use with aluminum and steel EMT. Sizes 2-1/2" to 4" may also be used with rigid conduit
• Professional Performance: Zinc EMT compression connectors are UL Listed under File No. E24001 and meet the stringent bonding and grounding requirements of UL 514B
