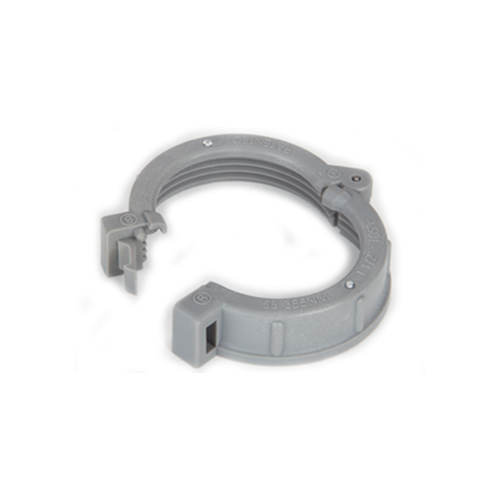

Insulated Split Bushing, 1-1/2″, Plastic for Conductor Protection
#SB-385NM
Use the Bridgeport 1-1/2″ Mighty-Rite Insulated Nonmetallic Split Bushing to protect conductors passing through conduit and to terminate rigid and IMC Conduits or rigid and EMT connectors to a box or enclosure before or after pulling conductors.
- Nylon Plastic Body: The strong, lightweight gray nylon plastic body provides excellent abrasion and wear resistance
- Heat Rating: The bushing is temperature rated to 105°C for use in industrial environments
- Might-Rite® Patented Design: The innovative Might-Rite split design allows for easy positioning, saving time and money on expensive rework
- Professional Performance: All Bridgeport fittings meet OSHA-recognized, NRTL-listed electrical standards and meet the stringent bonding and grounding requirements of 514B cULus
Product Information
Material | Nylon |
---|---|
Finish | Plain |
Color | Gray |
Pack Qty | 200 |
GTIN | 00781747403858 |
UPC | 781747403858 |
EAN | 0781747403858 |
UNSPSC | 39121312 |
Origin Country | CN |
Certifications | PROP65 https://www.p65warnings.ca.gov/ |
Ul Standard | UL-514B |
Ul File No | E9391 |
Application | Used in situations where an insulated bushing is needed to protect conductors already passing through threaded Rigid / IMC conduit or EMT and Rigid Connectors. Rated 105 Degree C. cULus listed. |
