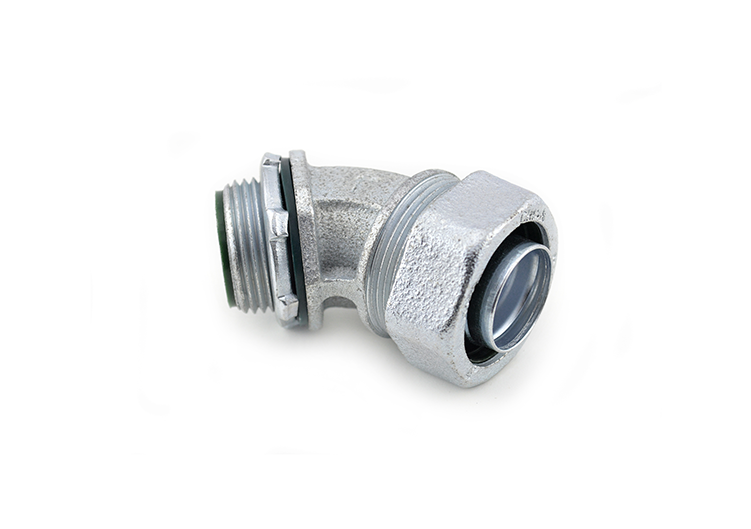

Liquid Tight Insulated 45-Degree Connector 1″, Malleable Iron

#452-SLTI

Use Bridgeport liquid tight 45-degree connectors to join metallic liquid tight conduit to an electrical box or enclosure in wet locations. This connector’s NPT threads, knockout gasket and internal sealing ring provide a liquid tight connection.

  • Insulated Connector: Insulated connectors offer additional peace of mind by protecting inner wiring from abrasion and up to a temperature of 105℃
  • Superior Strength: Malleable iron connectors are Bridgeport's heaviest-duty solution and offer superior strength, rigidity and ability to flex without breaking
  • Keeps Water Out: Liquid tight 45-degree connectors feature NPT threads, a knockout gasket and internal sealing ring for keeping water out of your electrical systems
  • Easy Installation: To install, slide the compression nut and sealing ring over the conduit, thread the ferrule into the conduit channel and then retighten the compression nut
  • Professional Performance: Malleable iron connectors are NEMA TYPE 2, 3, 3R, 4 & 12, meet the NEC requirements for use in wet locations and are UL-Listed under File No. E9391

Product Information

Pack Qty 25
GTIN 00781747044525
UPC 781747044525
EAN 0781747044525
UNSPSC 39121420
Ul Standard UL-514B
