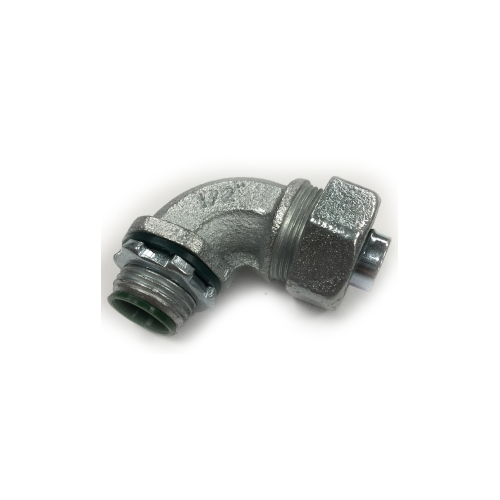

Liquid Tight Insulated 90-Degree Connector 3/4″, Malleable Iron
#471-SLTI
Use Bridgeport liquid tight 90-degree connectors to join metallic liquid tight conduit to an electrical box or enclosure in wet locations. This connector’s NPT threads, knockout gasket and internal sealing ring provide a liquid tight connection.
- Insulated Connector: Insulated connectors offer additional peace of mind by protecting inner wiring from abrasion and up to a temperature of 105℃
- Superior Strength: Malleable iron connectors are Bridgeport's heaviest-duty solution and offer superior strength, rigidity and ability to flex without breaking
- Keeps Water Out: Liquid tight 90-degree connectors feature NPT threads, a knockout gasket and internal sealing ring for keeping water out of your electrical systems
- Easy Installation: To install, slide the compression nut and sealing ring over the conduit, thread the ferrule into the conduit channel and then retighten the compression nut
- Professional Performance: Malleable iron connectors are NEMA TYPE 2, 3, 3R, 4 & 12, meet the NEC requirements for use in wet locations and are UL-Listed under File No. E9391
