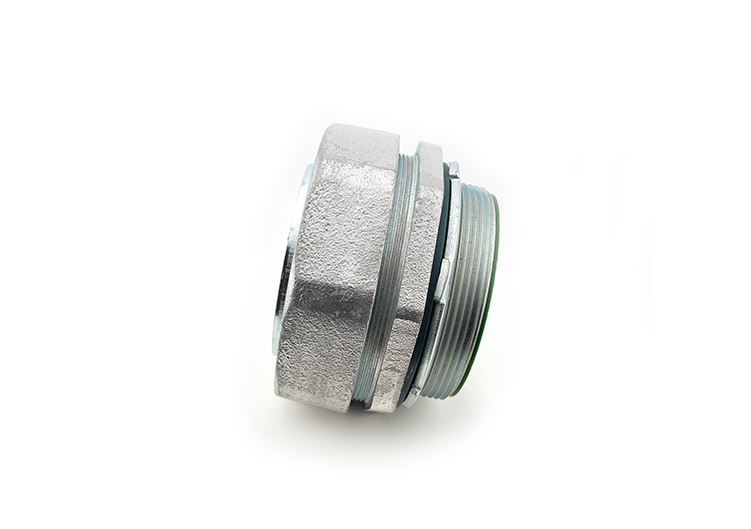

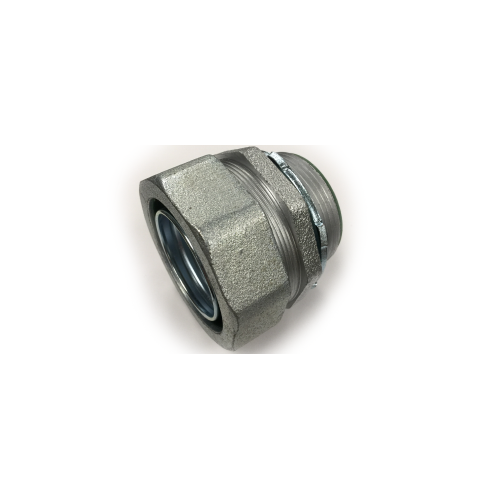

Liquid Tight Insulated Straight Connector 4″, Malleable Iron

Liquidtight Connectors

#439-SLTI

Use Bridgeport liquid tight insulated malleable iron straight connectors to join metallic liquid tight conduit to an electrical box or enclosure in wet environments. This connector’s NPT threads and sealing gaskets provide a liquid tight connection.

• Insulated Connector: Insulated connectors offer additional peace of mind by protecting inner wiring from abrasion and up to a temperature of 105℃
• Superior Strength: Malleable iron connectors are Bridgeport's heaviest-duty solution and offer superior strength, rigidity and ability to flex without breaking
• Keeps Water Out: Liquid tight straight connectors feature NPT threads, a knockout gasket and internal sealing ring for keeping water out of your electrical systems
• Easy Installation: To install, slide the compression nut and sealing ring over the conduit, thread the ferrule into the conduit channel and then retighten the compression nut
• Professional Performance: Malleable iron connectors are NEMA TYPE 2, 3, 3R, 4 & 12, meet the NEC requirements for use in wet locations and sizes 1-1/4" to 4" are also UL-Listed
