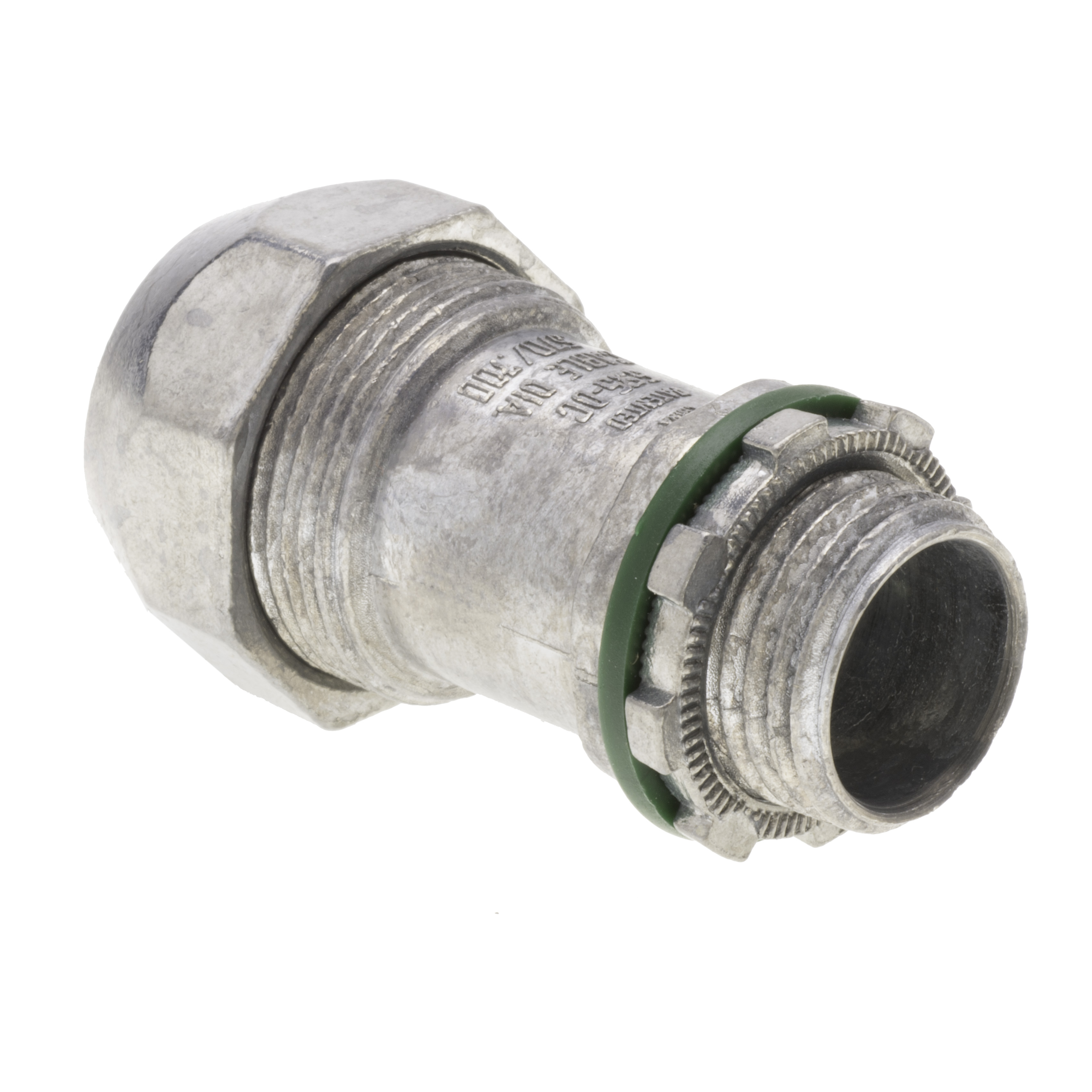

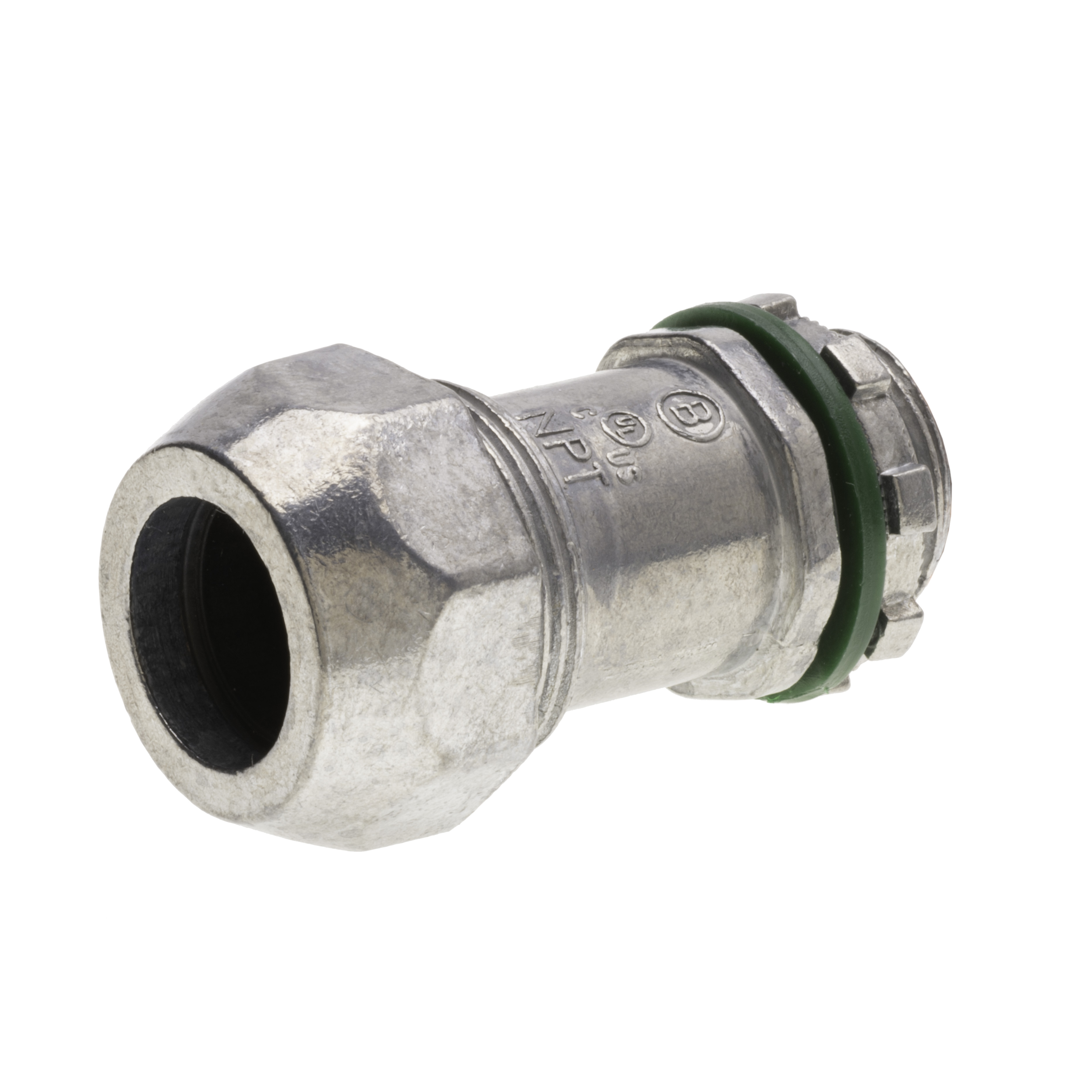

Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2″, Zinc

#596-DC2

Use Bridgeport PVC jacketed MC and TECK cable connectors to connect jacketed MC (parking deck/lot cable) or TECK cable to an electrical box or enclosure. These connectors provide a rain-tight connection for trouble-free use in wet environments.

  • Tight Seal: A polyethylene gasket creates a rain-tight, concrete-tight seal at a 1/2" knockout – protecting inner wires from the elements
  • Easy Connection: Simply strip 7/8” to 1” of the cable jacket from the end of the cable, loosen the nut and push the cable into the connector before retightening
  • Zinc Body: Corrosion resistant die cast zinc connectors have a precise fit and finish for a trouble-free performance and ease of assembly
  • Professional Performance: All Bridgeport fittings are NRTL listed and meet the stringent bonding and grounding requirements of UL 514B
  • Buy American: When you buy Bridgeport, you buy from an American manufacturing company

Product Information

Material Zinc Die Cast
Finish Ball Burnished, Mirror Finish
Pack Qty 60
GTIN 00781747155962
UPC 781747155962
EAN 0781747155962
UNSPSC 39121419
Ul Standard UL-514B
Application Recommended cable types for connecting 10/4 to 8/3 PVC MC cable to box or enclosure diameter .61 – .69. RainTight/ConcreteTight Click here to view the Instructional Sheet.
