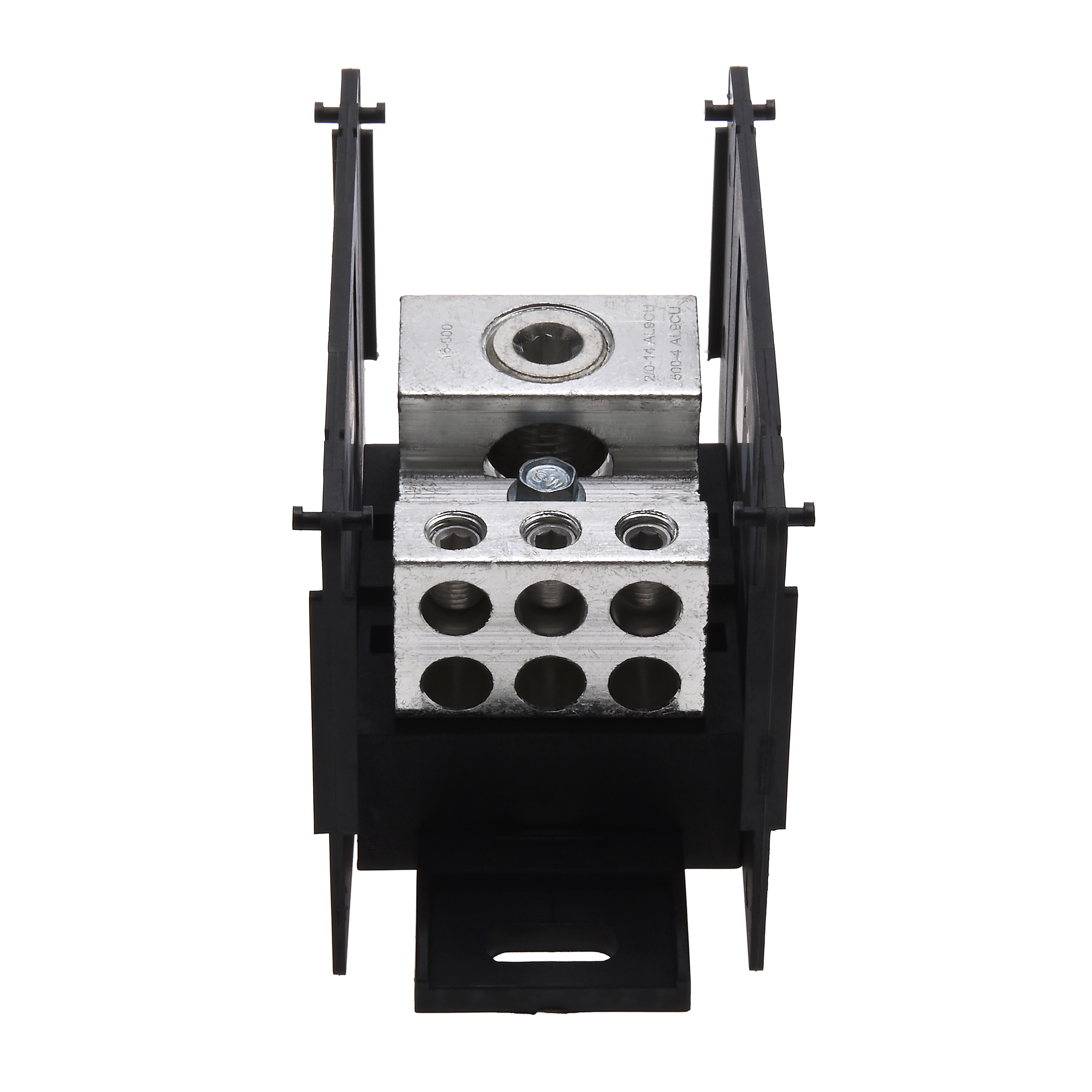

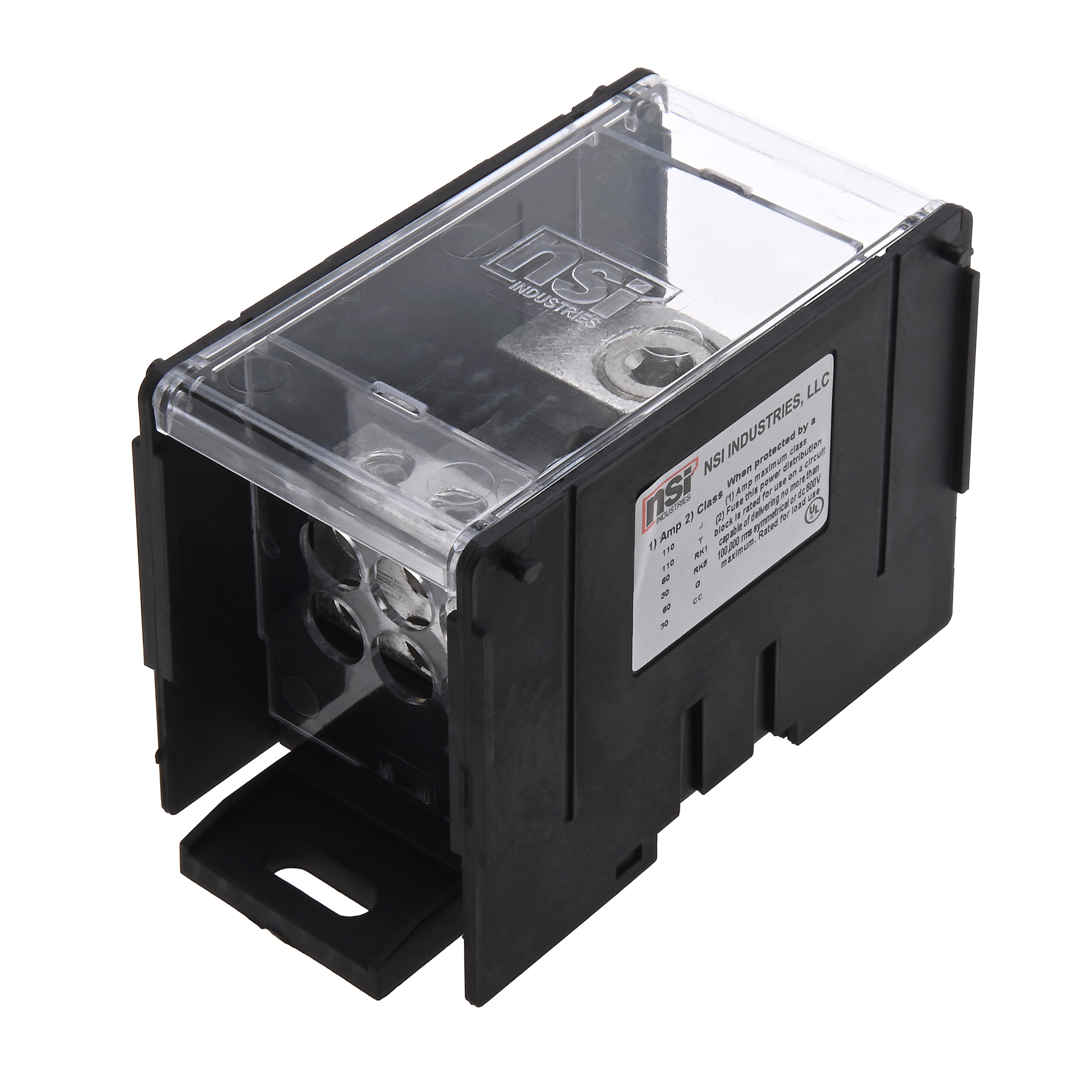

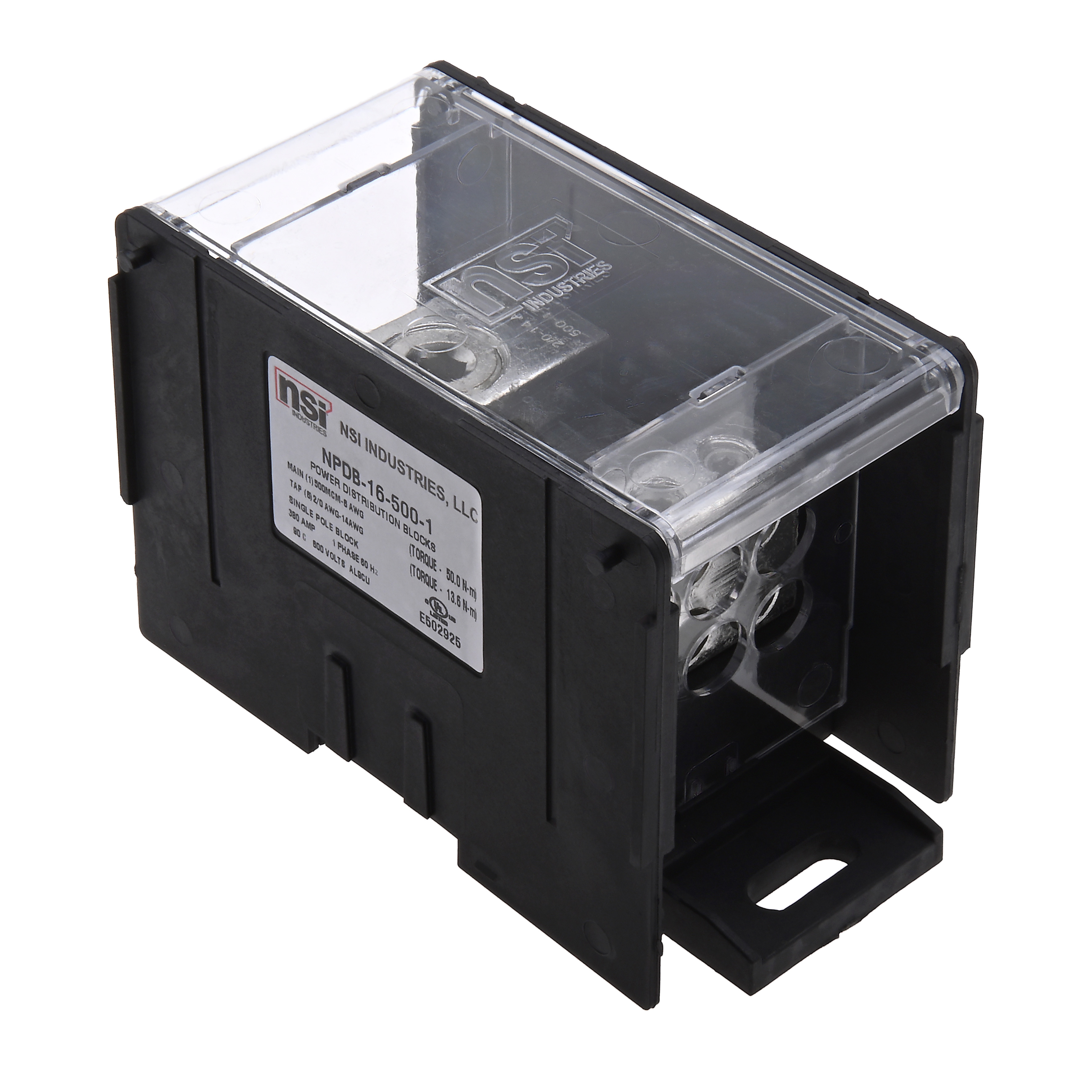

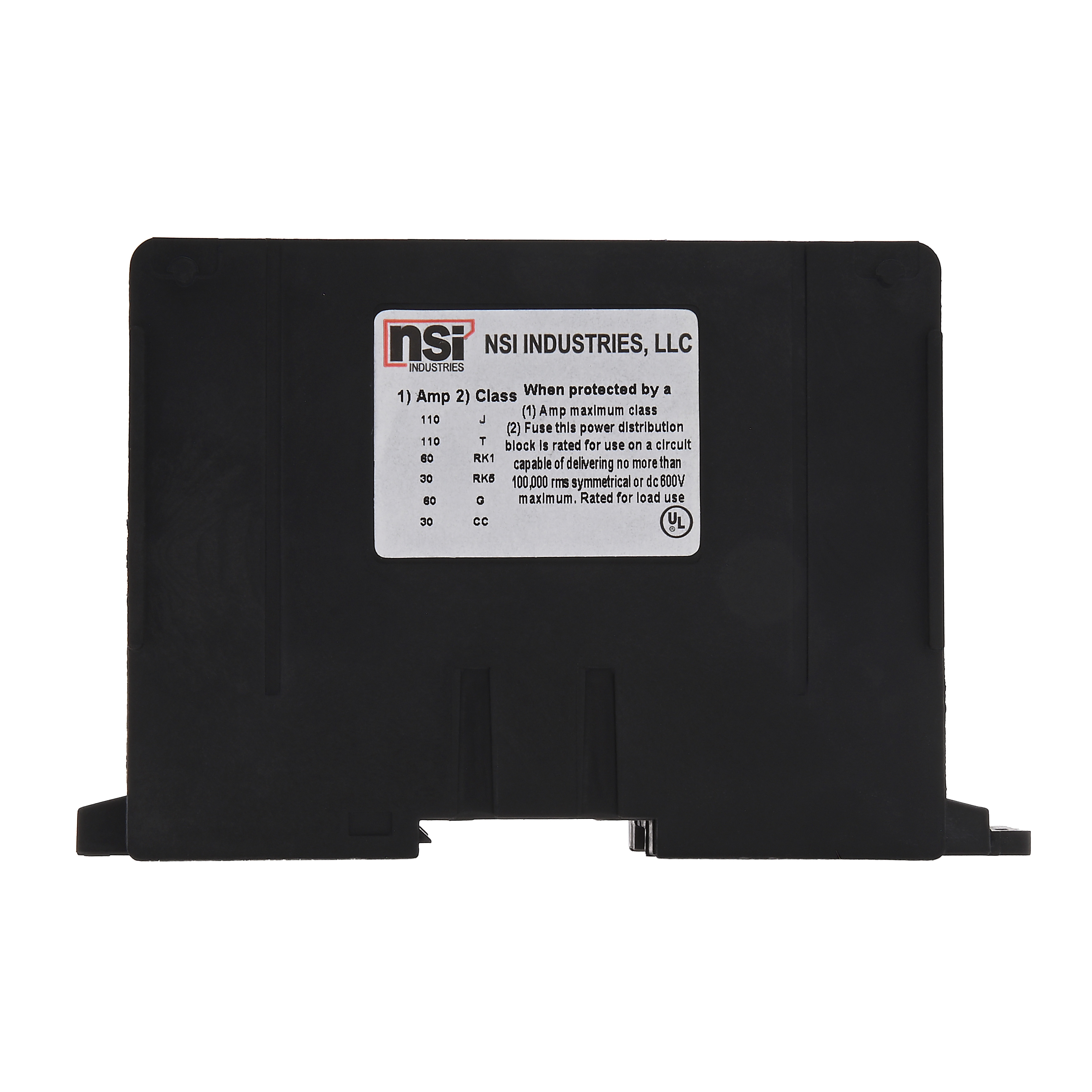

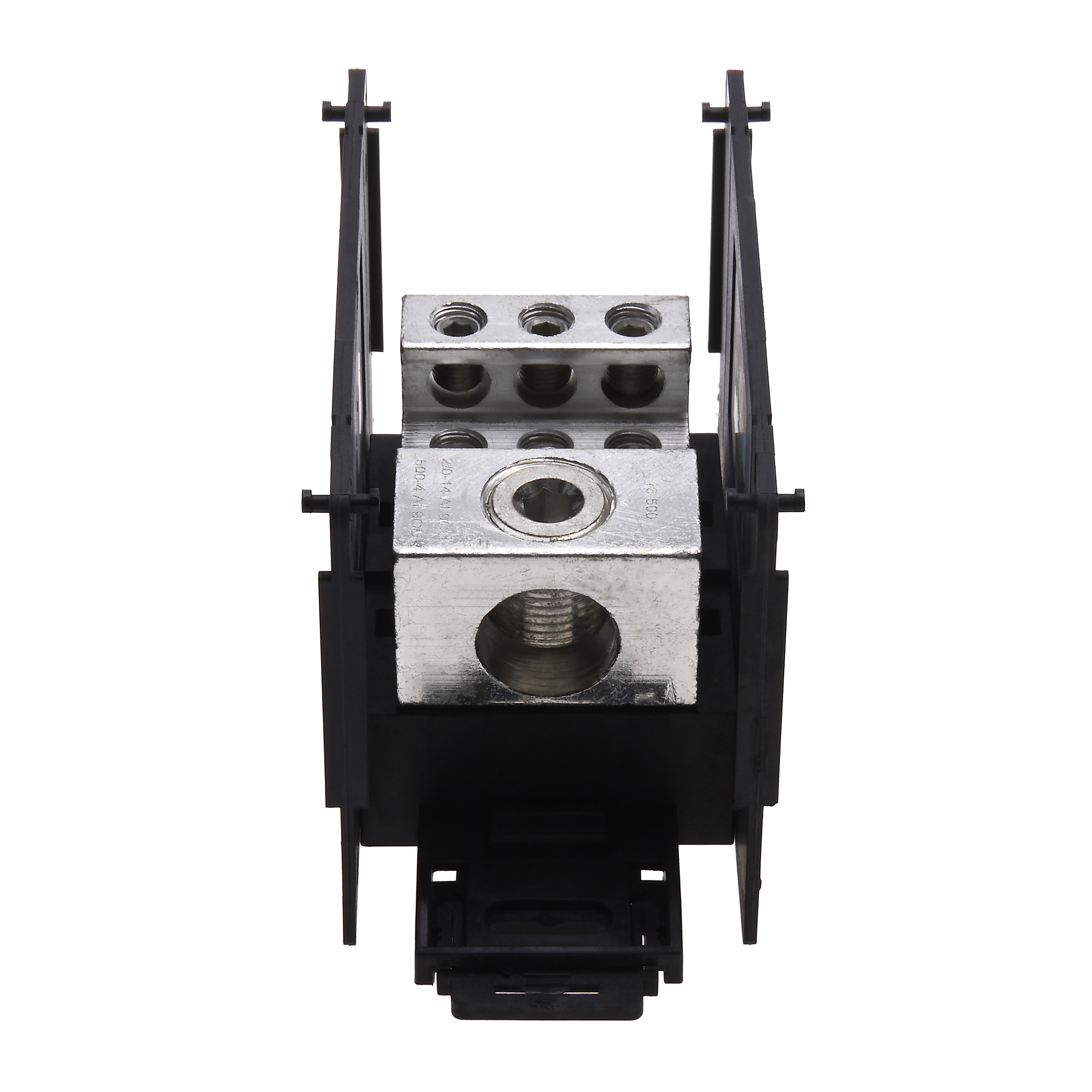

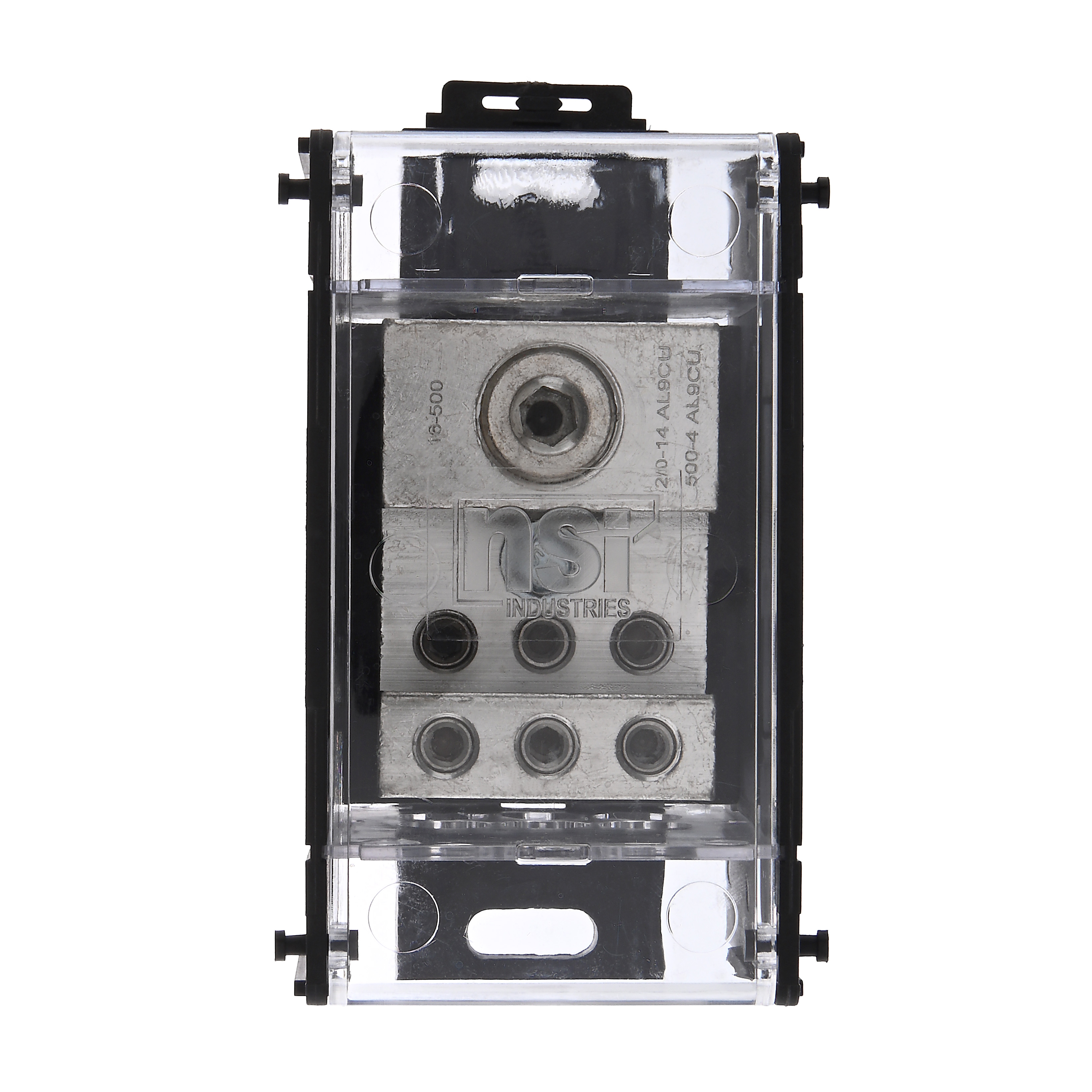

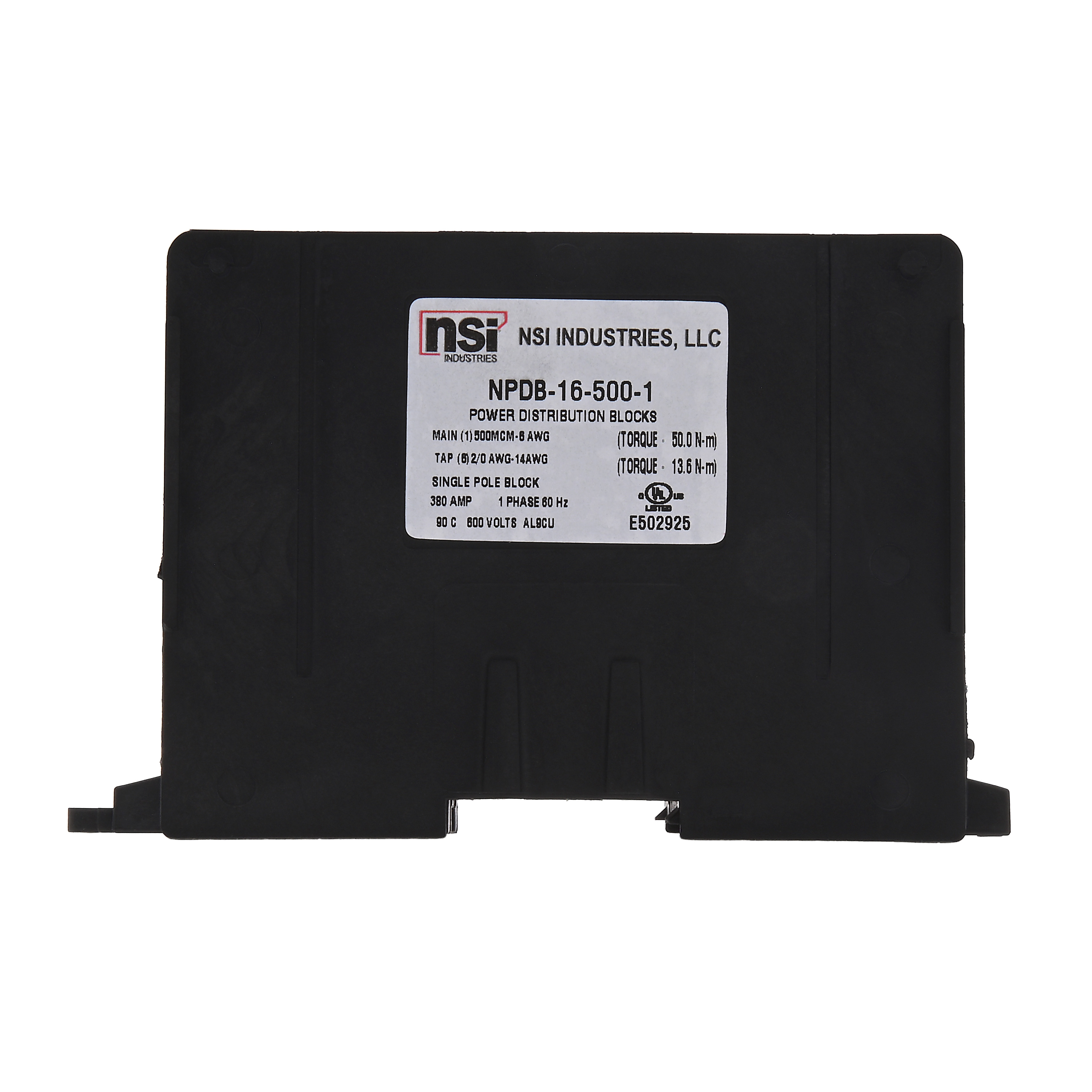

NPDB LINE 1X500-4 – LOAD 6X-2/0-14
Terminal and Power Distribution Blocks
#NPDB-16-500-1
PDB 1 Pole Line 1X500-4 Load 6X2/0-14
- Locking Mechanism to lock/release block on DIN rail
- Modular design allows for insertion on standard 35mm DIN rail or through mounting holes provided
- Clear Finger Safe Panels & Cover: IP20 per IEC60529
- Dual-rated AL9CU for use with copper or aluminum conductors
- Replacement Cover P/N: CMNPDB
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | Aluminum |
| Finish | Tin Plated |
| Color | Black, Clear |
| Pack Qty | 1 |
| GTIN | 662381367617 |
| UPC | 662381367617 |
| EAN | 0662381367617 |
| UNSPSC | 39122118 |
| Origin Country | IN |
| Certifications | cULus, UL Listed |
| Ul Standard | UL 1953, UL 1059 |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper, Aluminum |
| Assortment | Connector Blocks 100K AMP SCCR |
