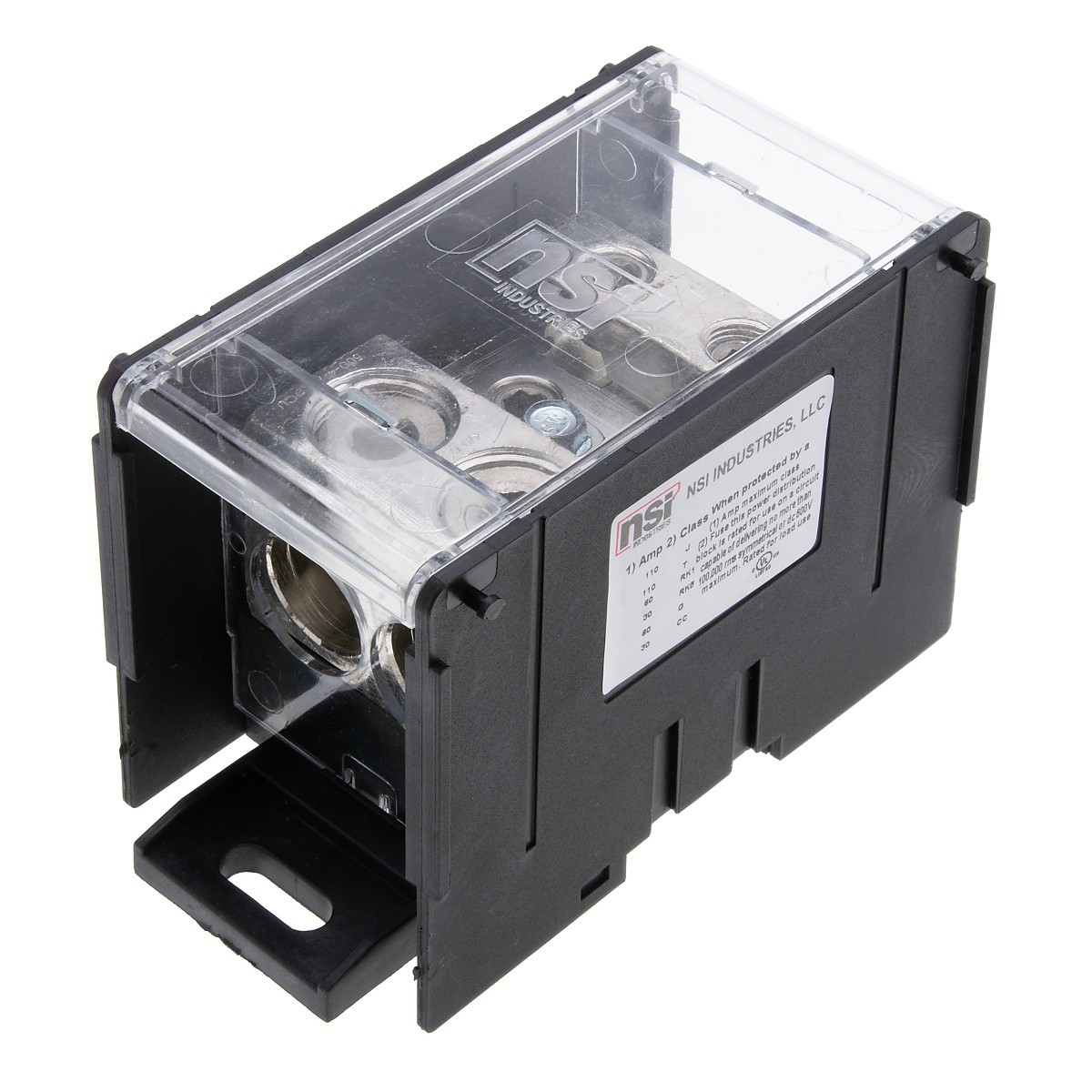

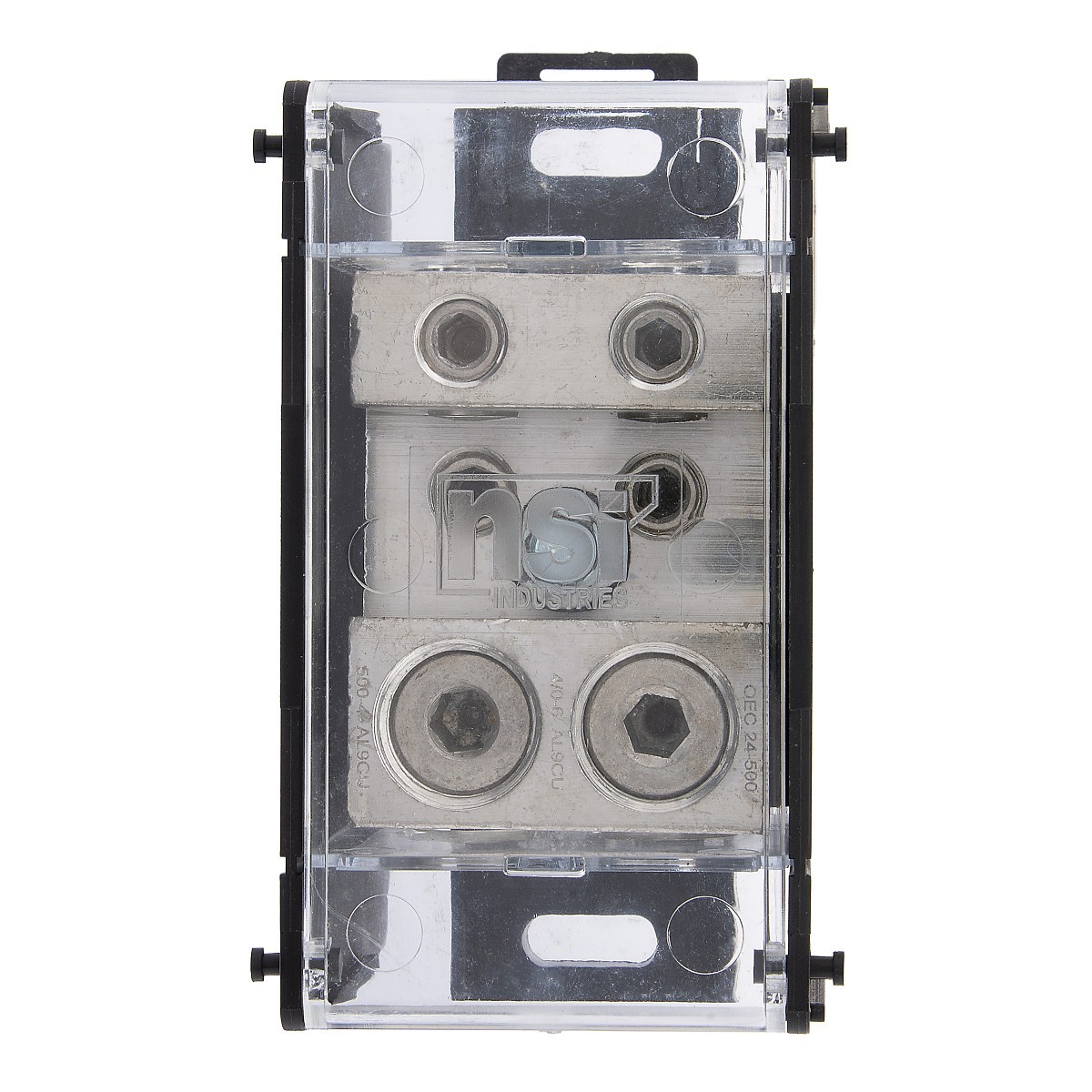

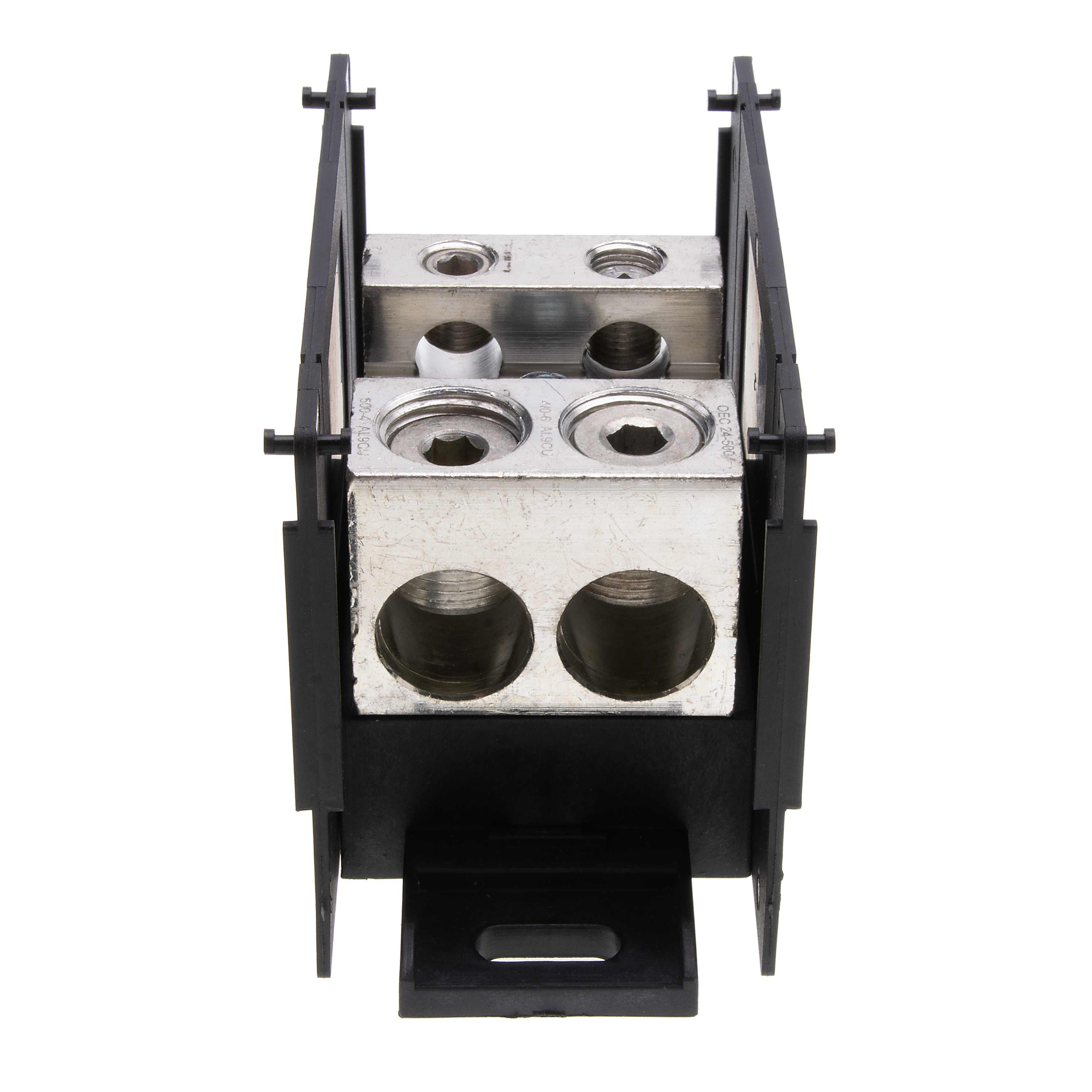

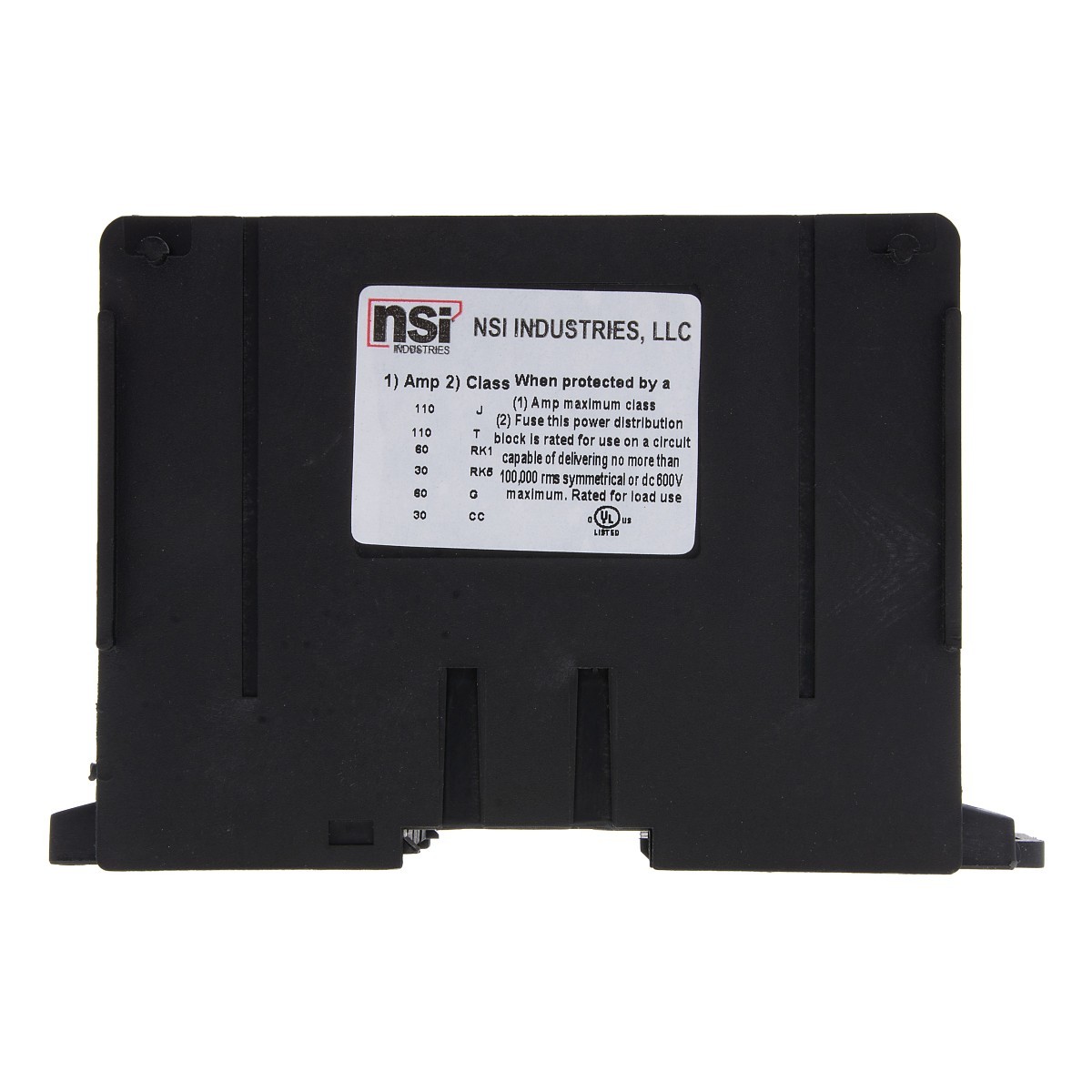

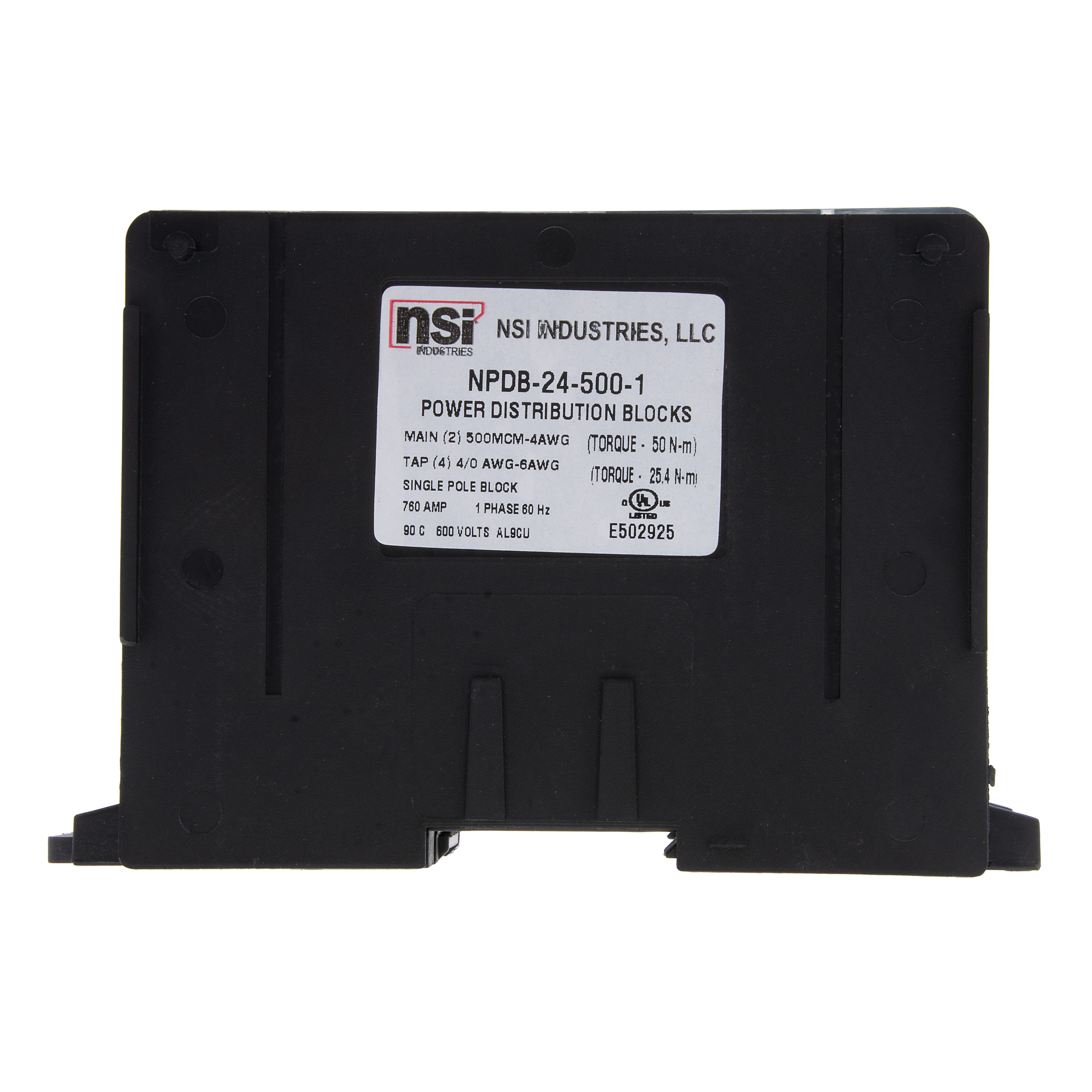

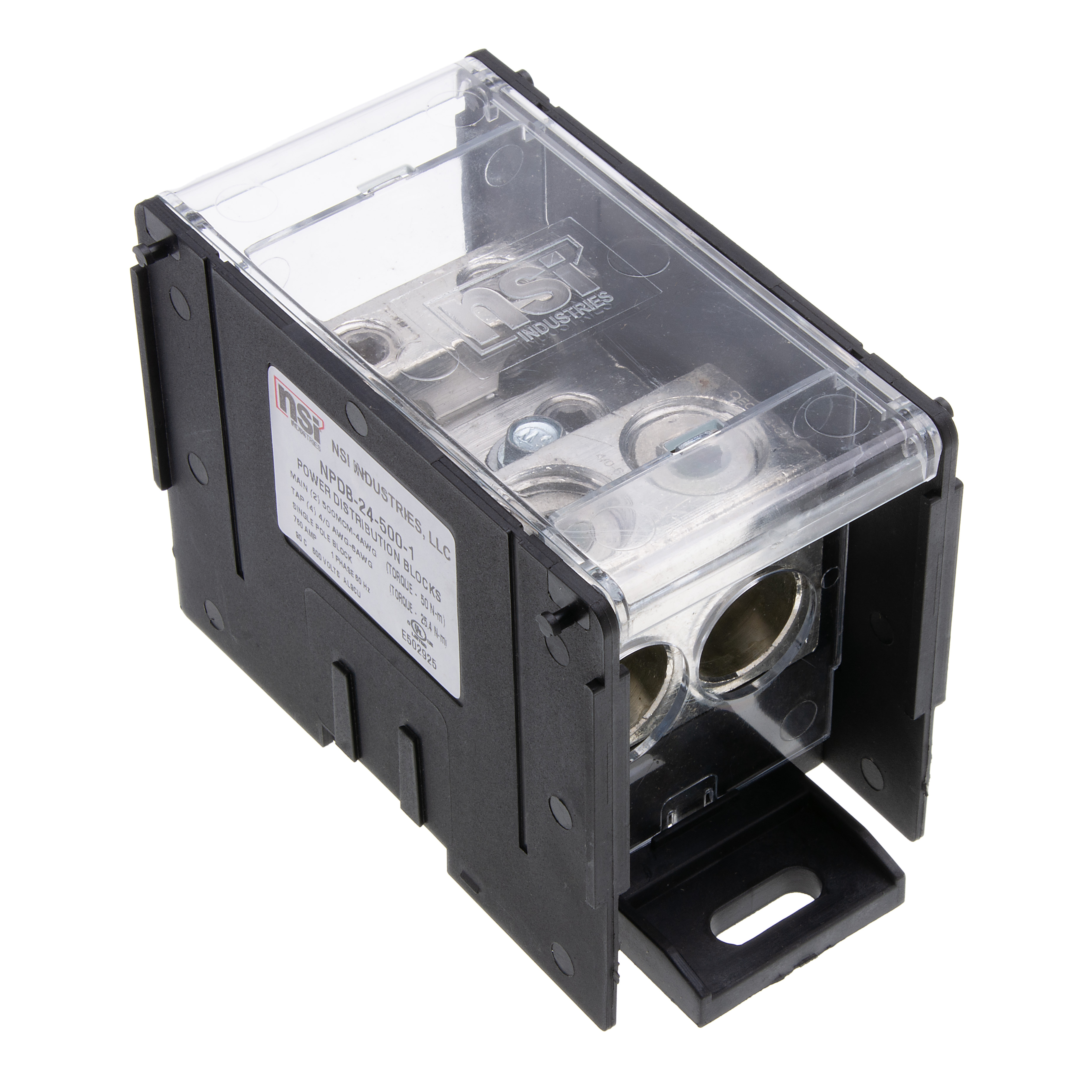

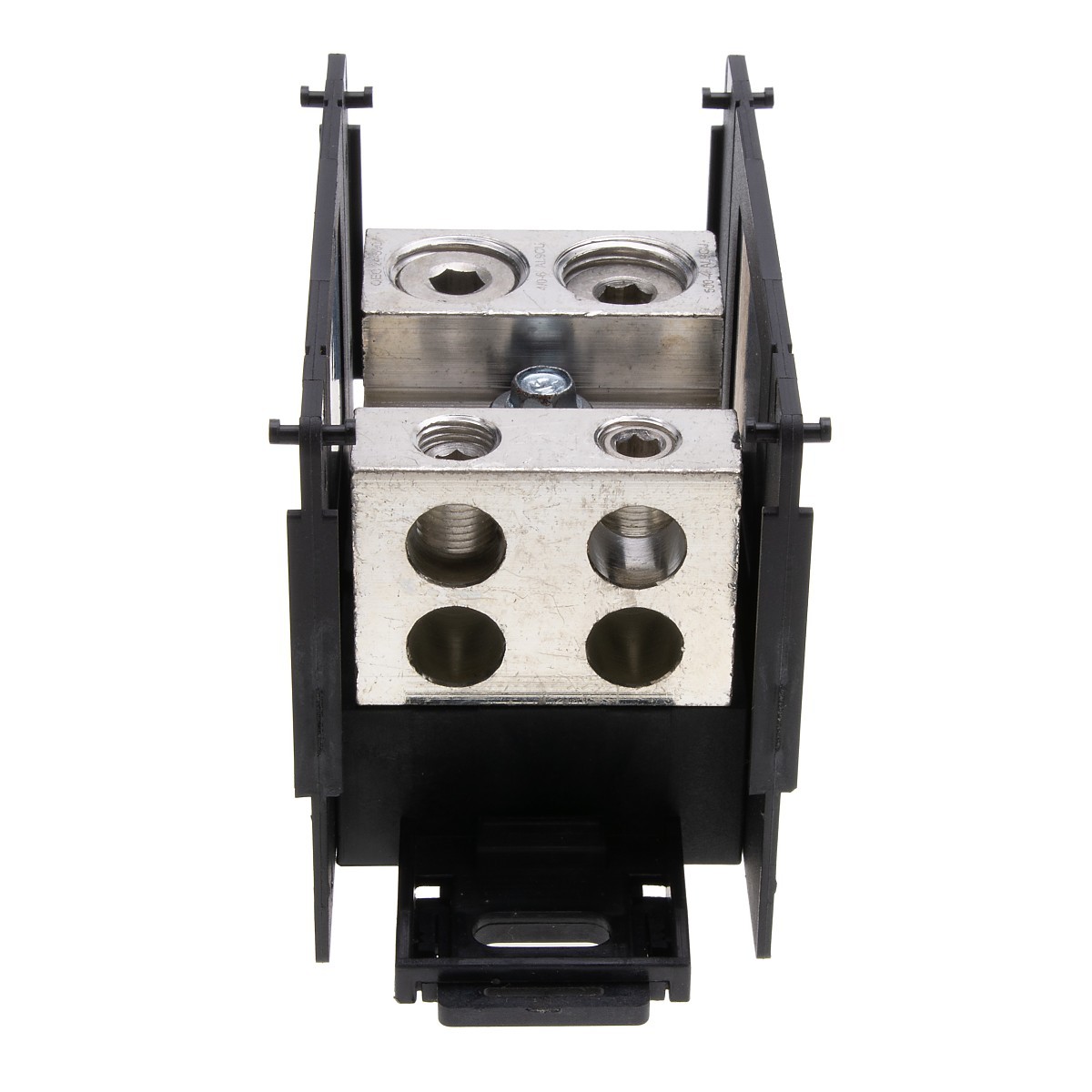

NPDB LINE 2X500-4 – LOAD 4X4/0-6

#NPDB-24-500-1

PDB 1 Pole Line 2X500-4 Load 4X4/0-6

  • Locking Mechanism to lock/release block on DIN rail
  • Modular design allows for insertion on standard 35mm DIN rail or through mounting holes provided
  • Clear Finger Safe Panels & Cover: IP20 per IEC60529
  • Dual-rated AL9CU for use with copper or aluminum conductors
  • Replacement Cover P/N: CMNPDB

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Tin Plated
Color Black, Clear
Pack Qty 1
GTIN 662381367655
UPC 662381367655
EAN 0662381367655
UNSPSC 39122118
Origin Country IN
Certifications cULus, UL Listed
Ul Standard UL 1953, UL 1059
Wire Cable Class Class B, Class C
Conductor Type Copper, Aluminum
Assortment Connector Blocks 100K AMP SCCR

Resources

Documents

  • NSI_NPDB_MCH_ProdXRef_DIGITAL.pdf Download
  • NSI_NPDB-24-500-1_MCH_ProdSpec_DIGITAL.pdf Download
  • NSI_NPDB_MCH_ProdSheet_DIGITAL.pdf Download
  • NSI_NPDB 24 500 1_MCH_ProDraw_DIGITAL.pdf Download
