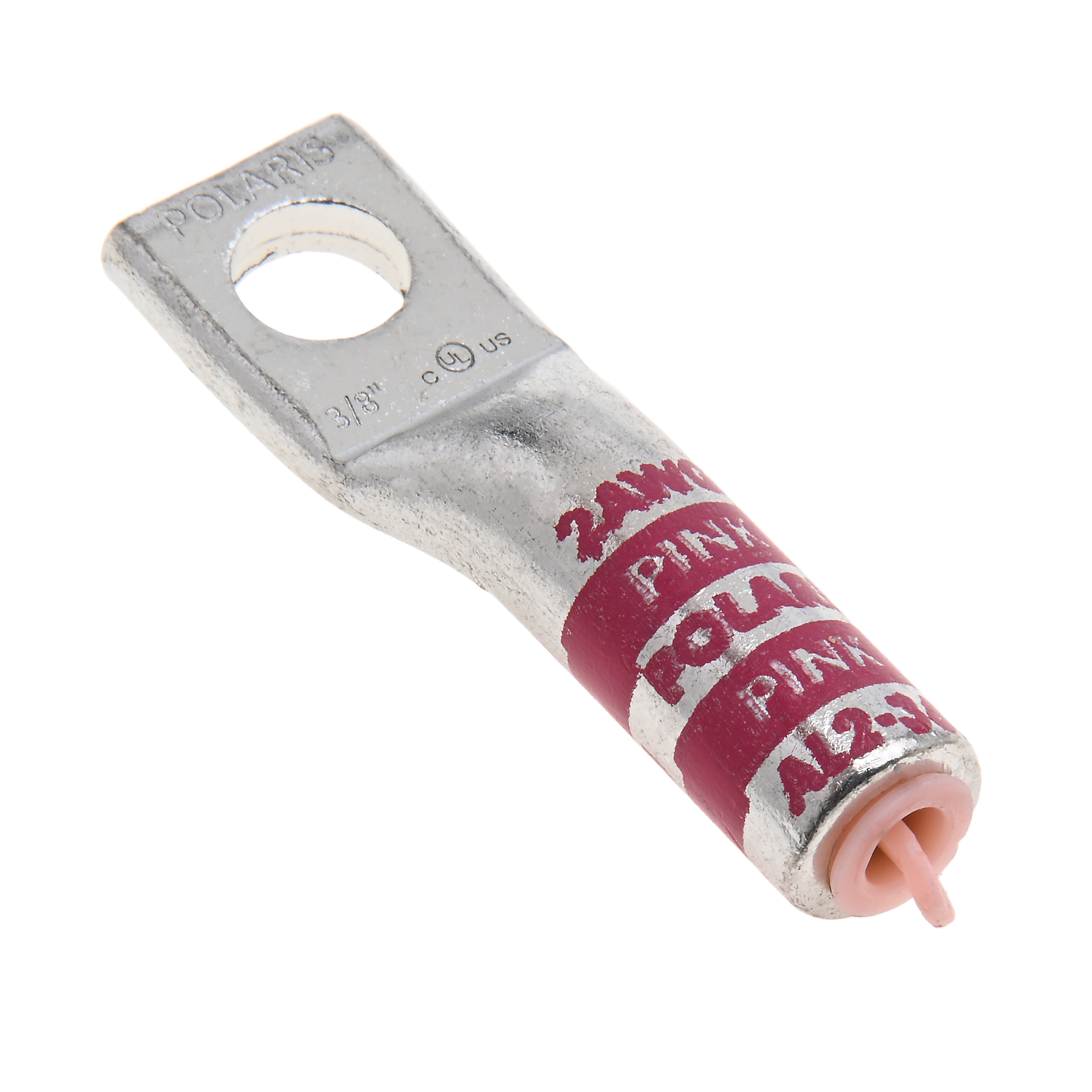

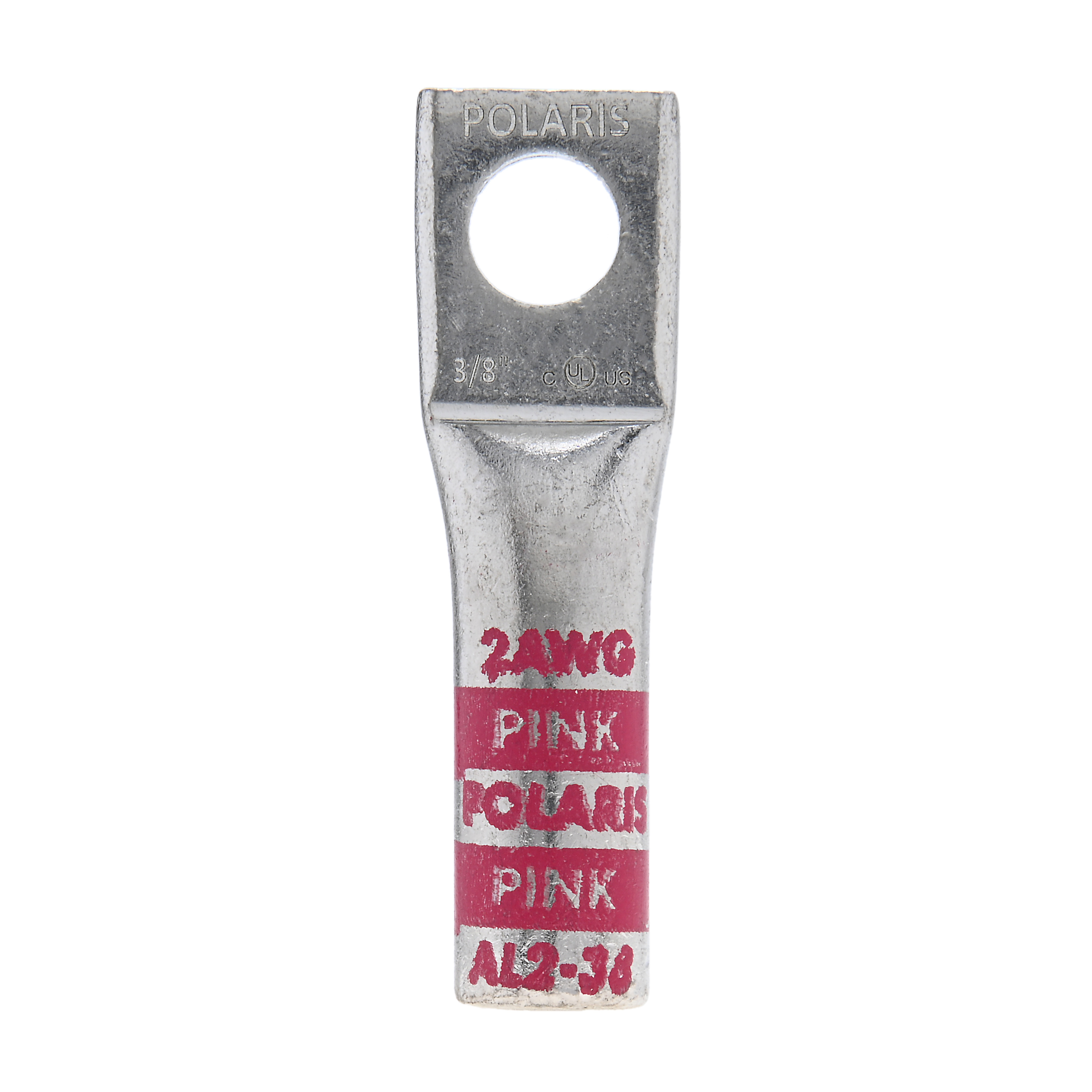

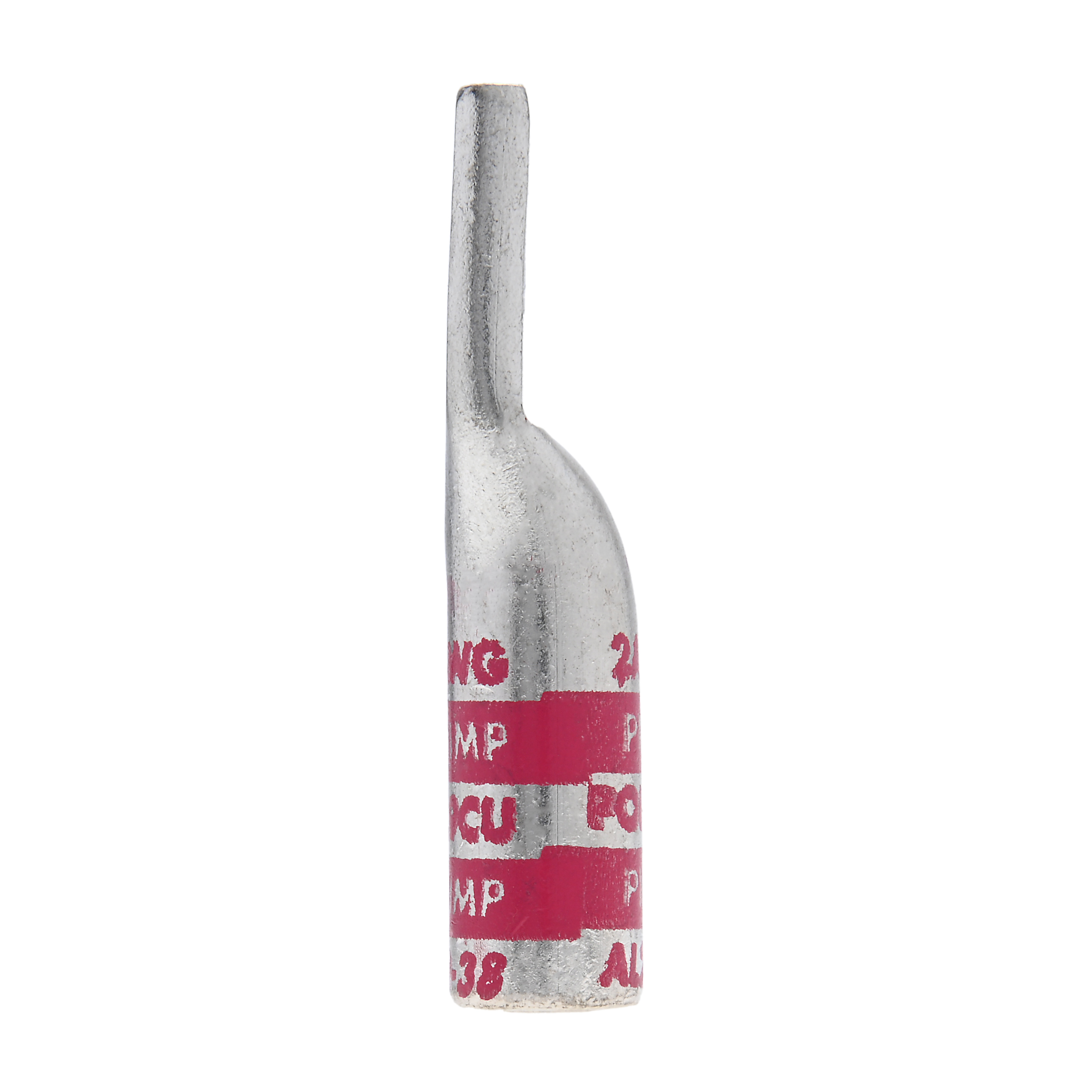

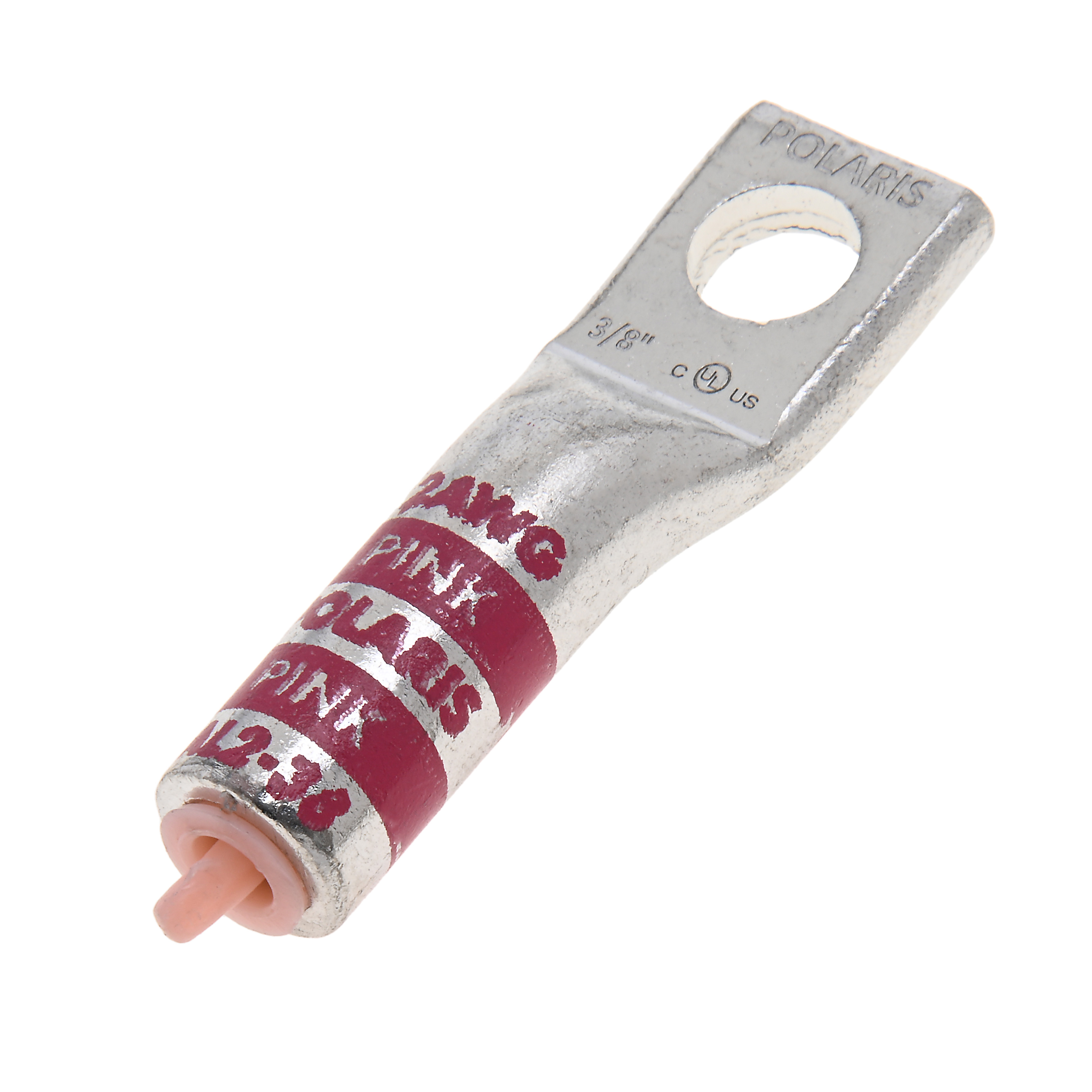

Polaris AL2-38 2 Awg Alum Compression Lug, 3/8″ Bolt Size (Al/Cu)

#AL2-38

Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.

  • High conductivity aluminum tubing and corrosive resistant tin-plated finish
  • Die color-coded identification
  • Dual rated for both copper and aluminum conductors
  • UL listed to 35kV when properly installed to cable manufacturer’s specifications.
  • UL/cULus listed and rated for B/C class wire

Product Information

Die Color Code Pink
Assortment Aluminum Compression Terminations
Material Aluminum
Finish Tin Plated
Mounting-bolt-size-in 3/8
Ul Standard UL 486A-486B
Tang-thickness-in 0.22
Barrel Length 1.2000
Tang Length 1.26
Voltage Rating 35kV
Conductor Type Copper,Aluminum
Expanded Wire Range 2 AWG – 6 AWG
Wire Cable Class Class B,Class C
UNSPSC 39121405
Wire Range 2 AWG
EAN/UCC-13 0662381030252
GTIN 662381030252
Prop 65 Flag Yes
UPC 662381030252

Resources

Documents

  • POL_AL-SERIES_CMP_ProDraw.pdf Download
  • POL_Compression_CMP_CatBro_DIGITAL.pdf Download
  • POL_TermLugs_CMP_ProdSheet_DIGITAL.pdf Download
