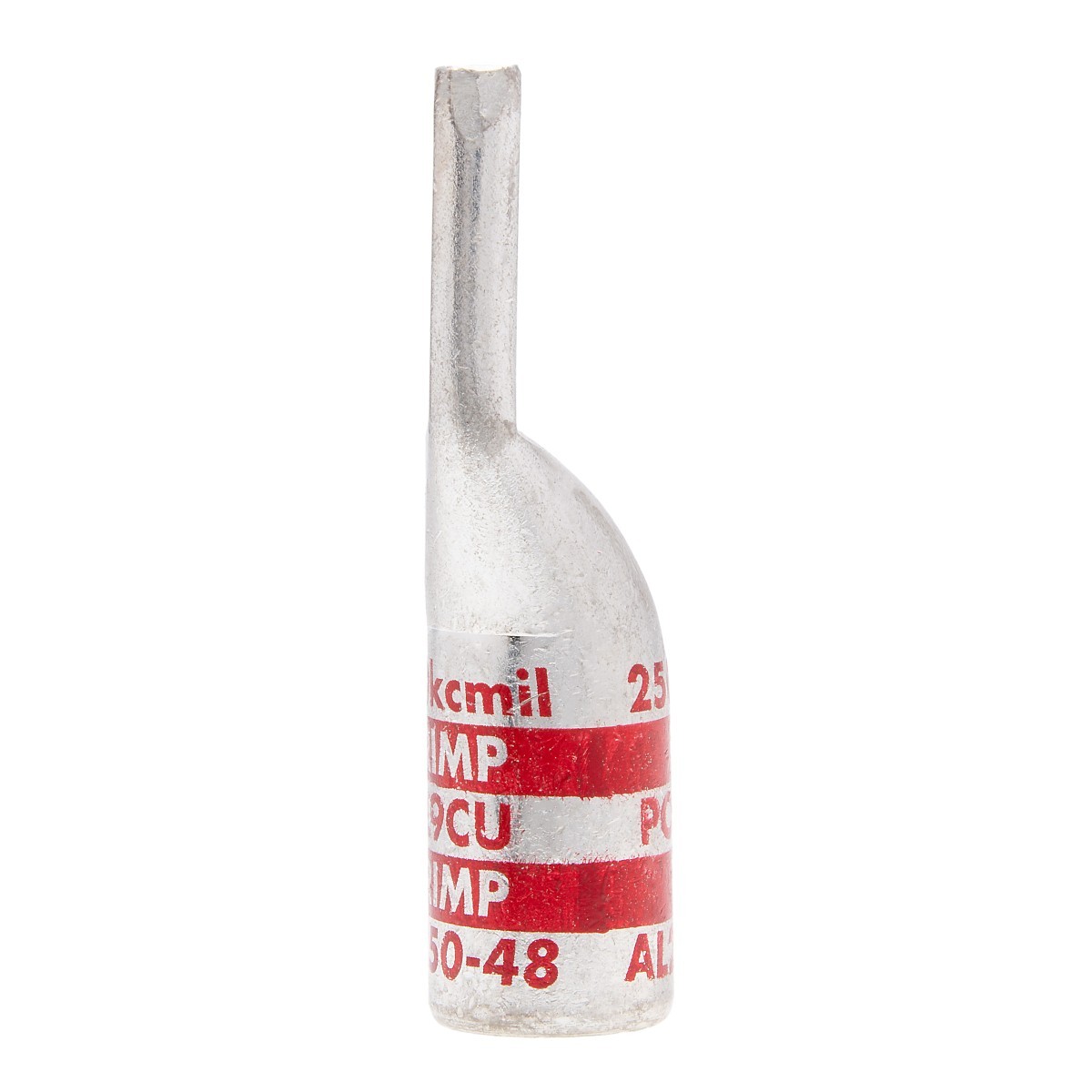

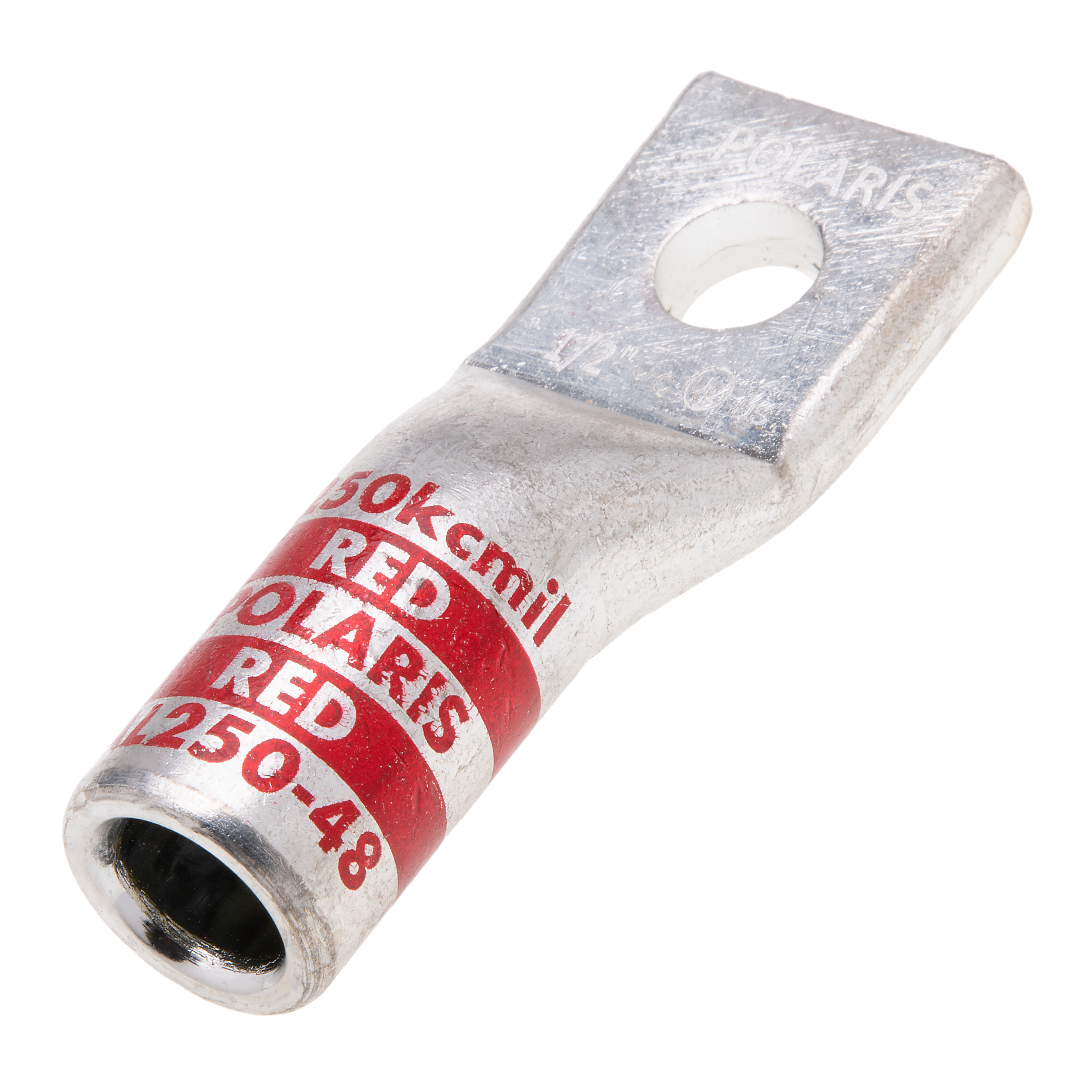

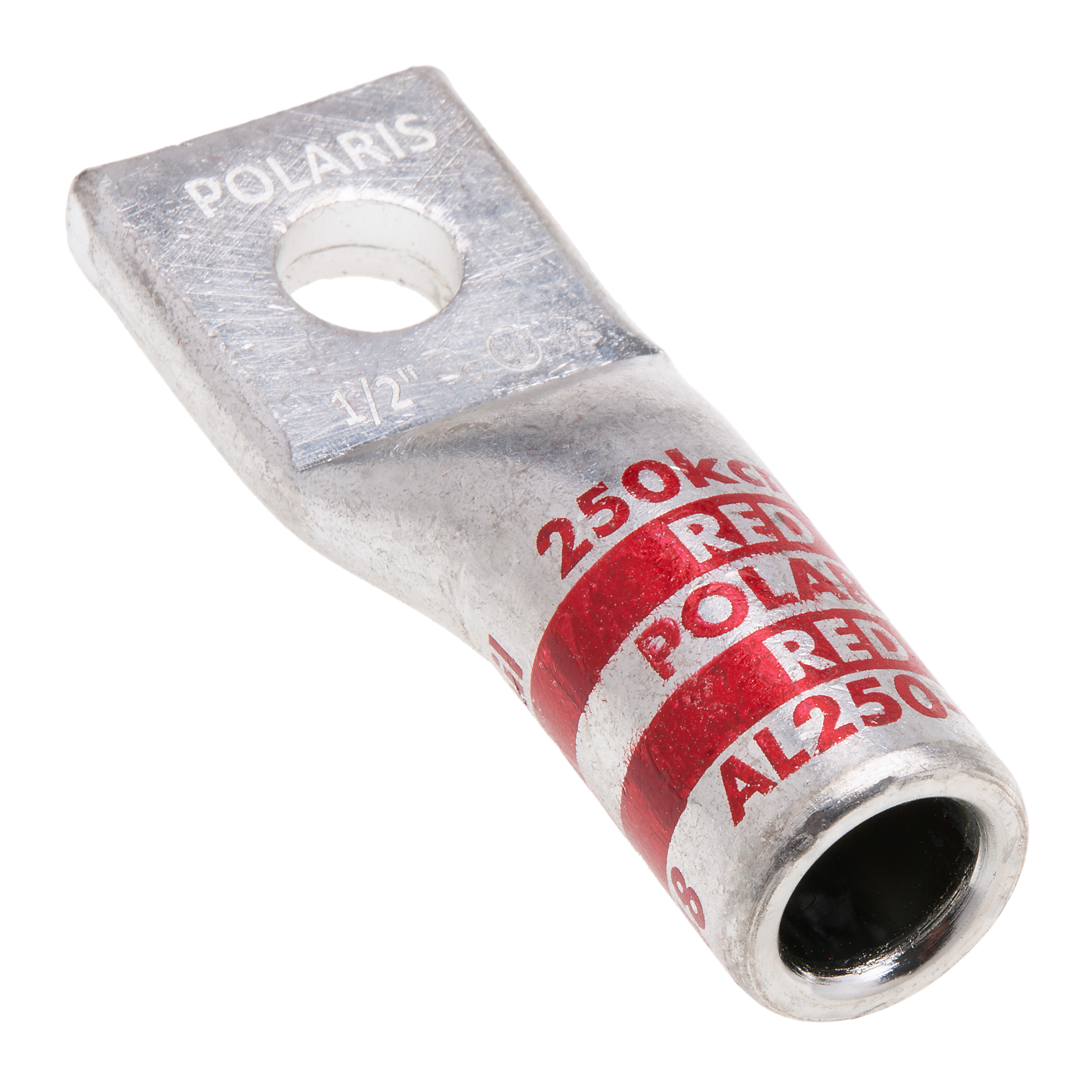

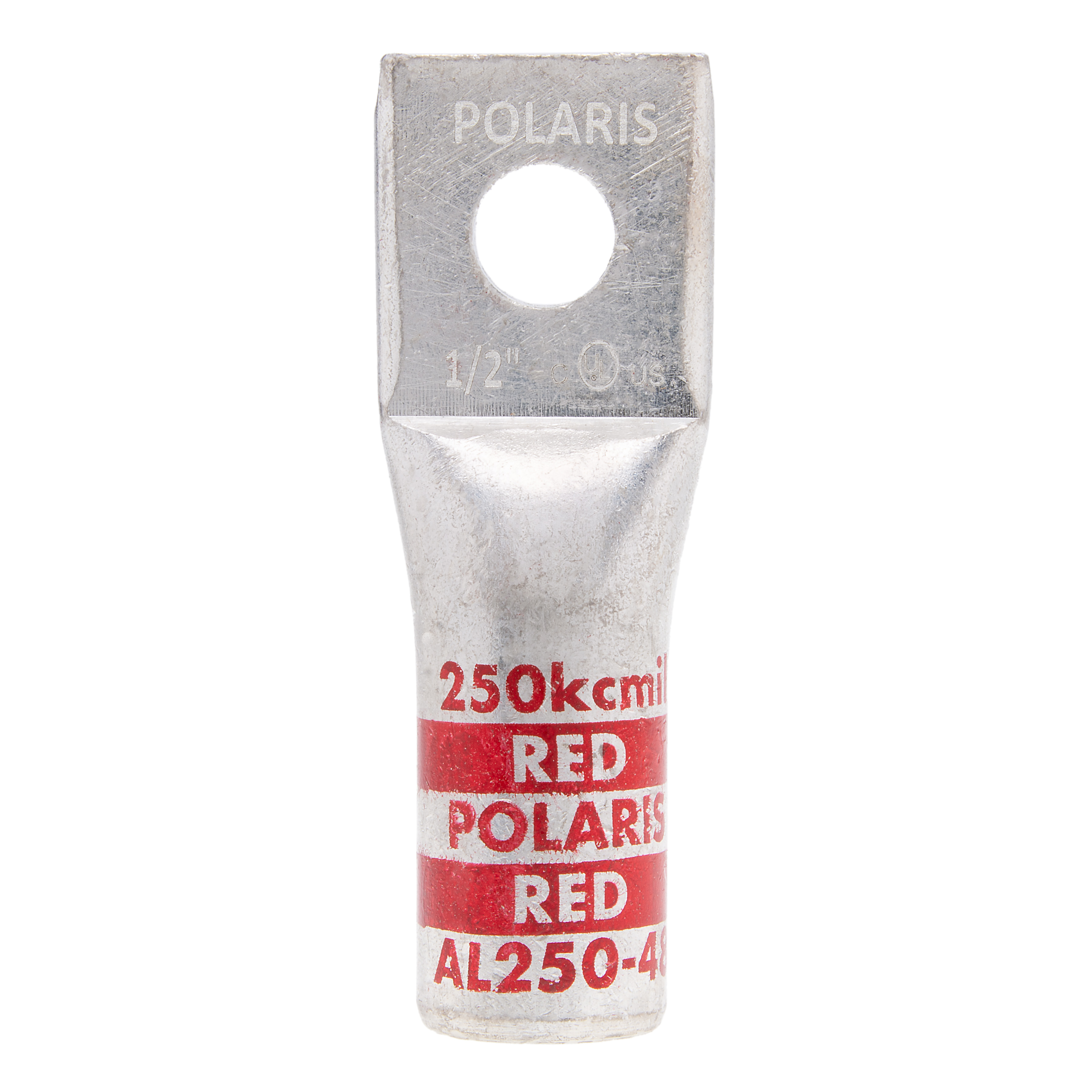

Polaris AL250-48 250 Mcm Alum Compression Lug, 1/2 Bolt Size (Al/Cu)
#AL250-48
Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.
- High conductivity aluminum tubing and corrosive resistant tin-plated finish
- Die color-coded identification
- Dual rated for both copper and aluminum conductors
- UL listed to 35kV when properly installed to cable manufacturer’s specifications.
- UL/cULus listed and rated for B/C class wire
Product Information
| Voltage Rating | 35kV |
|---|---|
| Material | Aluminum |
| Finish | Tin Plated |
| GTIN | 662381030122 |
| UPC | 662381030122 |
| EAN | 0662381030122 |
| UNSPSC | 39121405 |
| Ul Standard | UL 486A-486B |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Aluminum, Copper |
| Tang Thickness | 0.32 |
| Tang Length | 1.31 |
| Wire Range | 250 MCM |
| Assortment | Aluminum Compression Terminations |
| Expanded Wire Range | 250 MCM – 1 AWG |
| Die Color Code | Red |
| Mounting Bolt Size | 1/2 |
| Mounting Hole Diameter | 0.51 |
| Barrel Length | 1.5 |
