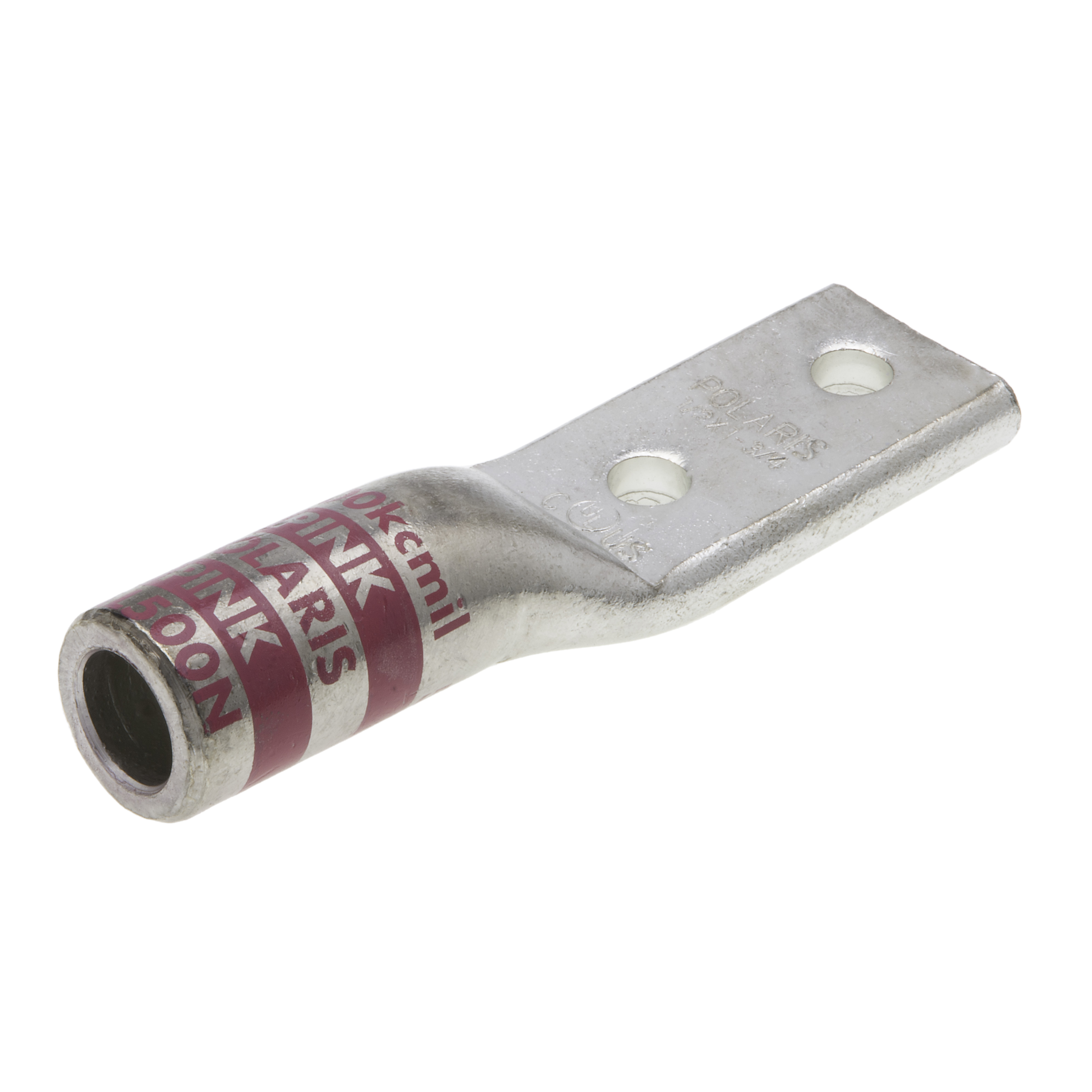

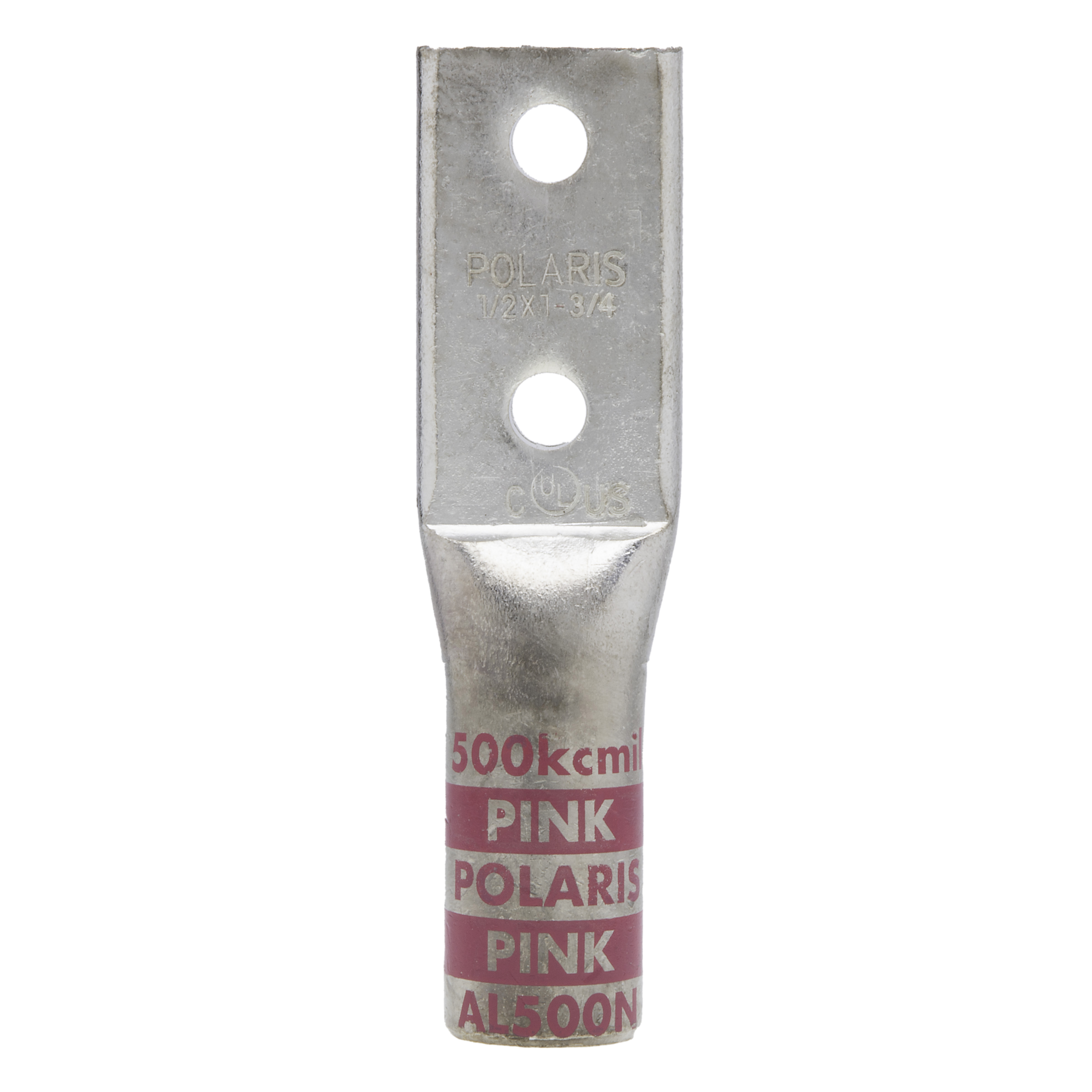

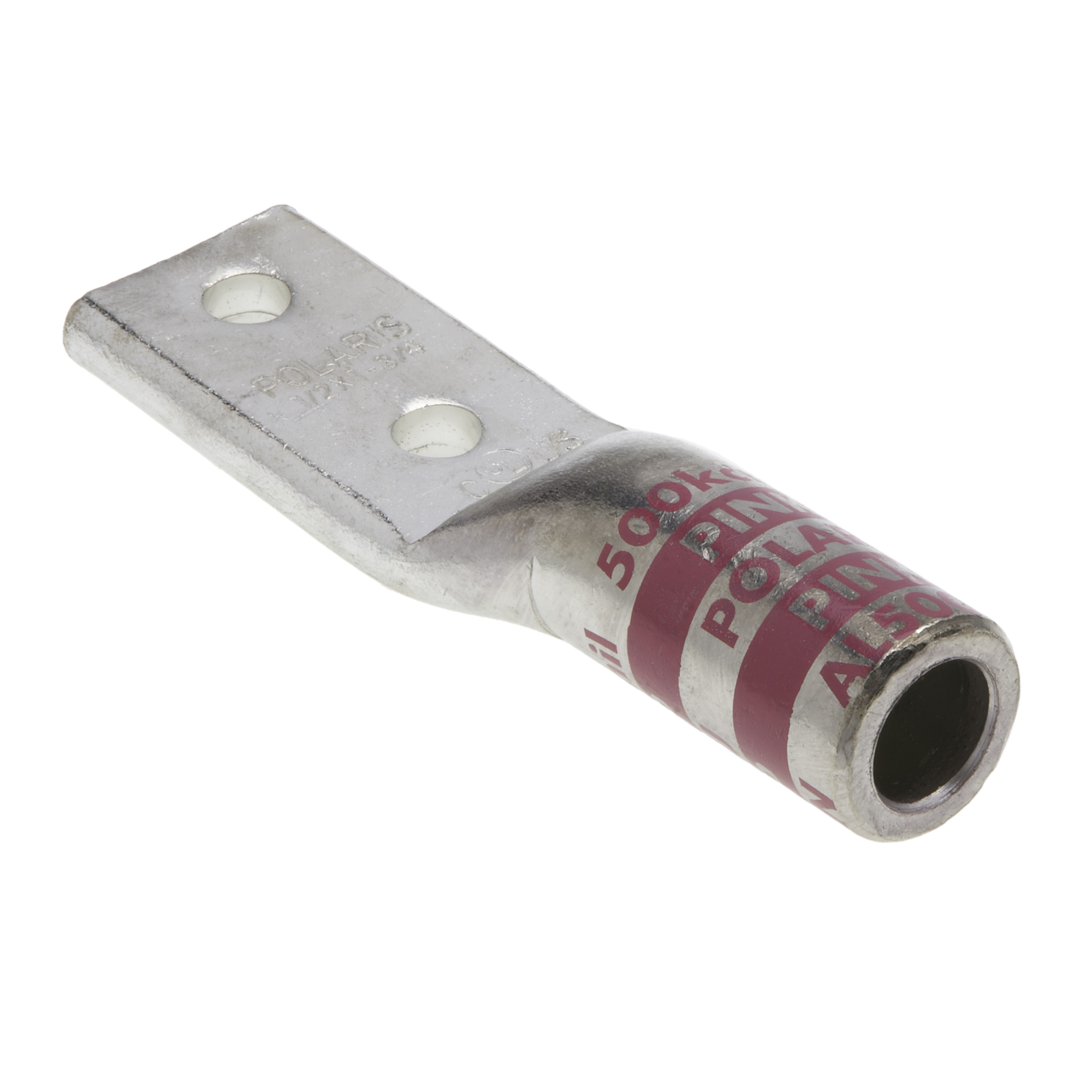

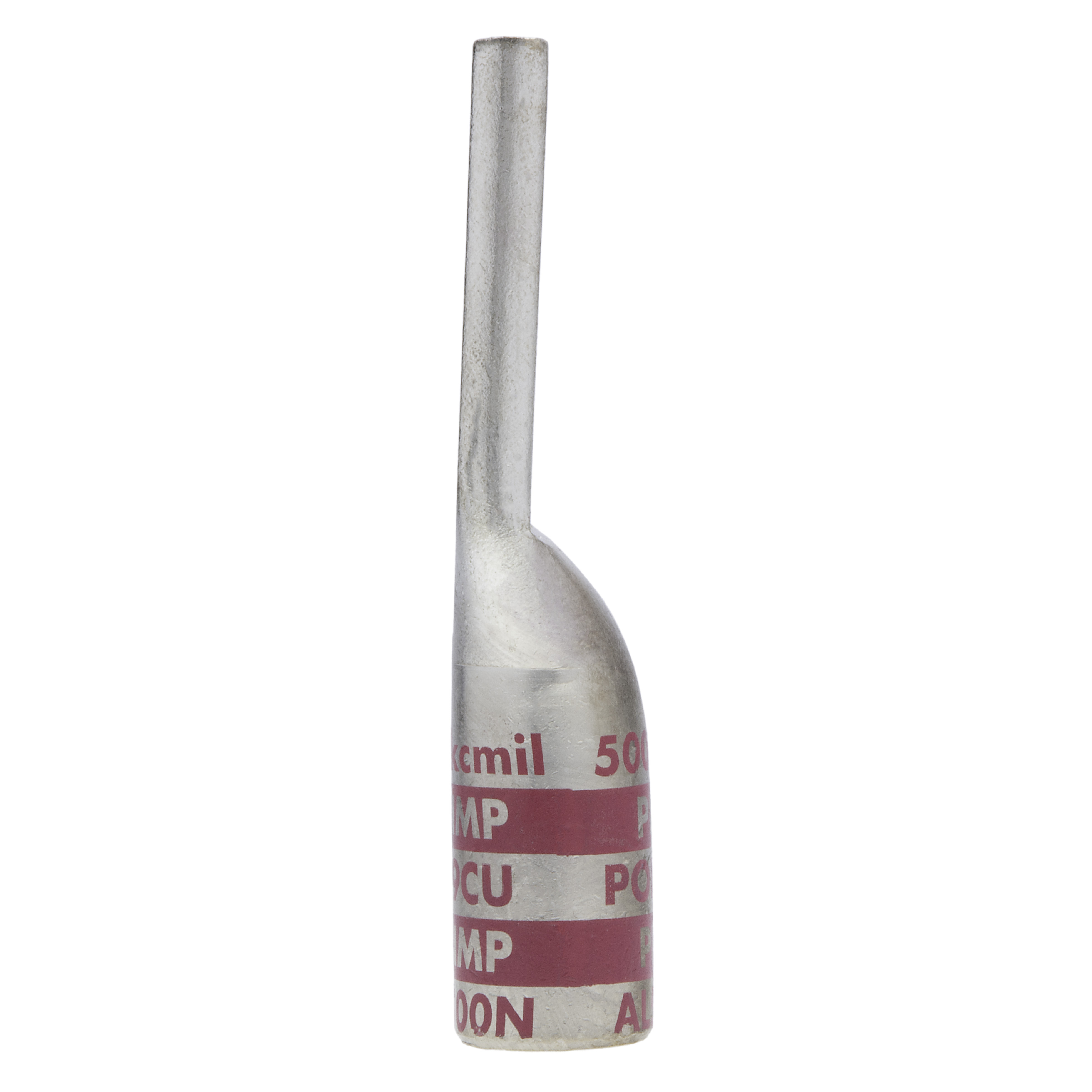

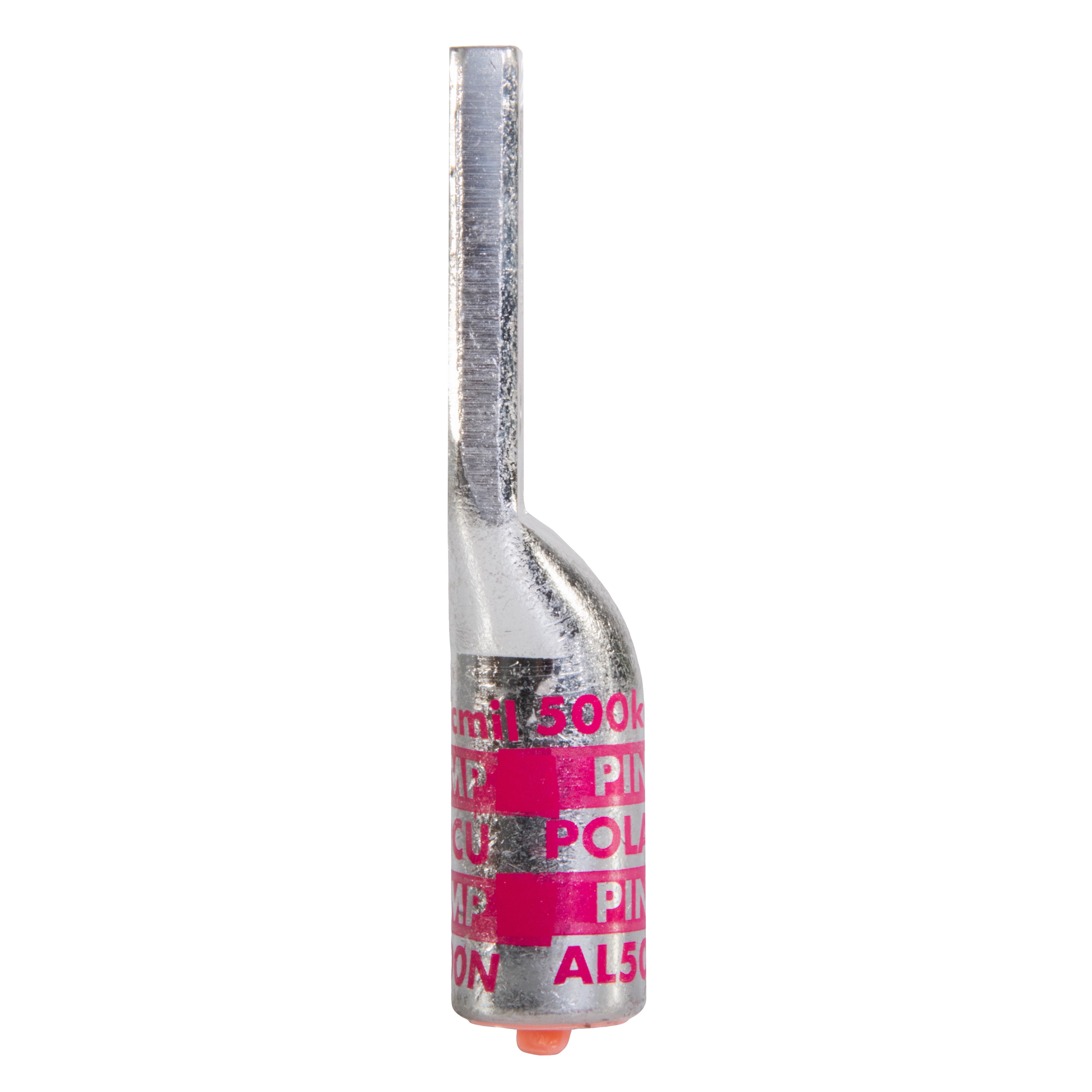

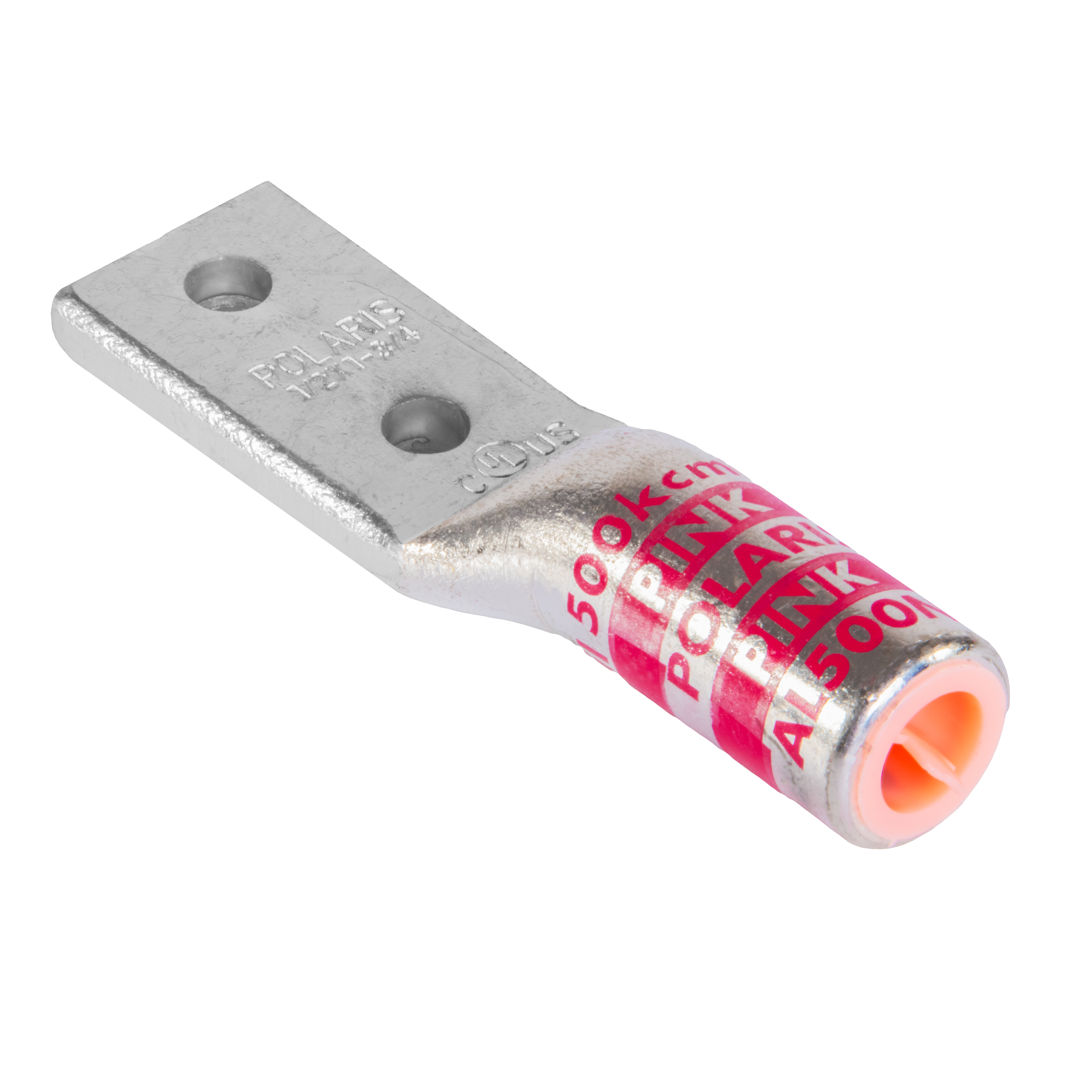

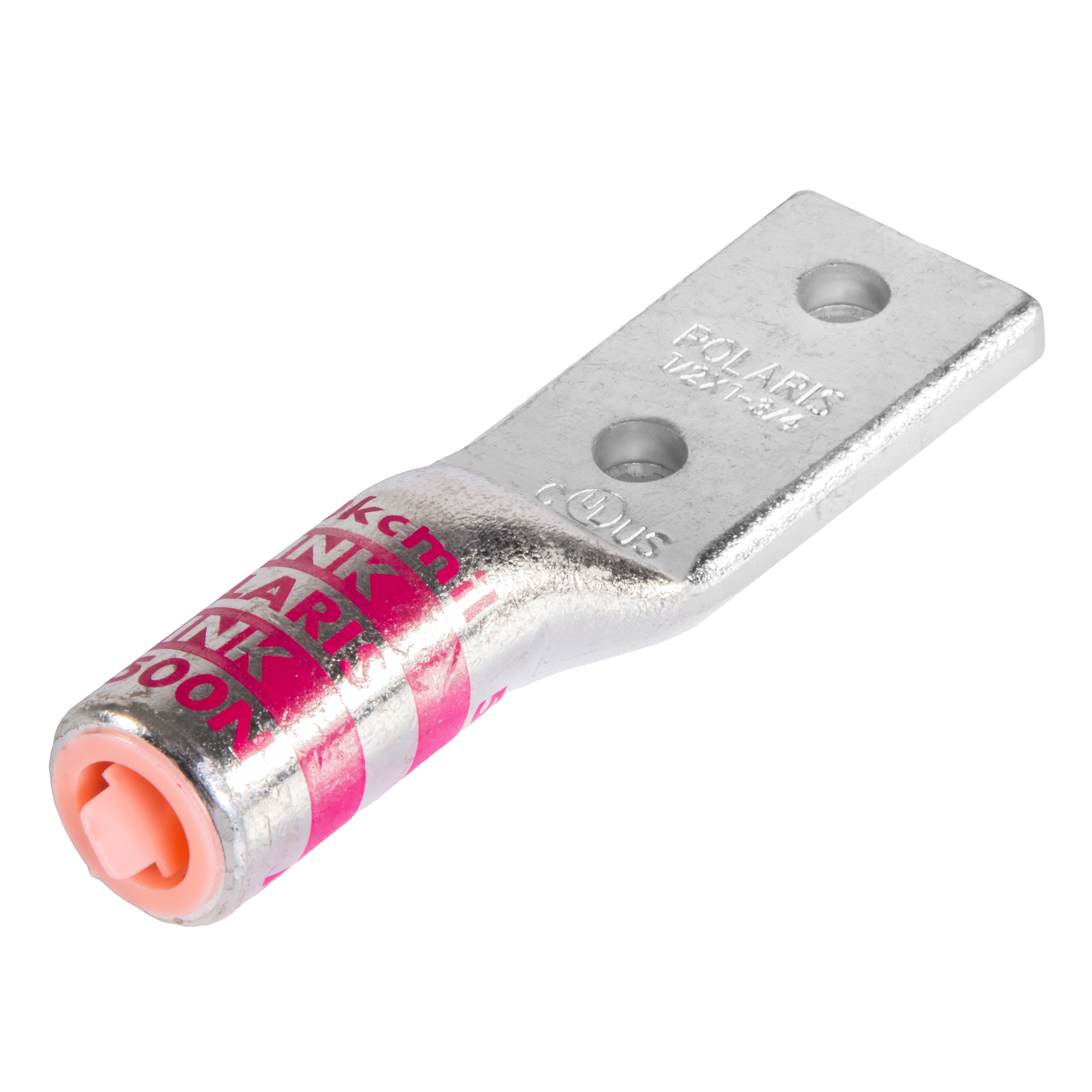

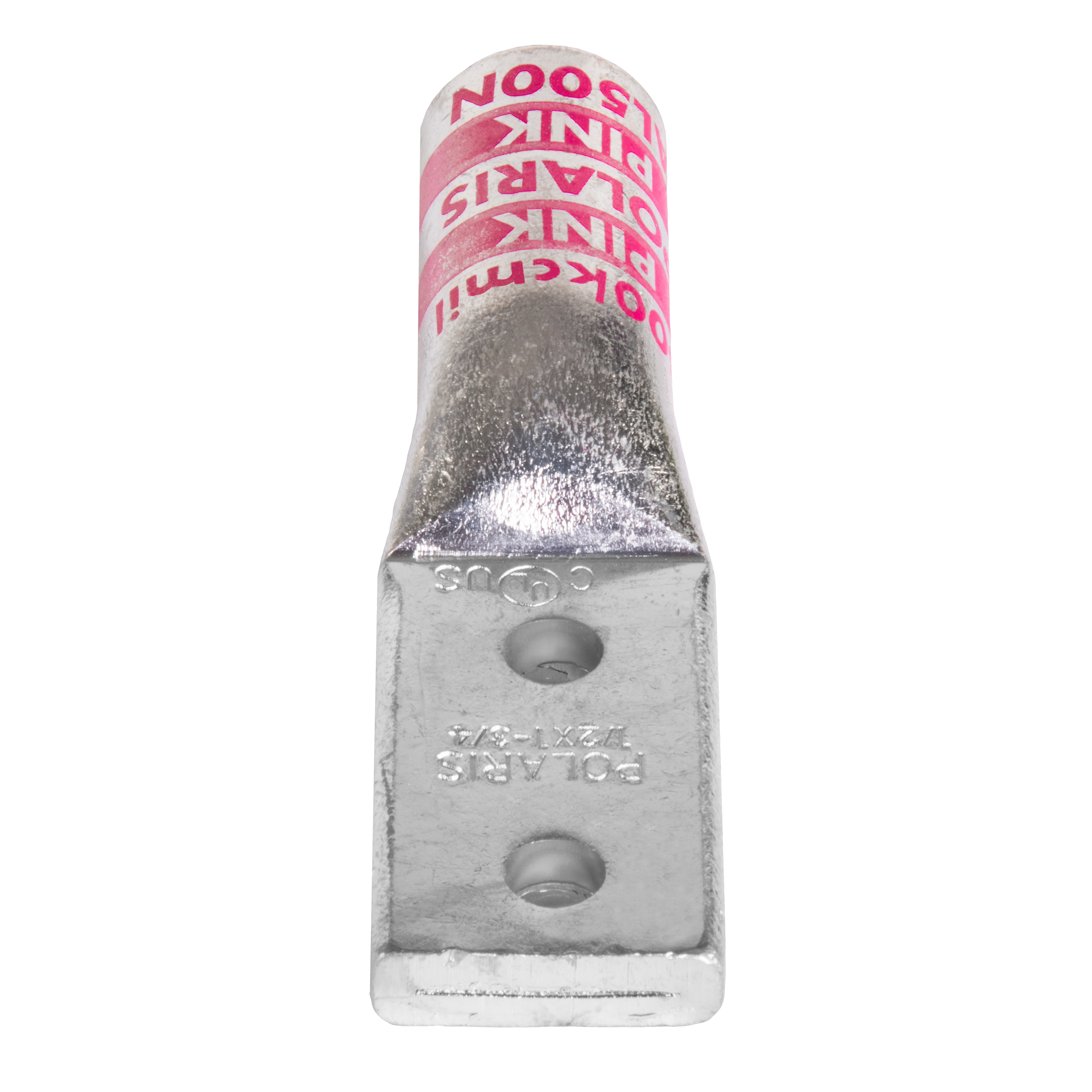

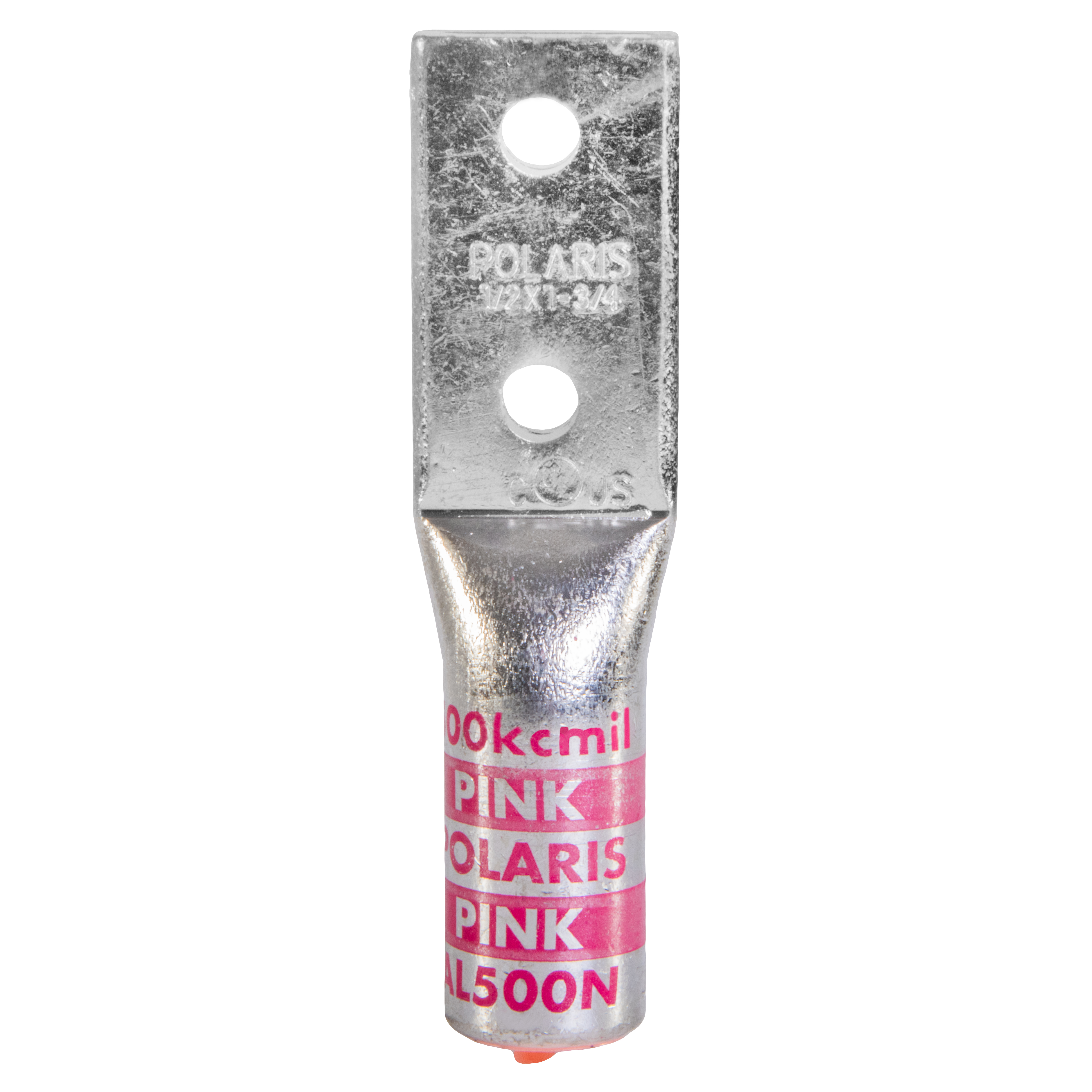

Polaris AL500N 500 Alum Compression Lug, 1/2 Bolt Size 2 Hole (Al/Cu)

#AL500N

Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.

  • High conductivity aluminum tubing and corrosive resistant tin-plated finish
  • Die color-coded identification
  • Dual rated for both copper and aluminum conductors
  • UL listed to 35kV when properly installed to cable manufacturer’s specifications.
  • UL/cULus listed and rated for B/C class wire

Product Information

Die Color Code Pink
Assortment Aluminum Compression Terminations
Finish Tin Plated
Mounting-bolt-size-in 1/2
Ul Standard UL 486A-486B
Material Aluminum
Barrel Length 2.5000
Tang-thickness-in 0.47
Tang Length 3.12
Voltage Rating 35kV
Conductor Type Copper,Aluminum
Expanded Wire Range 500 MCM – 250 MCM
Wire Cable Class Class B,Class C
UNSPSC 39121405
Wire Range 500 MCM
EAN/UCC-13 0662381031082
GTIN 662381031082
Prop 65 Flag Yes
UPC 662381031082

Resources

Documents

  • POL_Compression_CMP_CatBro_DIGITAL.pdf Download
  • POL_TermLugs_CMP_ProdSheet_DIGITAL.pdf Download
  • POL_AL-N-SERIES_CMP_ProDraw.pdf Download
