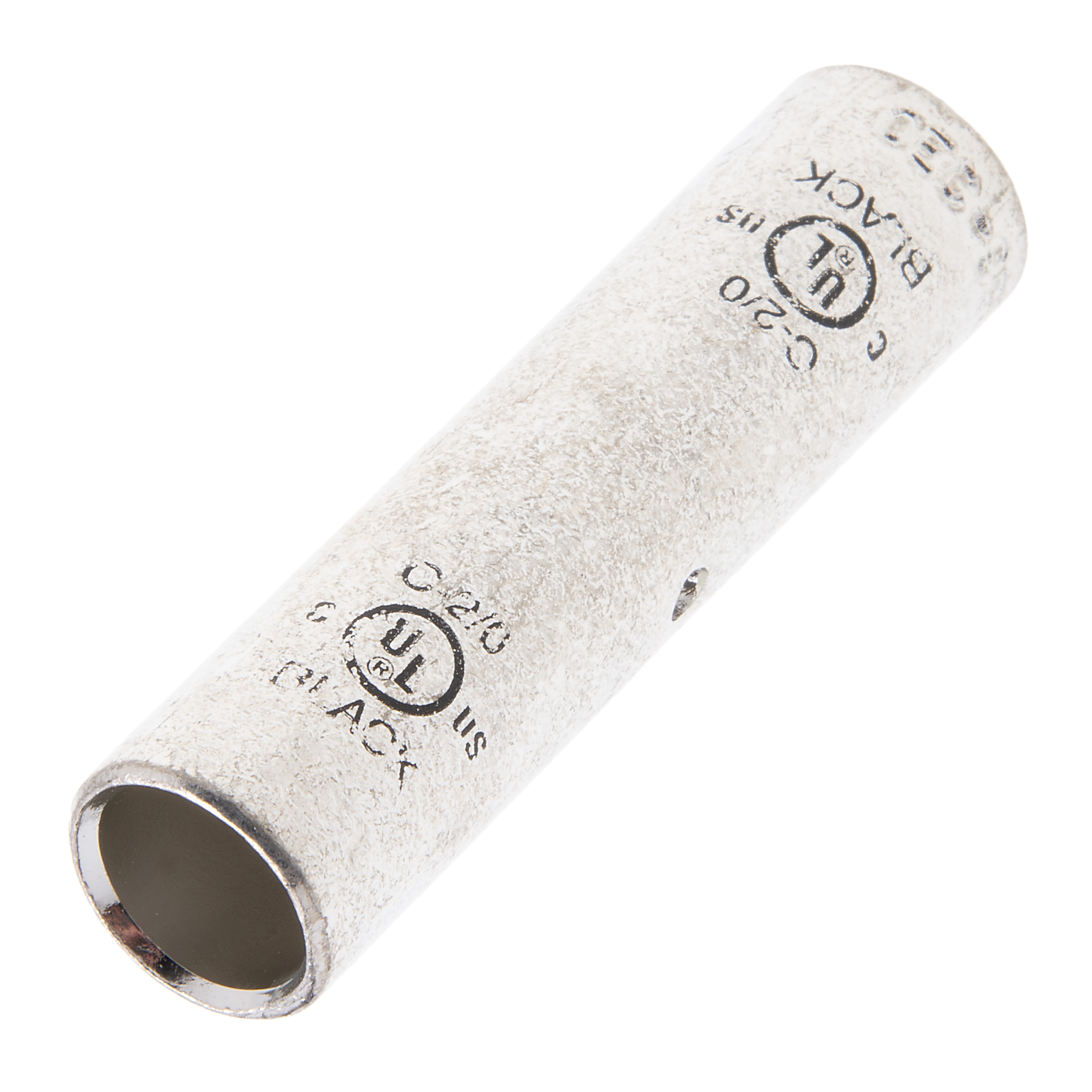

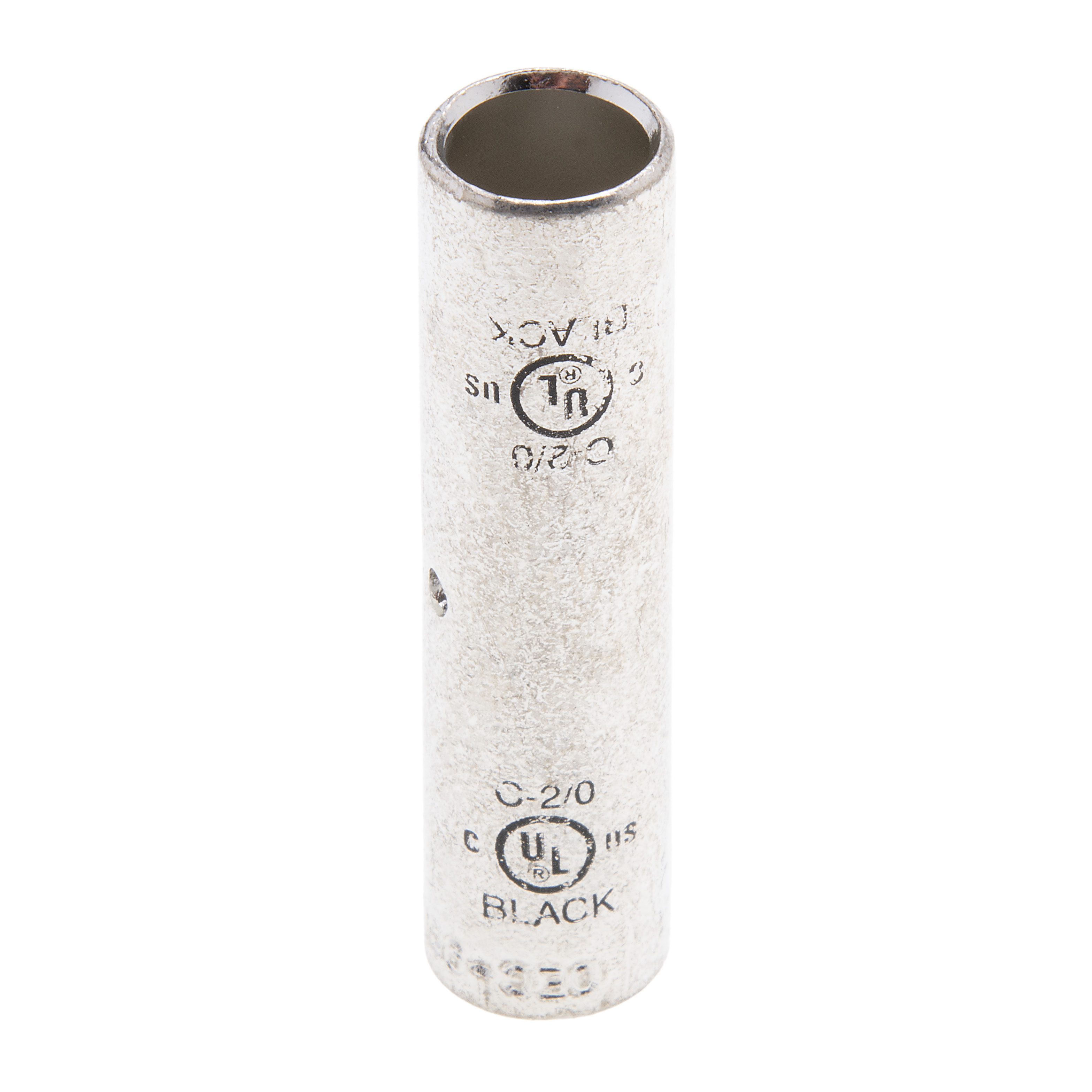

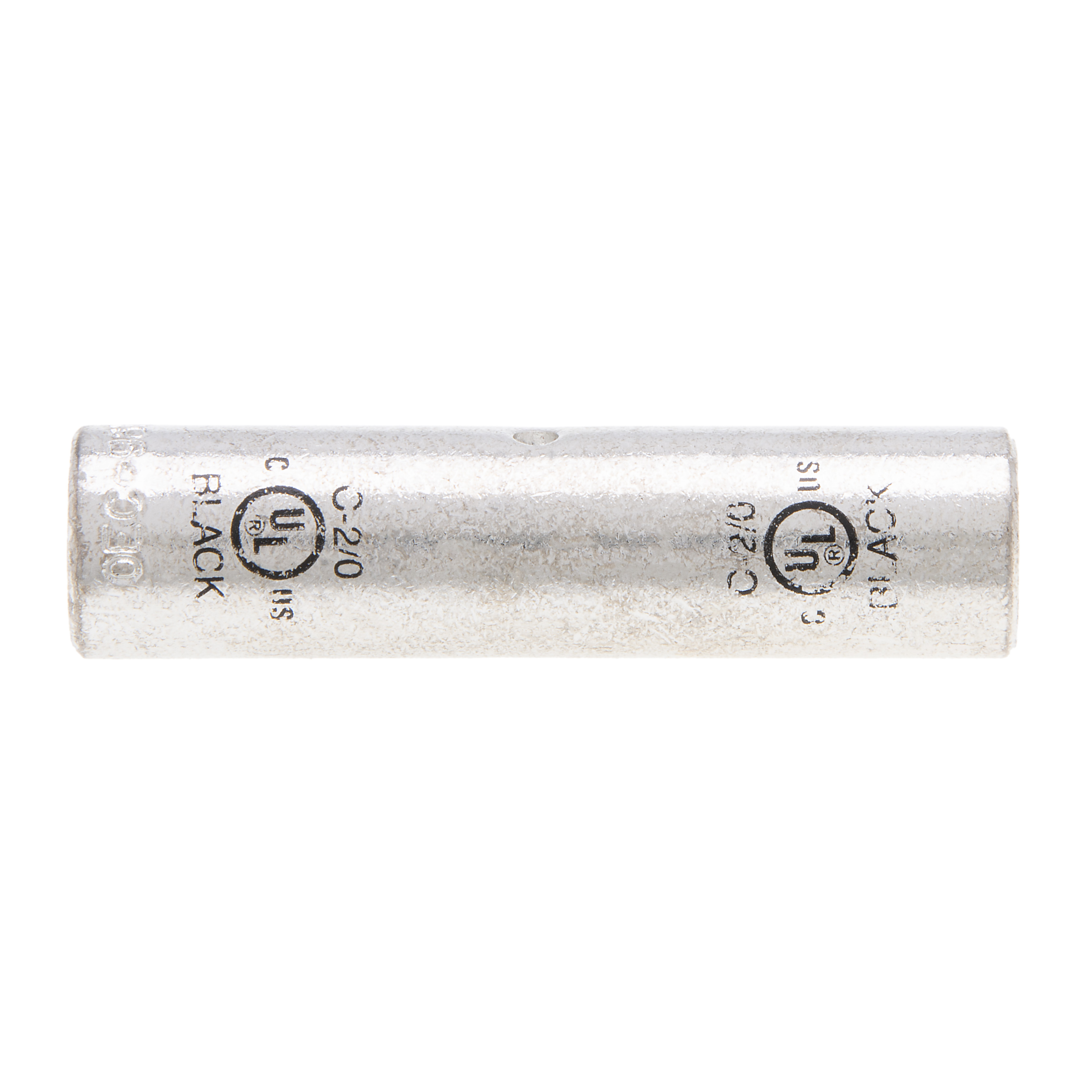

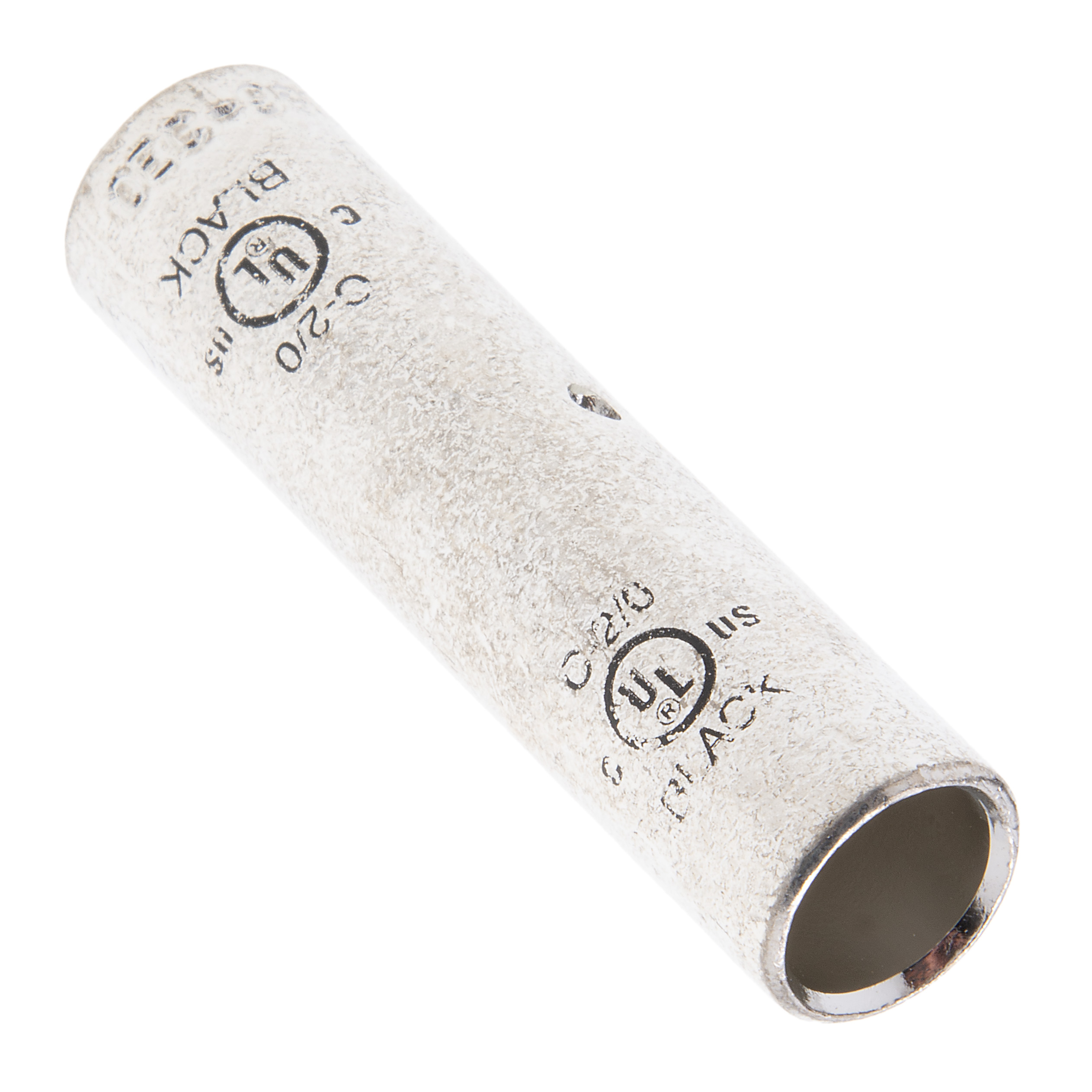

Polaris C-2/0 Tinned Copper Splice- Long Barrel, 2/0 Awg
#C-2/0
Splicing conductors are the professional’s choice for making quick in-line connections and repairing damaged wiring. Use POLARIS splice connectors for bonding solid or fine stranded UL-listed wires in harsh environments.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Serrations indicate proper crimp locations
- Die cast color-coded identification
- Pre-filled with oxide inhibitor and capped with color coded cap
- Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices
Product Information
| Die Color Code | Black |
|---|---|
| Assortment | Copper Compression Splices |
| Finish | Tin Plated |
| Ul Standard | UL 486A,UL 467 |
| Material | Copper |
| Barrel Length | 2.2500 |
| Voltage Rating | 600V |
| Conductor Type | Copper |
| Expanded Wire Range | 2/0 AWG – 4 AWG |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121449 |
| Wire Range | 2/0 AWG |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381037565 |
