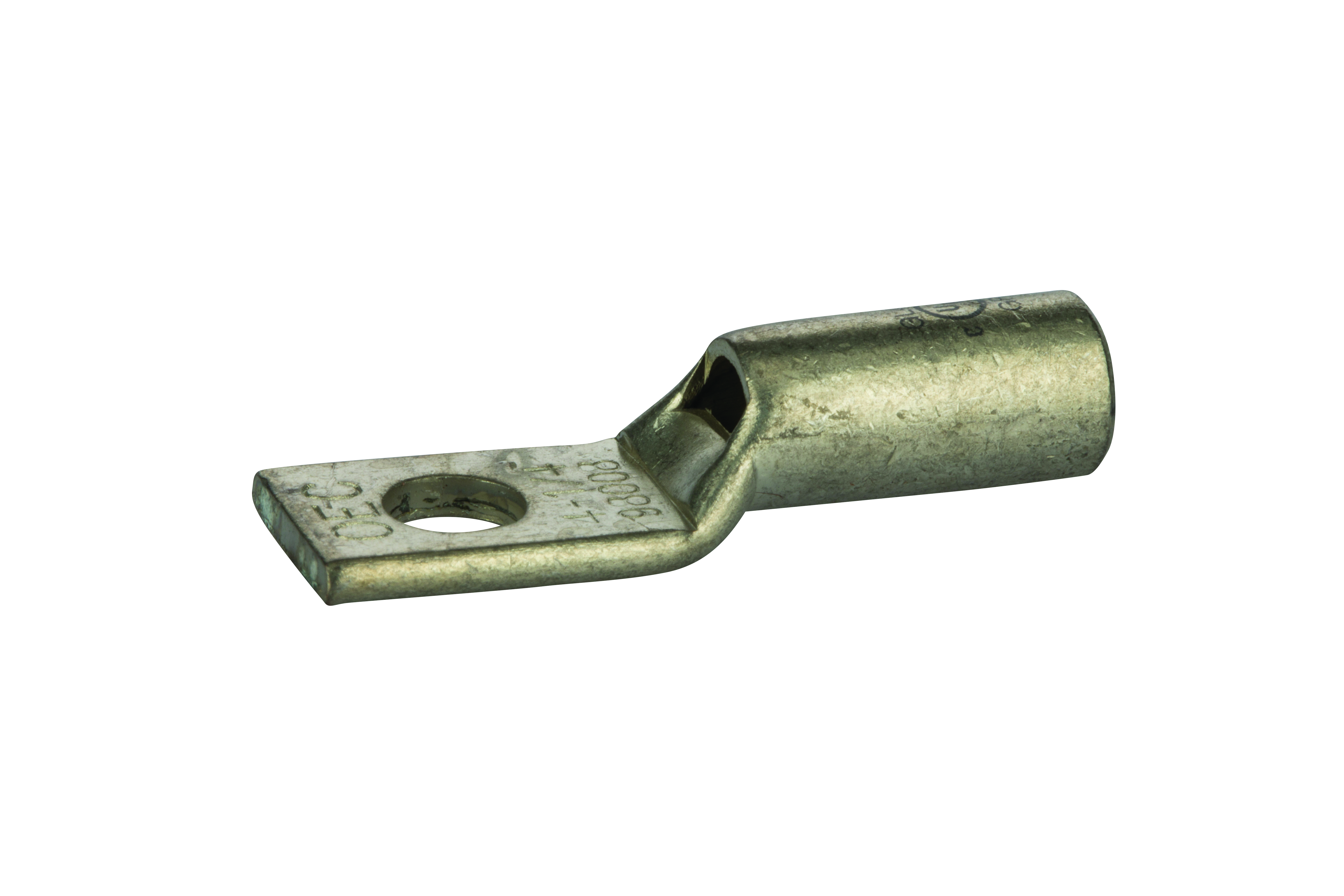

Polaris GL414-B CMP Lug 4 1/4 IN Bolt (2 EA)
#GL414-B
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Peep hole allows easy inspection of the termination
- Marked with die index and color coded
- Marked with die index and color coded
- UL listed to 35kV when properly installed to cable manufacturer’s specifications.
Product Information
| Die Color Code | Gray |
|---|---|
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Ul Standard | UL 486A,UL 467 |
| Finish | Tin Plated |
| Barrel Length | 0.7100 |
| Mounting-bolt-size-in | 1/4 |
| Tang Length | 0.67 |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Expanded Wire Range | 4 AWG – 6 AWG |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121405 |
| Wire Range | 4 AWG |
| Prop 65 Flag | Yes |
| UPC | 662381003928 |
