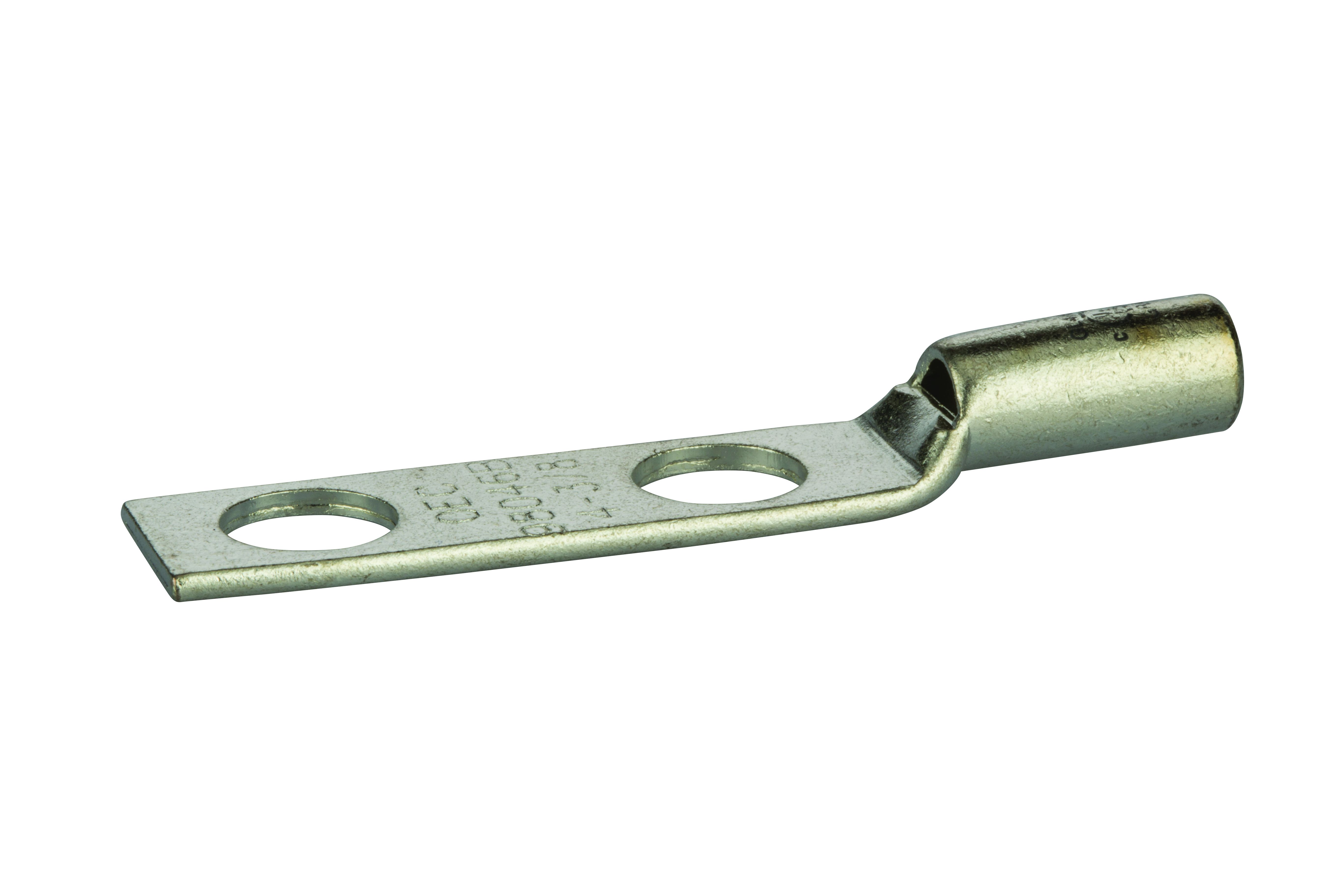

Polaris GL4N-38 CMP Lug Cu Short 4 AWG 3/8 Bolt 1 Spc
#GL4N-38
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Peep hole allows easy inspection of the termination
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- Easy Inspection: Peephole allows easy inspection of the termination to assure complete cable insertion
Product Information
| Voltage Rating | 35kV |
|---|---|
| Material | Copper |
| Ul Standard | UL 486A-486B, UL467 |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper |
| Tang Length | 1.81 |
| Assortment | Copper Compression Terminations |
| Expanded Wire Range | 4 AWG – 6 AWG |
| Die Color Code | Gray |
| Barrel Length | 1 |
| UNSPSC | 39121405 |
| Wire Range | 4 AWG |
| EAN/UCC-13 | 0662381338044 |
| GTIN | 662381338044 |
| UPC | 662381338044 |
