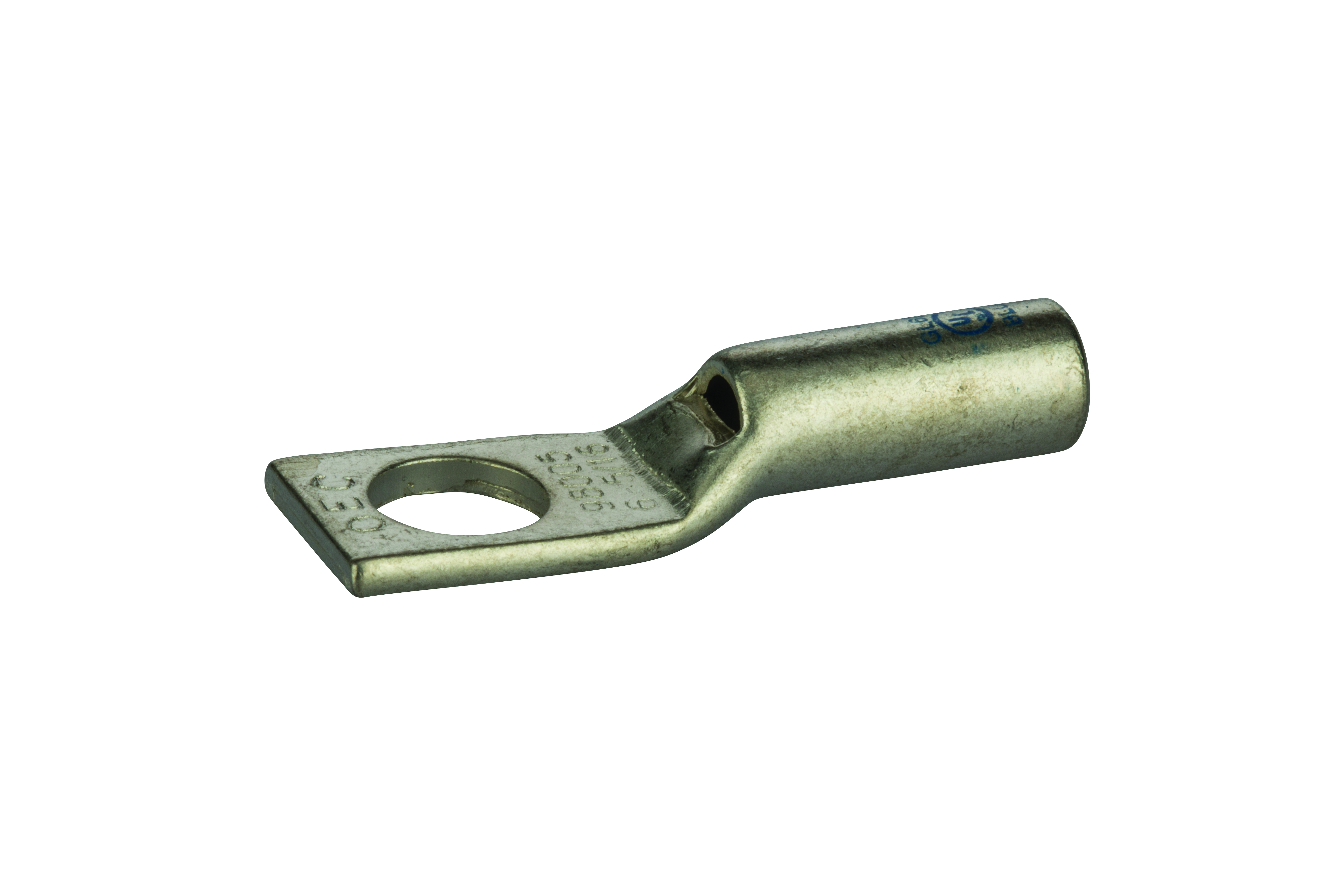

Polaris GL656-B CMP Lug 6 5/16 IN Bolt (2 EA)

Name: Polaris GL656-B CMP Lug 6 5/16 IN Bolt (2 EA)
Brand: Polaris
SKU: GL656-B

Compression Termination

#GL656-B

The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.

High conductivity copper tubing and corrosion resistant tin-plated finish
Peep hole allows easy inspection of the termination
Marked with die index and color coded
Flex rated for use with K, H, G, I, M and DLO cable
UL listed to 35kV when properly installed to cable manufacturer’s specifications.

Product Information

Voltage Rating	35kV
Material	Copper
Finish	Tin Plated
Pack Qty	2
UPC	662381003911
UNSPSC	39121405
Ul Standard	UL 486A, UL 467
Wire Cable Class	Class B, Class C
Conductor Type	Copper
Wire Range	6 AWG
Assortment	Copper Compression Terminations
Expanded Wire Range	6 AWG – 8 AWG
Die Color Code	Blue
Mounting Hole Diameter	0.33
Barrel Length	0.079
