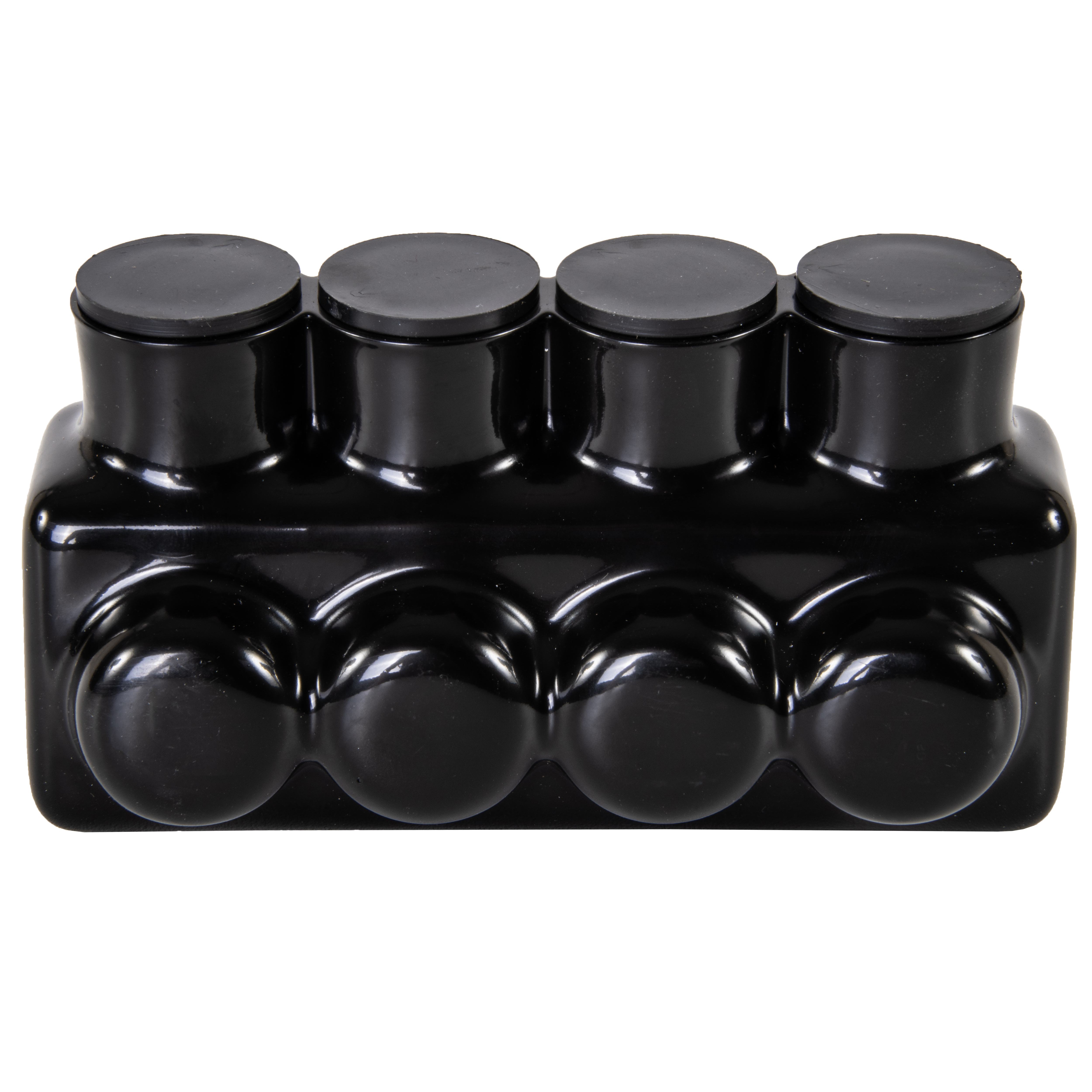

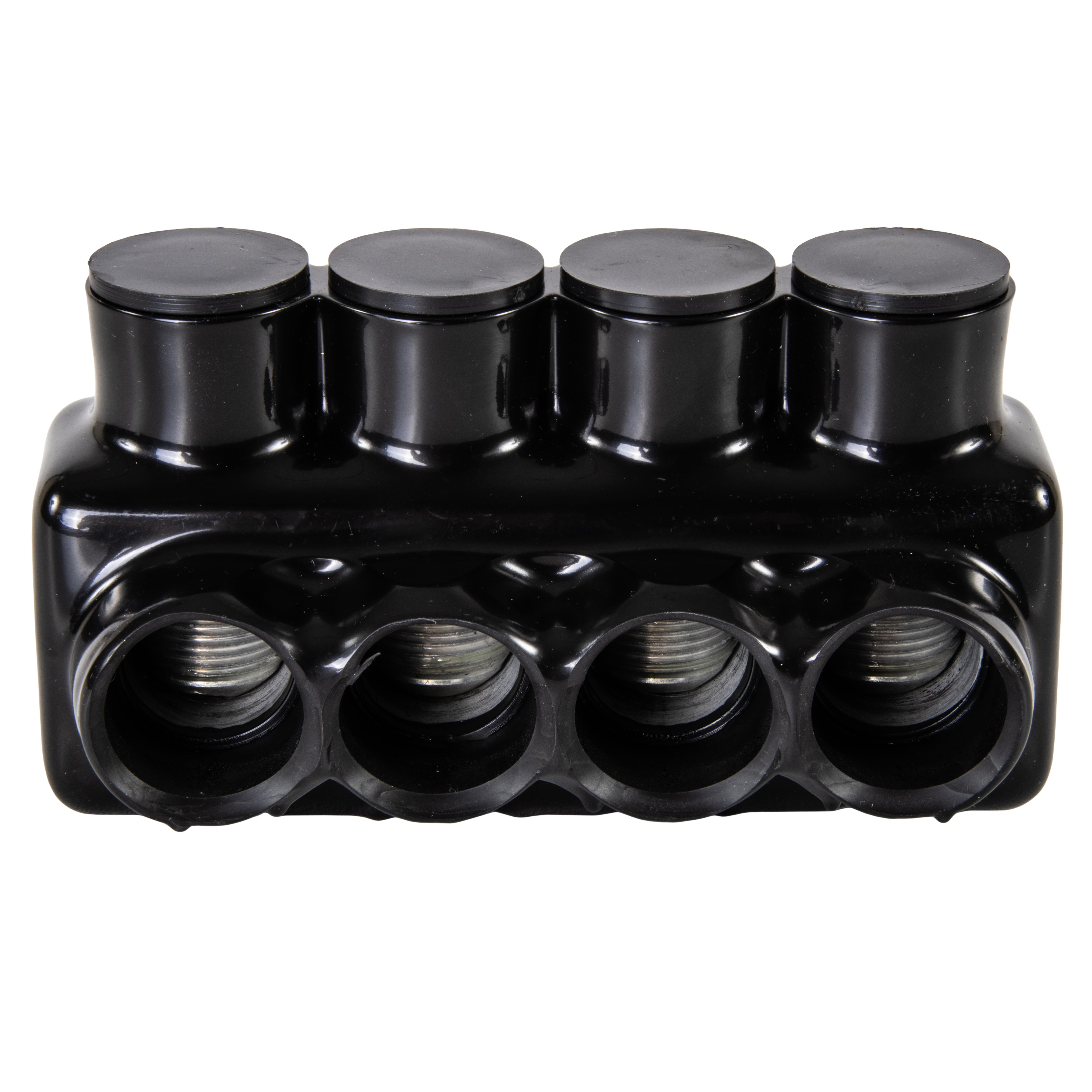

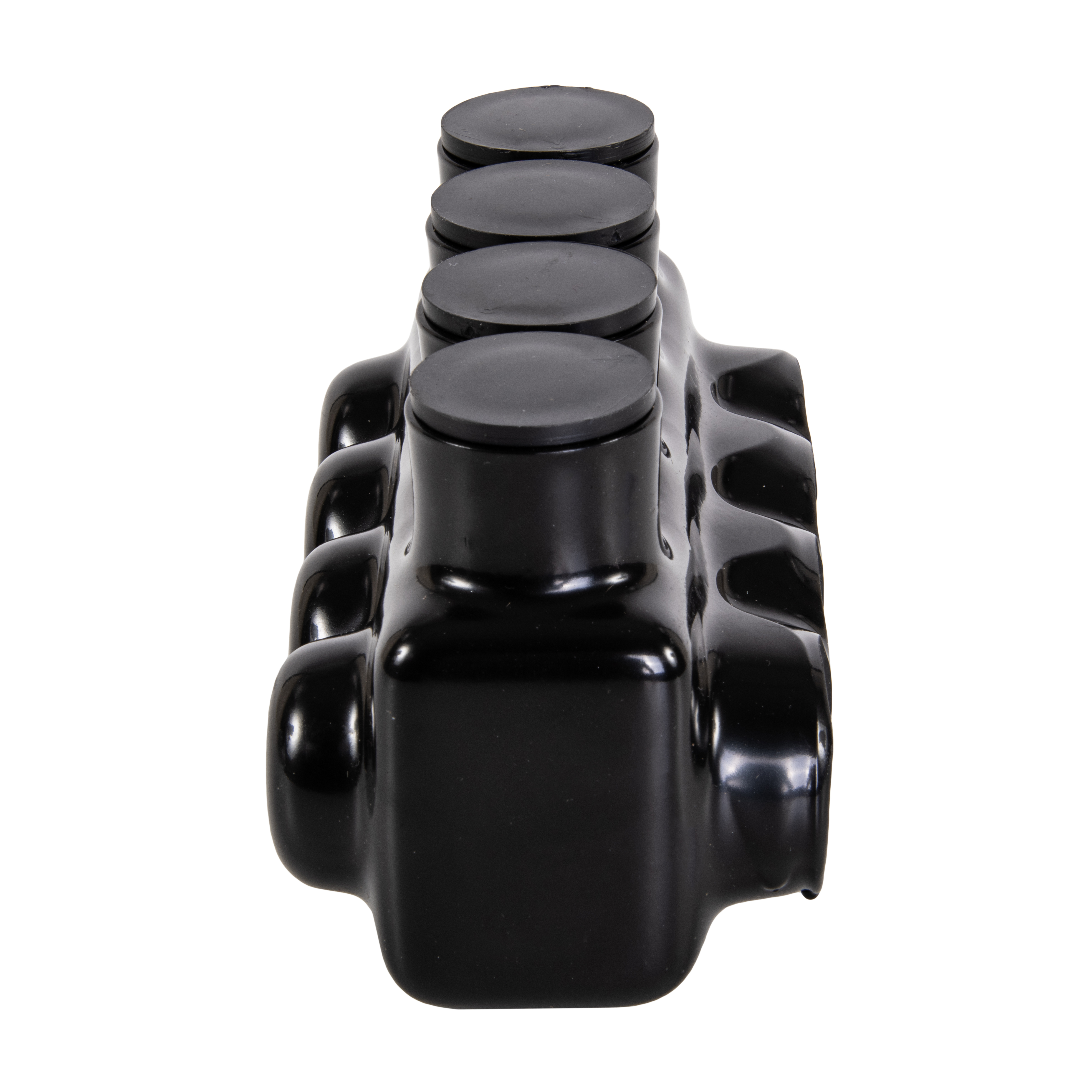

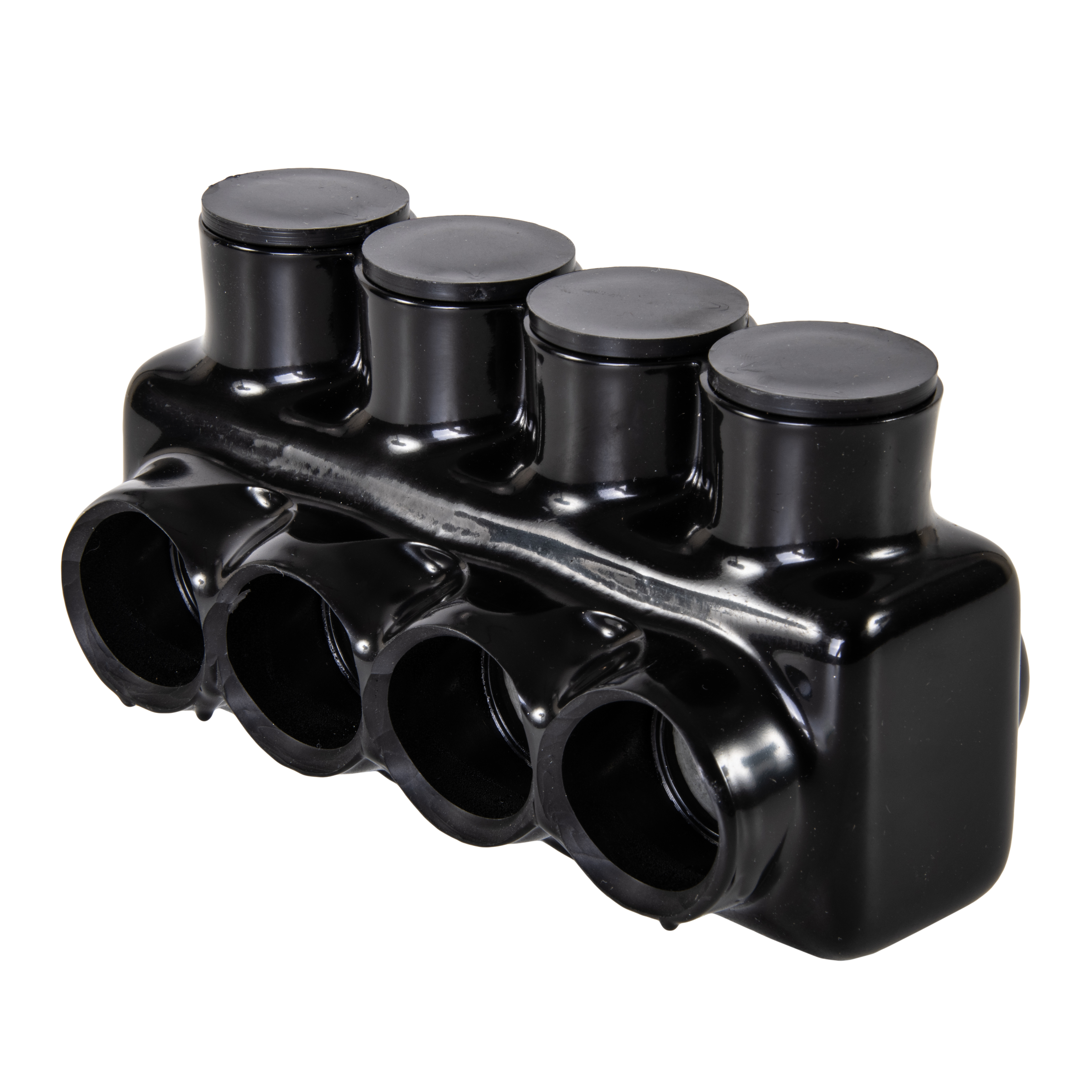

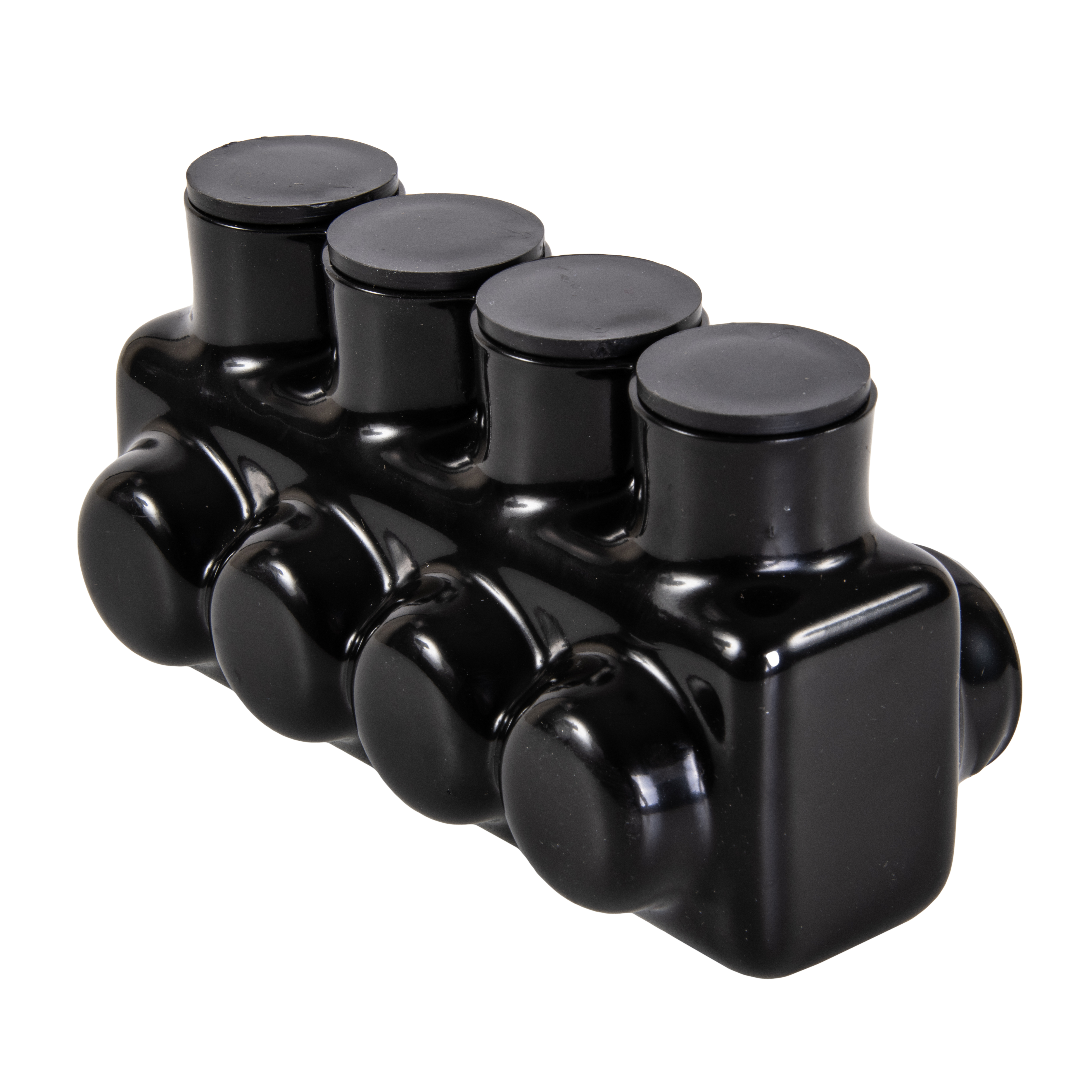

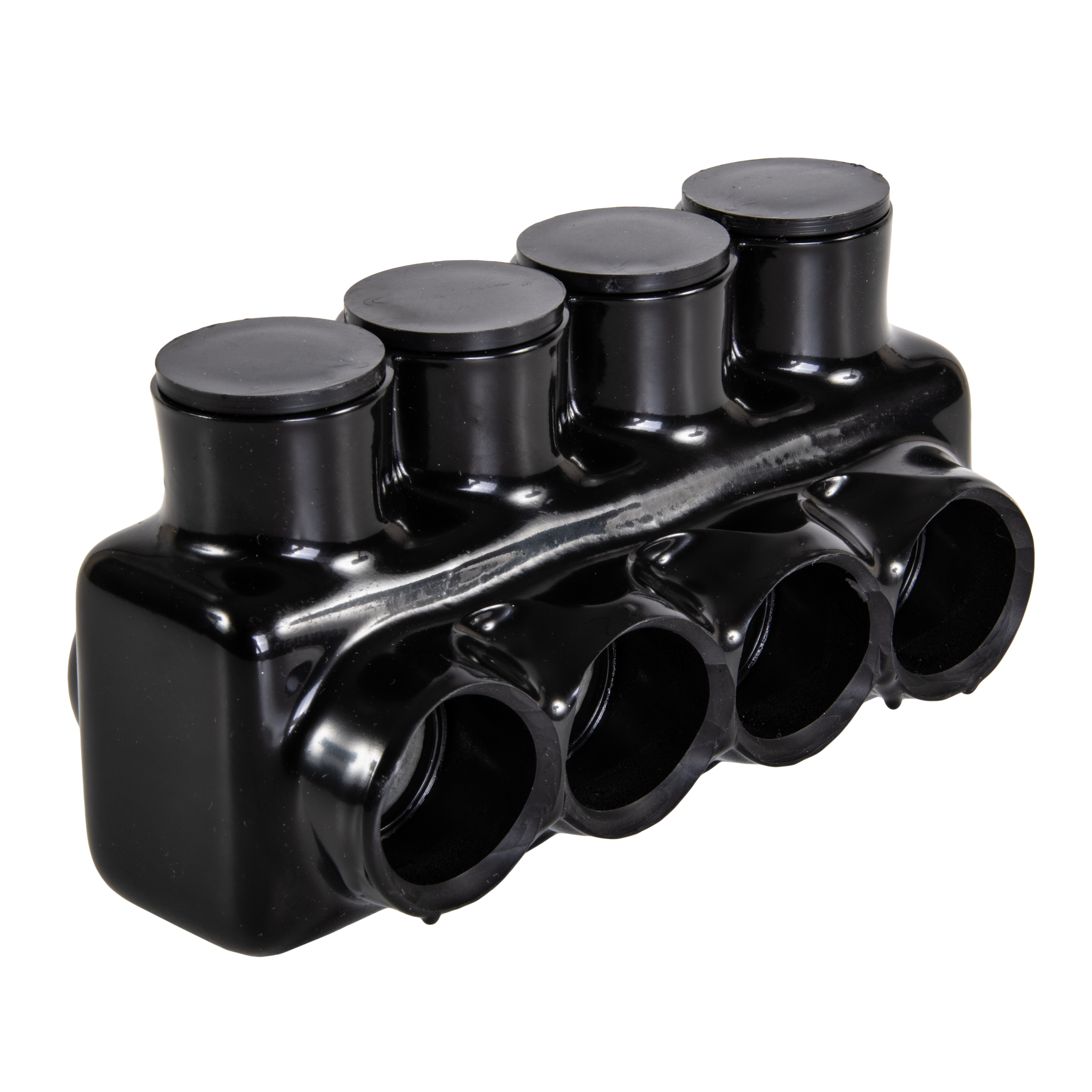

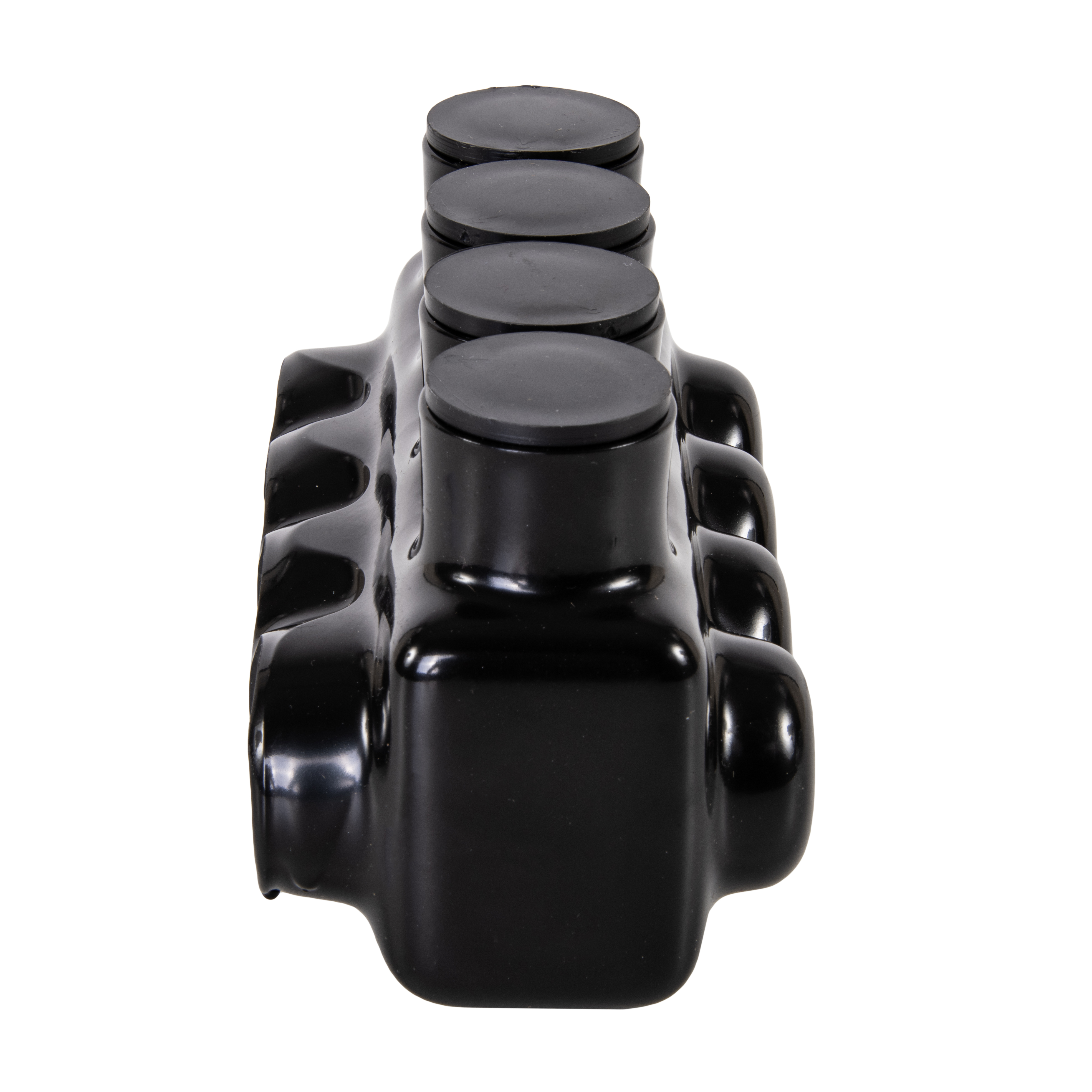

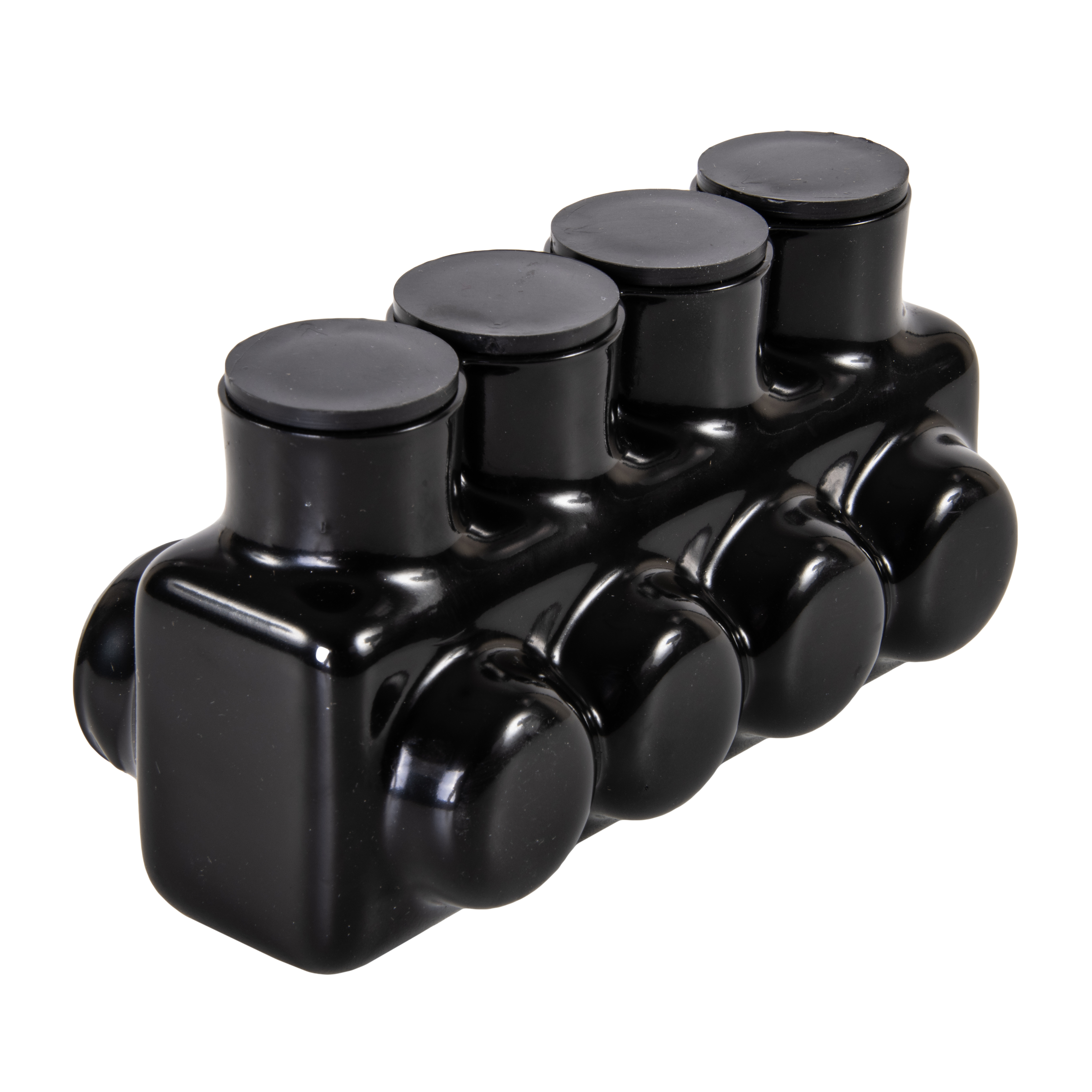

POLARIS IPL Multi-Tap4-Port 750 Black Connector SSE
#IPL750-4
4-Port Insulated Multi-Tap Black Connector for 750 MCM – 1/0 AWG. Single Sided Entry.
- Molded for precise fit for applications where reduced installation costs are desired. . Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Tough impervious plastisol allows connector to be used in harsh vibration prone conditions.
- Supplied with removable black access plugs over the hex screws to close the entry port not being utilized.
- Dual rated for Copper or Aluminum cables provides flexibility.
- Pre-Insulated eliminates the need for cover and taping which saves you both time and money.
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | Aluminum |
| Finish | Plastisol Insulated |
| Color | Black |
| Pack Qty | 2 |
| GTIN | 662381916020 |
| UPC | 662381916020 |
| EAN | 662381916020 |
| UNSPSC | 39121409 |
| Origin Country | US |
| Certifications | cULus, Meets NEC 230.46 Suitable for Line Side of Service |
| Ul Standard | UL 486A/B |
| Ul File No | E186991 |
| Wire Cable Class | Class B, Class C |
| Al Conductor Max Amp | 930 |
| Cu Conductor Max Amp | 1178 |
| Conductor Cu Size Range | 750 MCM – 1/0 AWG |
| Conductor Al Size Range | 750 MCM – 1/0 AWG |
| Conductor Type | Copper, Aluminum |
| Temp Rating | 75C, AL7CU |
| Conductors Count | 4 |
| Hex Wrench Size | 3/8 |
| Env Temp | Cold Temperature rated to -45C |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Max Torque | 550 |
