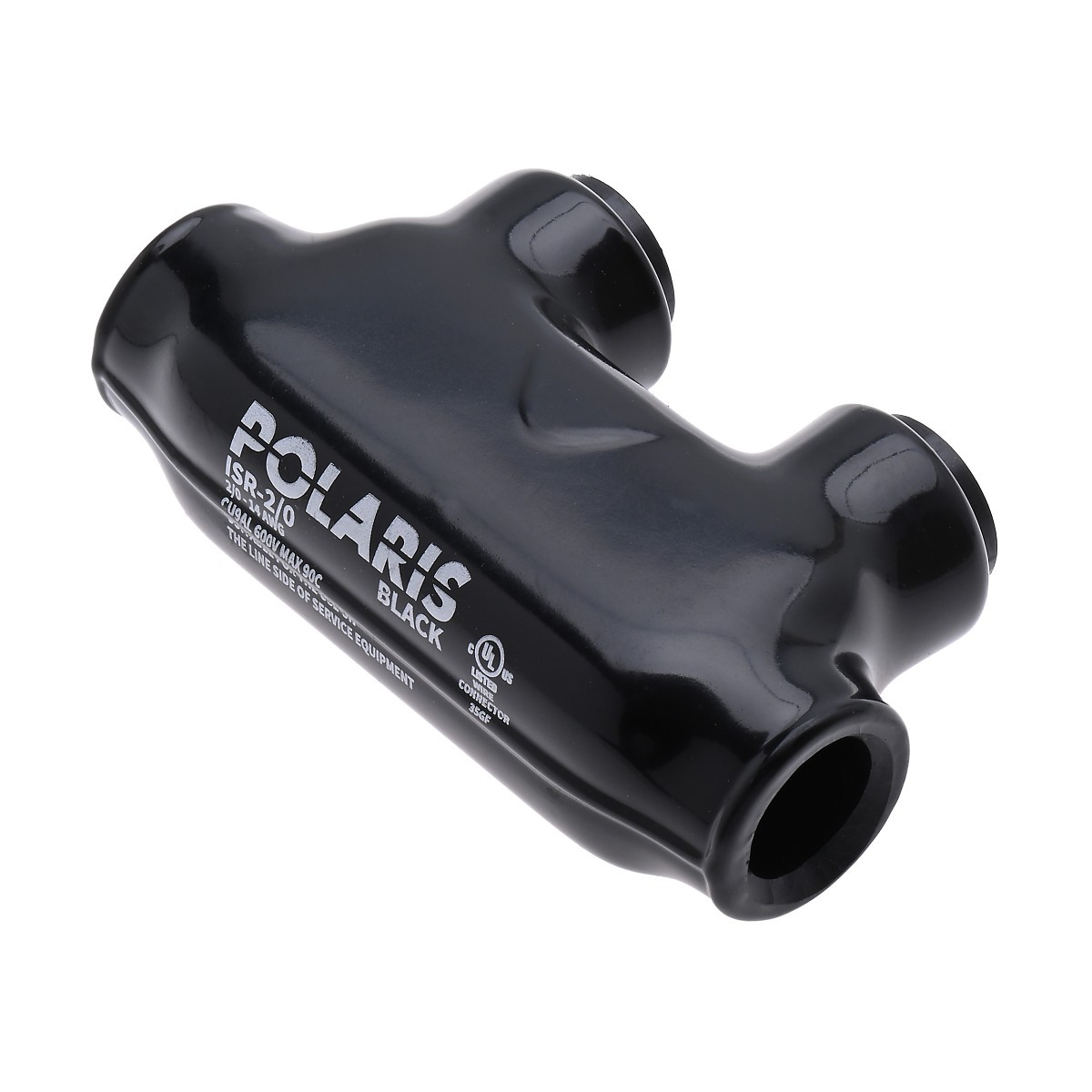

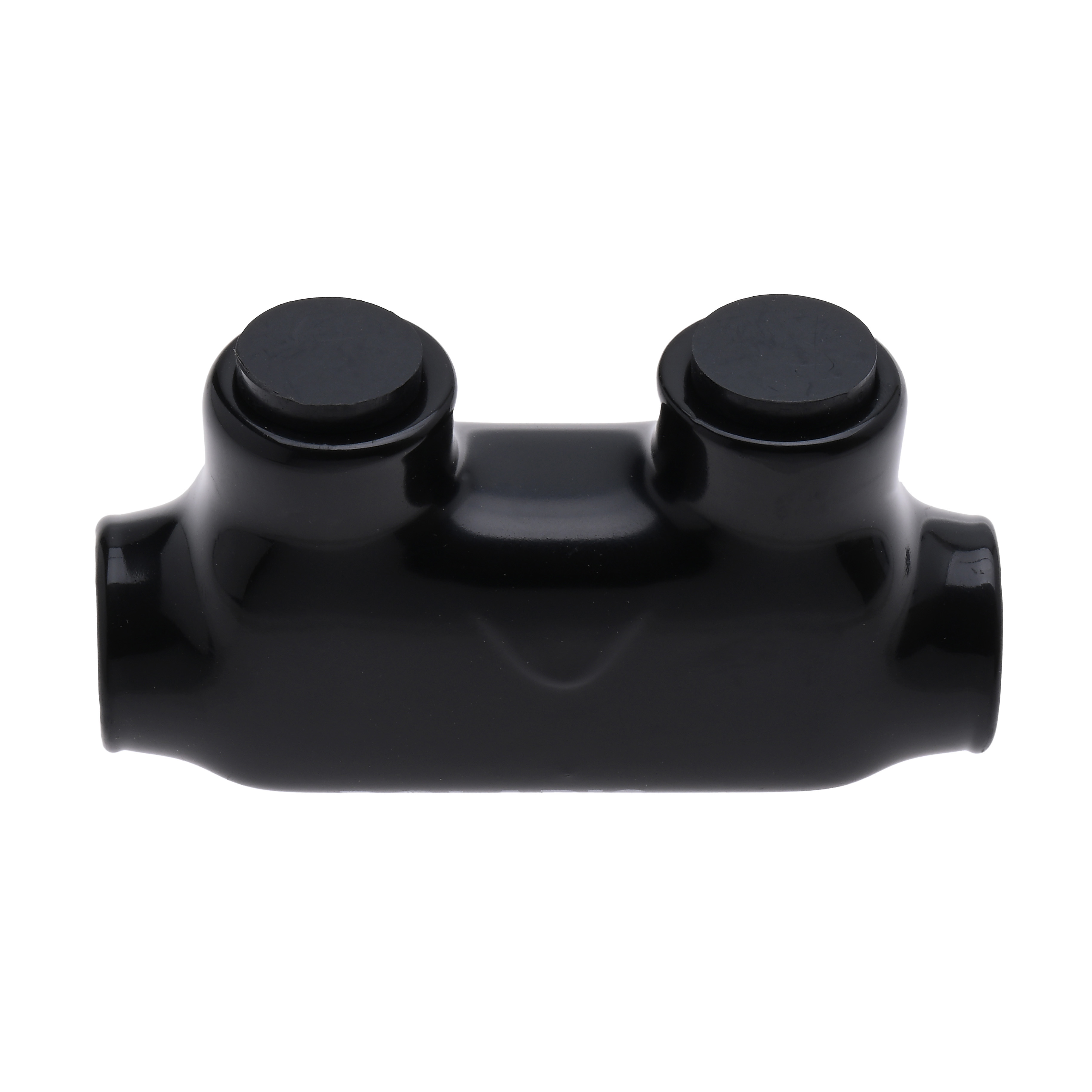

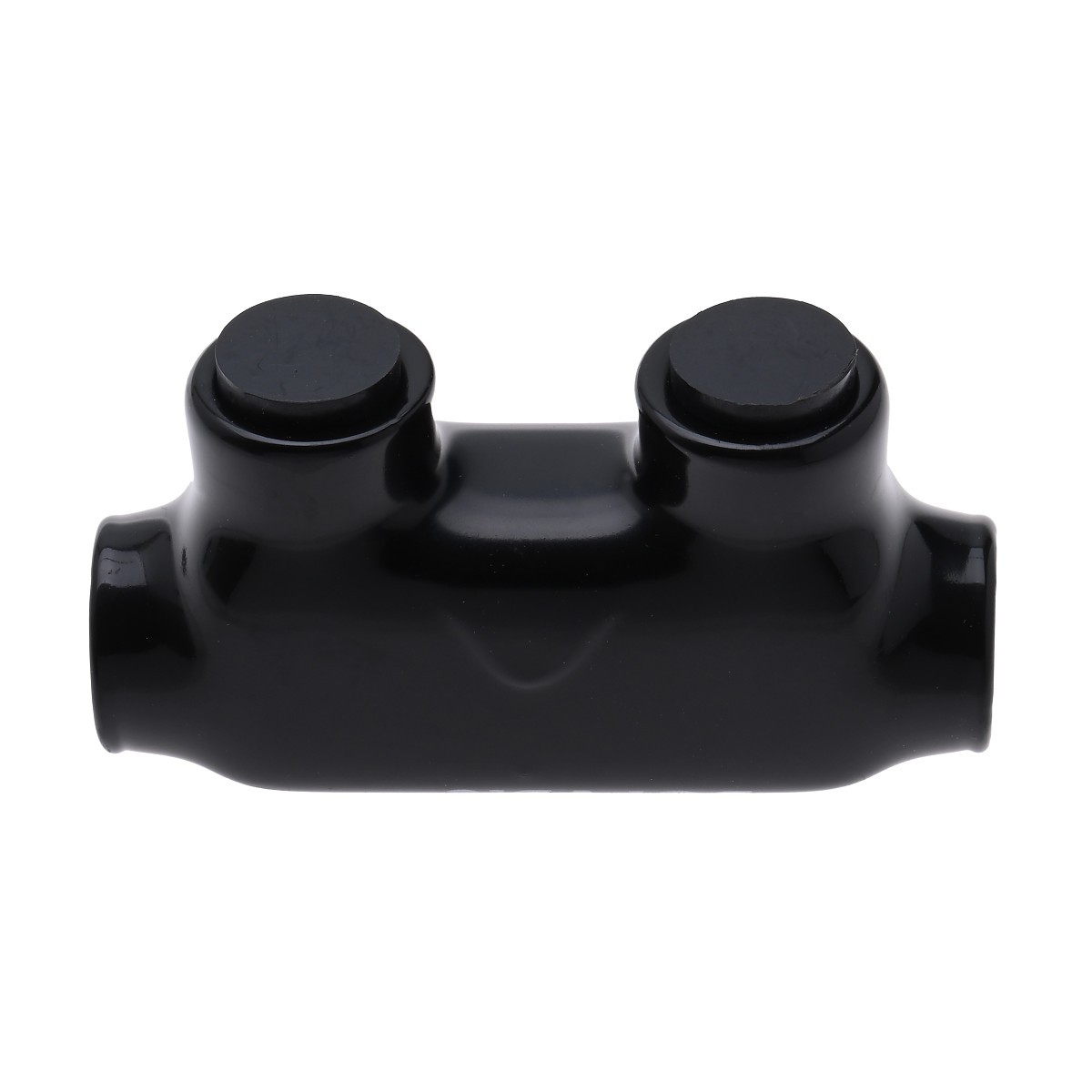

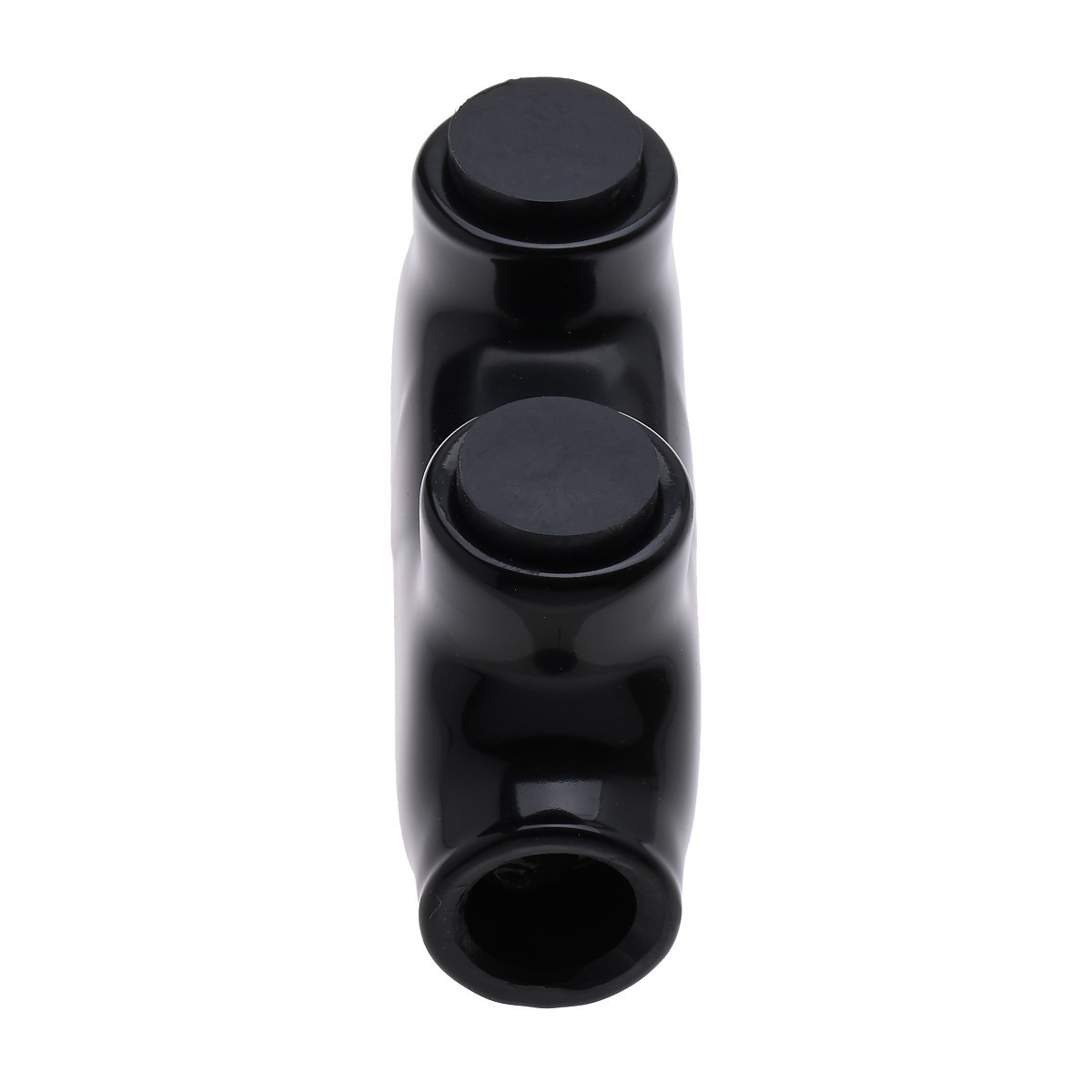

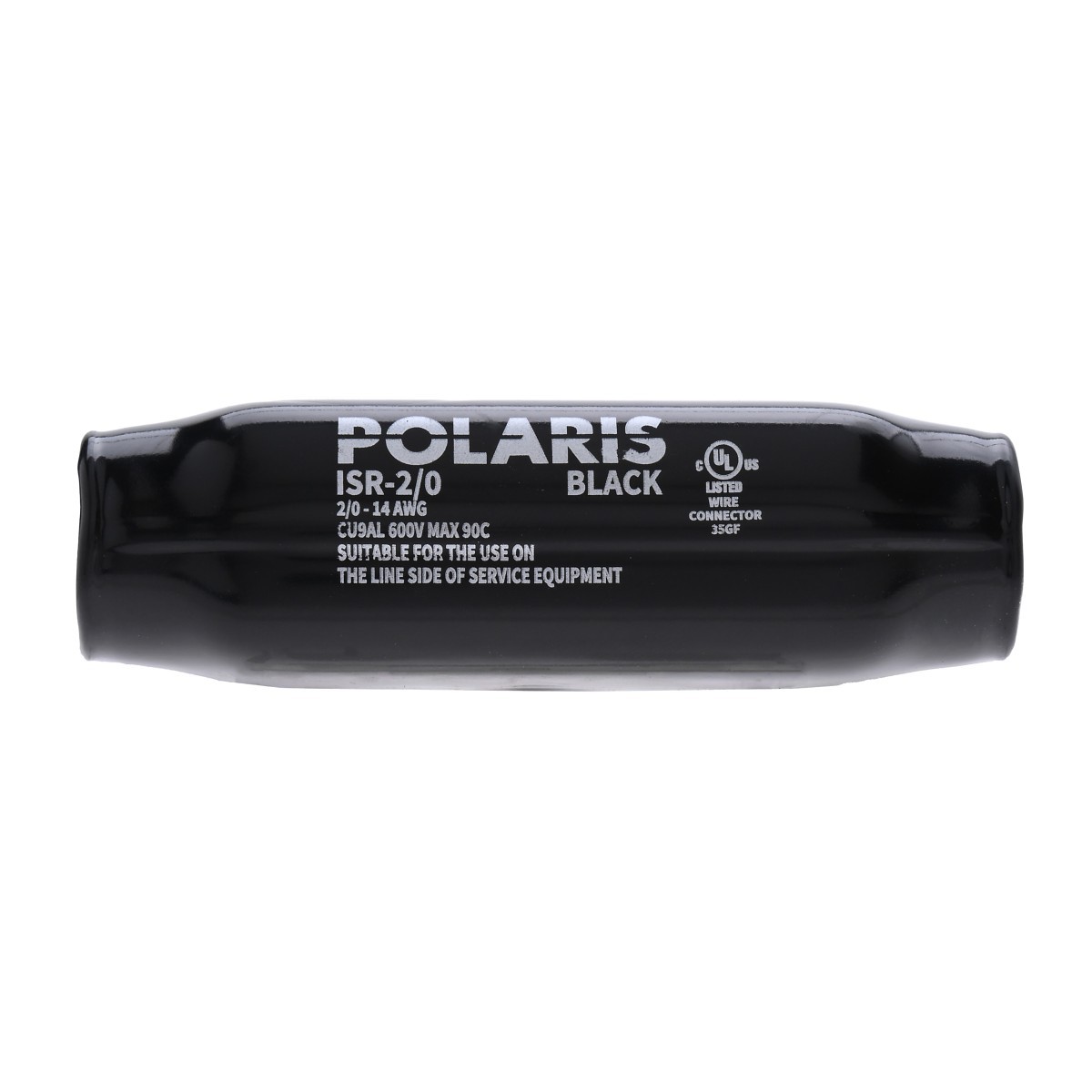

Polaris ISR-2/0 In-Line Entry 2-Port Splicer/Reducer Connector
#ISR-2/0
The Polaris ISR-2/0 2-Port In-Line Connector provides the simplest solution for forming a secure connection between two conductors in splicing and reducing applications including cable trays, panel boards, ducts, raceways or troughs. Sized for 2/0 AWG – 14 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and installs […]
- In-Line Wire Entry: Form secure connections between 2 conductors quickly using the in-line entry ports sized for wires between 2/0 AWG - 14 AWG Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
- Pre-filled Oxide Inhibitor: Both in-line ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Professional Performance: Save time and labor when splicing or reducing in-line wires made from copper or aluminum, in a wide range of applications
Product Information
| Voltage Rating | 600 V |
|---|---|
| UNSPSC | 39121409 |
| Origin Country | US |
| Certifications | cULus, Meets NEC 230.46 Suitable for Line Side of Service |
| Ul Standard | UL 486A/B |
| Ul File No | E186991 |
| Wire Cable Class | Class B, Class C |
| Al Conductor Max Amp | 135 |
| Cu Conductor Max Amp | 170 |
| Conductor Al Size Range | 2/0 AWG – 14 AWG |
| Conductor Type | Aluminum, Copper |
| Temp Rating | 90C, AL9CU |
| Conductors Count | 2 |
| Hex Wrench Size | 3/16 |
| Env Temp | Cold Temperature rated to -45C |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Max Torque | 80 |
