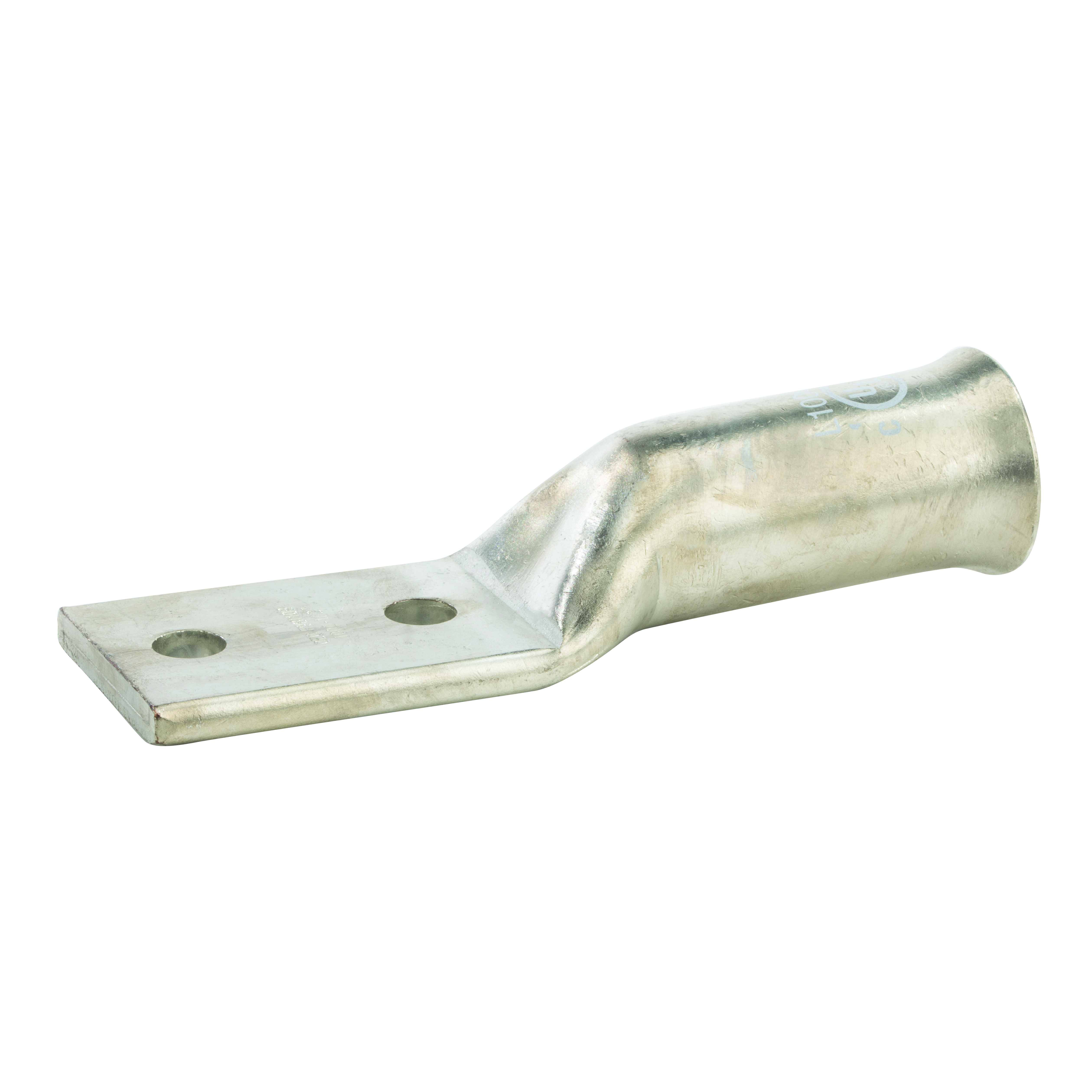

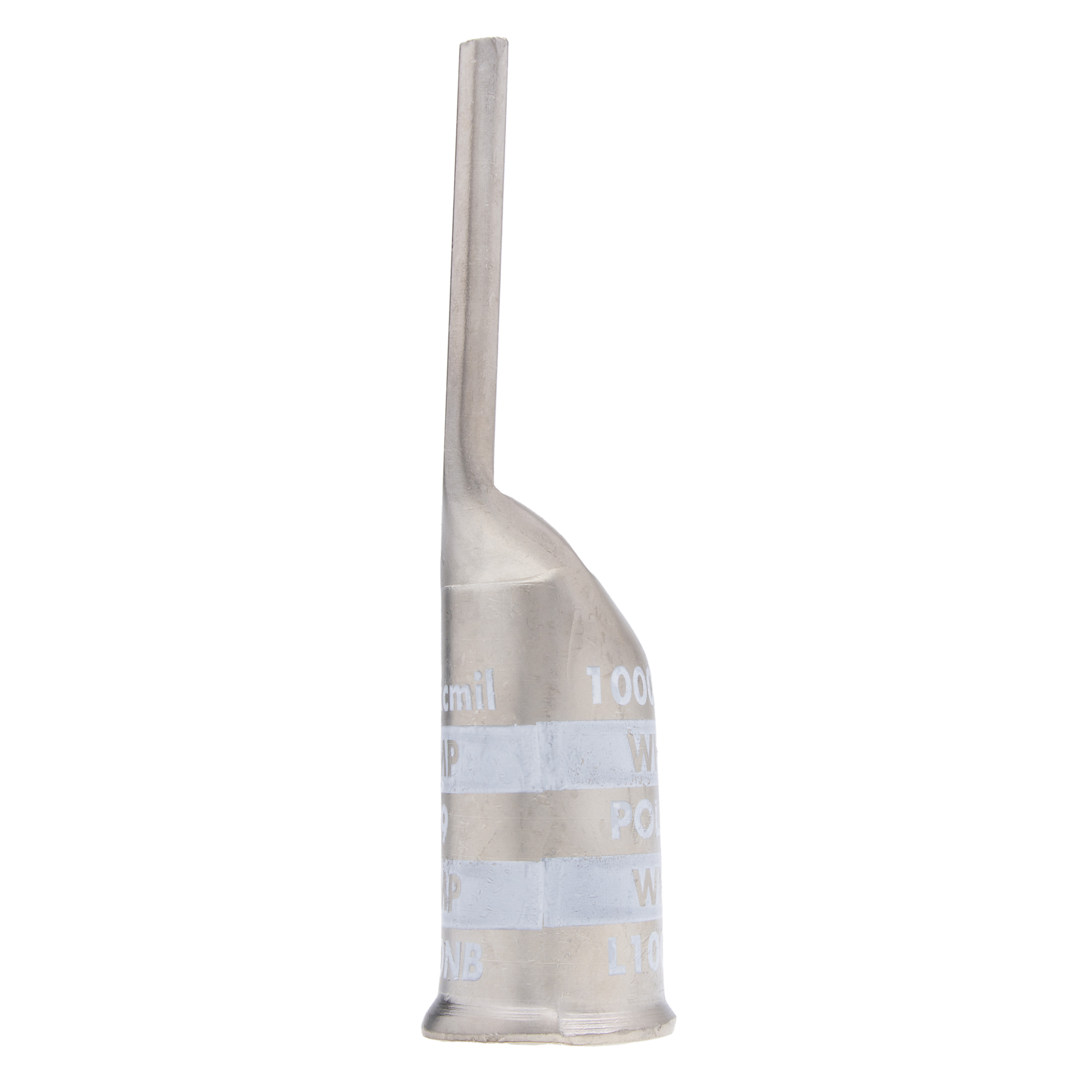

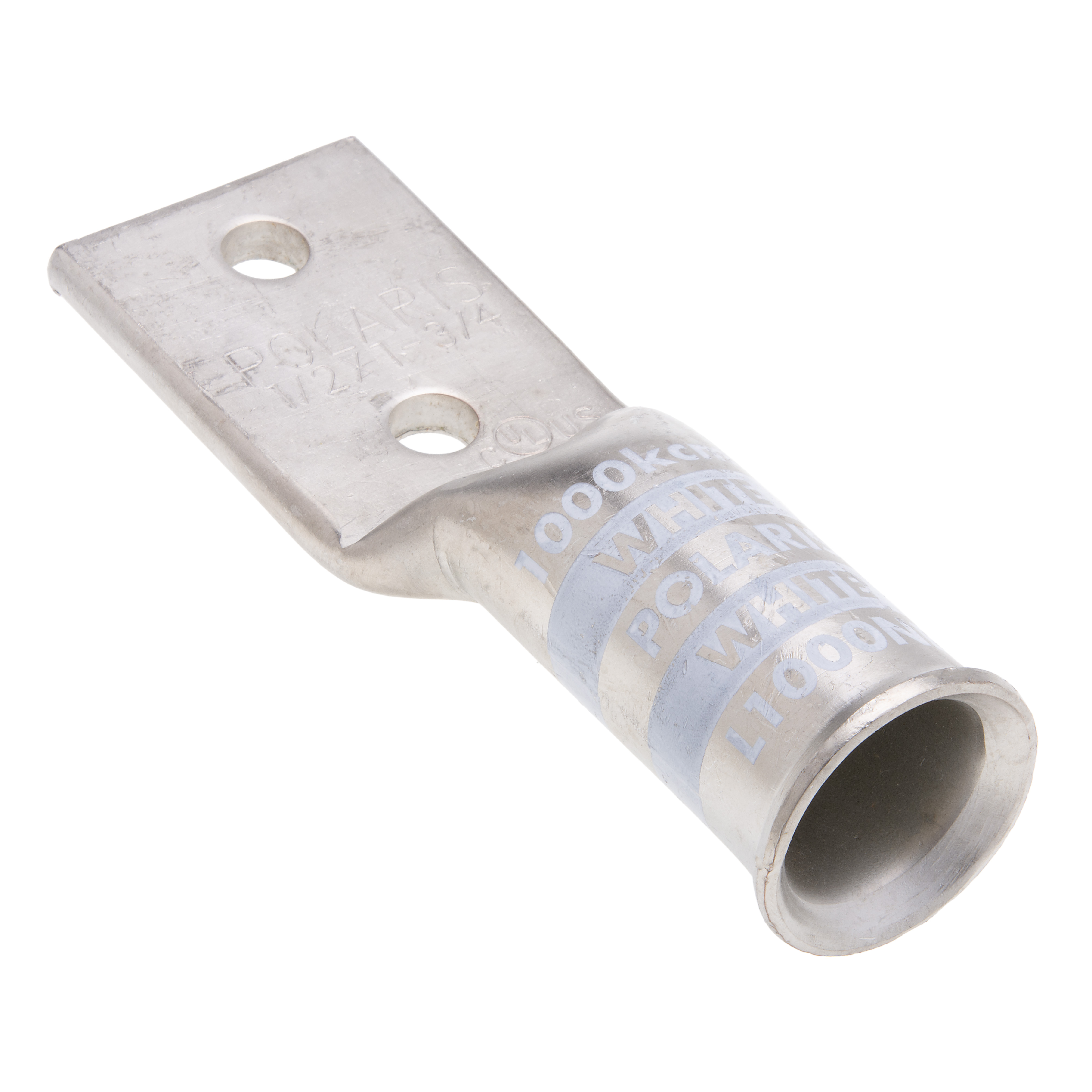

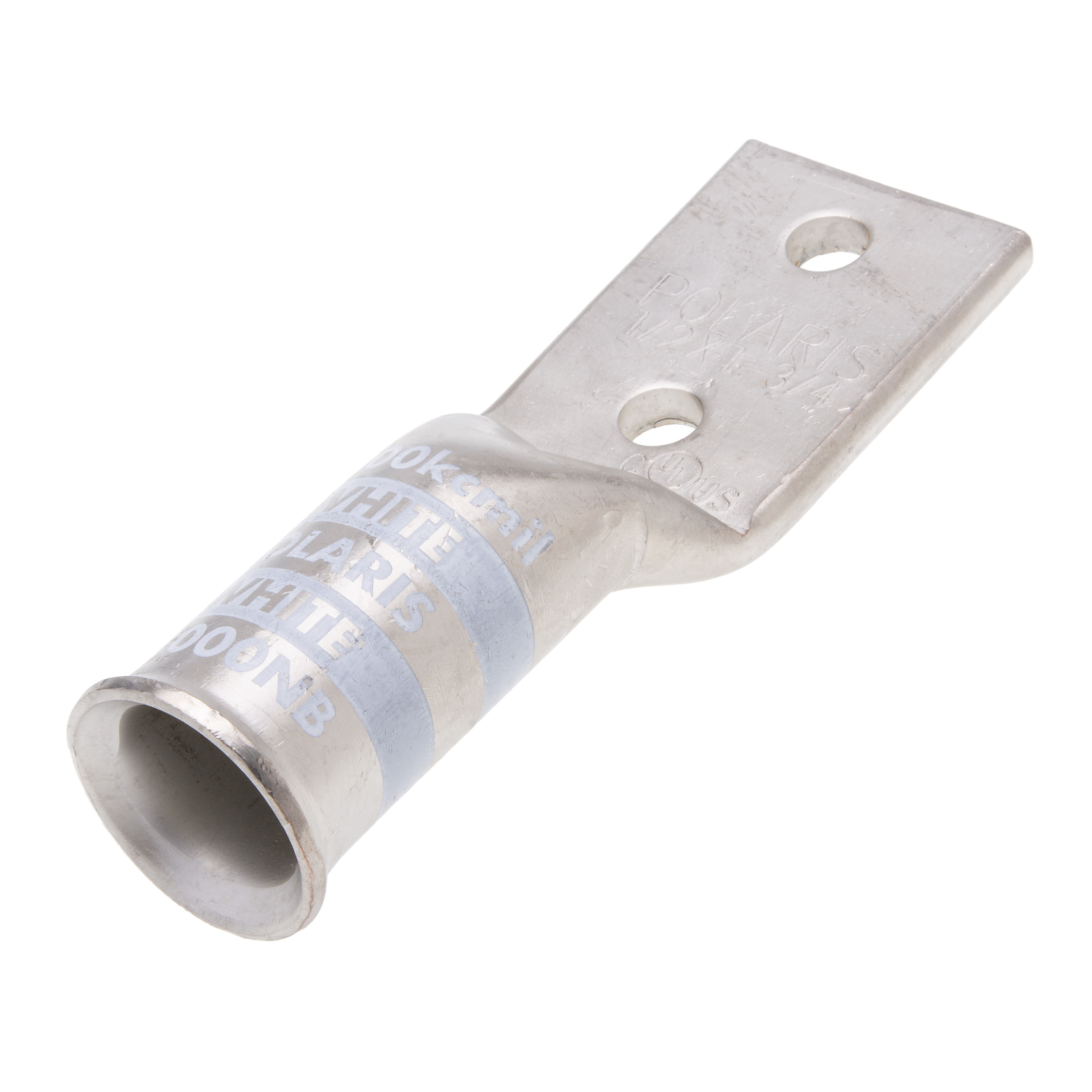

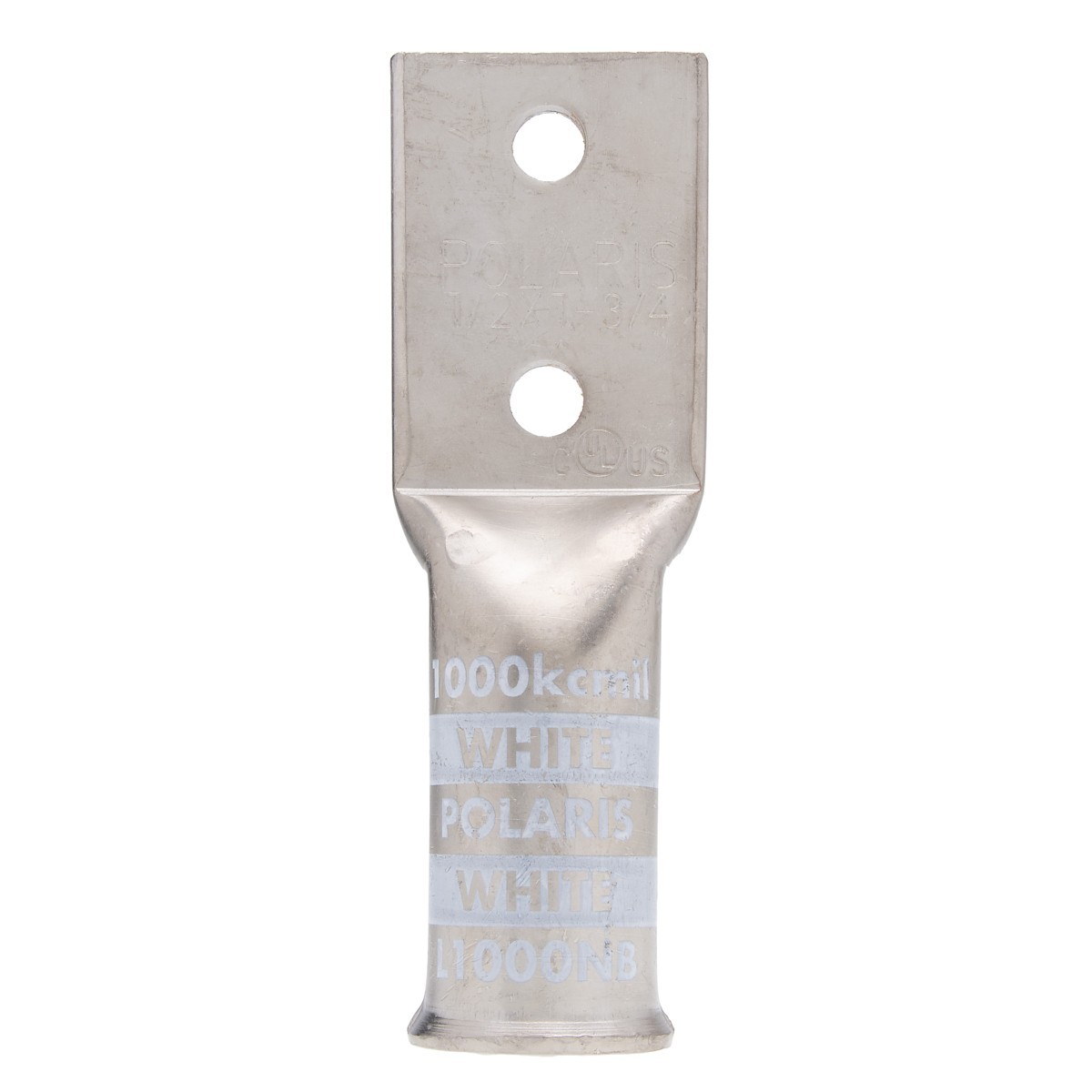

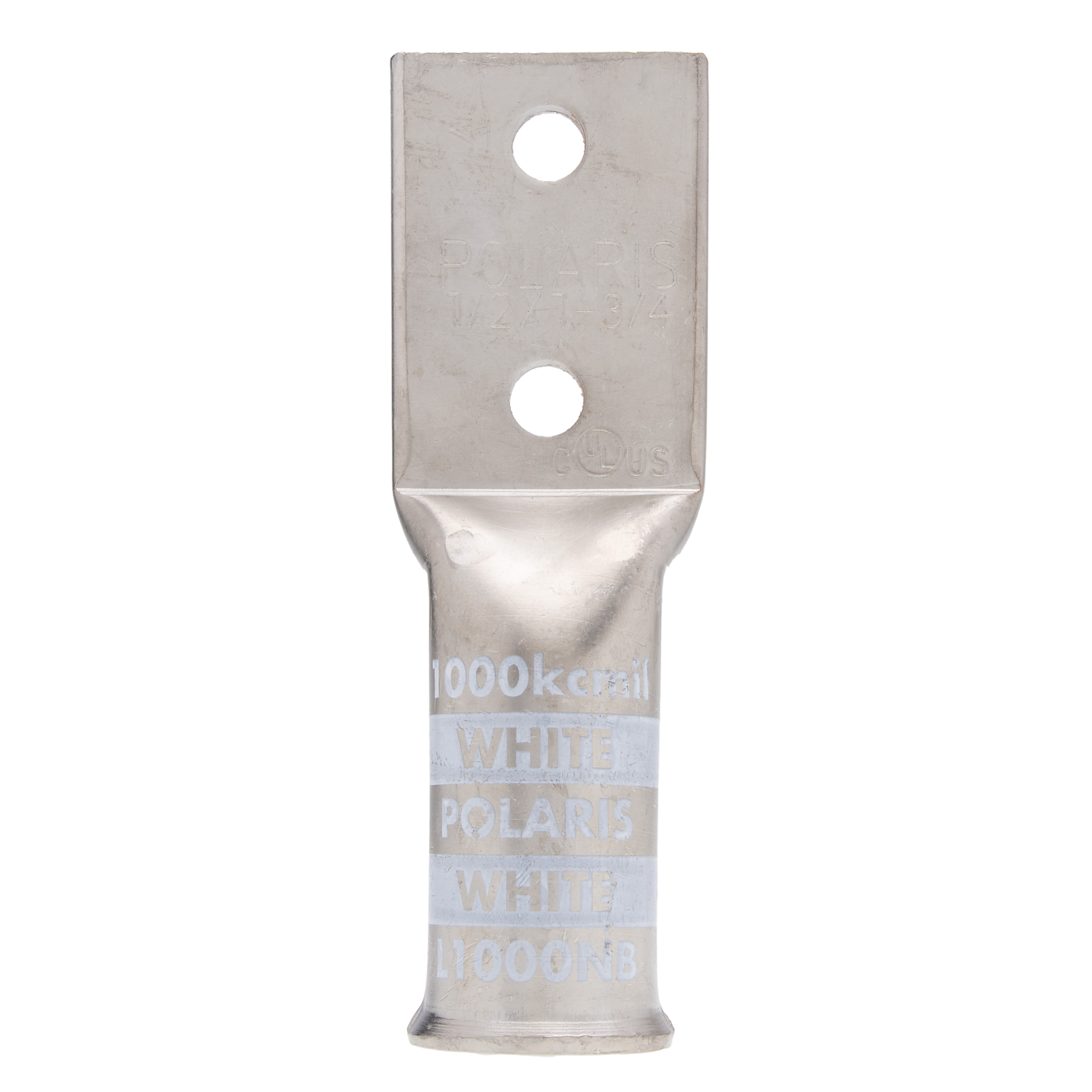

Polaris L100NB CMP Lug Cu Lng 1000 MCM Nema Mtg-Bell
#L100NB
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flared bell end ensures easy insertion of flexible cables and reduced chafing
- UL/cULus listed and rated for B/C class wire
- UL listed to 35kV when properly installed to cable manufacturer’s specifications.
Product Information
| Die Color Code | White |
|---|---|
| Material | Copper |
| Ul Standard | UL 486A-486B |
| Assortment | Copper Compression Terminations |
| Finish | Tin Plated |
| Tang Length | 3.06 |
| Barrel Length | 3.0000 |
| Tang-thickness-in | 0.33 |
| Mounting-bolt-size-in | 1/2 |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Expanded Wire Range | 1000 MCM – 750 MCM |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121405 |
| Wire Range | 1000 MCM |
| EAN/UCC-13 | 0662381335524 |
| GTIN | 662381336705 |
| Prop 65 Flag | Yes |
| UPC | 662381336705 |
