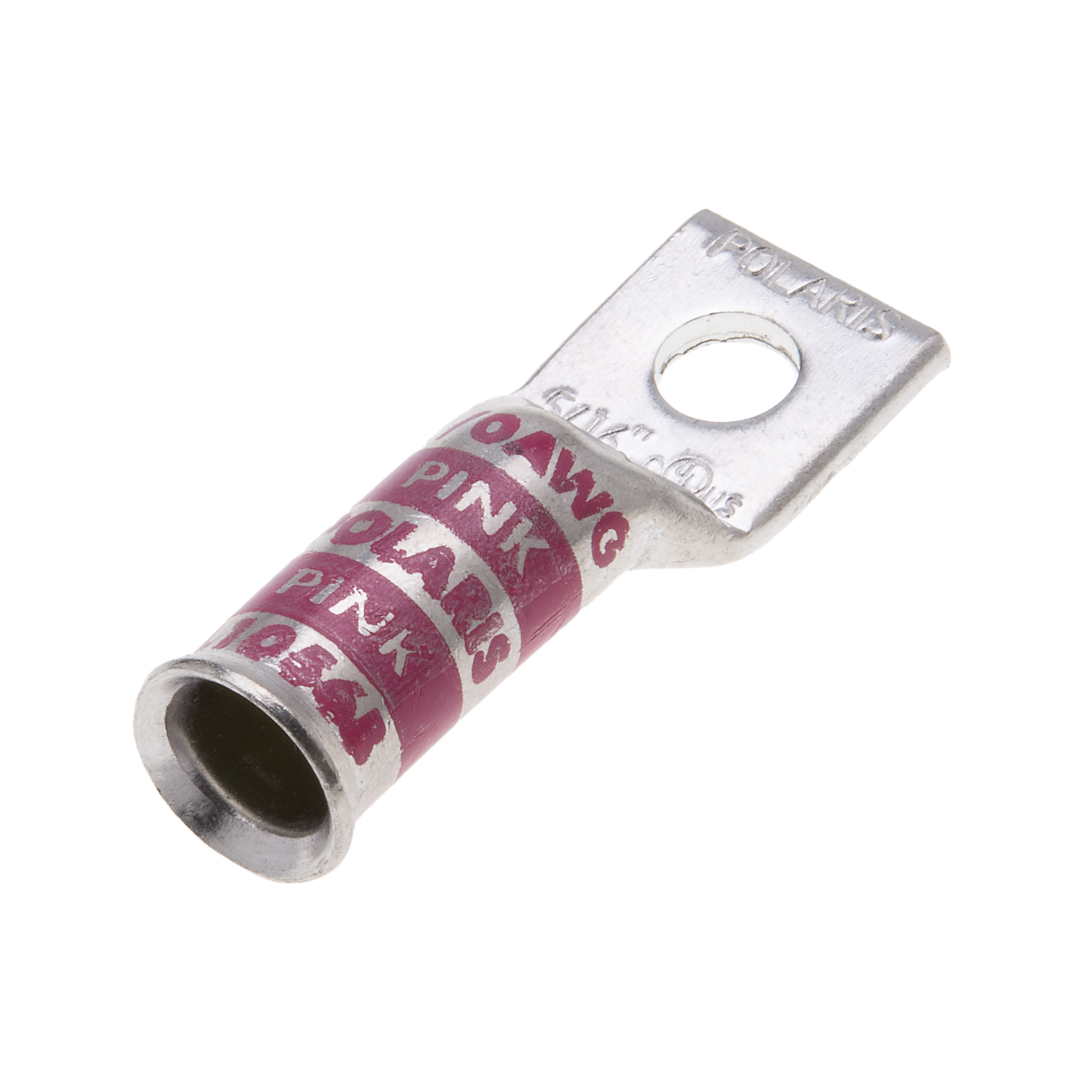

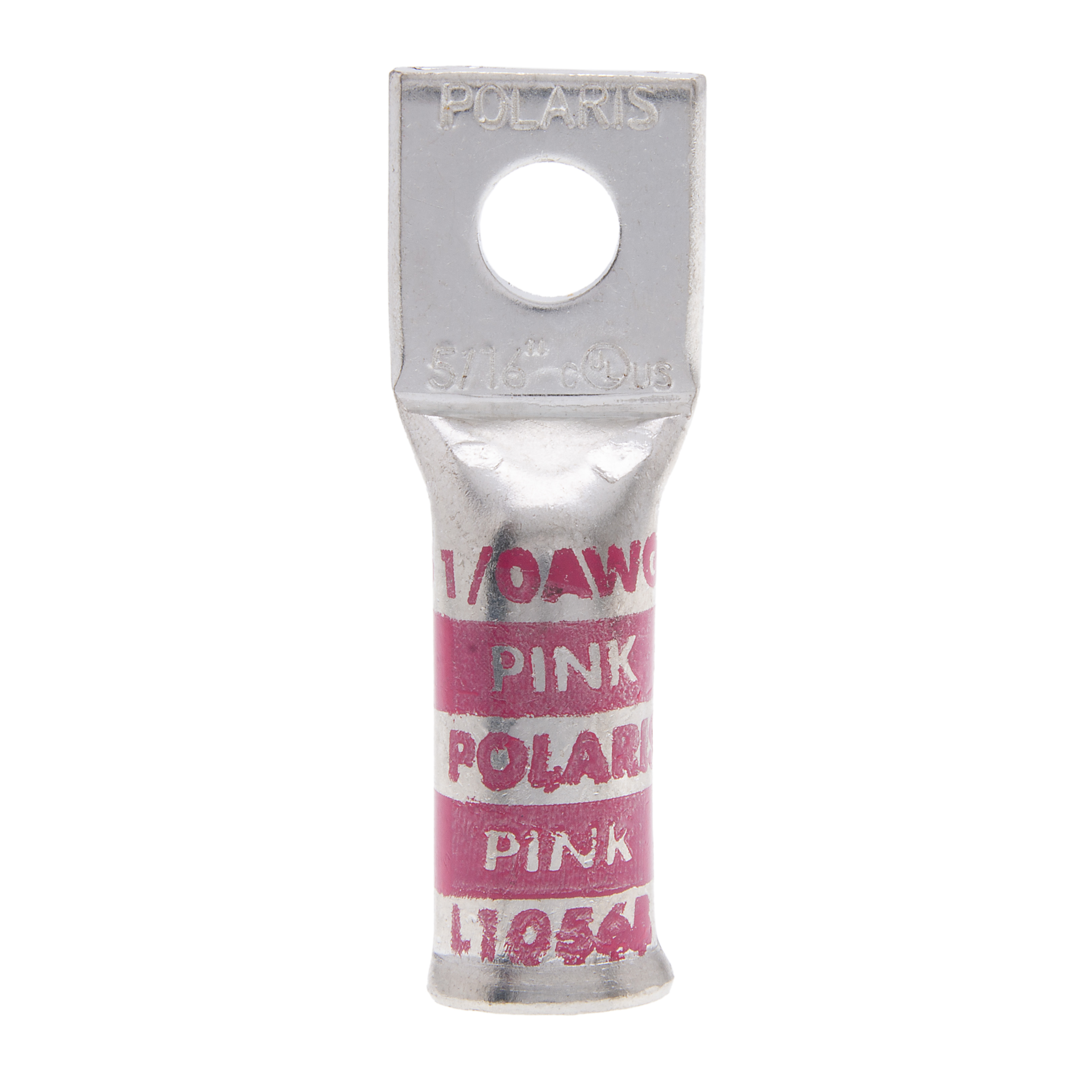

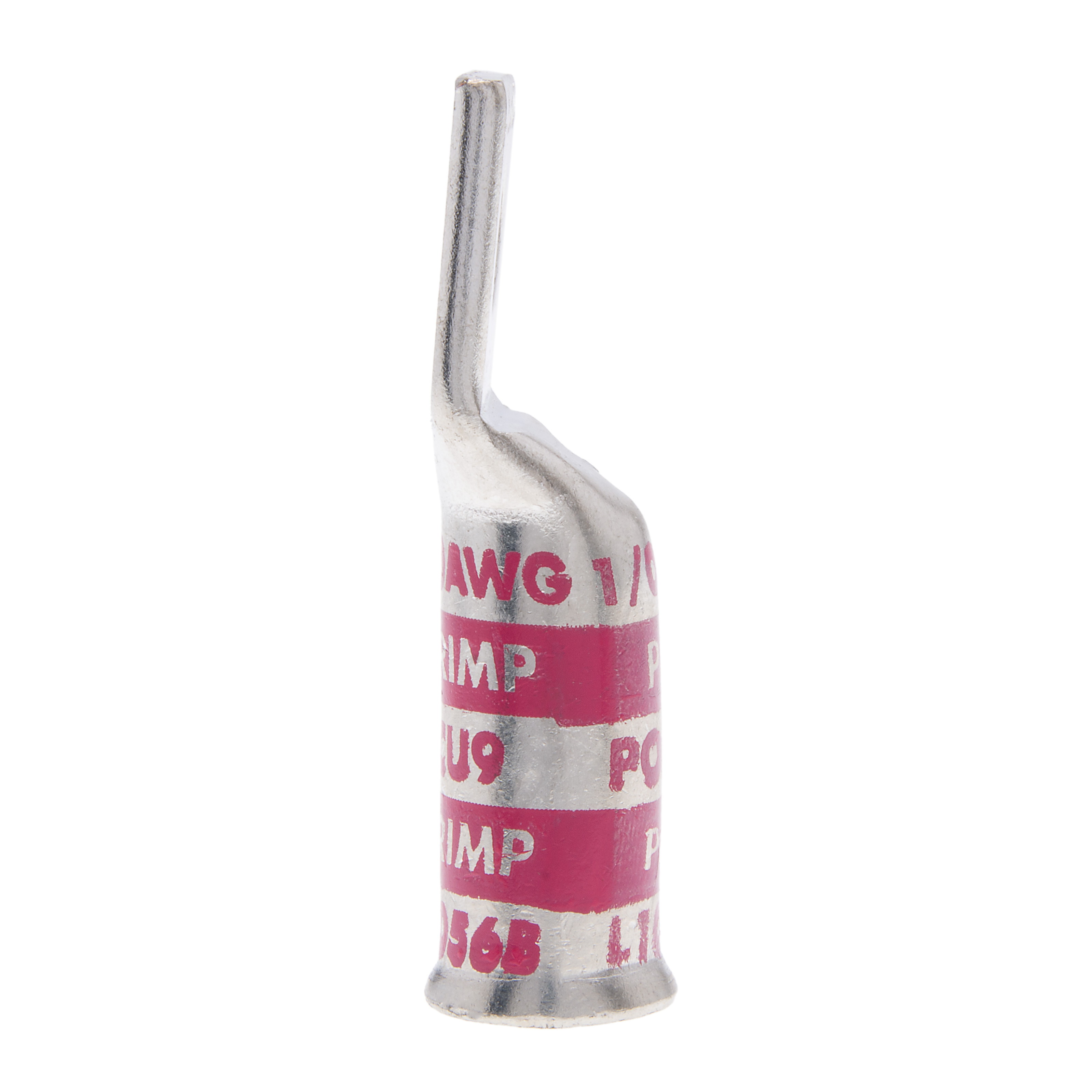

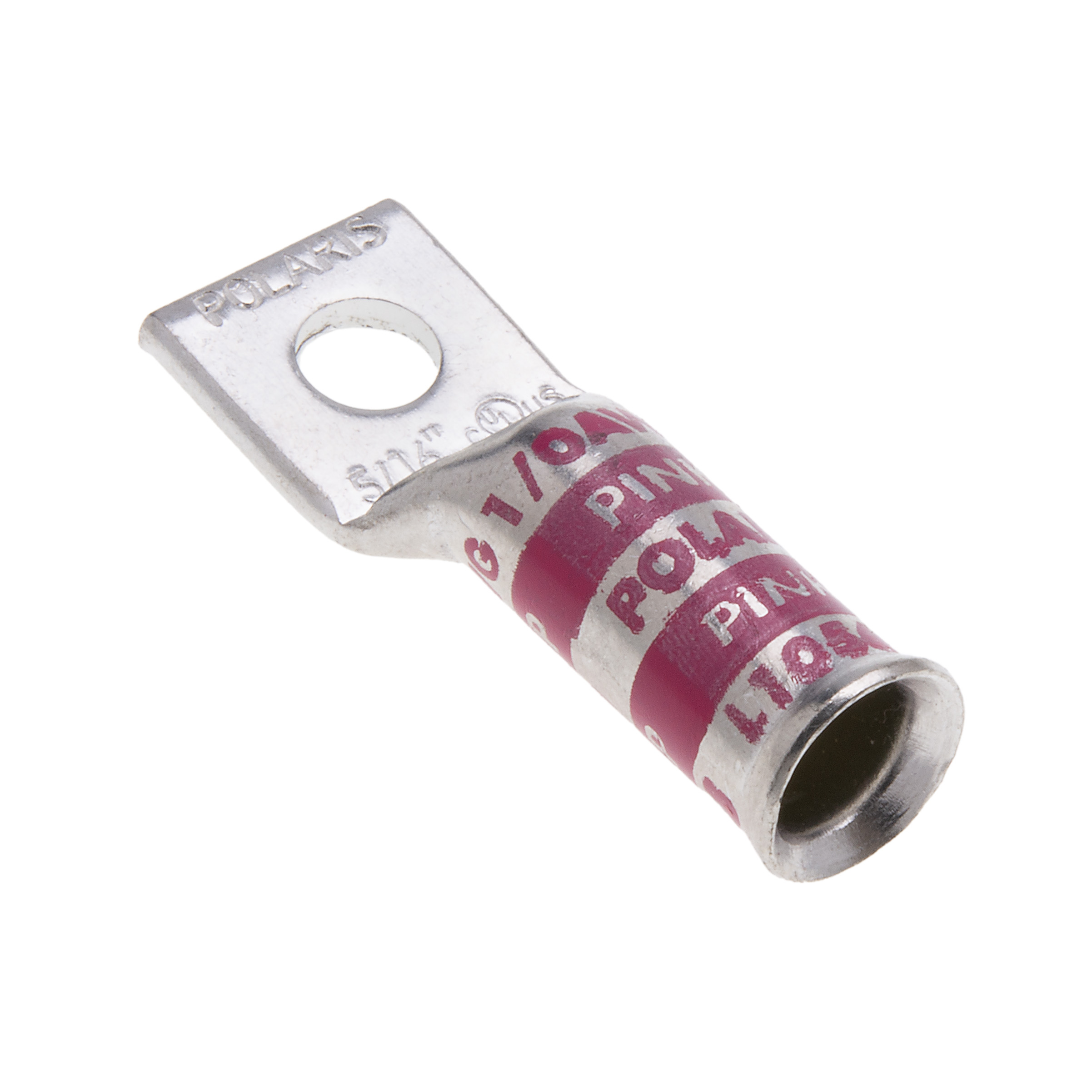

Polaris L1056B CMP Lug Cu Long 1/0 AWG 5/16 Blt-Bell
#L1056B
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flared bell end ensures easy insertion of flexible cables and reduced chafing
- UL/cULus listed and rated for B/C class wire
- Class B/C compressed, concentric, and compact copper conductor only
Product Information
| Die Color Code | Pink |
|---|---|
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin Plated |
| Ul Standard | UL 486A |
| Mounting-bolt-size-in | 5/16 |
| Voltage Rating | 35kV |
| Barrel Length | 1.2000 |
| Tang Length | 0.81 |
| Conductor Type | Copper |
| Expanded Wire Range | 1/0 AWG – 6 AWG |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121405 |
| Wire Range | 1/0 AWG |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381337030 |
