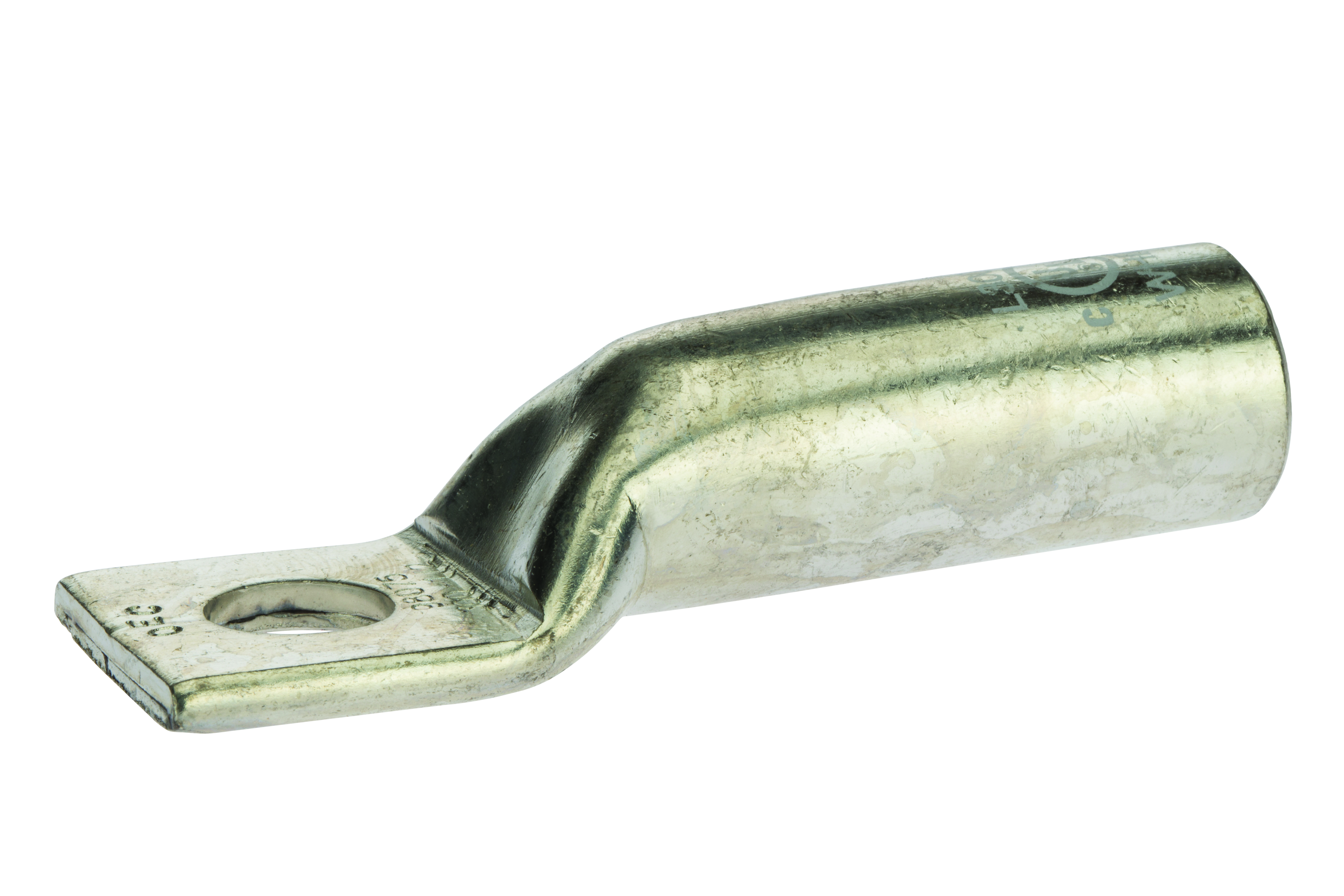

Polaris L30048 CMP Lug Cu Long 300 MCM 1/2 Bolt Size
#L30048
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
- UL listed to 35kV when properly installed to cable manufacturer’s specifications.
Product Information
| Voltage Rating | 35kV |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| GTIN | 662381034144 |
| UPC | 662381034144 |
| EAN | 0662381034144 |
| UNSPSC | 39121405 |
| Ul Standard | UL 486A-486B |
| Huskie Die | HT41BF (4 CRIMPS); CD15 (4 CRIMPS) |
| Huskie Tools | EP510C |
| Tb Die | 15534 (4 CRIMPS) |
| Tb Tools | TBM-15, TBM-14M |
| Burndy Die | U30RT (4 CRIMPS) |
| Burndy Tools | Y-35, T750, PAT750 |
| Ilsco Die | ILD-12 (4 CRIMPS), KC12-300 (2 CRIMPS) |
| Ilsco Tools | ILC-12, ILC-15 |
| Greenlee Die | KC12-300 (2 CRIMPS) |
| Greenlee Tools | EK, RK, HK1240 Series |
| Nsi Die | CD15 (4 CRIMPS), KC12-300 (2 CRIMPS),HT41BF (4 CRIMPS) |
| Nsi Tools | N1240, NSI-12, N12ID, M-250, M-500 |
| Wire Cable Class | Class B, Class C |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Conductor Type | Copper |
| Tang Thickness | 0.15 |
| Tang Length | 1.06 |
| Wire Range | 300 MCM |
| Assortment | Copper Compression Terminations |
| Expanded Wire Range | 300 MCM – 2/0 AWG |
| Die Color Code | White |
| Mounting Bolt Size | 1/2 |
| Mounting Hole Diameter | 0.51 |
| Barrel Length | 2 |
