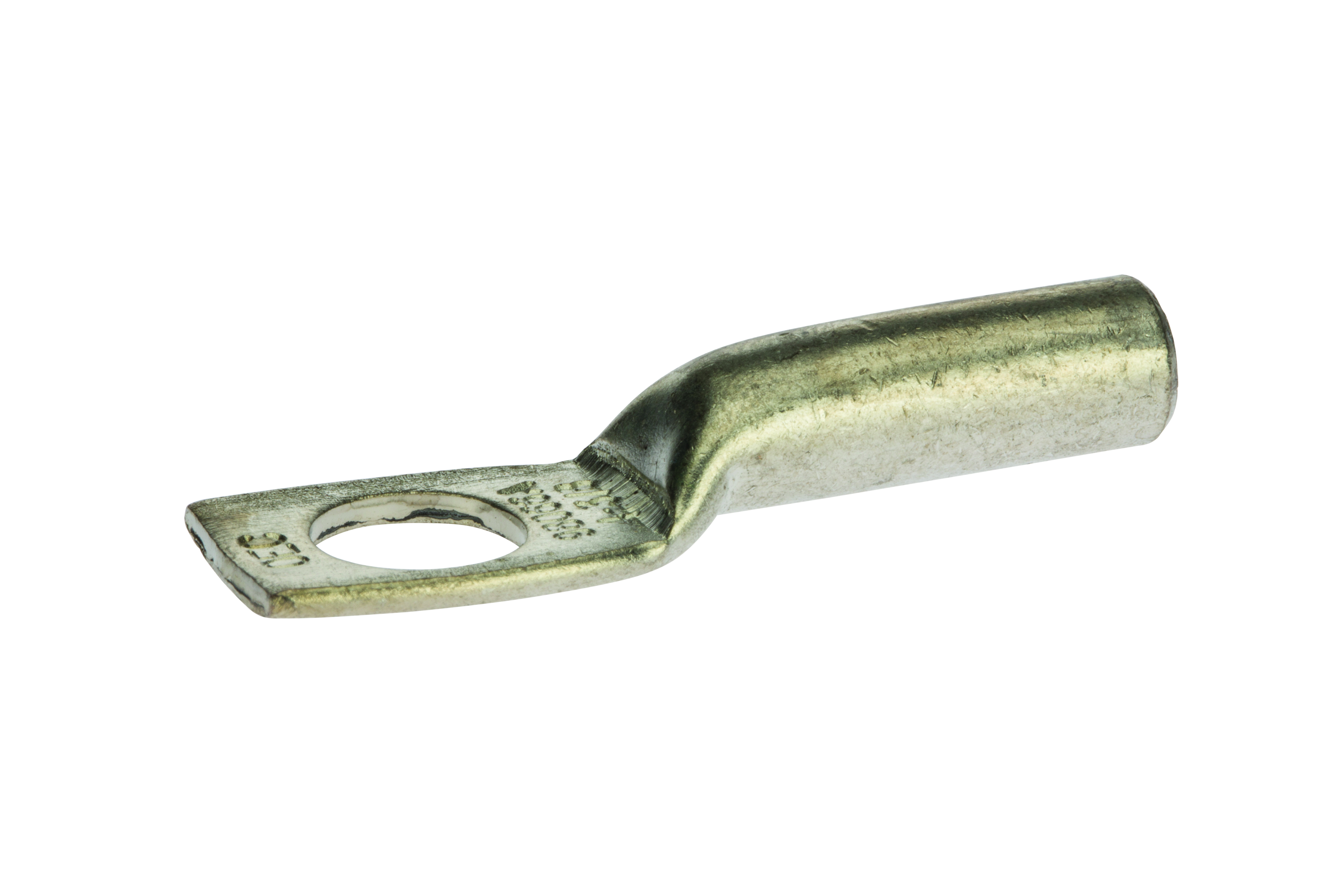

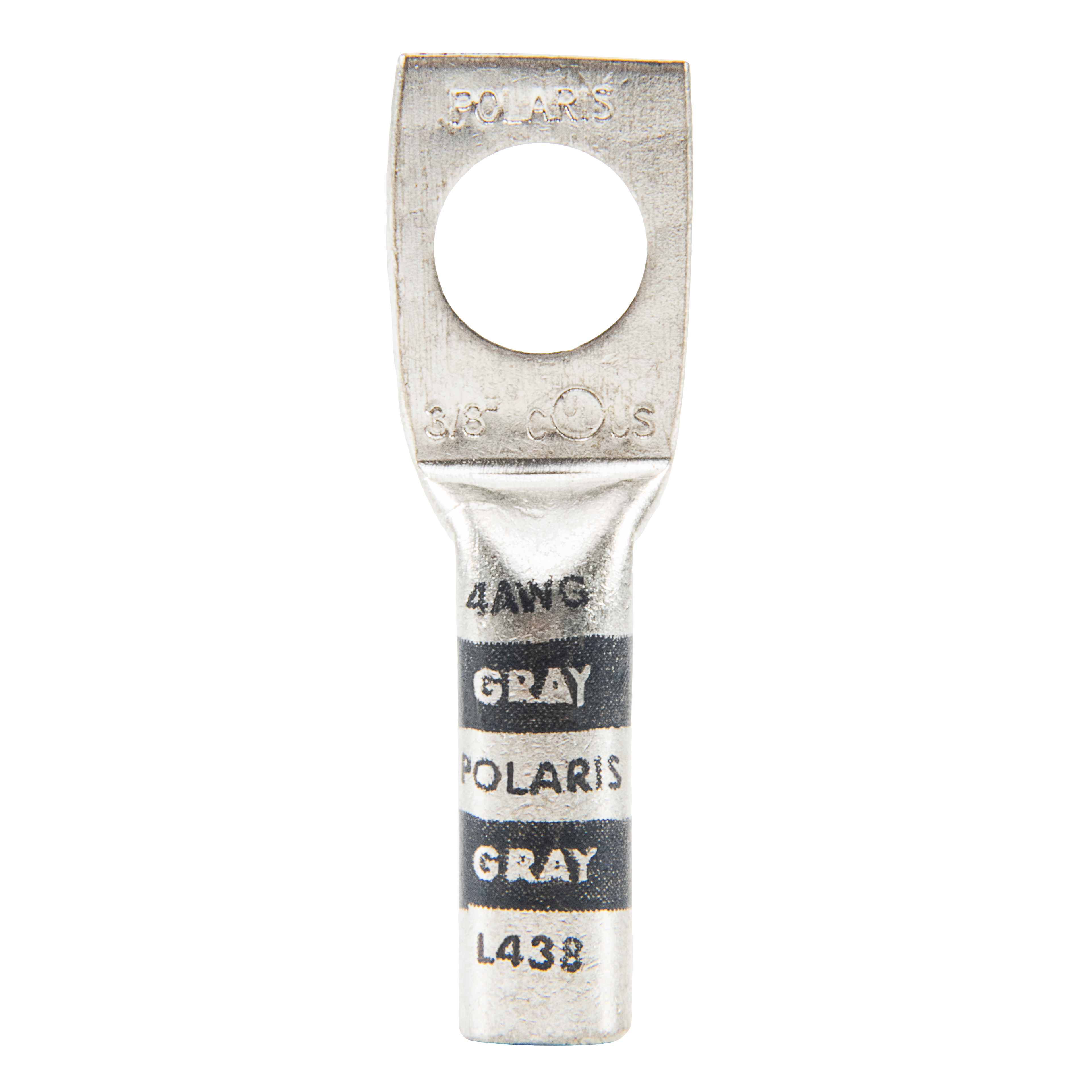

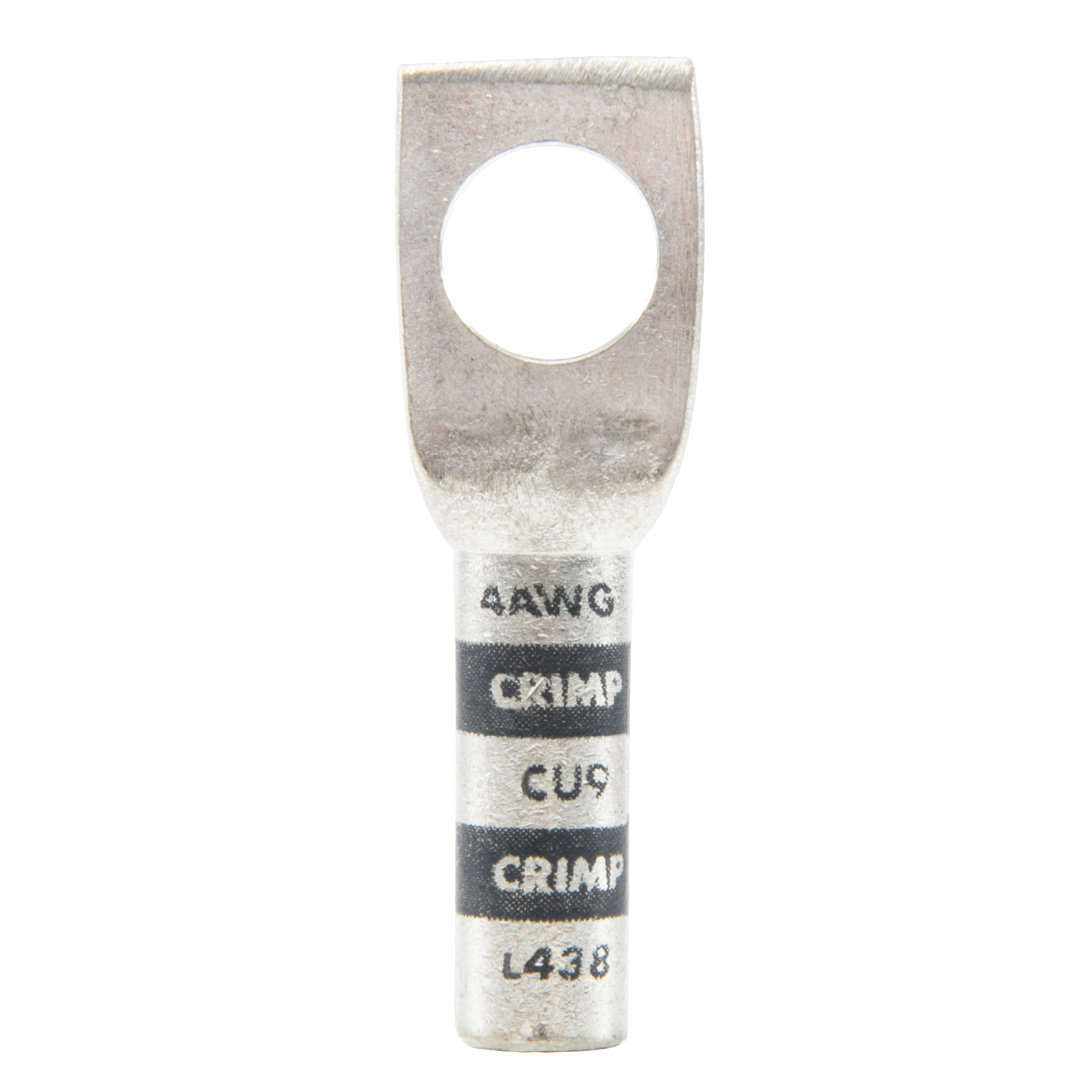

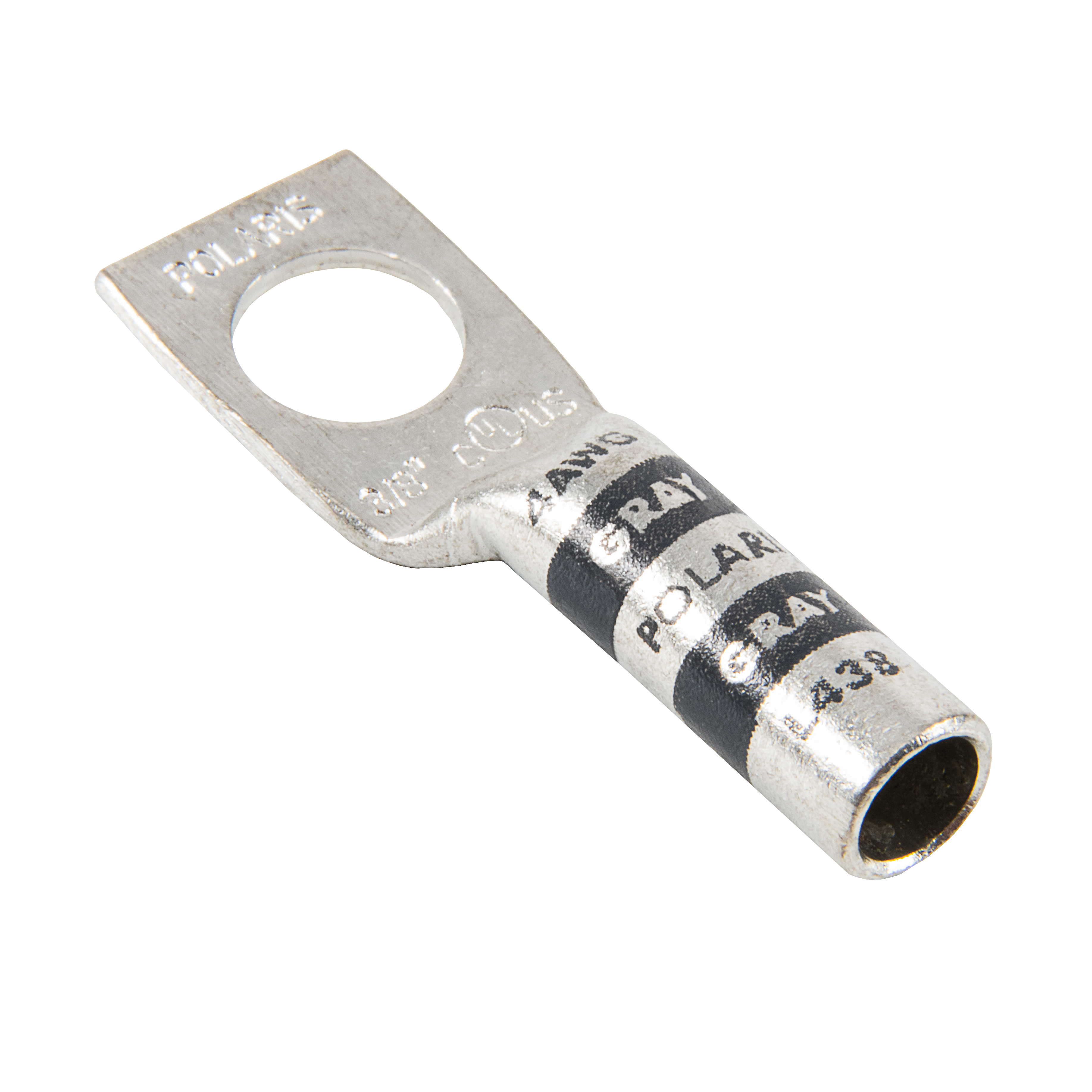

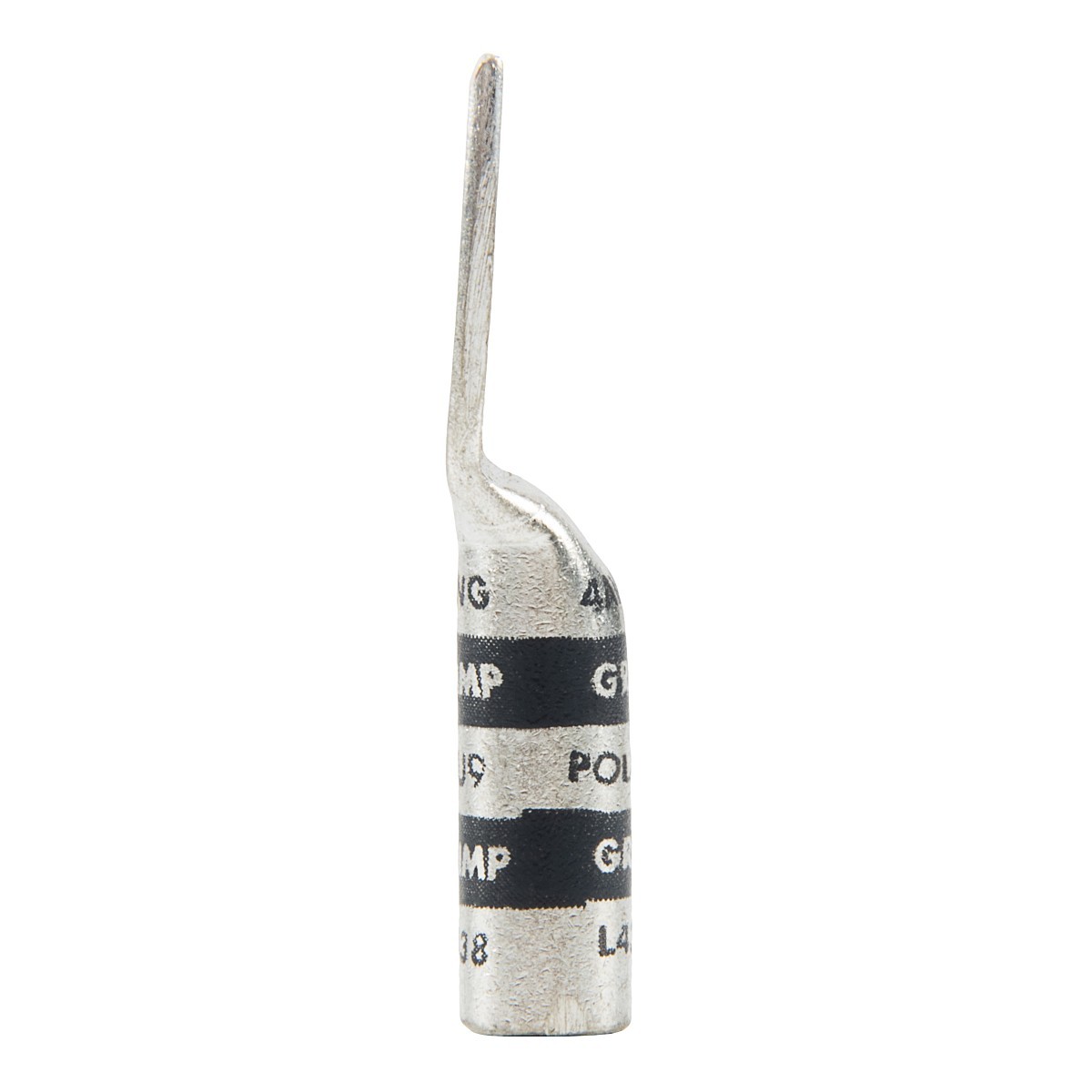

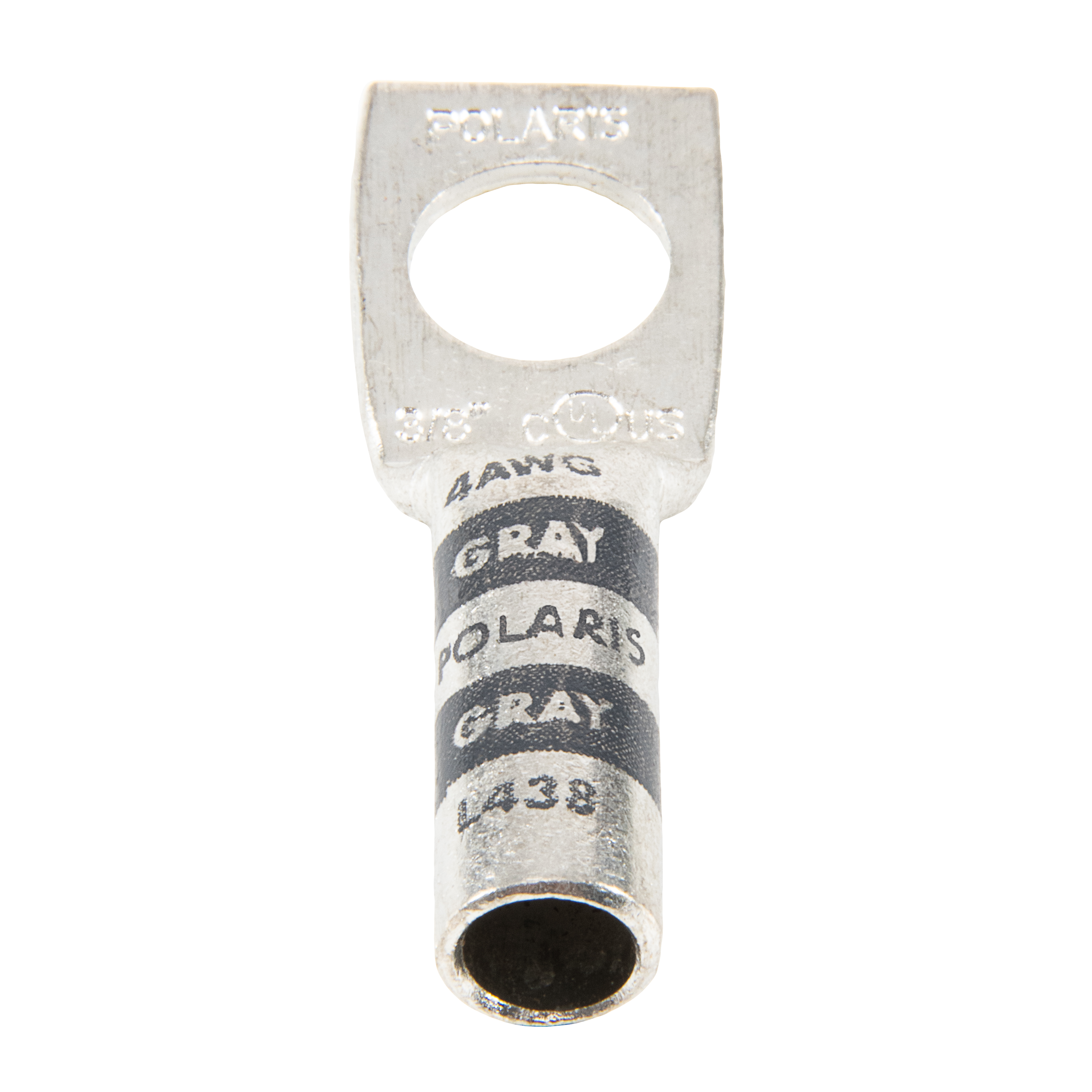

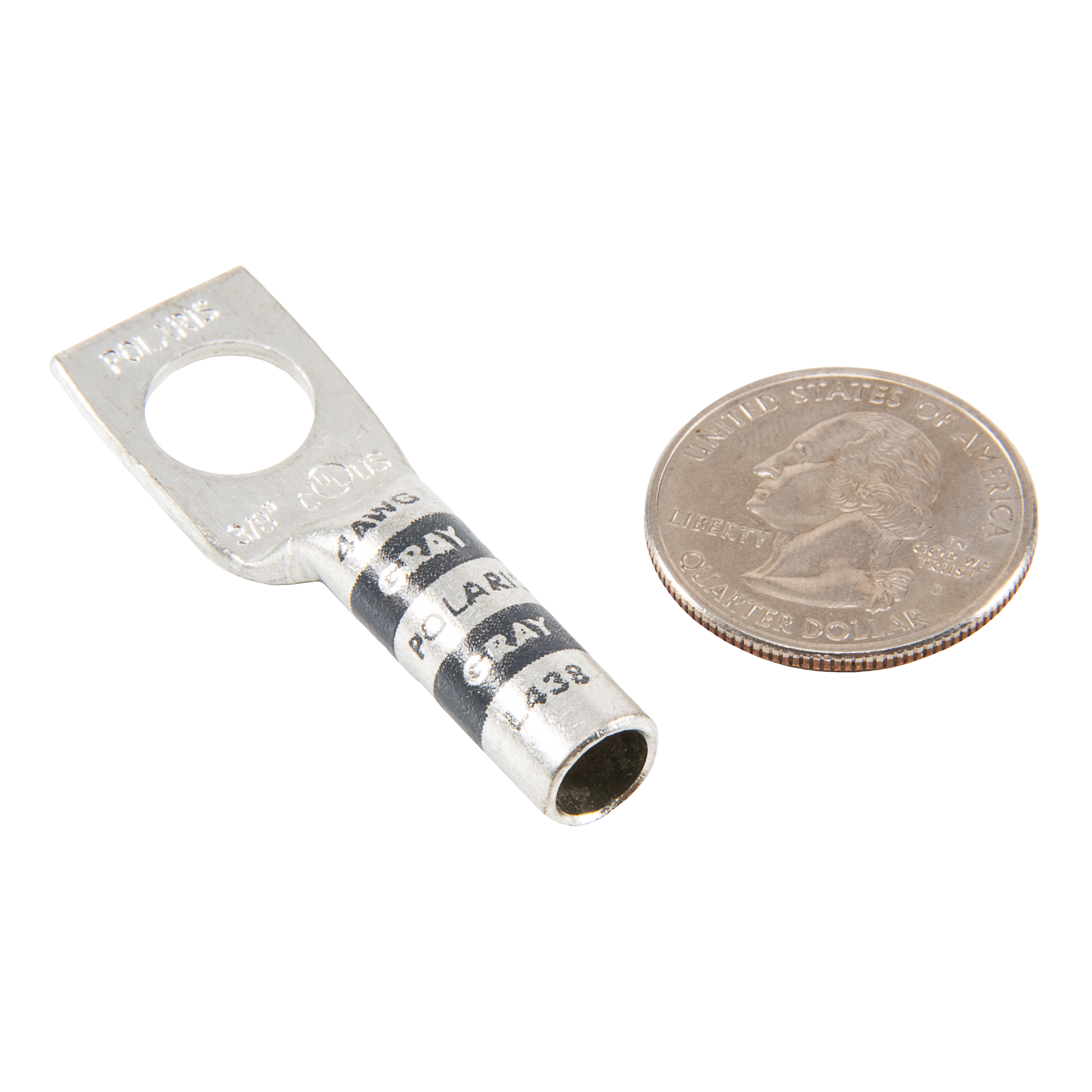

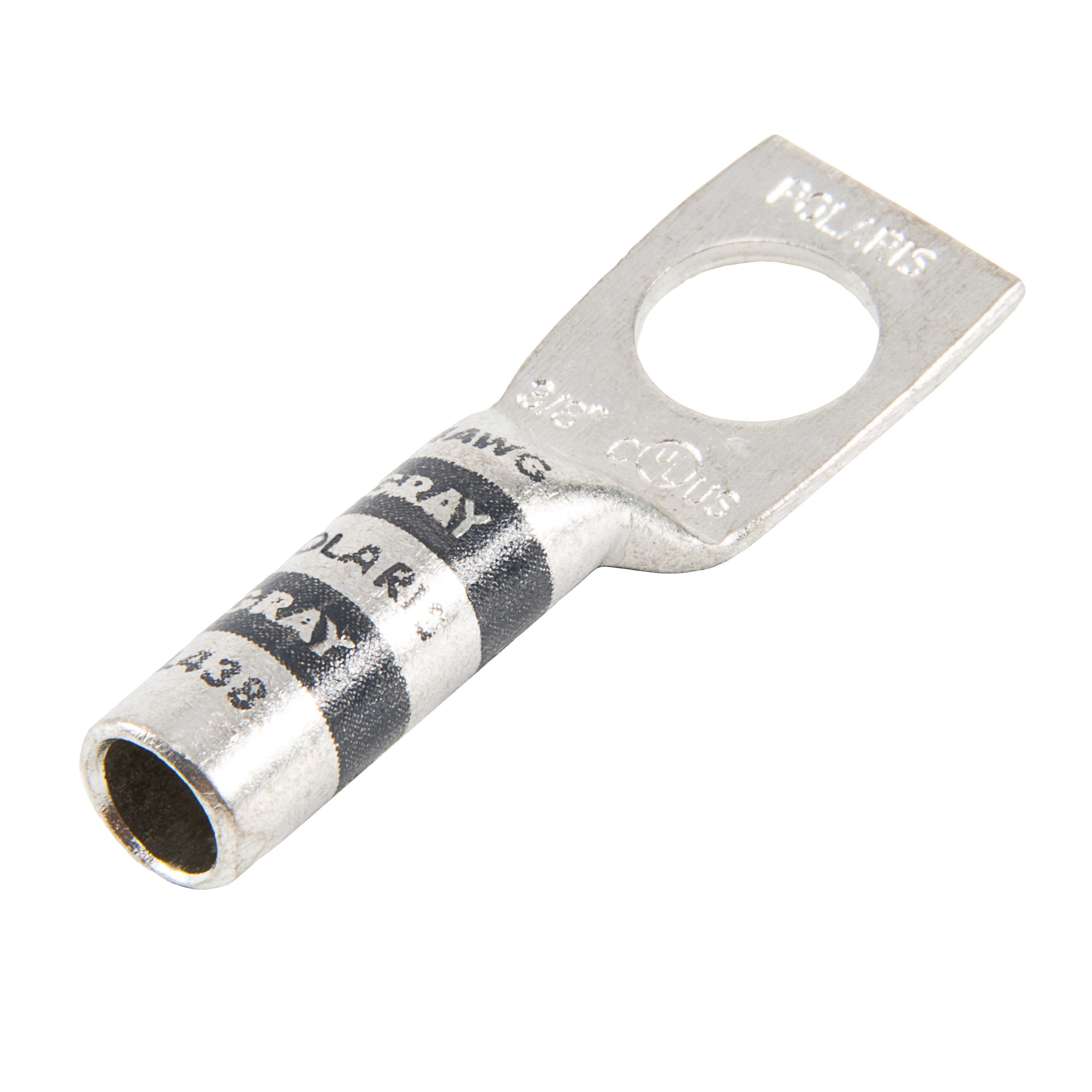

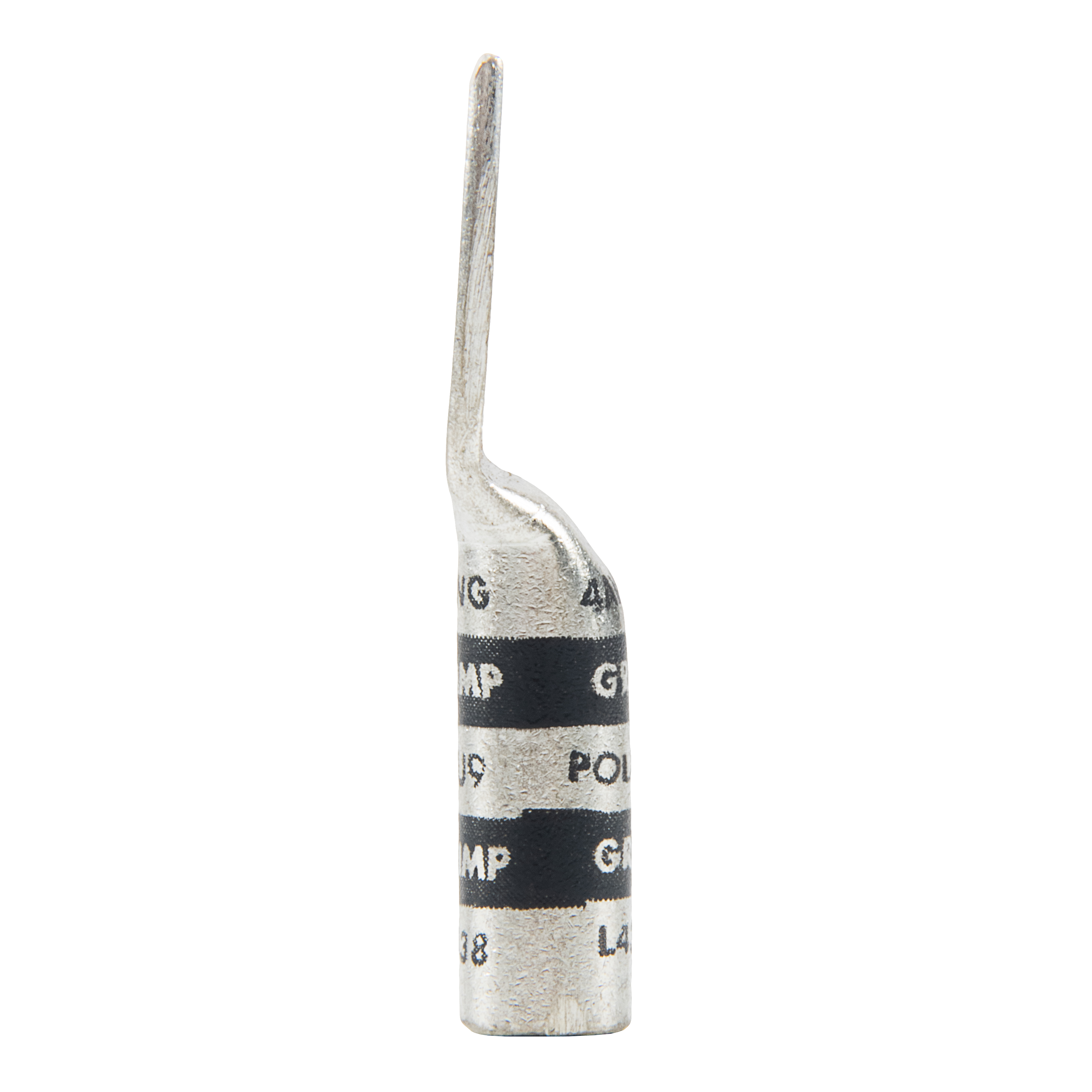

Polaris L438 CMP Lug Cu Long 4 AWG 3/8 Bolt Size

Name: Polaris L438 CMP Lug Cu Long 4 AWG 3/8 Bolt Size
Brand: Polaris
SKU: L438

Compression Termination

#L438

The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.

High conductivity copper tubing and corrosion resistant tin-plated finish
Marked with die index and color coded
Flex rated for use with K, H, G, I, M and DLO cable
UL/cULus listed and rated for B/C class wire
UL listed to 35kV when properly installed to cable manufacturer’s specifications.

Product Information

Voltage Rating	35kV
Material	Copper
Finish	Tin Plated
Ul Standard	UL 486A-486B, UL467
Wire Cable Class	Class B, Class C
Conductor Type	Copper
Tang Length	0.81
Assortment	Copper Compression Terminations
Expanded Wire Range	4 AWG – 6 AWG
Die Color Code	Gray
Barrel Length	1
UNSPSC	39121405
Wire Range	4 AWG
EAN/UCC-13	0662381034021
GTIN	662381034021
UPC	662381034021
