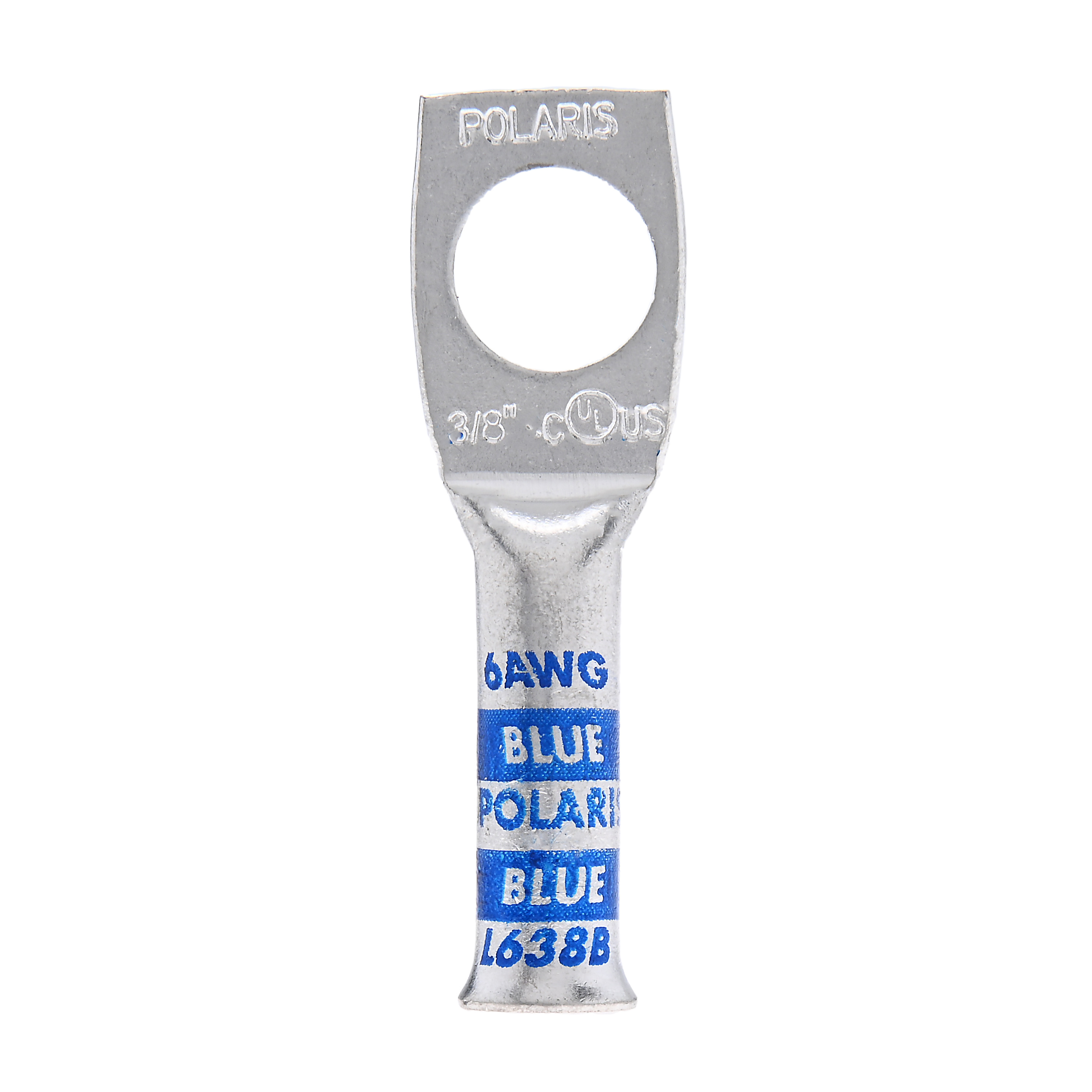

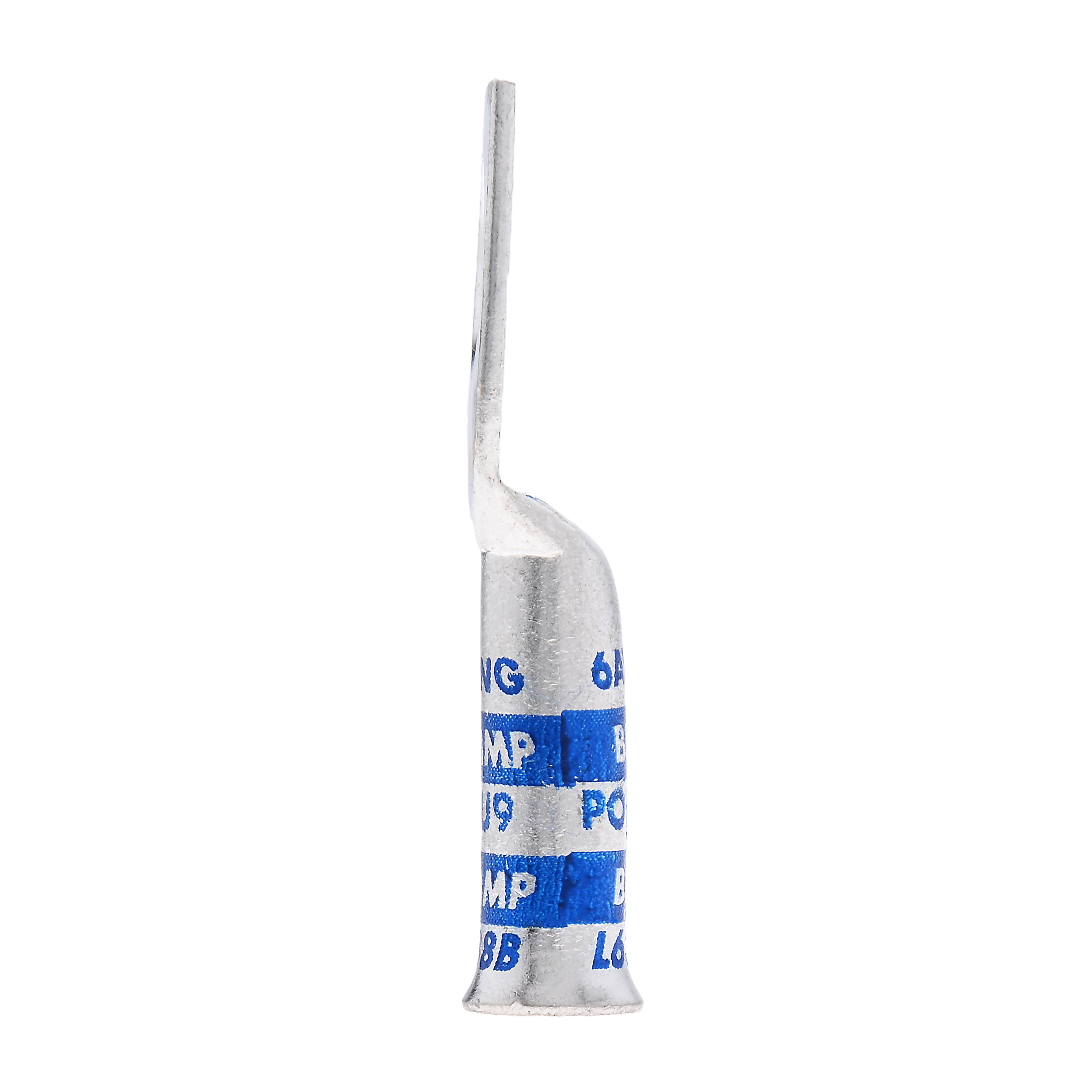

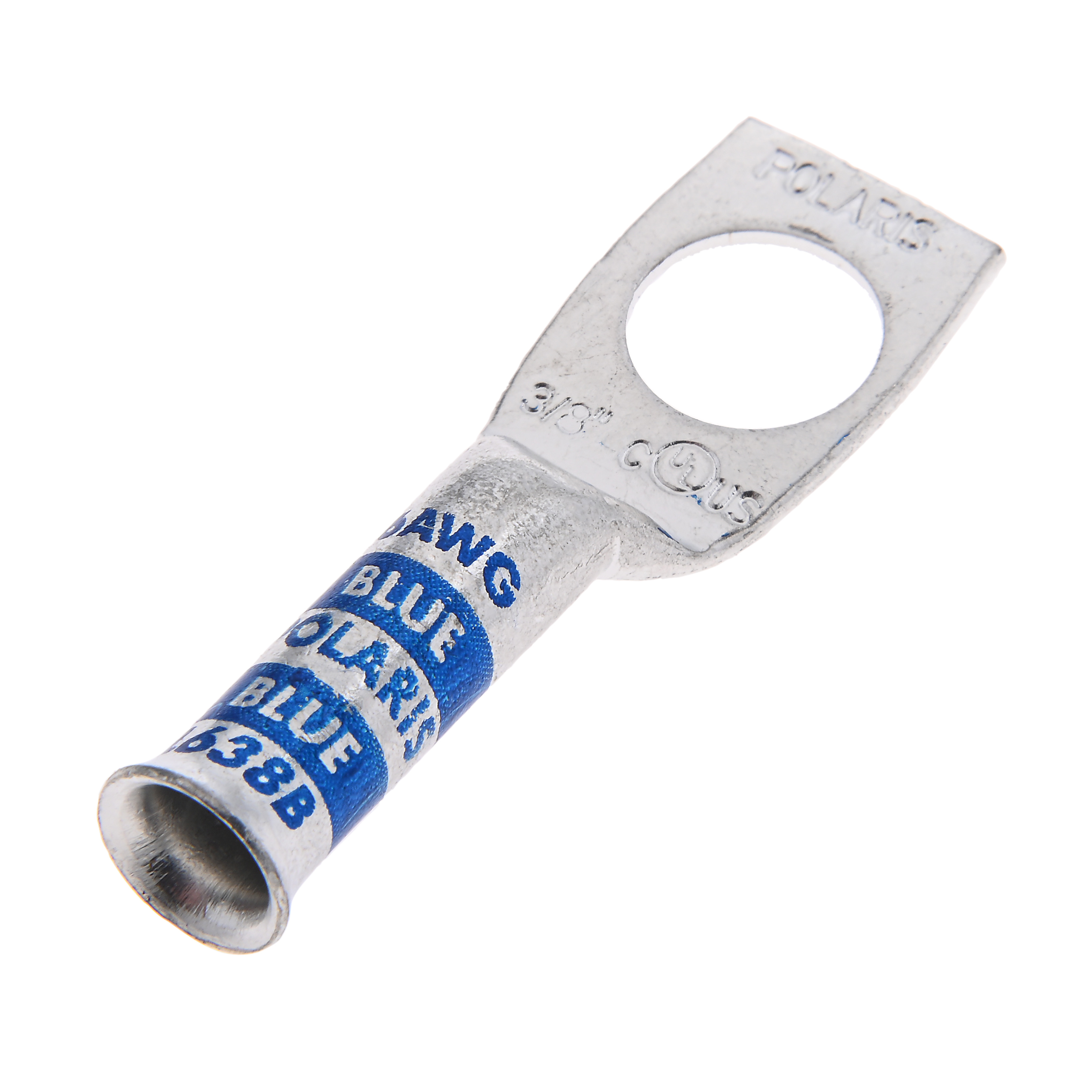

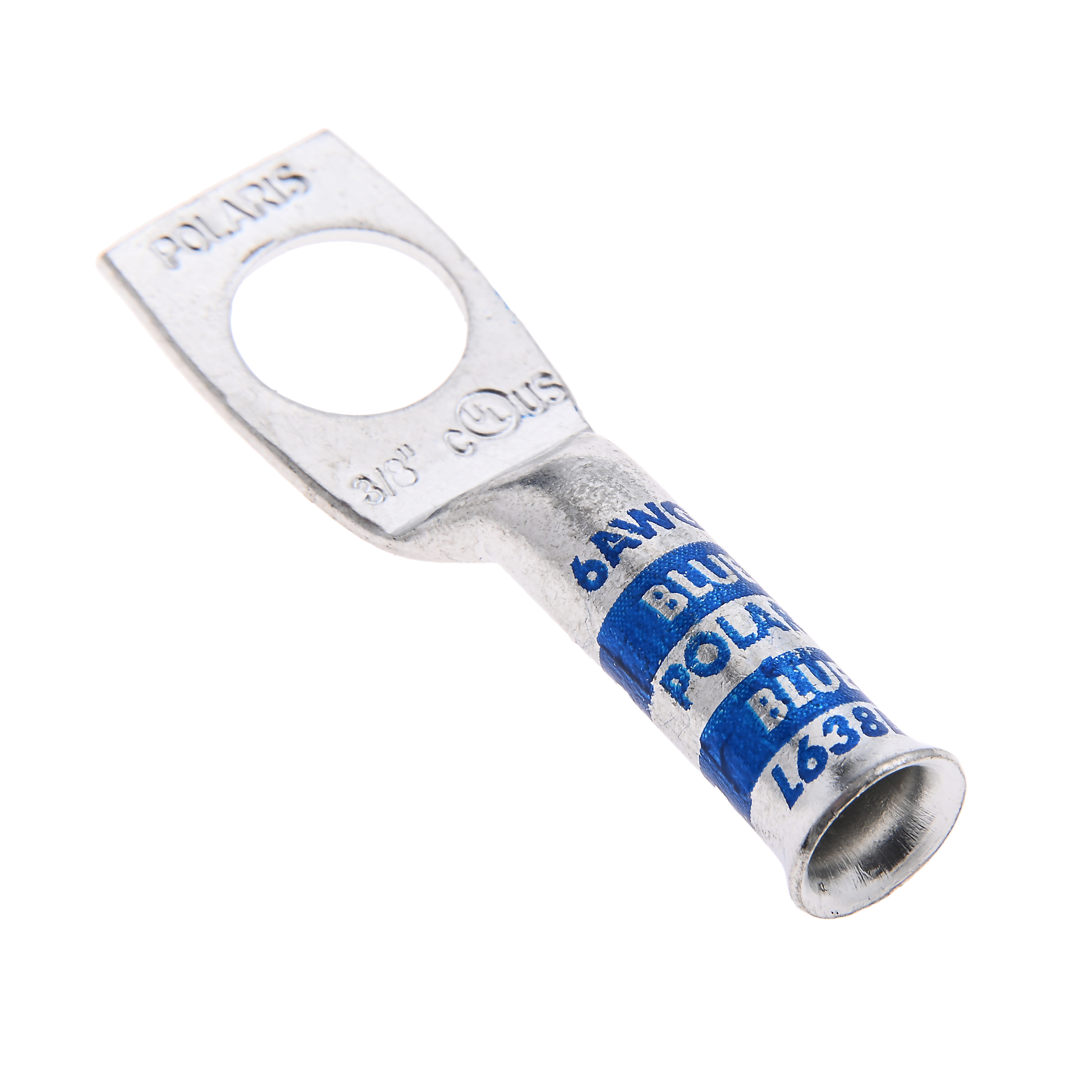

Polaris L638B CMP Lug Cu Long 6 AWG 3/8 Bolt-Bell
#L638B
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flared bell end ensures easy insertion of flexible cables and reduced chafing
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
Product Information
| Voltage Rating | 35kV |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| GTIN | 6.62381E+11 |
| UPC | 662381336910 |
| EAN | 6.62381E+11 |
| UNSPSC | 39121405 |
| Ul Standard | UL 486A |
| Wire Cable Class | Class B, Class C |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Conductor Type | Copper |
| Wire Range | 6 AWG |
| Assortment | Copper Compression Terminations |
| Expanded Wire Range | 6 AWG – 8 AWG |
| Die Color Code | Blue |
| Mounting Hole Diameter | 0.41 |
| Barrel Length | 0.98 |
