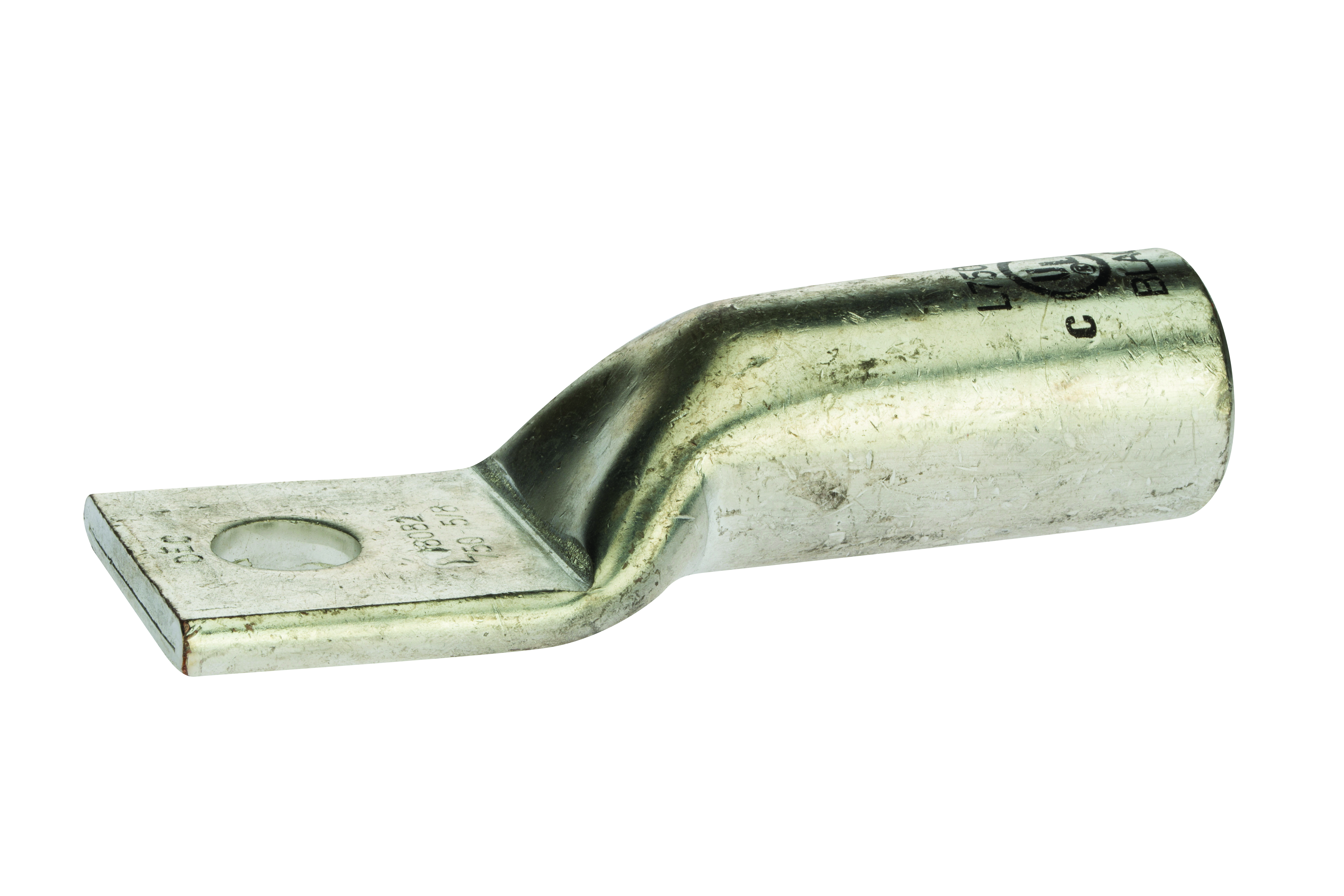

Polaris L75058 CMP Lug Cu Long 750 MCM 5/8 Bolt Size
#L75058
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
- UL listed to 35kV when properly installed to cable manufacturer’s specifications.
Product Information
| Voltage Rating | 35kV |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| GTIN | 662381034199 |
| UPC | 662381034199 |
| EAN | 0662381034199 |
| UNSPSC | 39121405 |
| Ul Standard | UL 486A-486B |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper |
| Tang Thickness | 0.27 |
| Tang Length | 1.85 |
| Wire Range | 750 MCM |
| Assortment | Copper Compression Terminations |
| Expanded Wire Range | 750 MCM – 500 MCM |
| Die Color Code | Black |
| Mounting Bolt Size | 5/8 |
| Mounting Hole Diameter | 0.67 |
| Barrel Length | 3.00 |
Resources
Video resources
- POL_Compression30s-BOTH_CMP_Video.mp4 View video
- POL_Compression15s-BOTH_CMP_Video.mp4 View video
