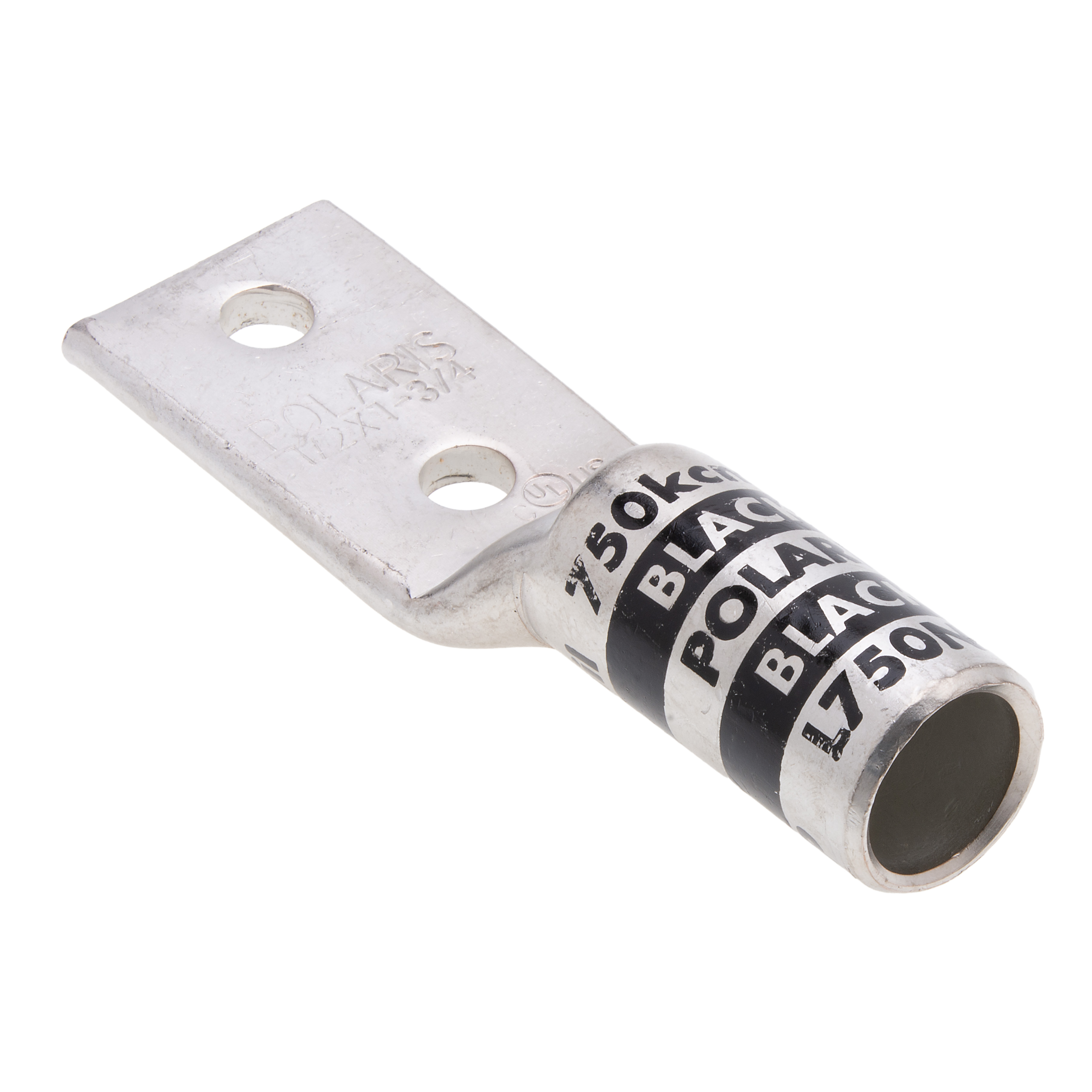

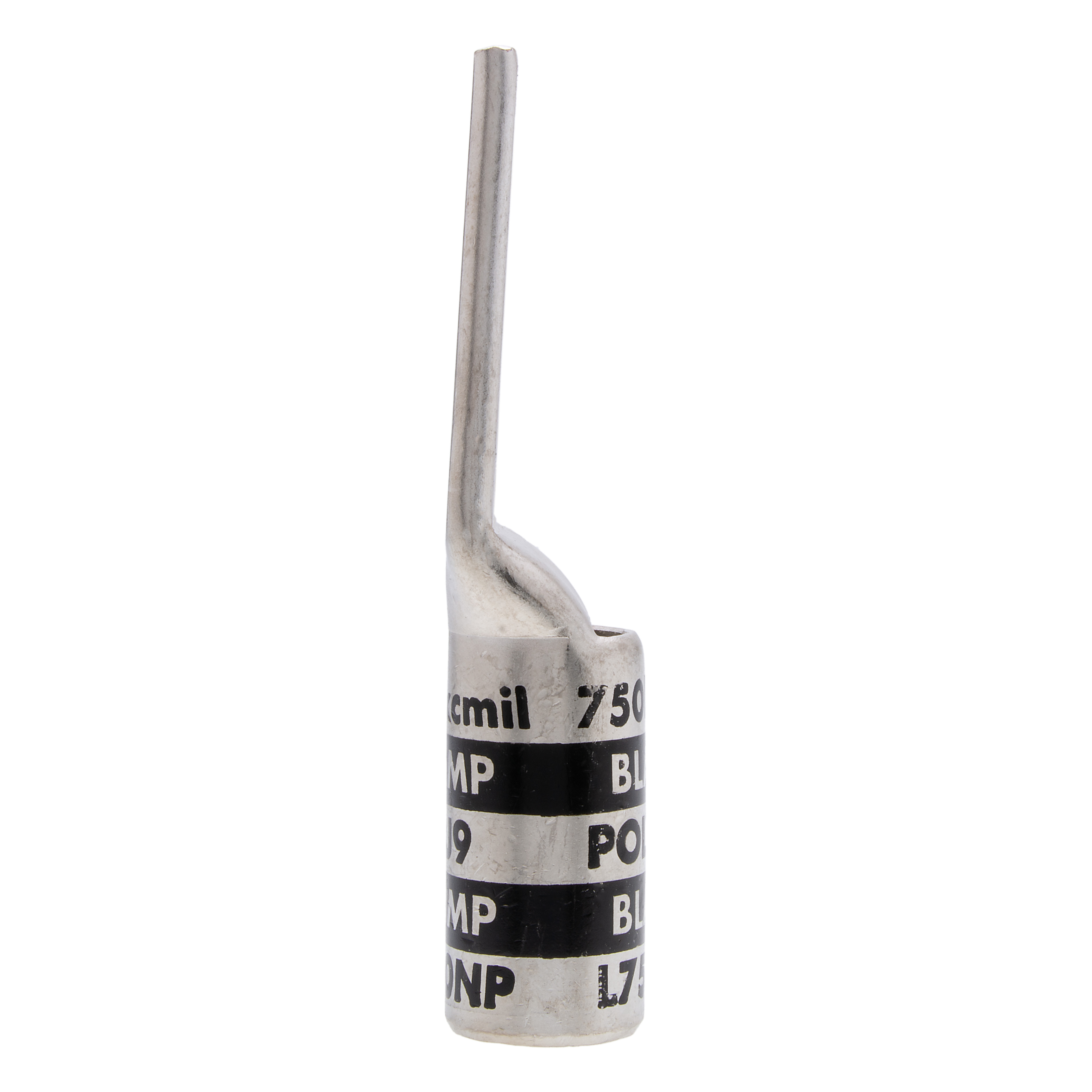

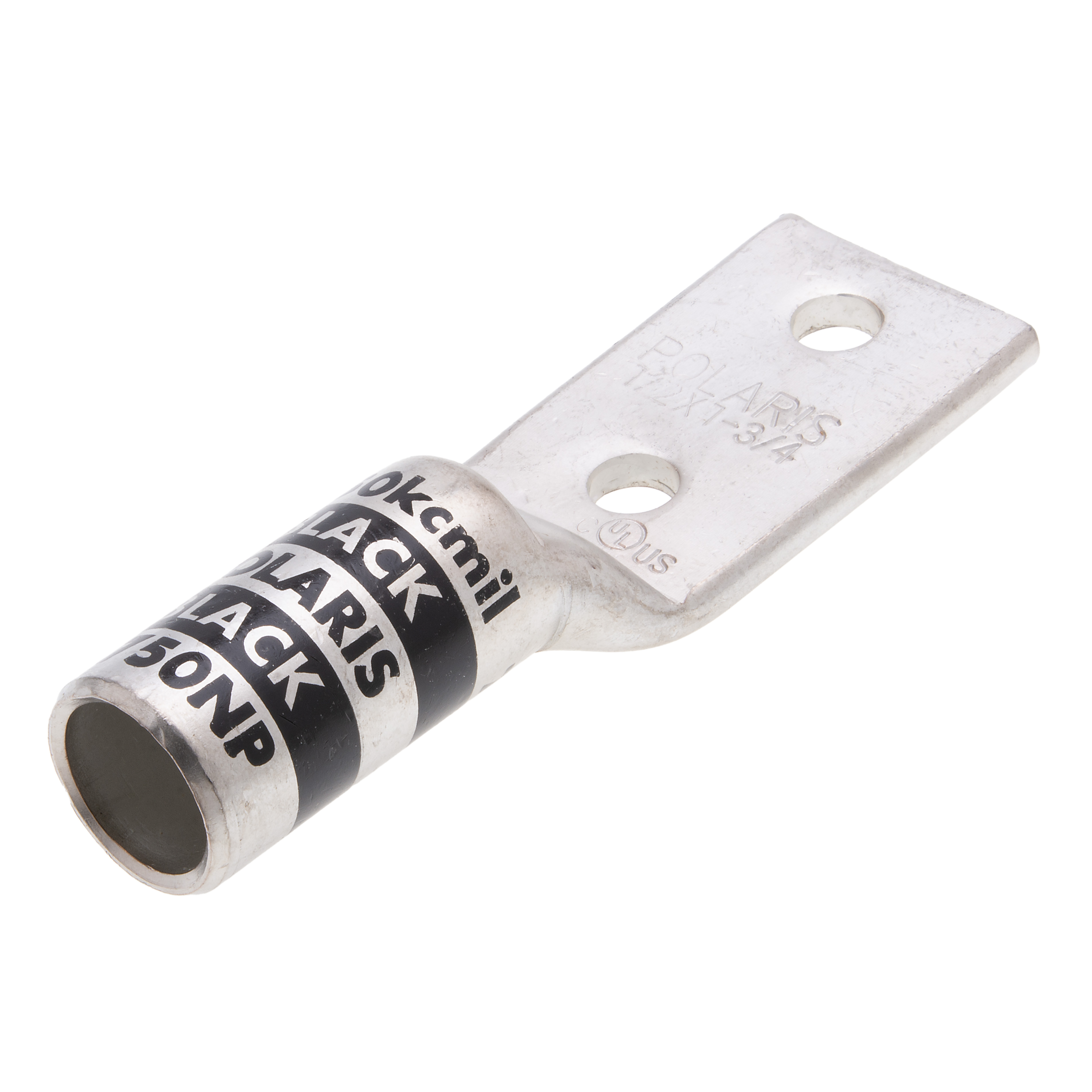

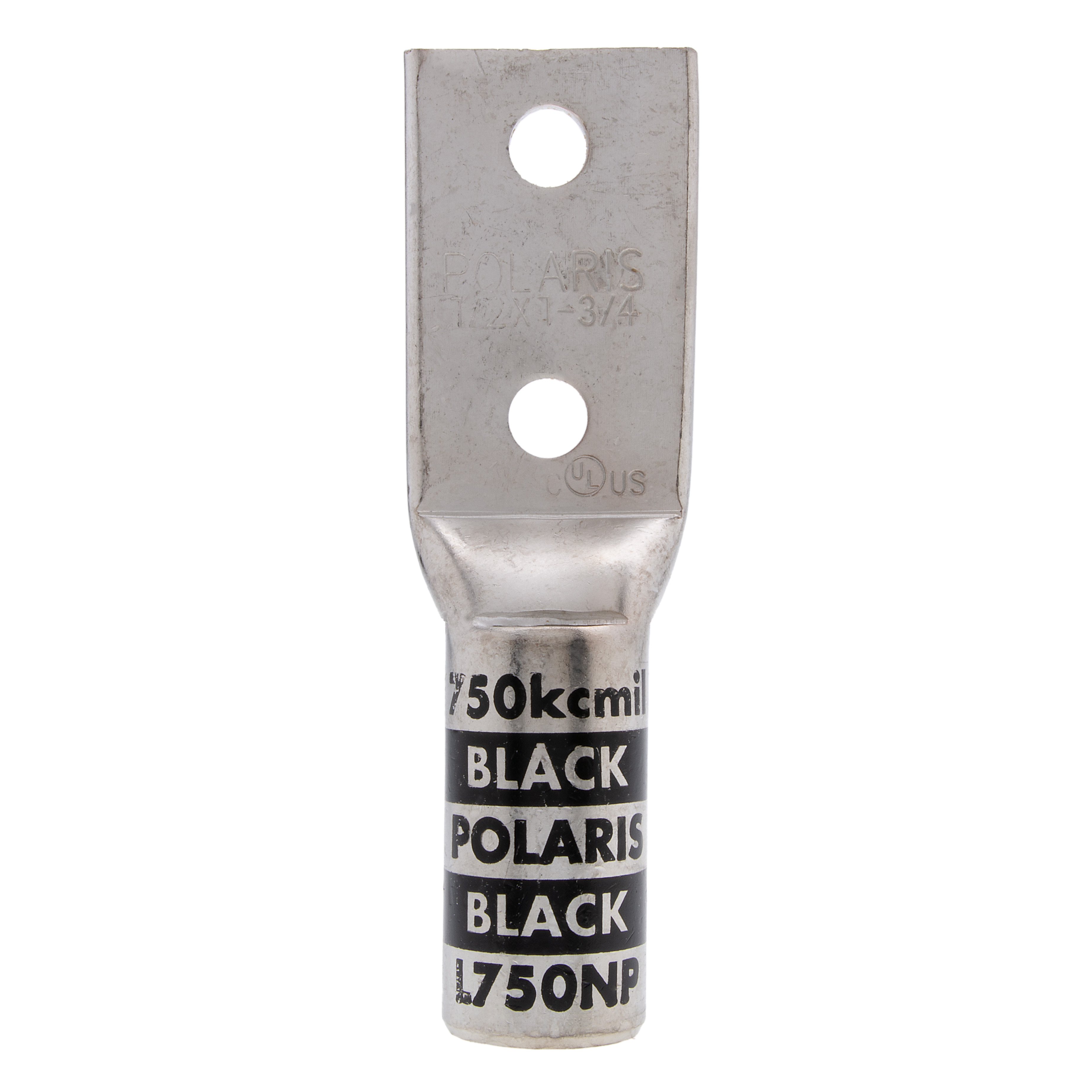

Polaris L750NP 750 MCM CU Compression Lug, 1/2 Bolt Size, 2 hole Peep

#L750NP

The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.

  • High conductivity copper tubing and corrosion resistant tin-plated finish
  • Marked with die index and color coded
  • Peep hole allows easy inspection of the termination
  • Flex rated for use with K, H, G, I, M and DLO cable
  • UL/cULus listed and rated for B/C class wire

Product Information

Die Color Code Black
Assortment Copper Compression Terminations
Material Copper
Finish Tin Plated
Mounting-bolt-size-in 1/2
Ul Standard UL 486A-486B
Tang-thickness-in 0.27
Barrel Length 3.0000
Tang Length 2.992
Voltage Rating 35kV
Conductor Type Copper
Expanded Wire Range 750 MCM – 500 MCM
Wire Cable Class Class B,Class C
UNSPSC 39121405
Wire Range 750 MCM
EAN/UCC-13 0662381035325
GTIN 662381035325
Prop 65 Flag Yes
UPC 662381035325

Resources

Documents

  • POL_TermLugs_CMP_ProdSheet_DIGITAL.pdf Download
  • POL_Compression_CMP_CatBro_DIGITAL.pdf Download
  • POL_LNP-SERIES_CMP_ProDraw.pdf Download
