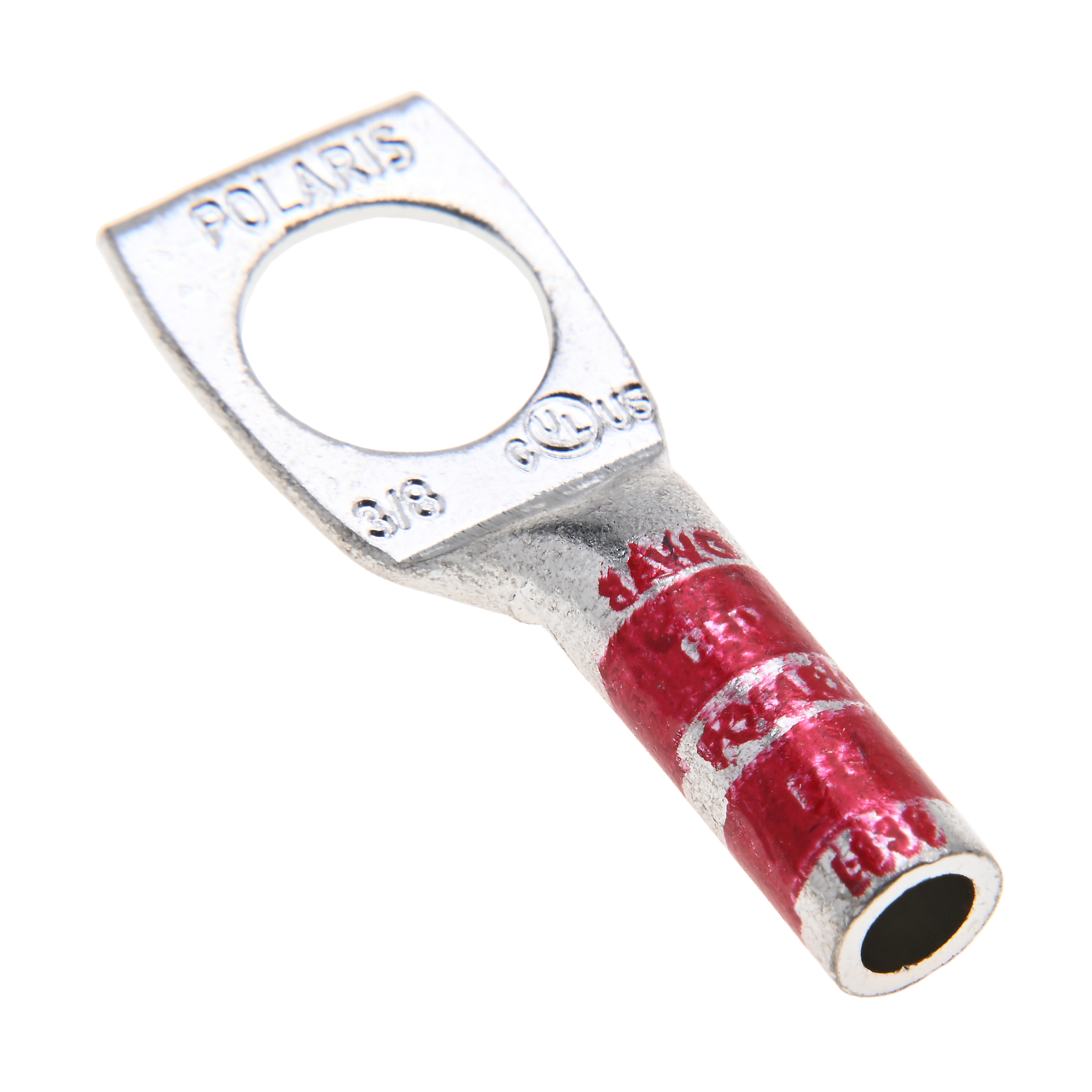

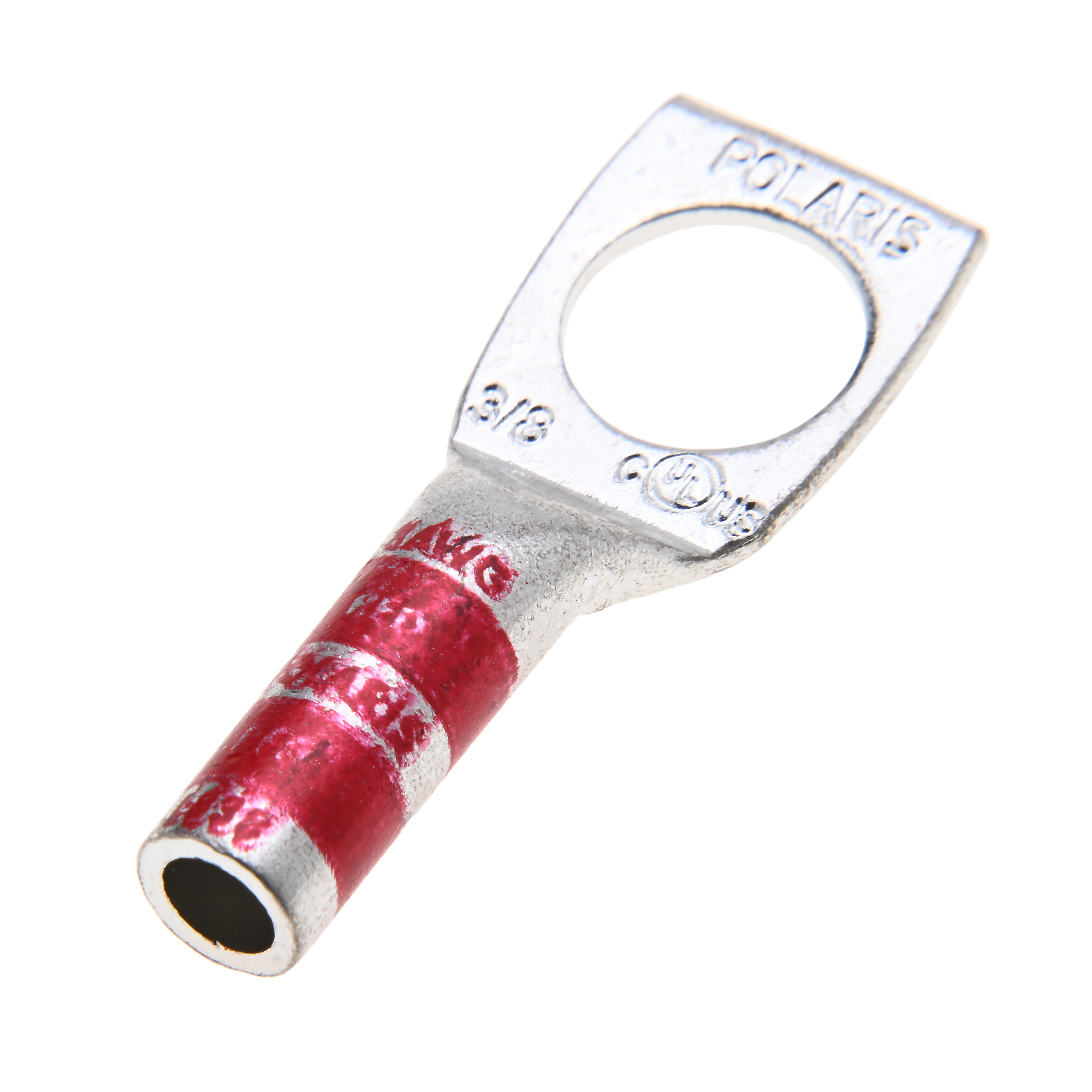

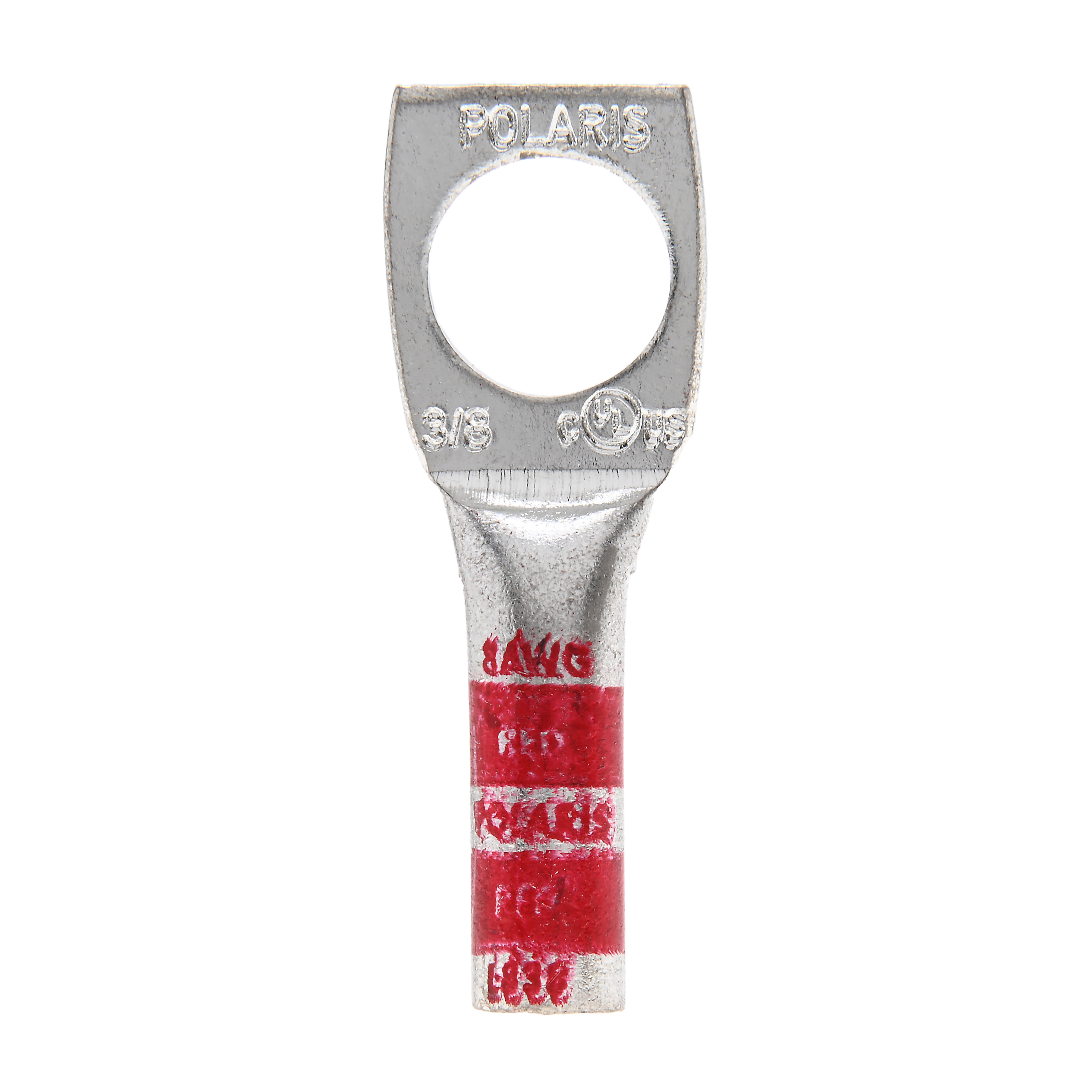

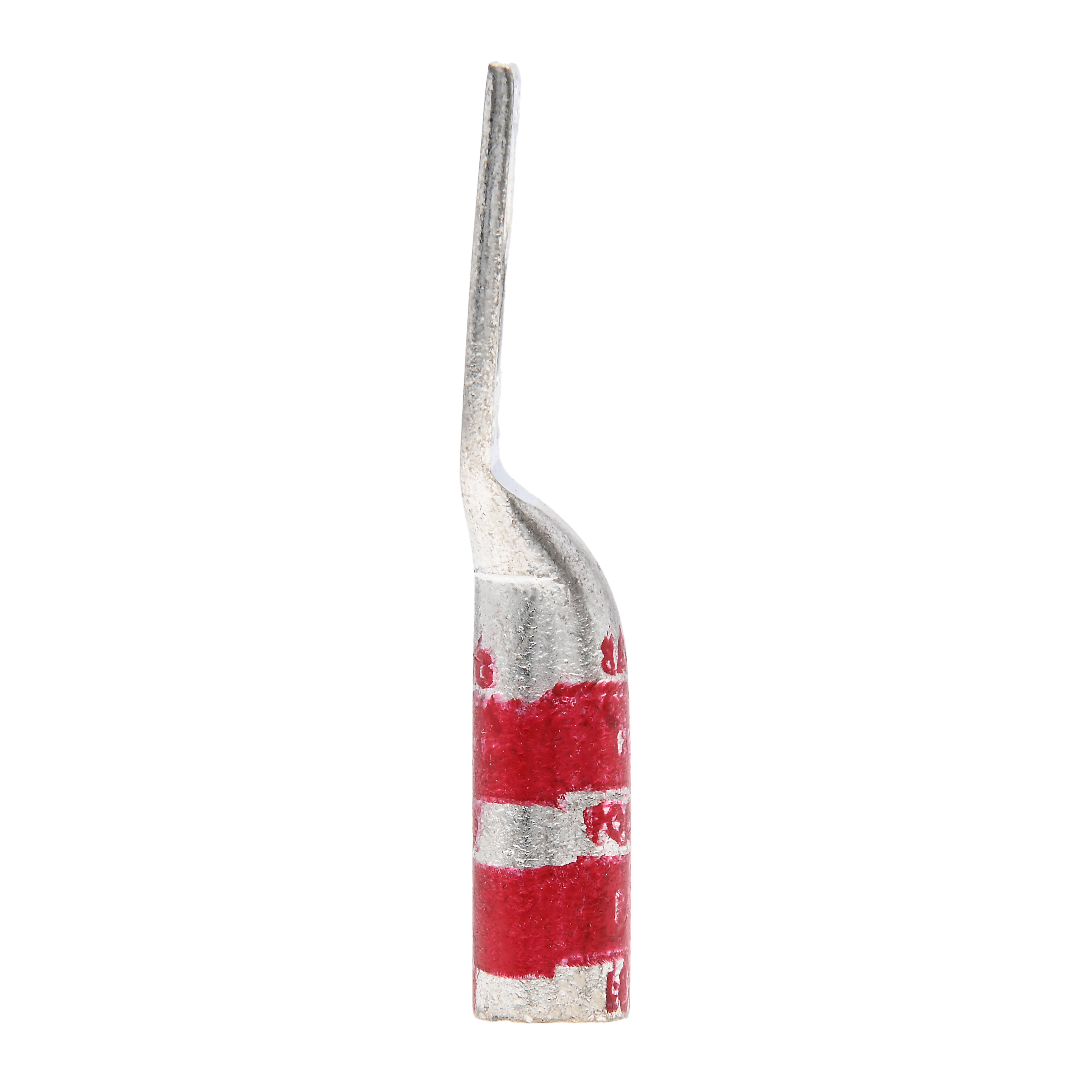

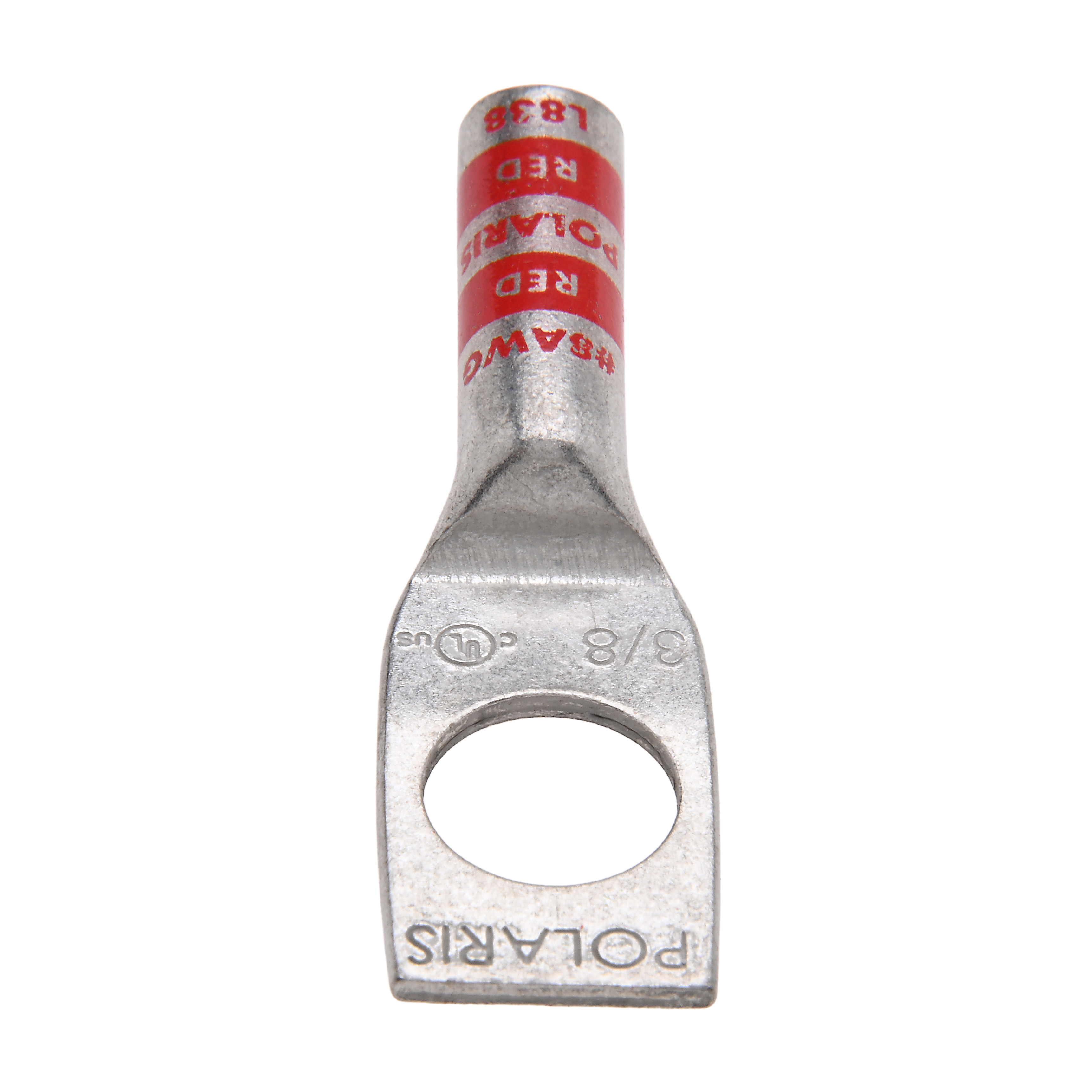

Polaris L838 CMP Lug Cu Long 8 AWG 3/8 Bolt Size

Name: Polaris L838 CMP Lug Cu Long 8 AWG 3/8 Bolt Size
Brand: Polaris
SKU: L838

Compression Termination

#L838

The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.

High conductivity copper tubing and corrosion resistant tin-plated finish
Marked with die index and color coded
Flex rated for use with K, H, G, I, M and DLO cable
UL/cULus listed and rated for B/C class wire
UL listed to 35kV when properly installed to cable manufacturer’s specifications.

Product Information

Voltage Rating	35kV
Material	Copper
Finish	Tin Plated
GTIN	662381336293
UPC	662381336293
EAN	0662381336293
UNSPSC	39121405
Ul Standard	UL 486A-486B, UL467
Tb Die	15520 (4 CRIMPS)
Tb Tools	TBM-15, TBM-14M
Burndy Die	U8CRT (2 CRIMPS)
Burndy Tools	Y-35, T750, PAT750
Ilsco Die	ILD-1 (4 CRIMPS), KC12-8 (2 CRIMPS)
Ilsco Tools	ILC-12, ILC-15
Greenlee Die	KC12-8 (2 CRIMPS)
Greenlee Tools	EK, RK, HK1240 Series
Nsi Die	KC12-8 (2 CRIMPS)
Nsi Tools	N1240, N12ID
Wire Cable Class	Class B, Class C
Conductor Type	Copper
Tang Thickness	0.05
Tang Length	0.67
Wire Range	8 AWG
Assortment	Copper Compression Terminations
Expanded Wire Range	8 AWG
Die Color Code	Red
Mounting Bolt Size	3/8
Mounting Hole Diameter	0.41
Barrel Length	1
