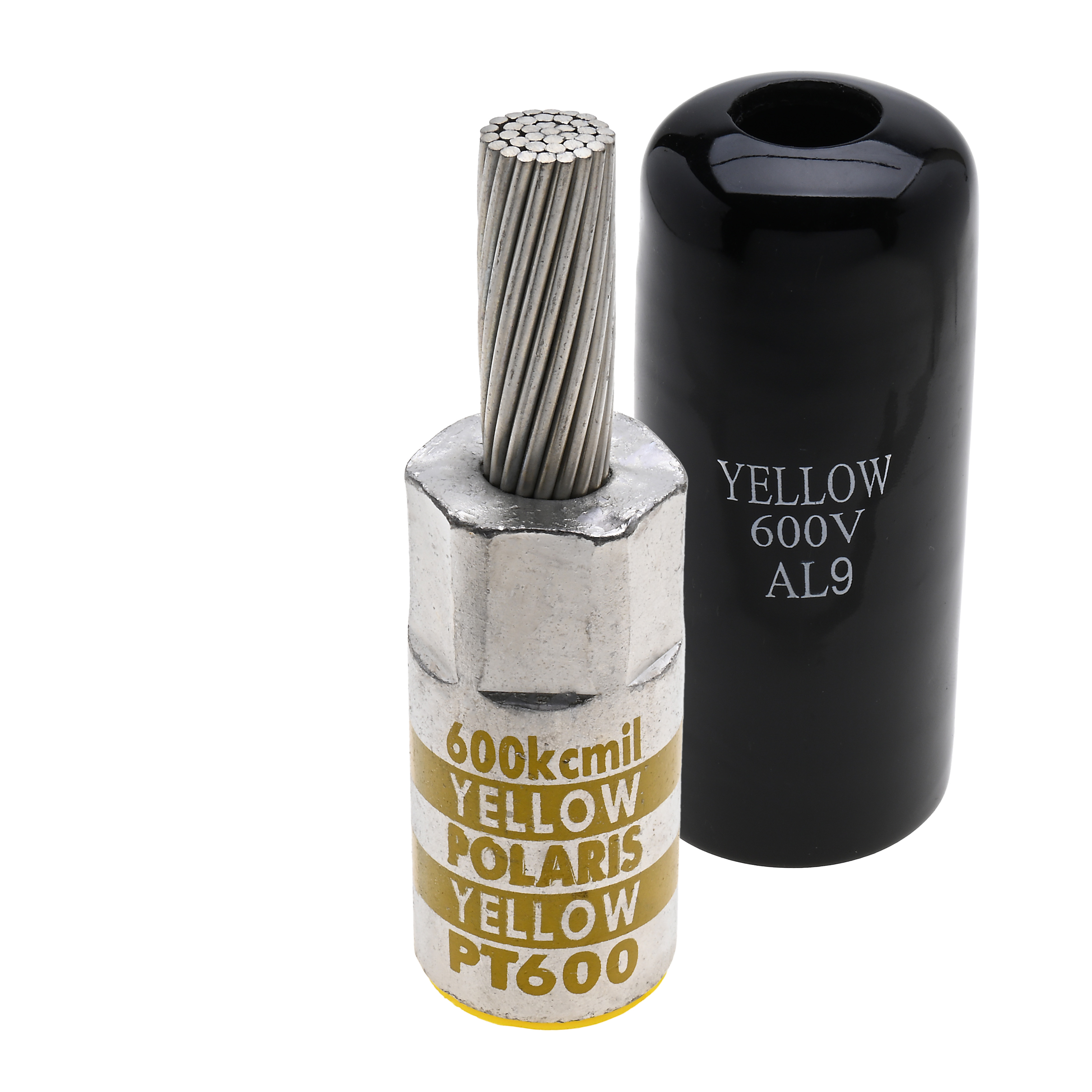

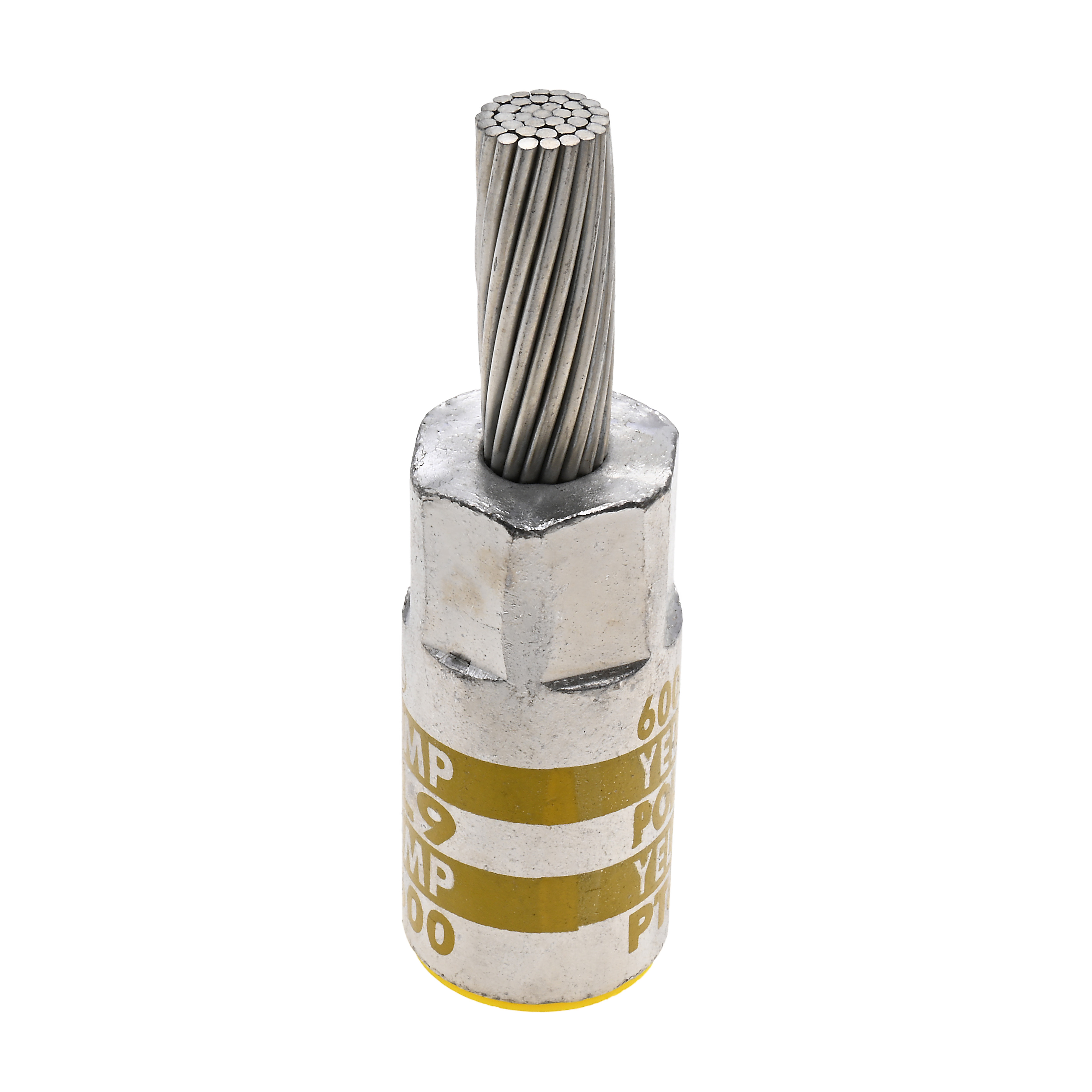

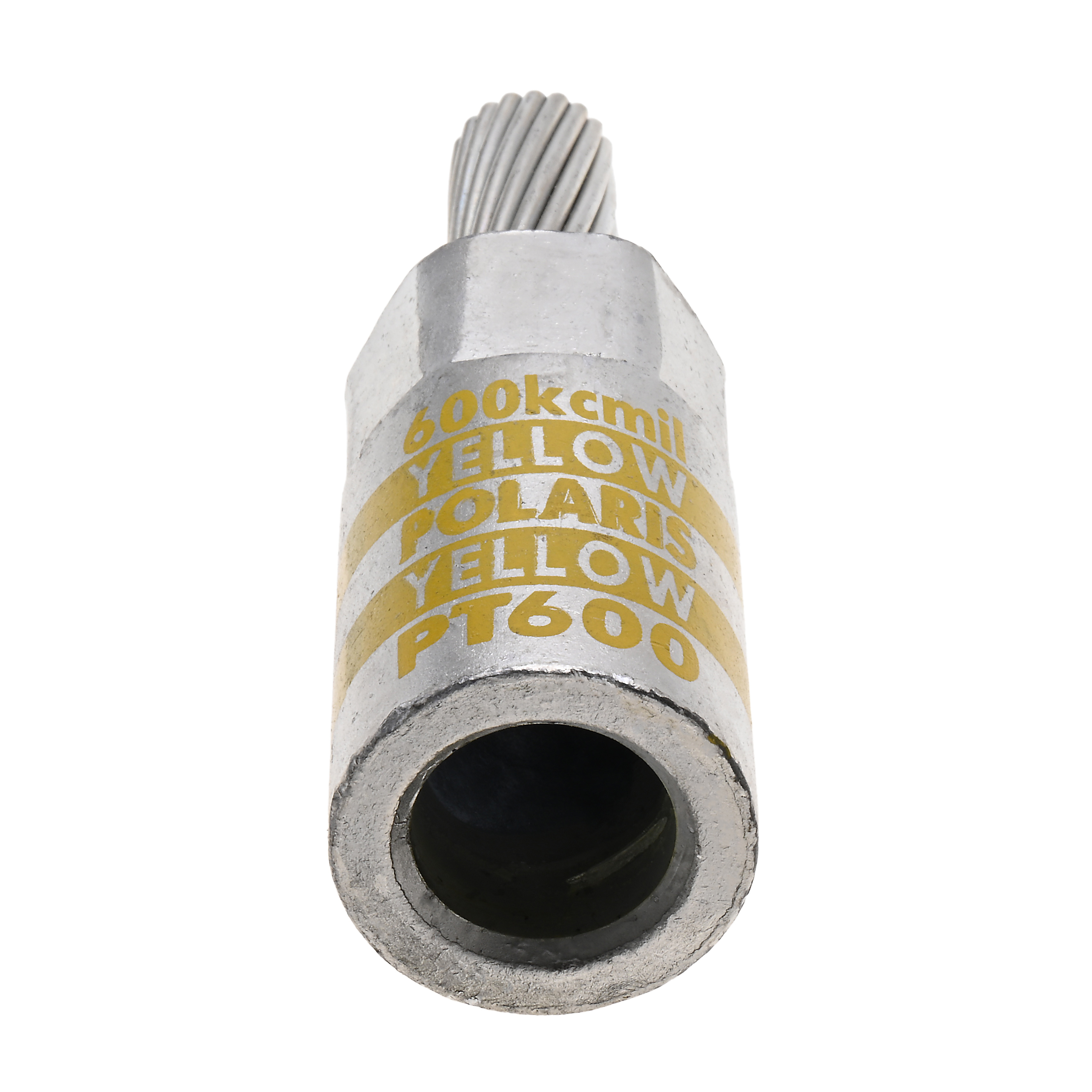

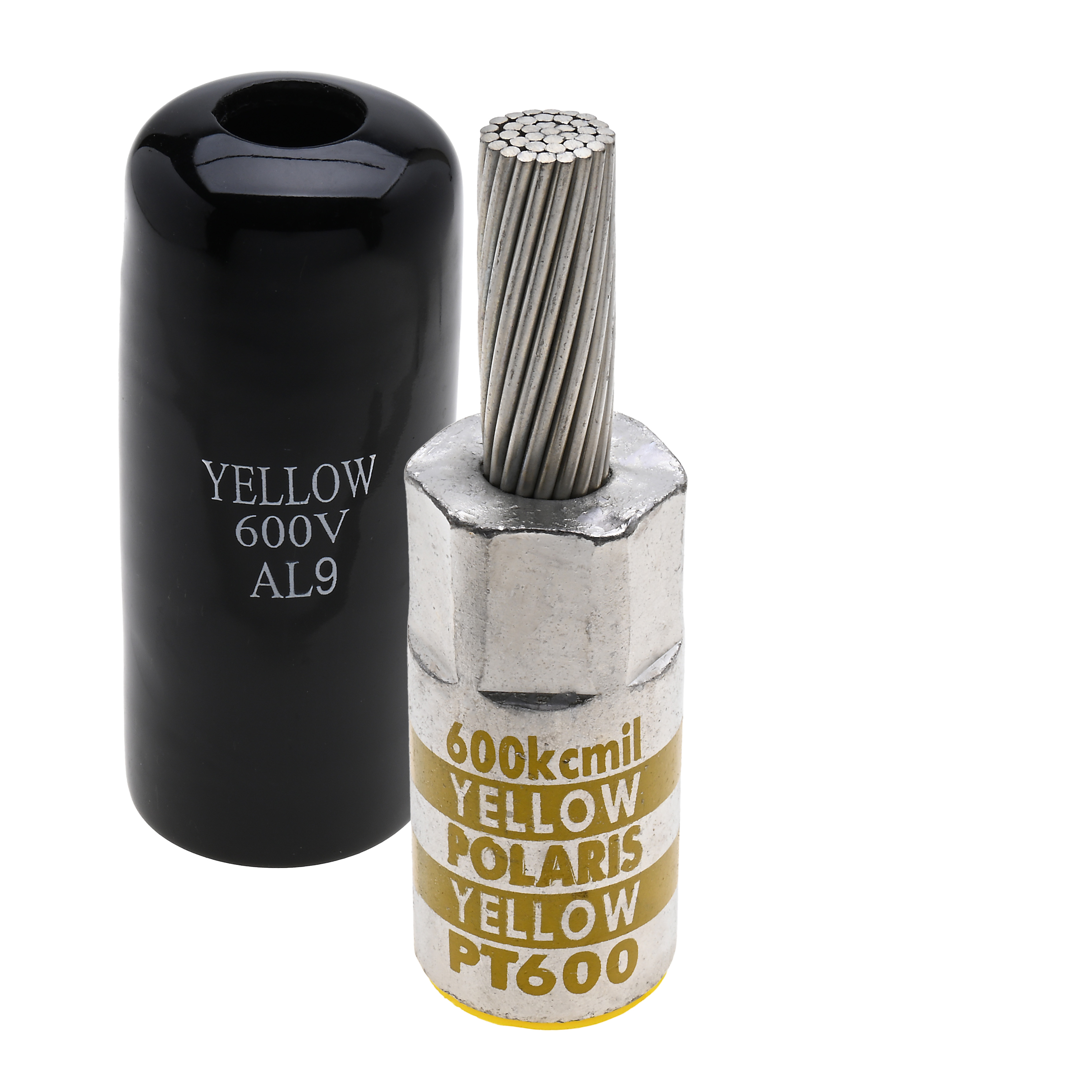

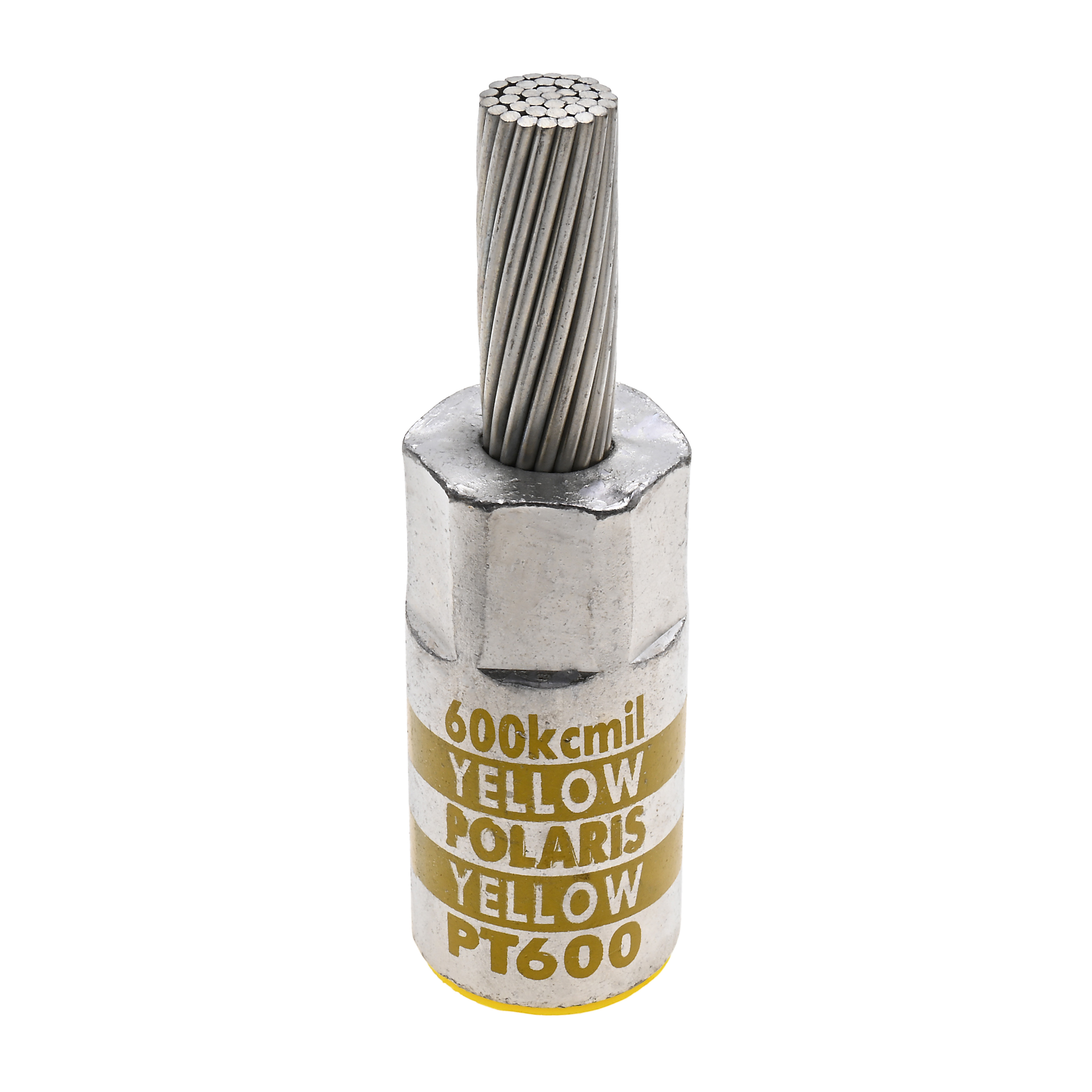

Polaris PT600 Al Pin Terminal Cu Pin 600 MCM
#PT600
These copper pin aluminum connectors are rated for aluminum conductors with a pigtail type copper pin designed to facilitate termination of aluminum conductors into copper connectors. The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance.
- Facilitates termination of aluminum conductors
- Stranded copper, tin plated pin providing high conductivity and corrosion resistance
- Supplied with PVC insulating cover
- Connector bores coated with oxide inhibitor
- Marked with die index and color coded
Product Information
| Voltage Rating | 35kV |
|---|---|
| Material | Aluminum |
| Finish | Tin Plated |
| Pack Qty | 3 |
| UPC | 662381103314 |
| UNSPSC | 39121432 |
| Ul Standard | UL 486A-486B |
| Pin Size | 350 MCM |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Aluminum |
| Assortment | Pin Terminals |
| Die Color Code | Yellow |
| Barrel Length | 3.05 |
