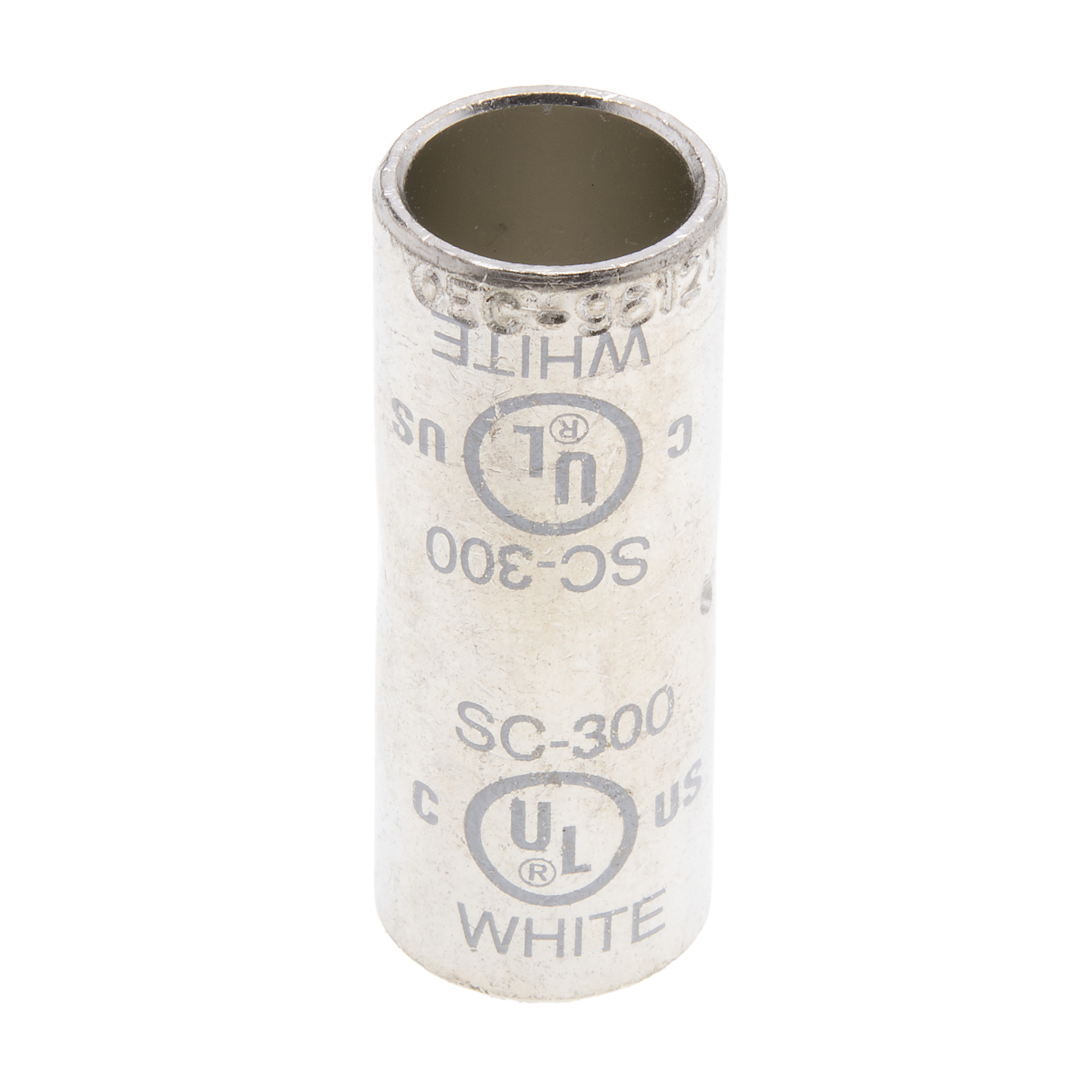

Polaris SC-300 CMP Splice Copper Short 300 MCM
#SC-300
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Serrations indicate proper crimp locations
- Marked with die index and color coded
- UL486A Listed Wire Connector, cULus Listed 155027
- Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices
Product Information
| Die Color Code | White |
|---|---|
| Finish | Tin Plated |
| Ul Standard | UL 486A |
| Assortment | Copper Compression Splices |
| Material | Copper |
| Barrel Length | 2.1000 |
| Voltage Rating | 600V |
| Conductor Type | Copper |
| Expanded Wire Range | 300 MCM – 2/0 AWG |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121449 |
| Wire Range | 300 MCM |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381037114 |
Resources
Documents
- POL_Compression_CMP_CatBro_DIGITAL.pdf Download
Video resources
- POL_Compression30s-BOTH_CMP_Video.mp4 View video
- POL_Compression15s-BOTH_CMP_Video.mp4 View video
