Polaris SITG-6 Polaris Gry Replacment Sleeves 6
Insulated Mechanical Connectors
#SITG-6
Polaris Grey Multi-Tap Connectors form secure connections between multiple fine-stranded wire conductors, with a rounded design and UV-resistant insulation coating. Replacement sleeves available to enable connector reuse.

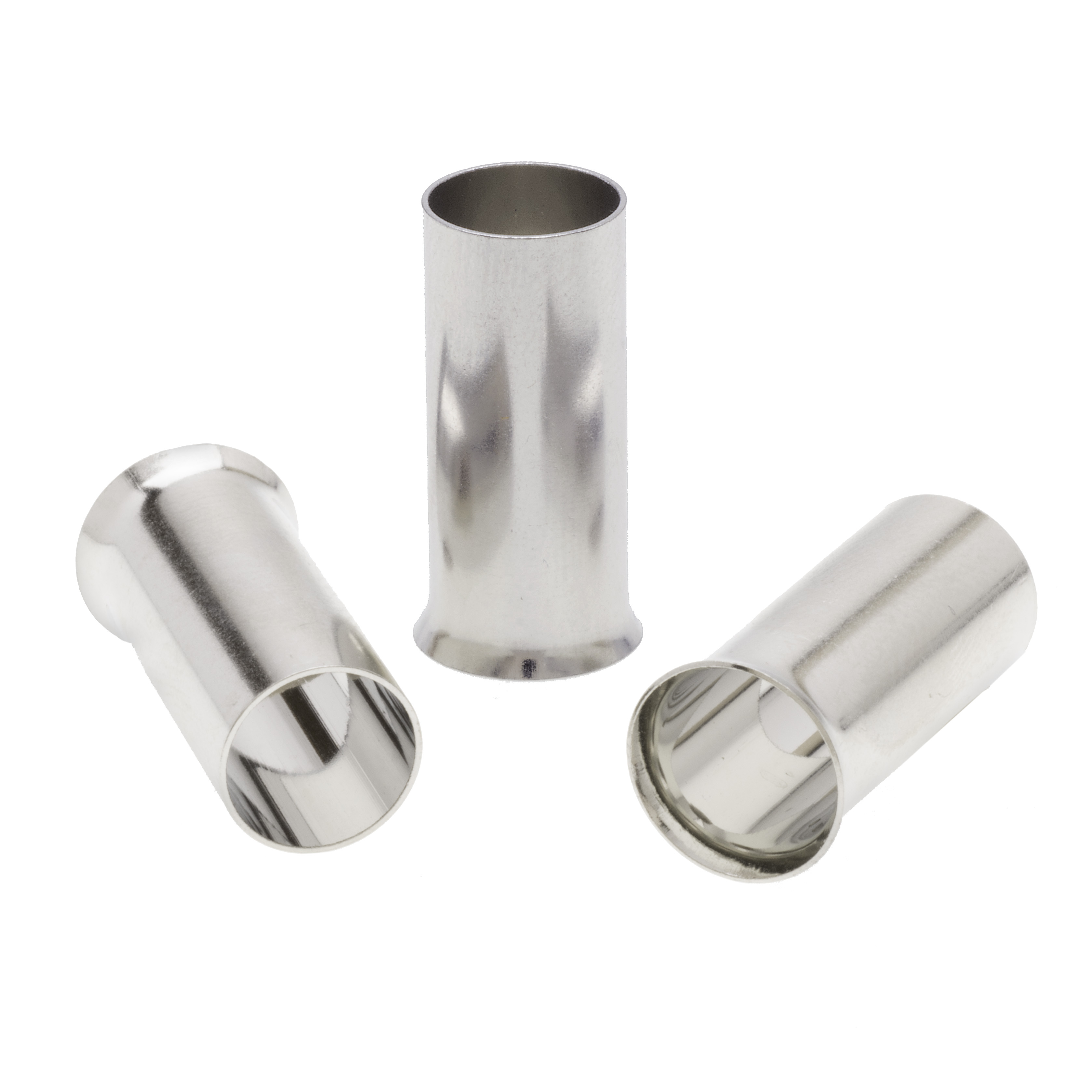

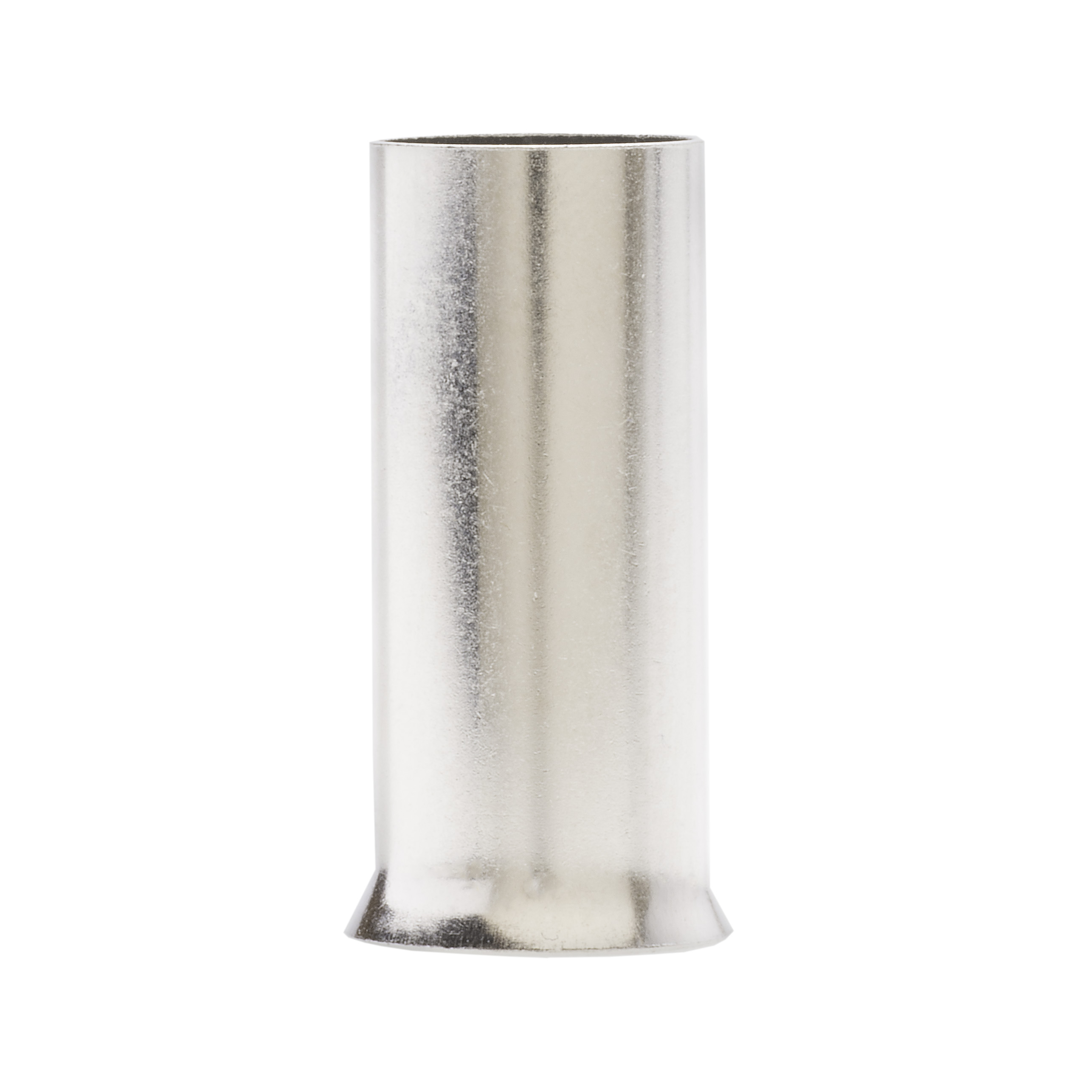

- Replacement Sleeve: Reuse connectors by replacing the crimped internal ferrules with this 10-pack of sleeves, sized for 6 – 14 AWG ports in Polaris Grey connectors
- Tin-Plated Copper: Each sleeve is made from resilient tin-plated copper that performs well in harsh environments to extend the life of the connector
- Fine-Stranded Wires: Polaris Grey is specially designed to splice fine-stranded, flexible and extra-flexible copper conductors, including DLO cable and motor lead wires
- Professional Performance: The 600V voltage rating and 90 degrees Celsius operating temperature ensure that these sleeves excel in professional applications
- Can be used with Class B, C, D, K, M of copper conductor, but is specifically designed for use with fine-stranded, flexible and extra-flexible copper conductors.
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| Pack Qty | 10 |
| GTIN | 662381951601 |
| UPC | 662381951601 |
| EAN | 662381951601 |
| UNSPSC | 39121409 |
| Wire Cable Class | Class B |
| Conductor Cu Size Range | 6-14 AWG (CLASS B, C,D) & 6-14 AWG (Classes G, H, I, K, M, DLO) |
| Conductor Type | Aluminum, Copper |
| Assortment | Accessories Pre-Insulated Connectors |
