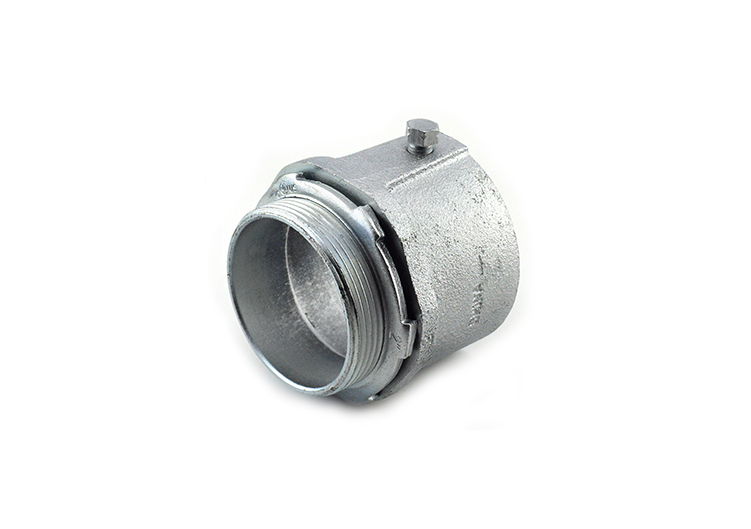

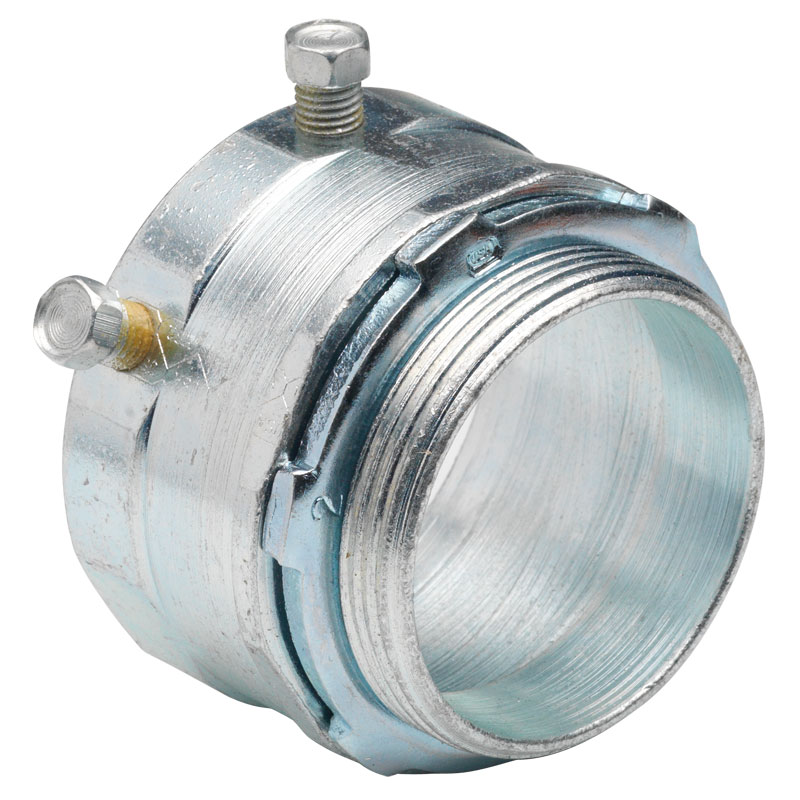

Rigid Or IMC To Enclosure Set Screw Connector 2″, Iron

#3505

The Bridgeport 2″ Malleable Iron Rigid or IMC To Enclosure Set Screw Connector joins unthreaded rigid or IMC conduit to a box or enclosure. The seal is concrete tight. The connection is secured via a set screw.

  • Concrete Tight: The connector is perfect for applications where concrete aggregate could abrade conductor insulation or effectively reduce the area inside the raceway
  • Malleable Iron Body: The malleable iron body is ideal for this application due to its excellent tensile strength
  • Secure Set Screw Connection: Operators are able to secure the rigid or IMC connection via the set screw

Product Information

Material Malleable Iron
Finish Zinc Plated
Pack Qty 30
GTIN 00781747035059
UPC 781747035059
EAN 0781747035059
UNSPSC 39121311
Origin Country CN
Ul Standard UL-514B
Ul File No E9391
Application Rigid set screw type coupling used to join two unthreaded lengths of Rigid or IMC. Concrete-tight when taped.
