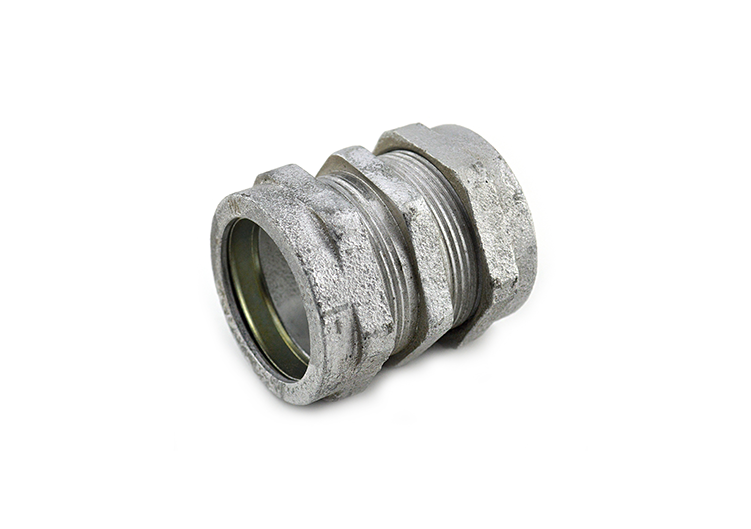

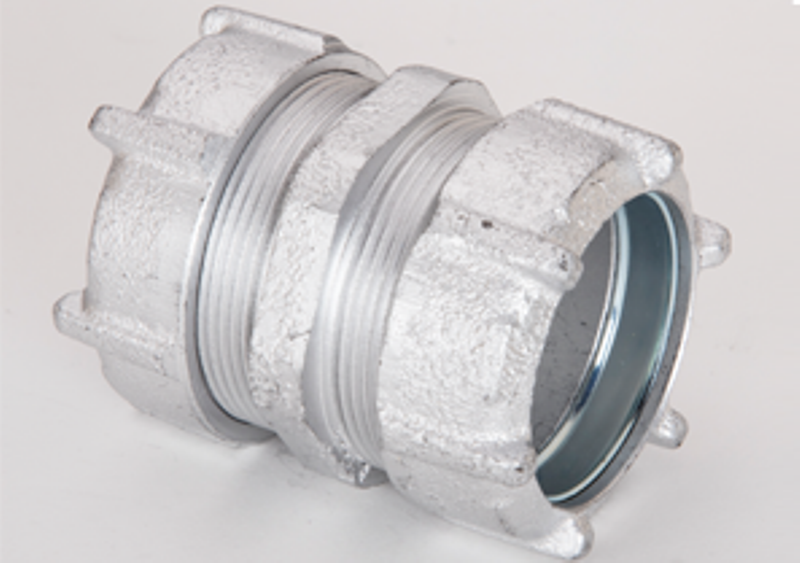

Rigid To Rigid Screw On Compression Coupling 1-1/4″, Steel
#3103
The Bridgeport 1-1/4″ Steel Screw On Compression Rigid Coupling joins two lengths of unthreaded rigid conduit together. The seal is concrete tight without tape. The connection is secured via a screw on compression fitting.
- Concrete Tight: The coupling is perfect for applications where concrete aggregate could abrade conductor insulation or effectively reduce the area inside the raceway
- Steel Body: The steel body is naturally resistant to corrosion for long-term use in non-acidic environments
- Secure Compression Connection: Operators are able to secure the connection via the compression end
Product Information
| Material | Steel |
|---|---|
| Finish | Zinc Plated |
| Pack Qty | 25 |
| GTIN | 00781747031037 |
| UPC | 781747031037 |
| EAN | 0781747031037 |
| UNSPSC | 39131707 |
| Ul Standard | UL-514B |
| Application | Rigid compression type coupling used to join Rigid or IMC conduit together. |
