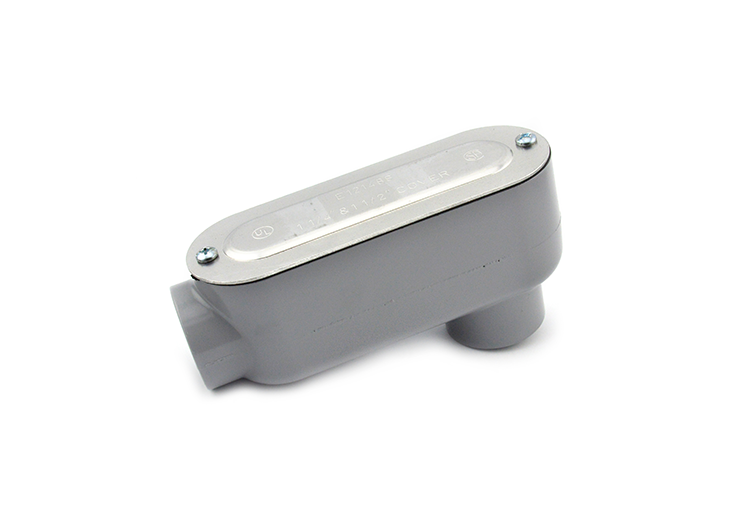

Type LB Rigid Conduit Body with Cover and Gasket 2″, Aluminum
#LB-46CG
Bridgeport Type LB conduit bodies allow access to the interior of a conduit system for inspection, pulling and routine maintenance. These conduit bodies are designed for a 90 degree cable pull with the cable exiting through the back of the body.
- Type LB: Type LB conduit bodies are used for a 90 degree change of cable direction through the back of the body opposite the cover
- Gasket and Cover: A neoprene gasket and aluminum cover protects your system from dust, water and most other liquids and oils
- Easy Access: Conduit bodies provide easy access to the interior of conduit systems for pulling, inspection and routine maintenance
- Threaded: NPT threads allow rigid and intermediate metal conduit to be screwed directly into the conduit body
- Aluminum Body: Copper-free aluminum conduit bodies reduce the weight of your wiring system while also providing a reliable, cost-effective solution
Product Information
Finish | Enamel paint |
---|---|
Pack Qty | 6 |
GTIN | 00781747036469 |
UPC | 781747036469 |
EAN | 0781747036469 |
UNSPSC | 39131708 |
Ul Standard | UL-514A |
Resources
Documents
- BPT_LB-46CG_ProDraw.pdf Download
