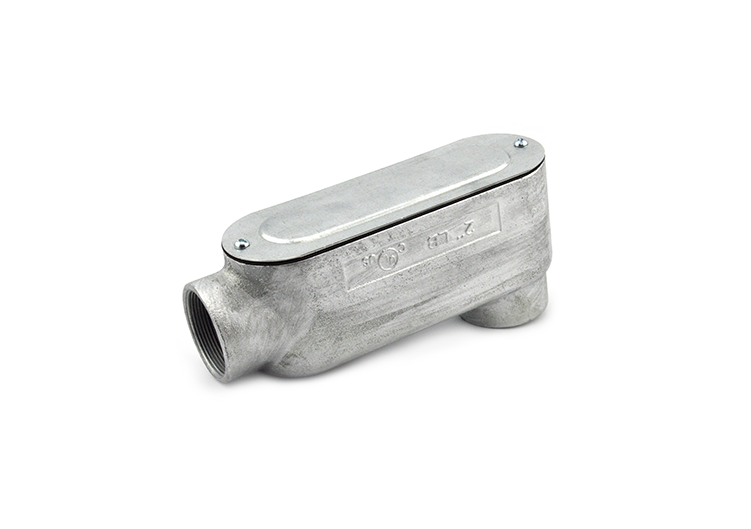

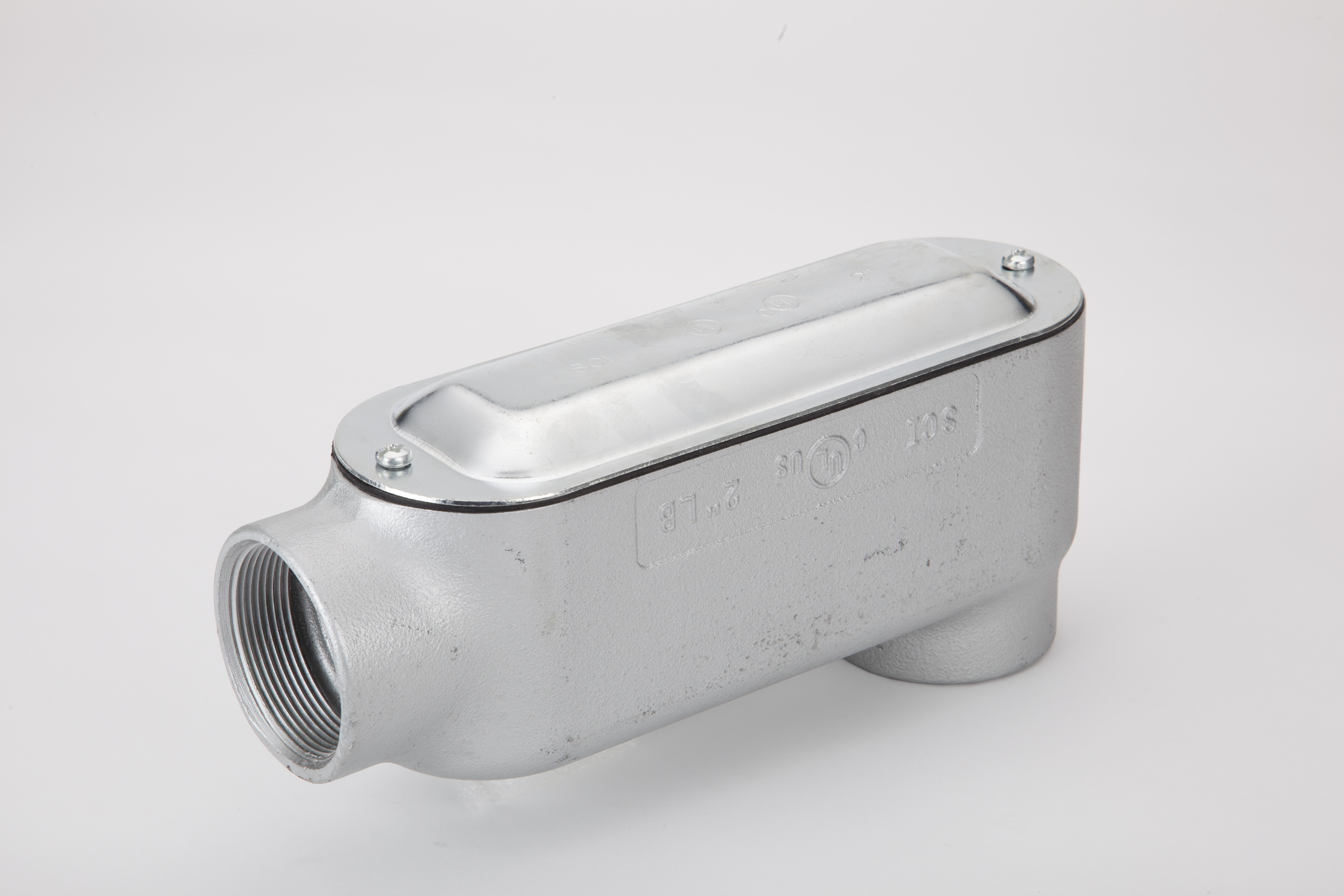

Type LB Rigid Conduit Body with Cover and Gasket 2″, Iron

#LB-66CG

Bridgeport Type LB rigid conduit bodies allow access to the interior of conduit systems for inspection, pulling and maintenance. This threaded conduit body is fitted with a cover and neoprene gasket for protecting inner wiring from dust and rain.

  • Heavy-Duty: Malleable iron offers excellent impact abrasion and corrosion resistance – making these conduit bodies suitable for heavy-duty industrial applications
  • Gasket and Cover: Conduit body comes preassembled with a cover and neoprene gasket for protecting the inner wiring system from dust, water and most other liquids and oils
  • Threaded Hubs: NPT threads allow rigid and intermediate metal conduit to be screwed directly into the conduit body
  • Type LB: Type LB conduit bodies are designed for a 90 degree cable pull, with the cable exiting through the back of the body opposite the cover
  • Easy Access: Conduit bodies provide easy access to the interior of conduit systems for pulling, inspection and routine maintenance

Product Information

Material Malleable Iron
Finish Zinc Plated
Pack Qty 6
GTIN 00781747061768
UPC 781747061768
EAN 0781747061768
UNSPSC 39131708
Ul Standard UL-514B
