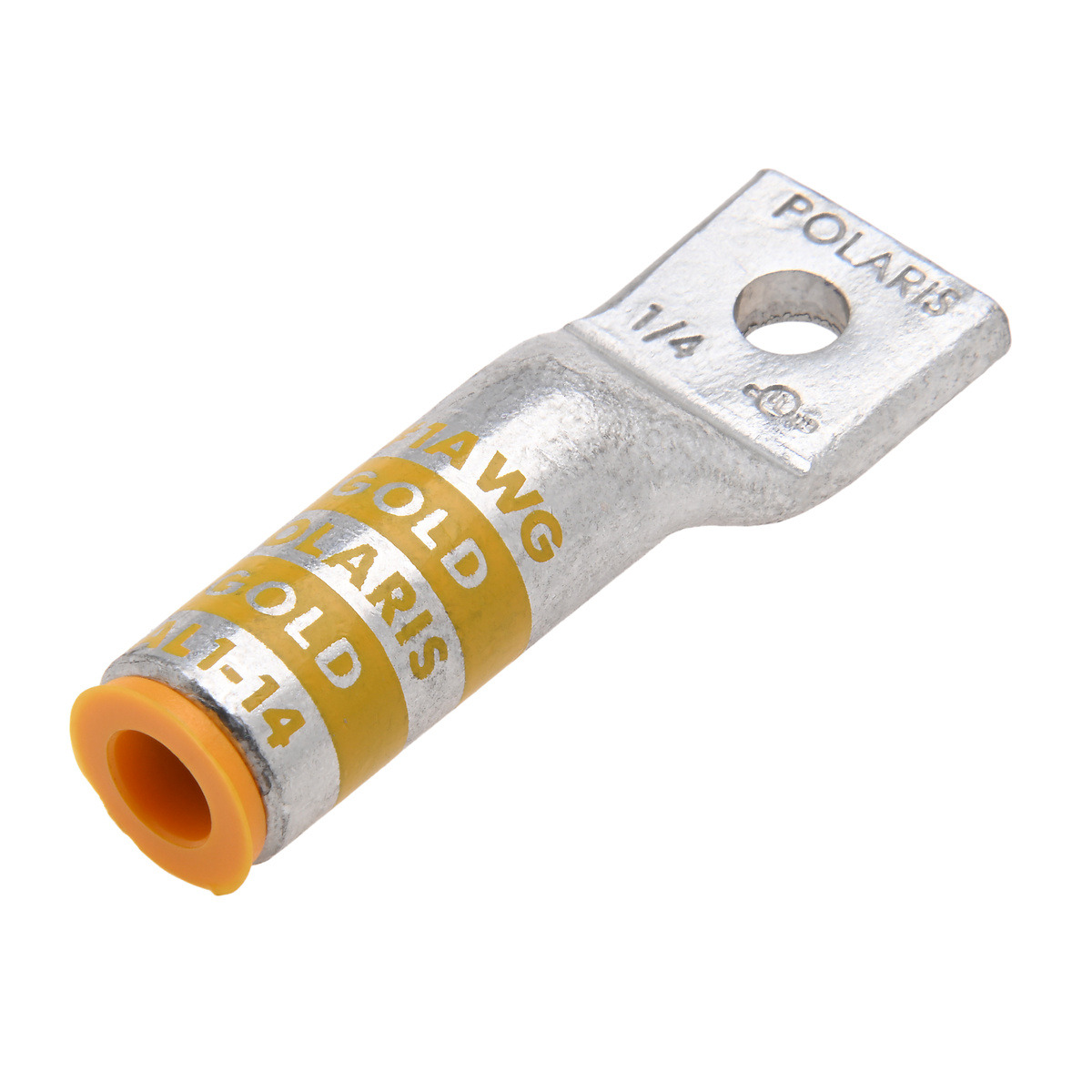

1 AWG 1/4” 1-Hole Aluminum Long Lug – Gold
#AL1-14
Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.
- High conductivity aluminum tubing and corrosive resistant tin-plated finish
- Die cast color-coded identification
- Dual rated for both copper and aluminum conductors
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
Product Information
| Voltage Rating | 600V |
|---|---|
| Material | Aluminum |
| Finish | Tin Plated |
| GTIN | 662381030030 |
| UPC | 662381030030 |
| EAN | 0662381030030 |
| UNSPSC | 39121405 |
| Origin Country | IN |
| Certifications | cULus, UL Listed |
| Ul Standard | UL 486A-486B |
| Barrel Inside Diameter | 0.35 |
| Barrel Outside Diameter | 0.53 |
| Ul File No | E155027 |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper, Aluminum |
| Tang Thickness | 0.18 |
| Tang Length | 0.88 |
| Temp Rating | 90C, AL9CU |
| Mounting Hole Pos | 0.38 |
| Hole Count | 1 |
| Wire Range | 1 AWG |
| Assortment | Aluminum Compression Terminations |
| Expanded Wire Range | 1 AWG – 6 AWG |
| Die Color Code | Gold |
| Mounting Bolt Size | 1/4 |
| Barrel Length | 1.2 |
