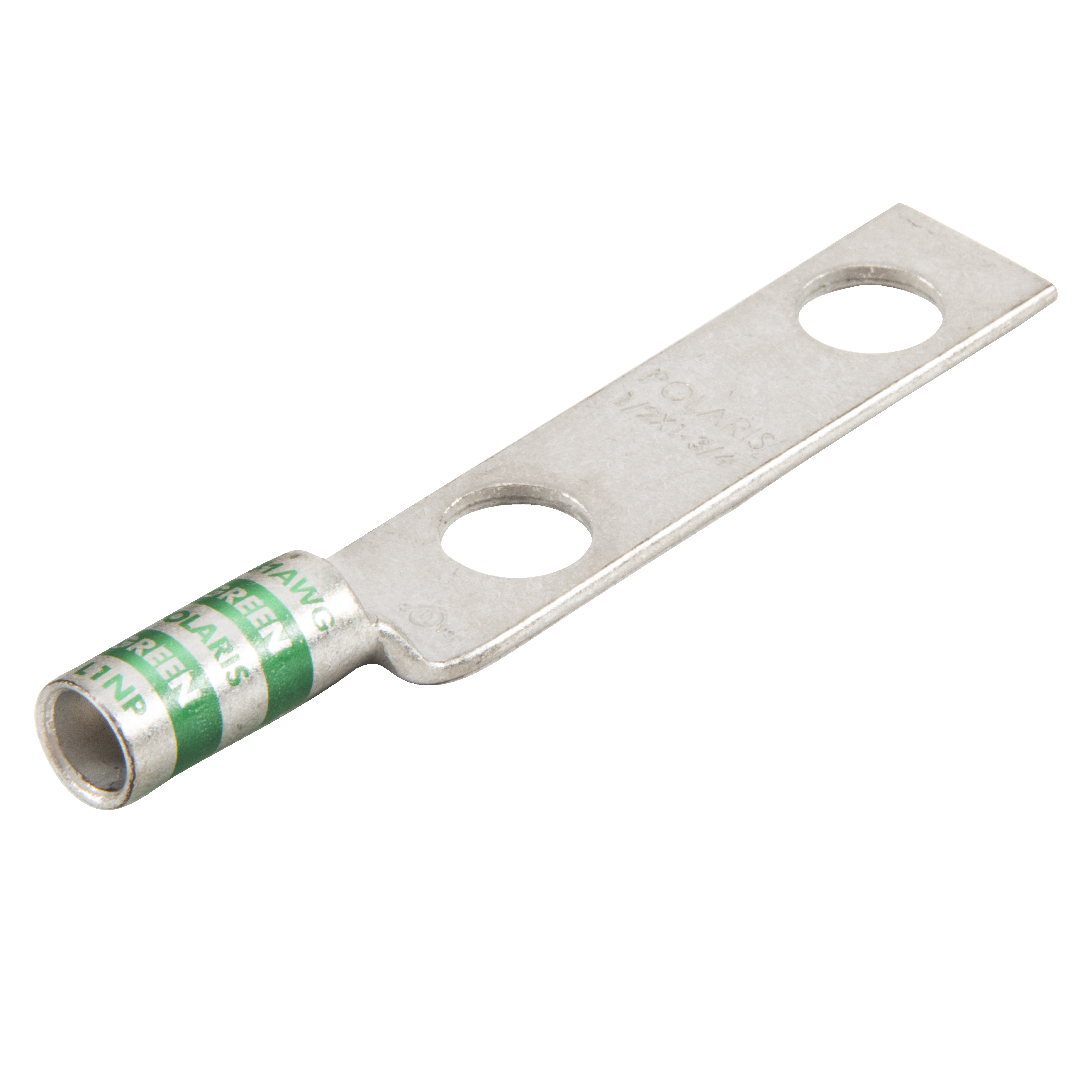

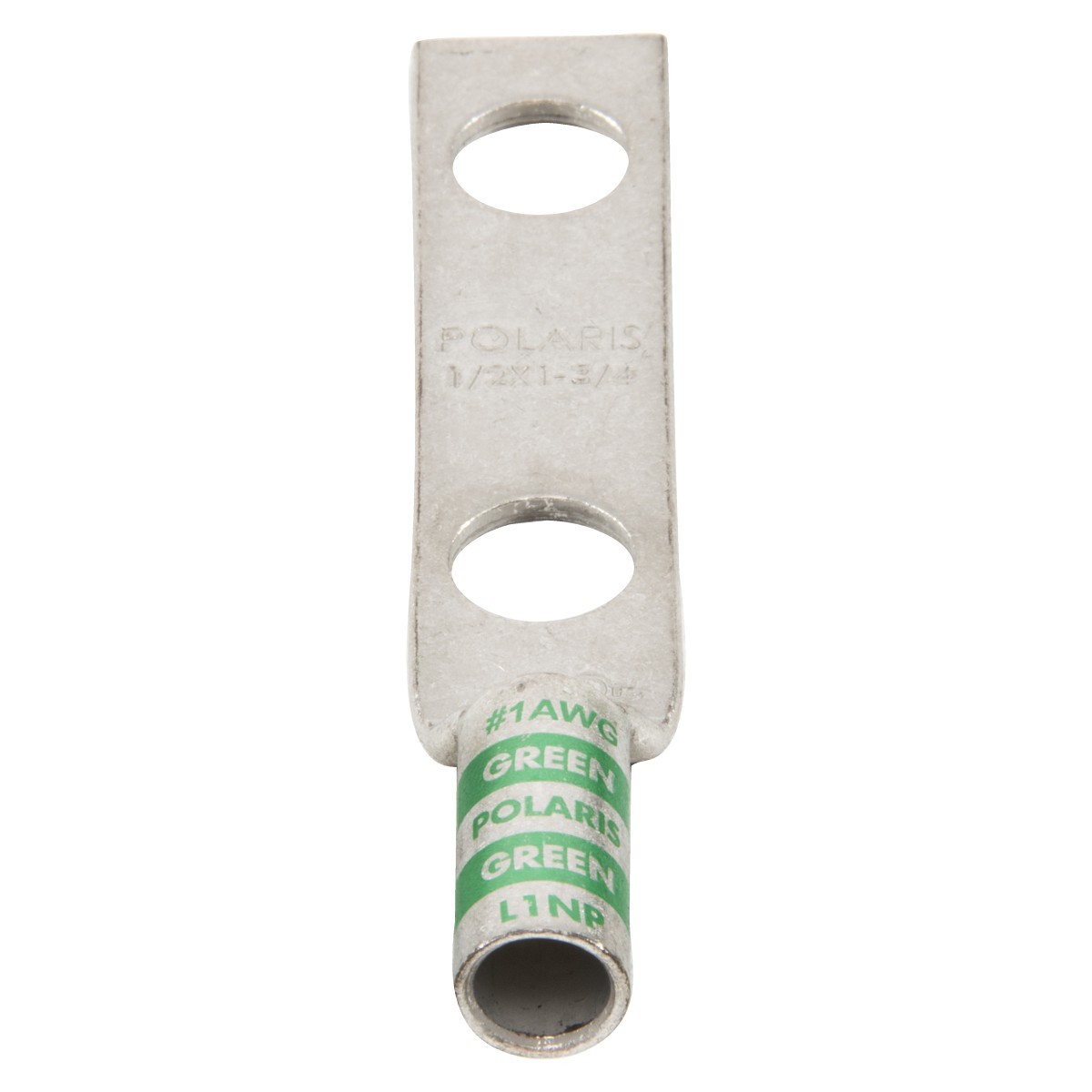

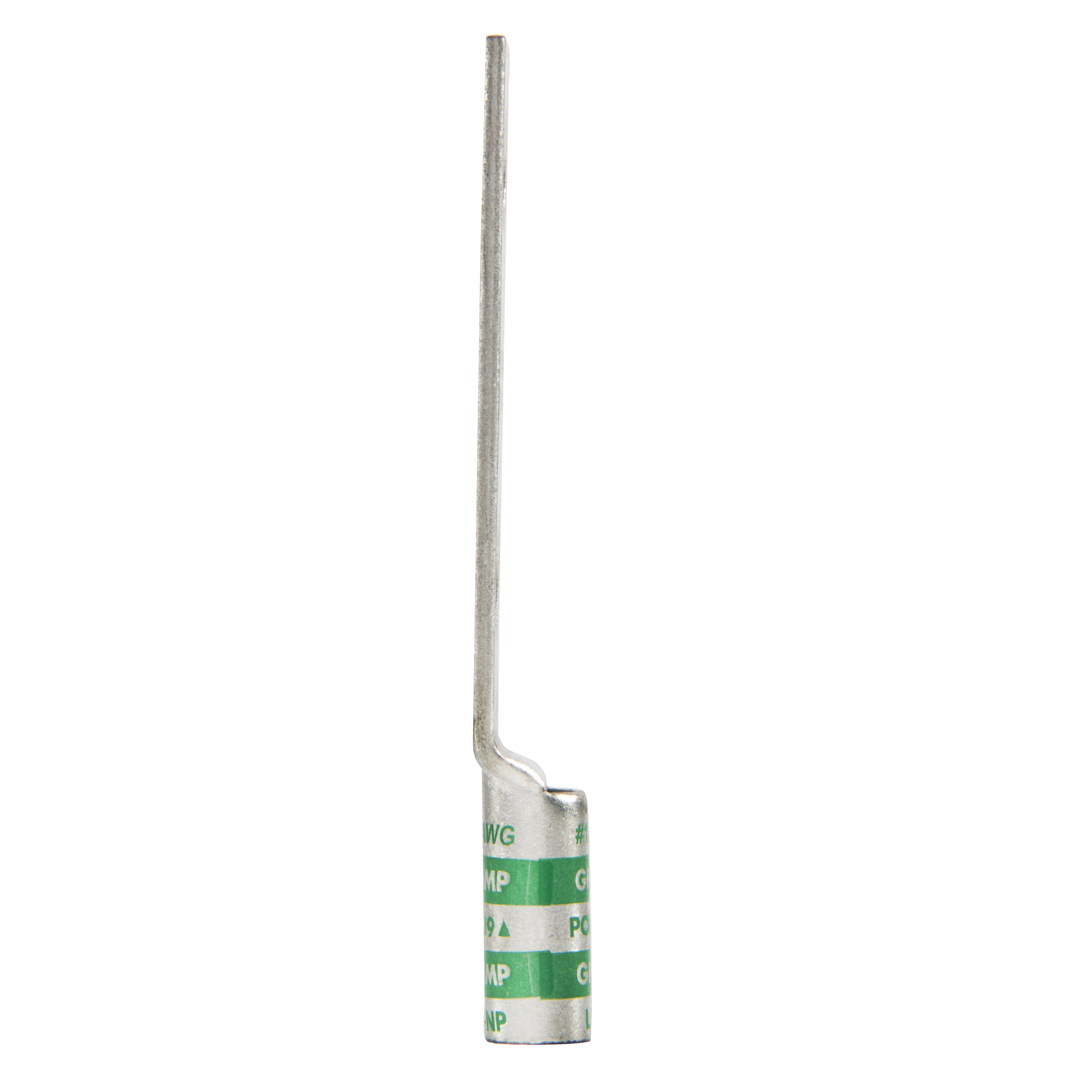

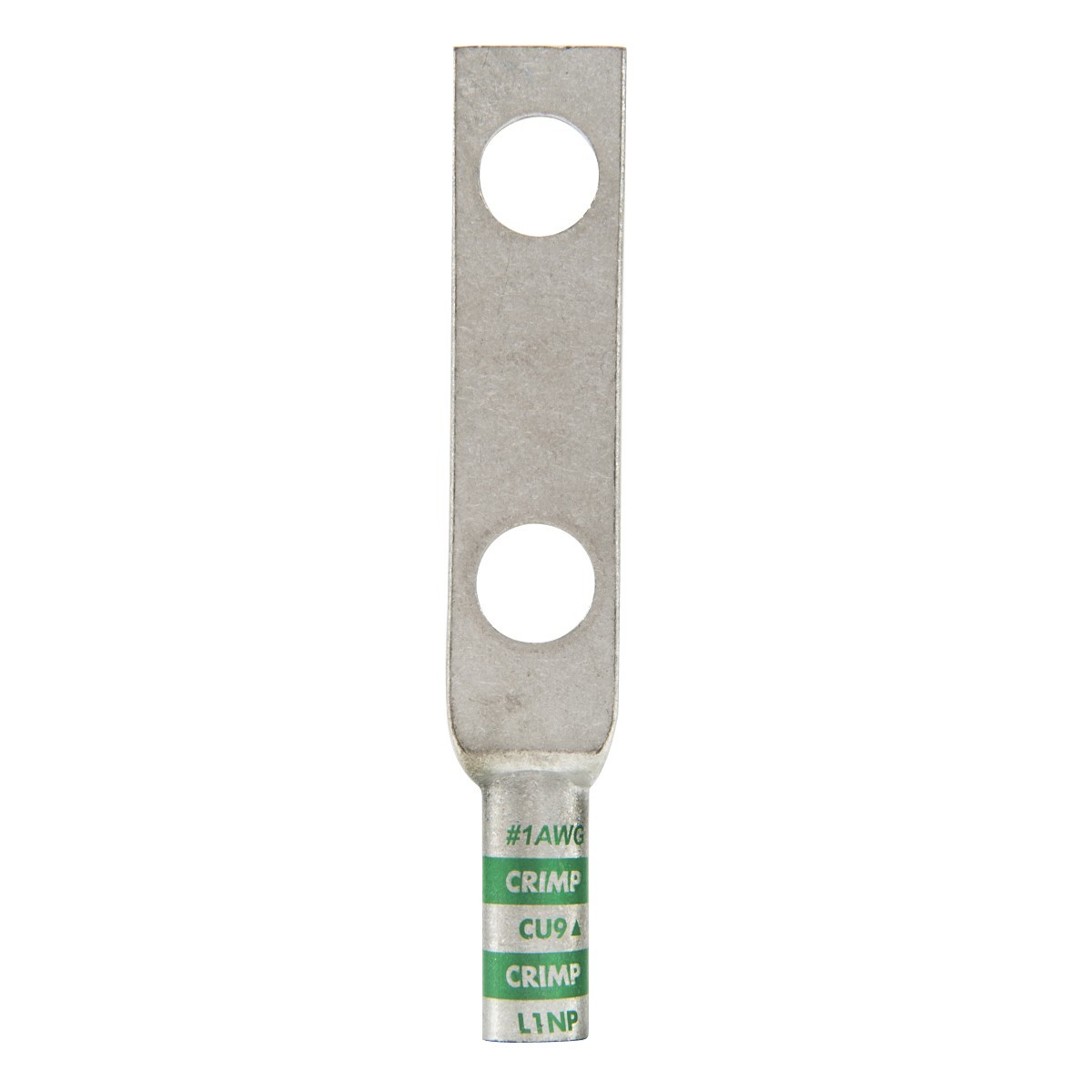

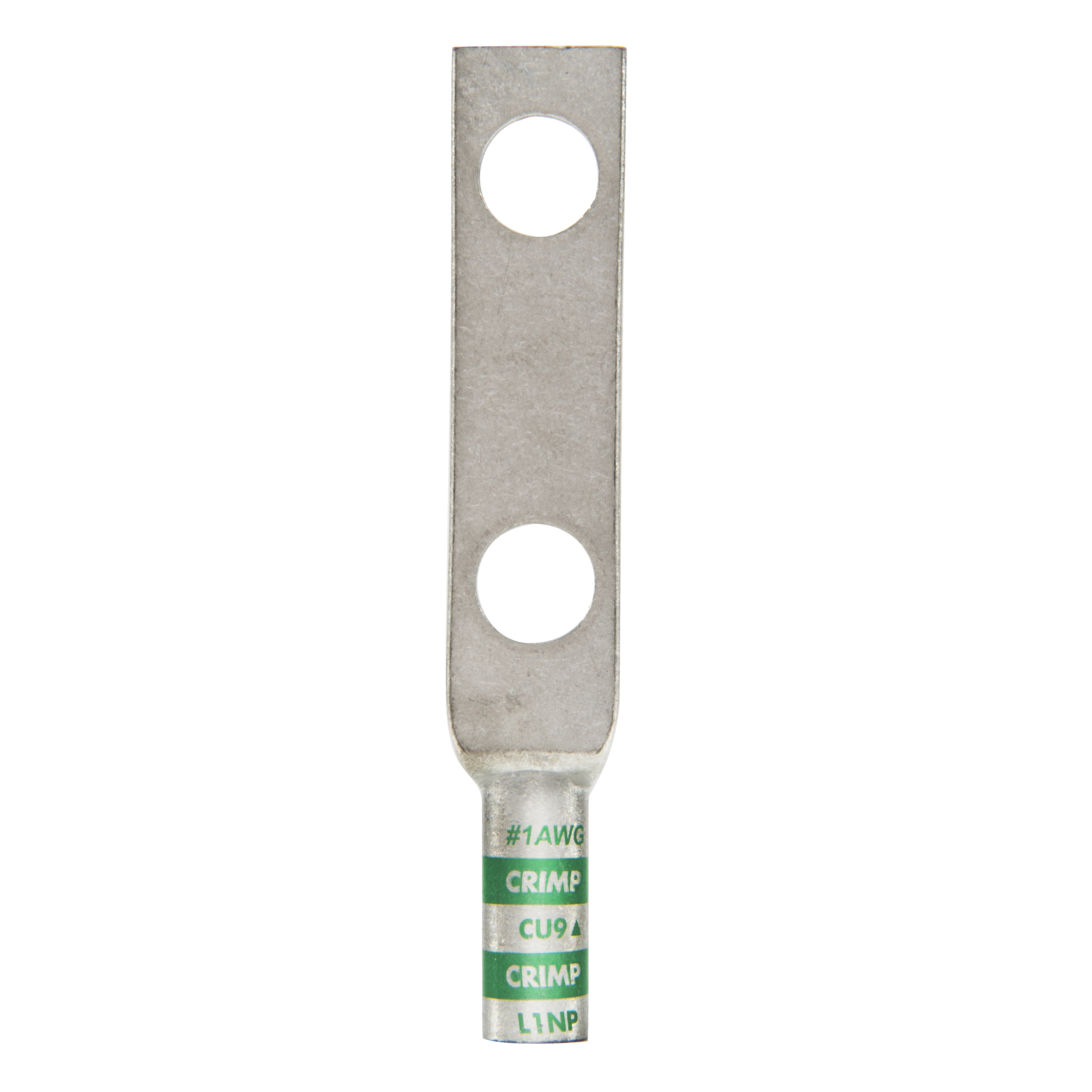

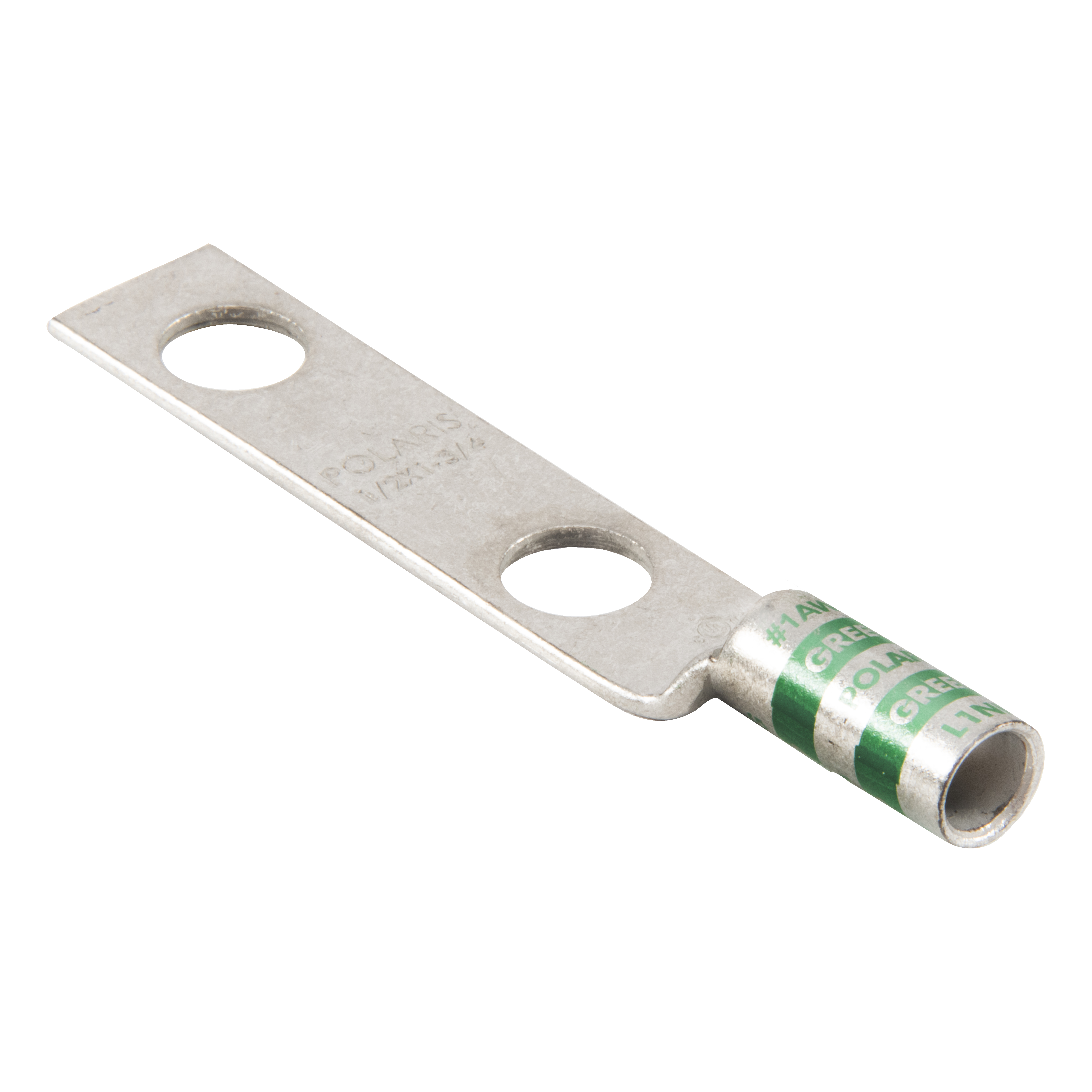

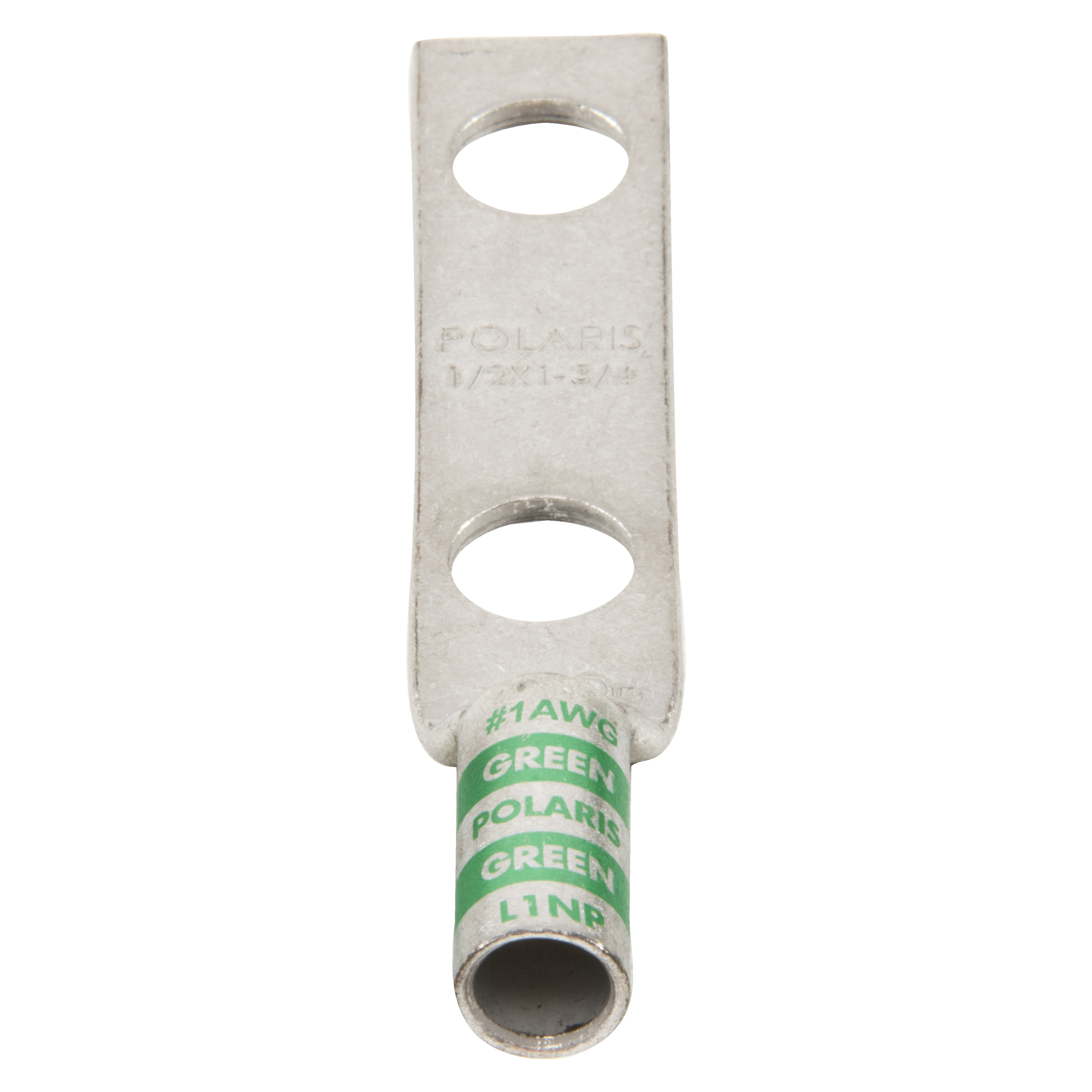

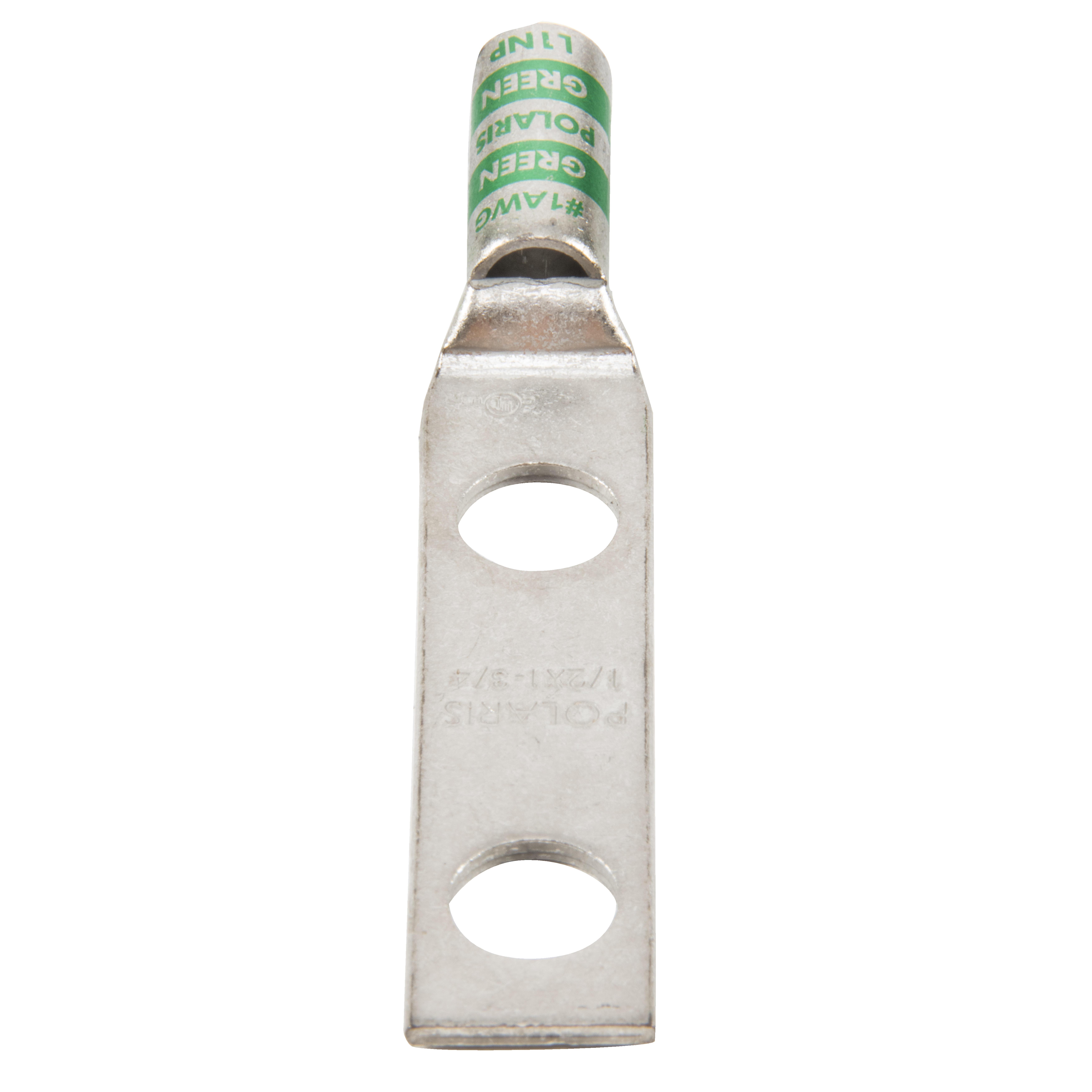

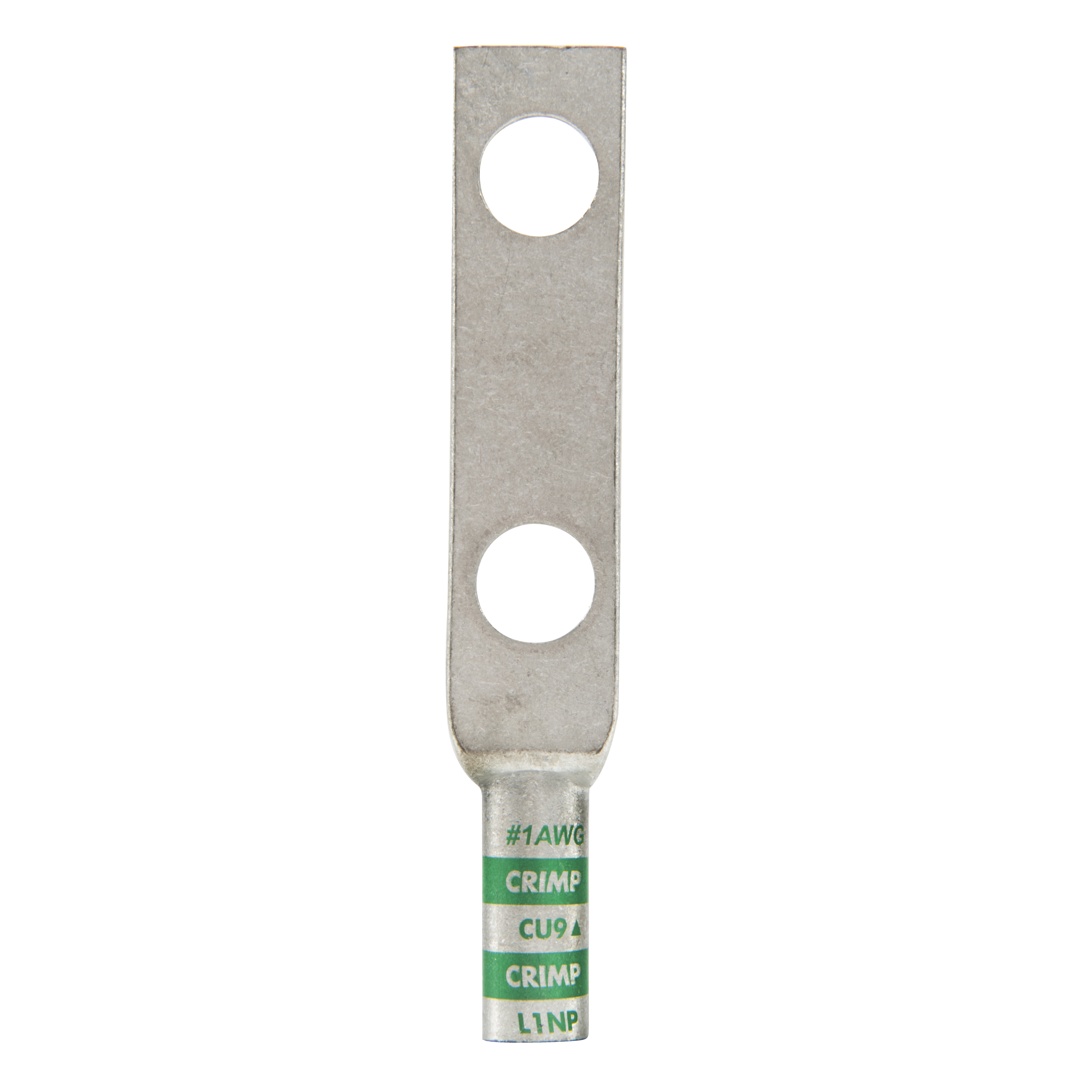

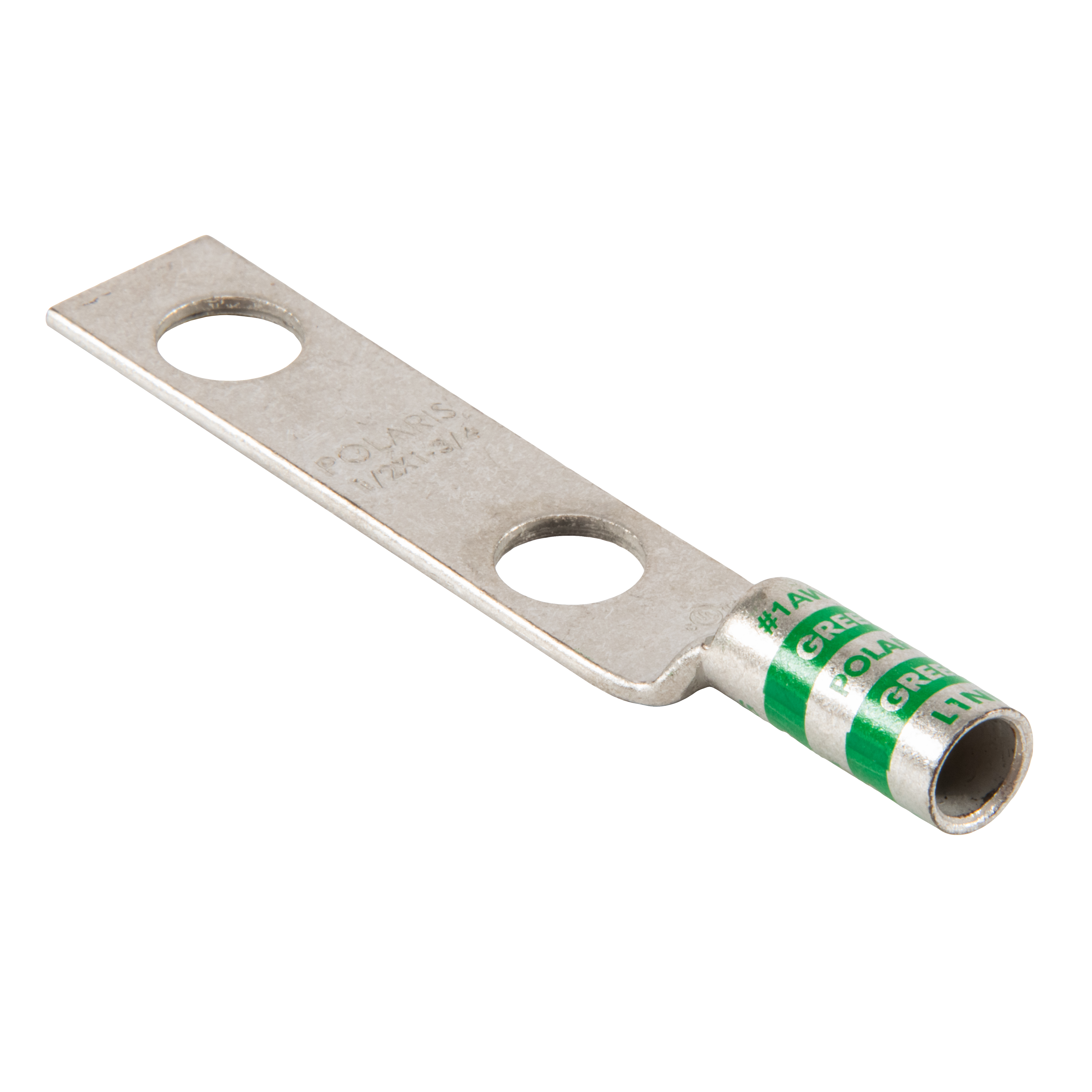

Polaris L1NP 1 AWG Cu Compression Lug, 1/2 IN 2 Hole, 1-3/4 IN Spacing, Inspection Window
#L1NP
Provides reliable termination for copper conductors in switchgear, panelboards, and power distribution equipment. Inspection window allows visual confirmation of conductor insertion before crimping. Two mounting holes with NEMA spacing provide secure mounting and alignment.
- High conductivity copper tubing and corrosive resistant tin-plated finish
- Marked with die index and color coded
- Flex rated , see product sheet for details
- For applications greater than 2000V, install to cable manufacturer voltage stress relief instructions.
- Inspection Window allows easy inspection of the termination
Product Information
| Mounting-bolt-size-in | 1/2 |
|---|---|
| Barrel Length | 1.1000 |
| Expanded Wire Range | 1 AWG |
| Die Color Code | Green |
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin-Plated |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Conductor Cu Size Range | 1 AWG (Code), 2 AWG (Flex) |
| Prop 65 Flag | Yes |
| UPC | 662381999214 |
