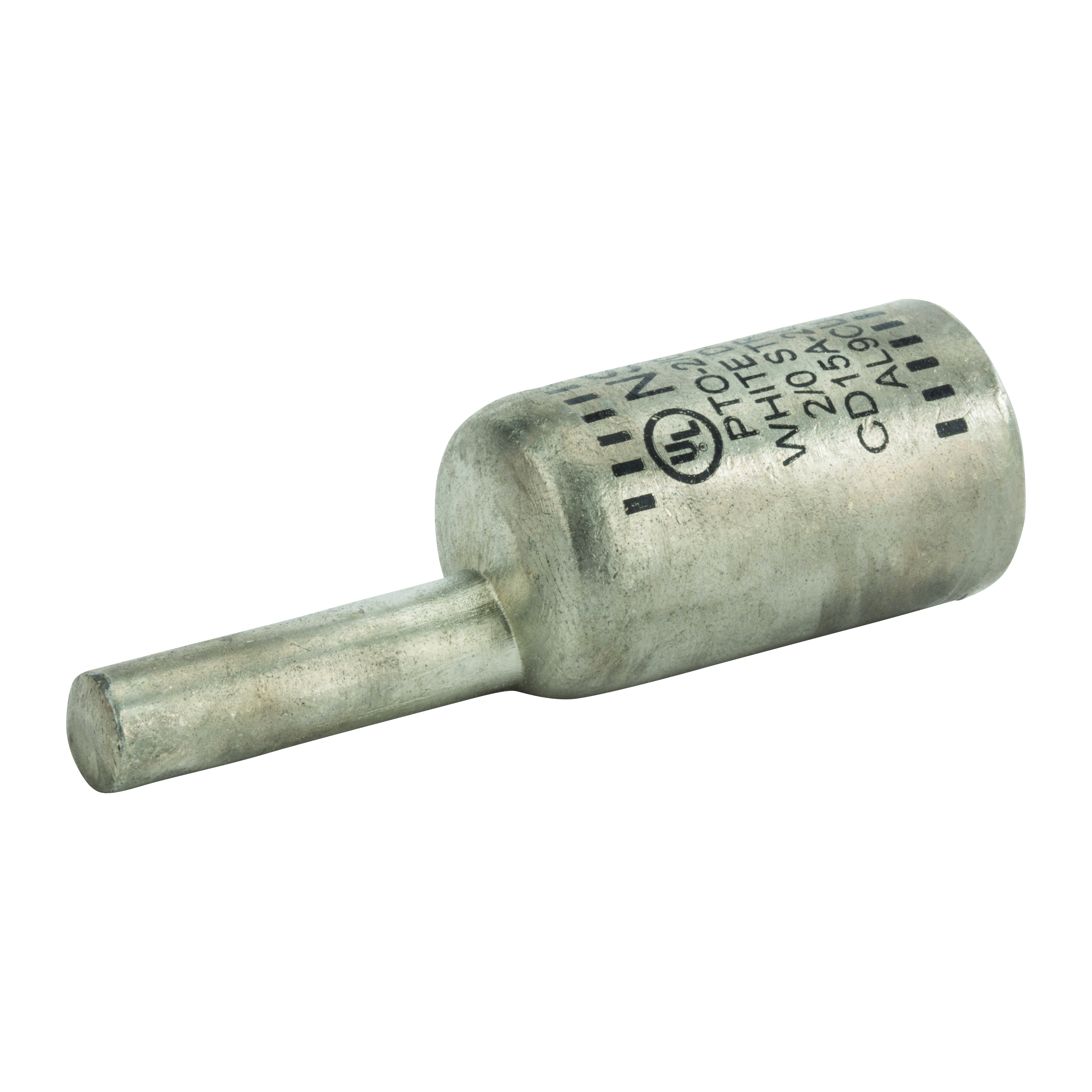

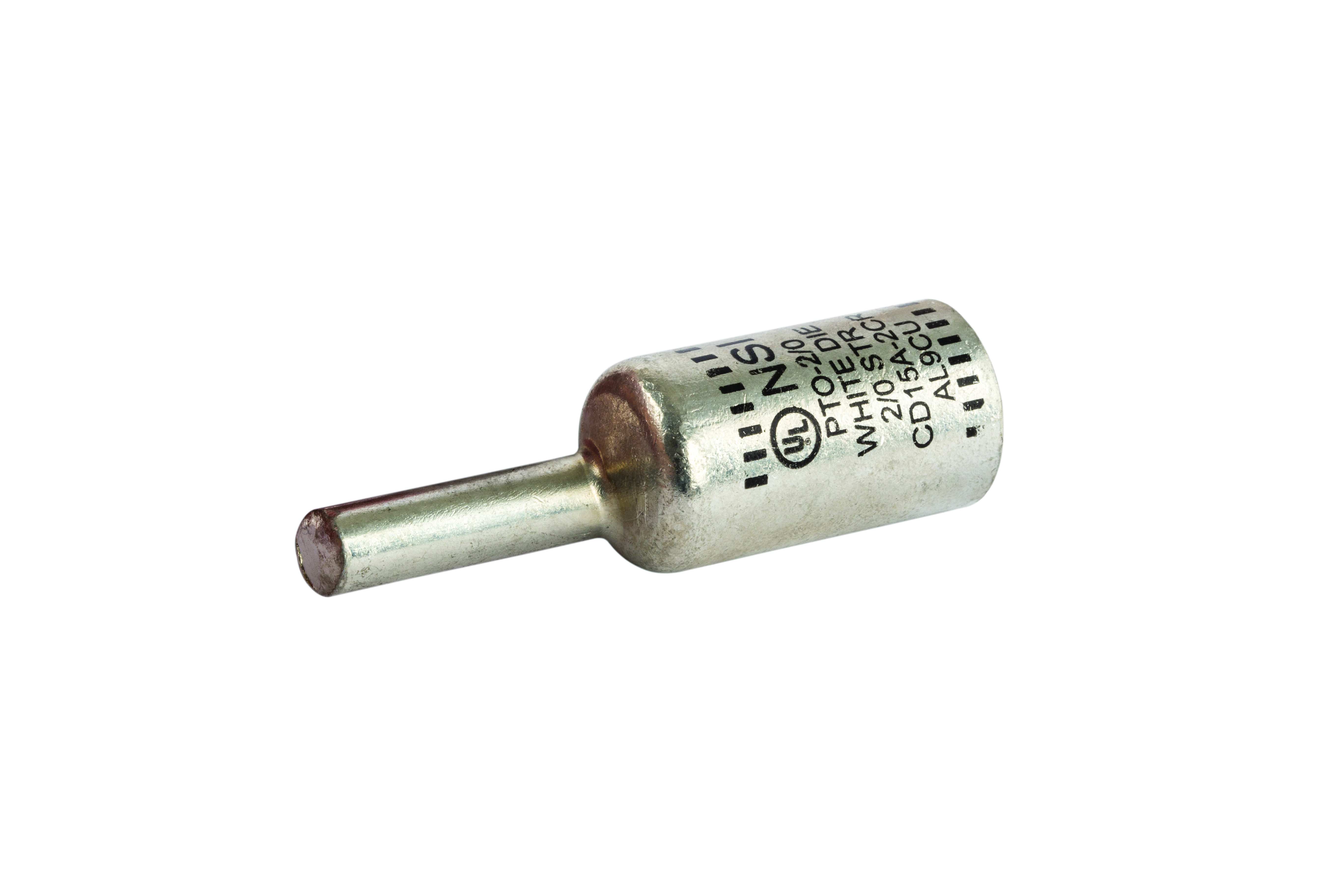

Polaris PTO-2/0 Offset Aluminium, Tin Plated Pin Terminal, 2/0 Awg Wire Size, 1 Awg Solid Pin (Al/Cu)
#PTO-2/0
All-aluminum pin terminal designed for termination of both aluminum and copper conductors. The pin is solid aluminum. The connector is tin plated to provide low contact resistance and oxidation protection. Connector is pre-filled with Oxide Inhibitor and capped with color coded cap indicating color of die to use. A cover is provided for quick installation.
- Dual rated for both aluminum and copper conductors
- Offset pin for use in tight applications
- Solid aluminum, tin plated pin providing high conductivity and corrosion resistance
- Prefilled with with oxide inhibitor
- Marked with die index and color coded
Product Information
| Die Color Code | White |
|---|---|
| Assortment | Pin Terminals |
| Material | Aluminum |
| Ul Standard | UL 486A-486B |
| Finish | Tin Plated |
| Barrel Length | 1.5700 |
| Pin Diameter | 0.33 |
| Pin Length | 1.12 |
| Pin Size | 1 AWG |
| Voltage Rating | 35kV |
| Conductor Type | Copper,Aluminum |
| Wire Cable Class | Class B,Class C |
| UNSPSC | 39121432 |
| EAN/UCC-13 | 662381033208 |
| GTIN | 662381033208 |
| Prop 65 Flag | Yes |
| UPC | 662381033208 |
