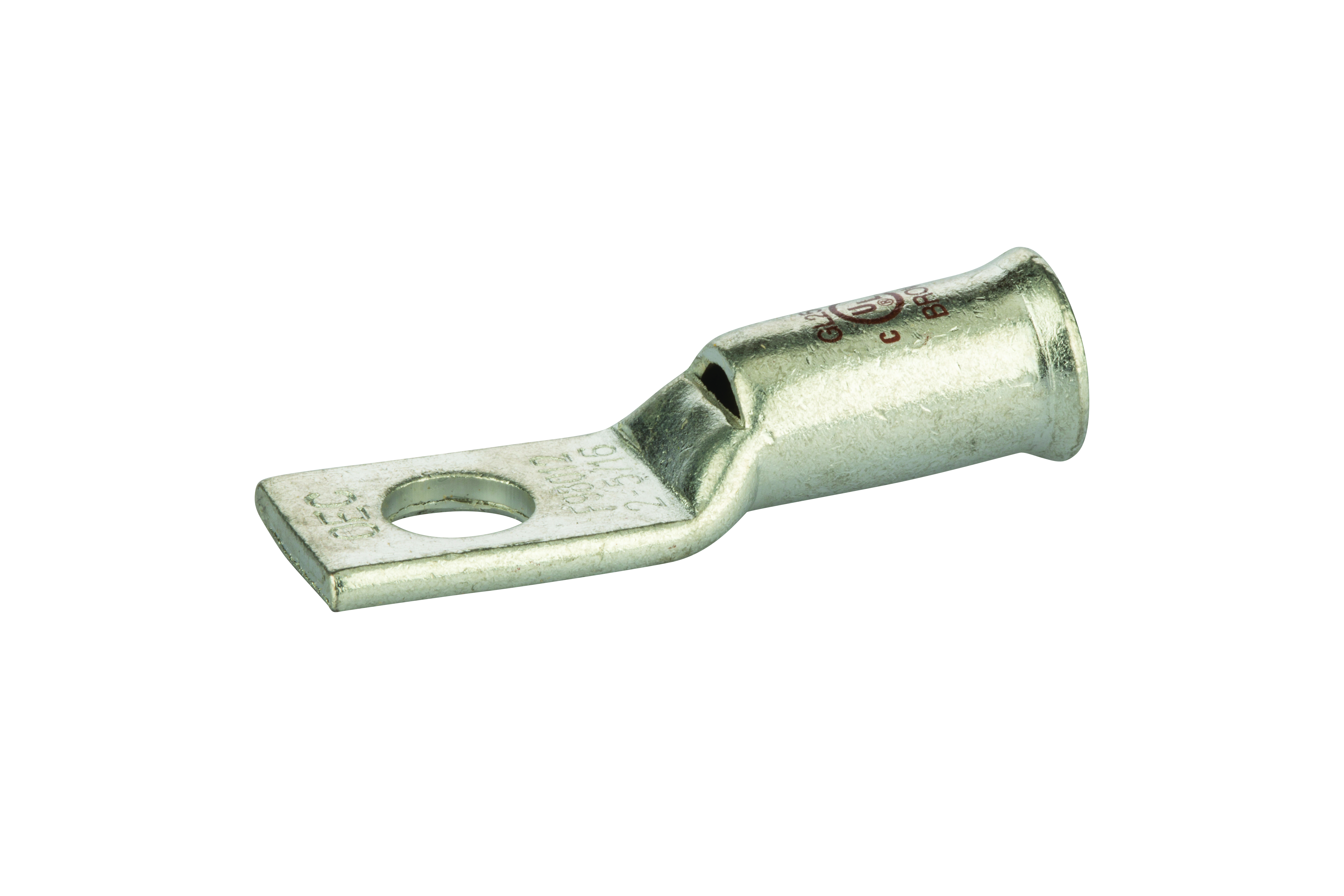

Polaris GL256B CMP Lug Cu Short 2 AWG 5/16 Bolt-Bell
#GL256B
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Peep hole allows easy inspection of the termination
- Flared bell end ensures easy insertion of flexible cables and reduced chafing
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
Product Information
| Max Torque Value | 360.0 |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| Mounting-bolt-size-in | 5/16 |
| Barrel Length | 0.8300 |
| Ul Standard | UL 486A |
| Assortment | Copper Compression Terminations |
| Voltage Rating | 35kV |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Tang Length | 0.81 |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Conductor Type | Copper |
| Expanded Wire Range | 2 AWG – 6 AWG |
| Wire Cable Class | Class B,Class C |
| Die Color Code | Brown |
| UNSPSC | 39121405 |
| Wire Range | 2 AWG |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381036704 |
