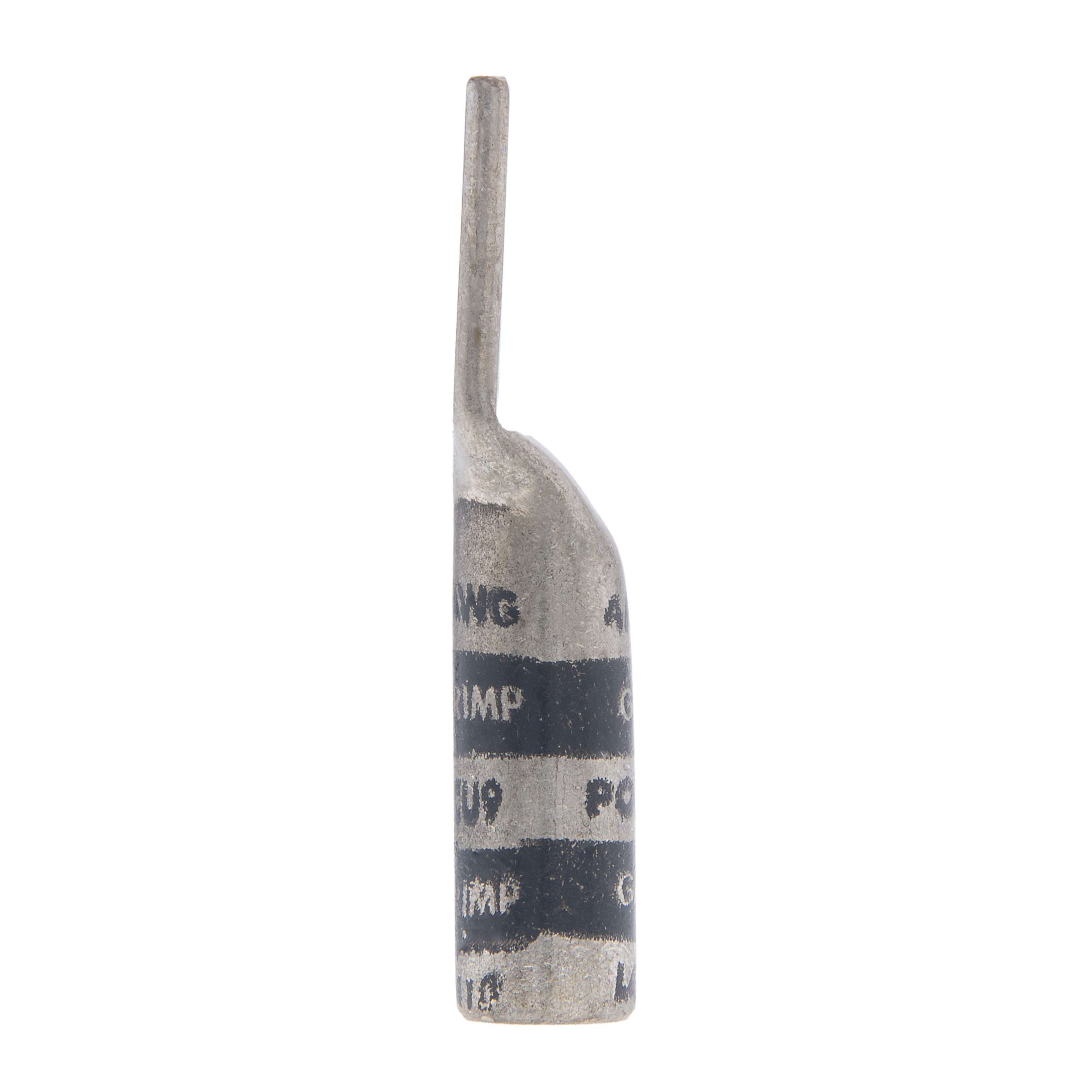

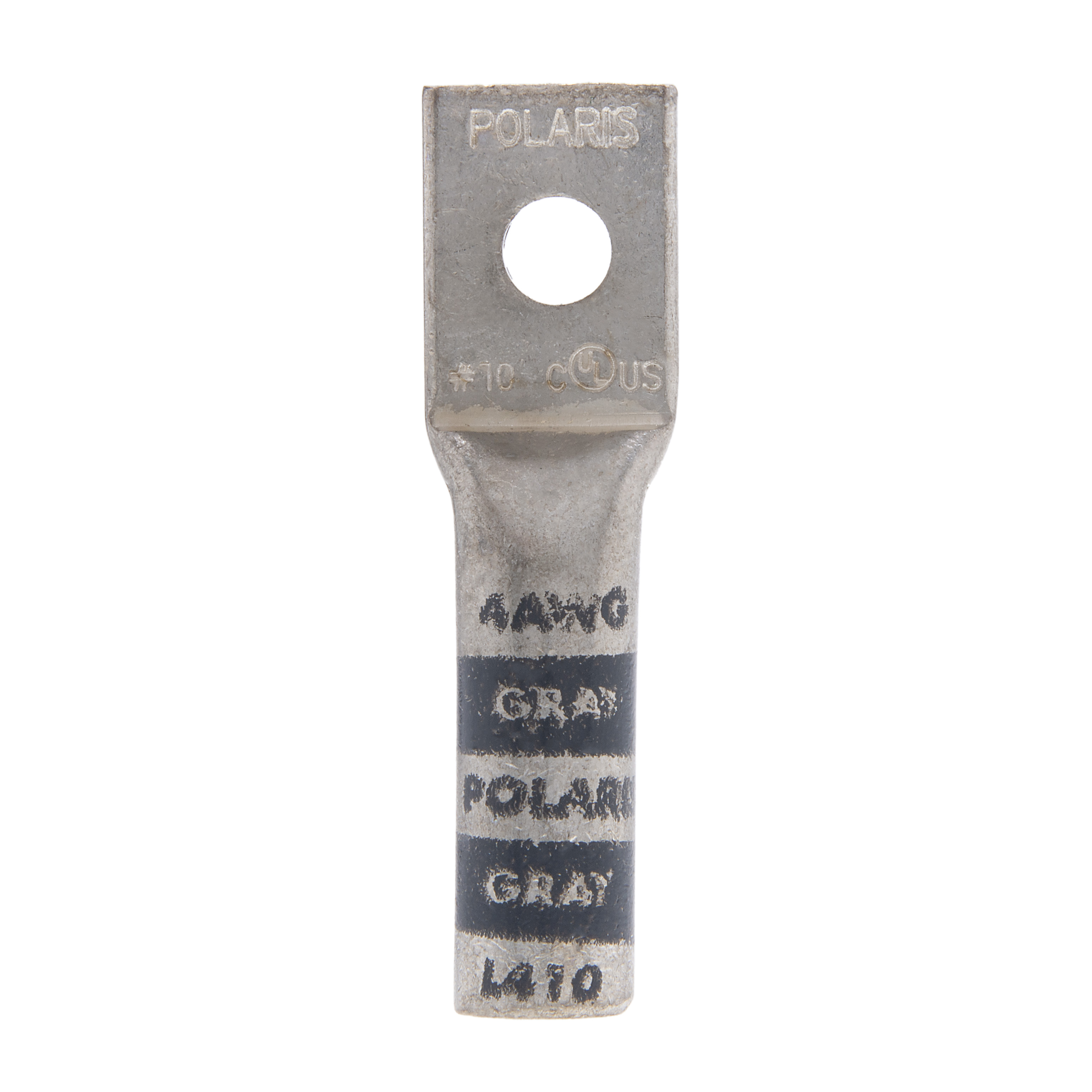

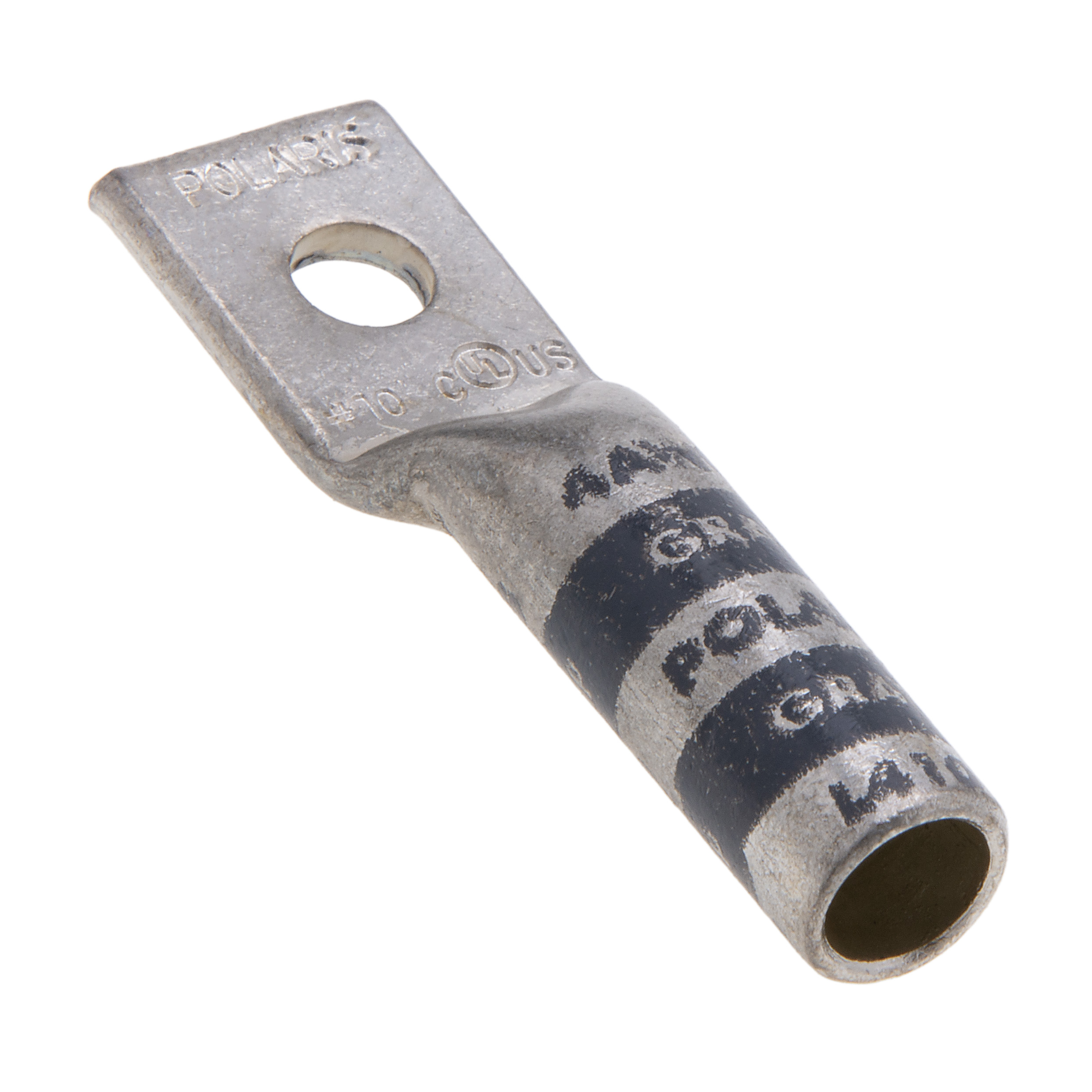

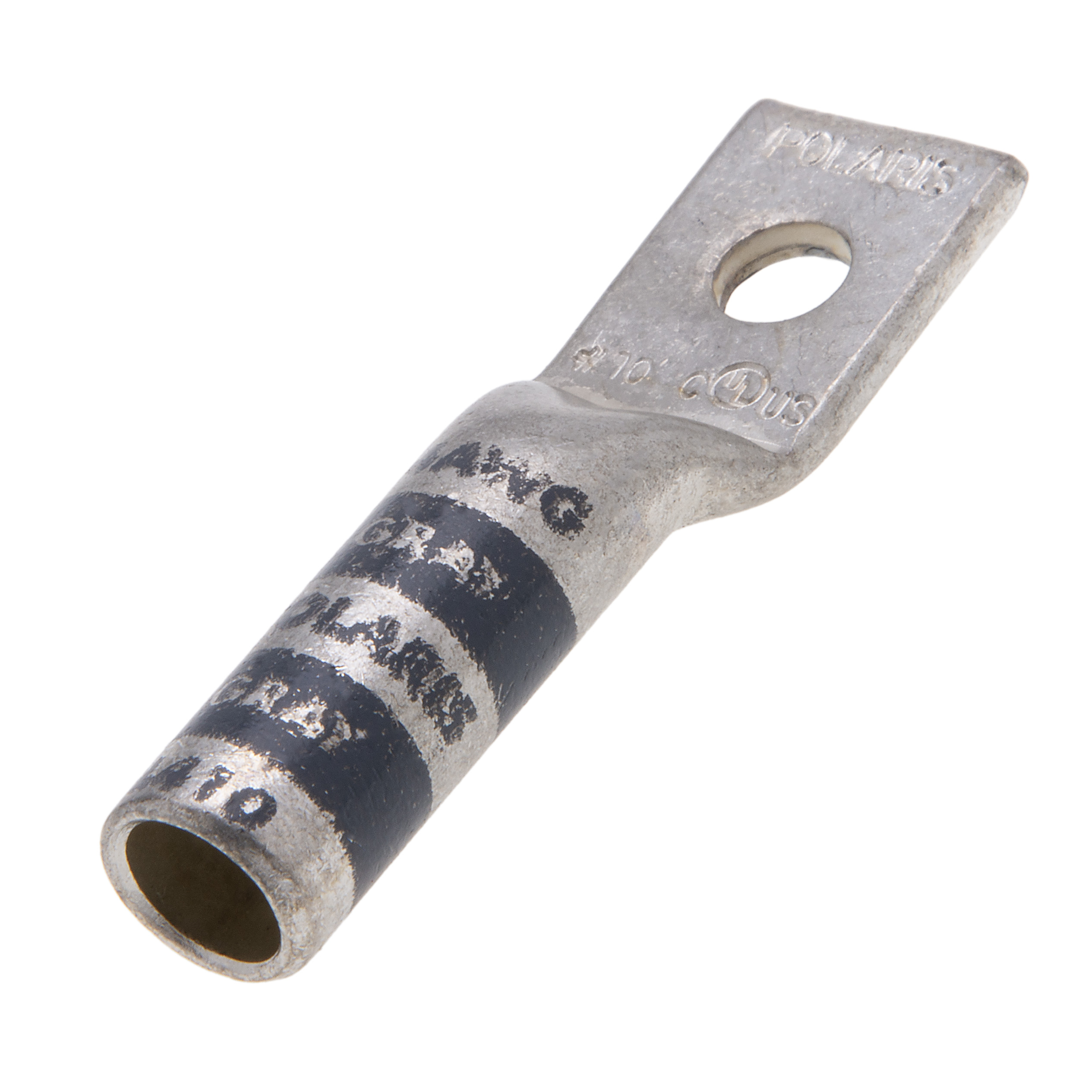

Polaris L410 CMP Lug Cu Long 4 AWG 10 Bolt Size
#L410
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
- UL listed to 35kV when properly installed to cable manufacturer’s specifications.
Product Information
| Max Torque Value | 360.0 |
|---|---|
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin Plated |
| Mounting-bolt-size-in | 3/16 |
| Ul Standard | UL 486A-486B,UL467 |
| Tang Length | 0.669 |
| Tang-thickness-in | 0.09 |
| Barrel Length | 1.0000 |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Expanded Wire Range | 4 AWG – 6 AWG |
| Wire Cable Class | Class B,Class C |
| Die Color Code | Gray |
| UNSPSC | 39121405 |
| Wire Range | 4 AWG |
| EAN/UCC-13 | 0662381034618 |
| GTIN | 662381034618 |
| Prop 65 Flag | Yes |
| UPC | 662381034618 |
