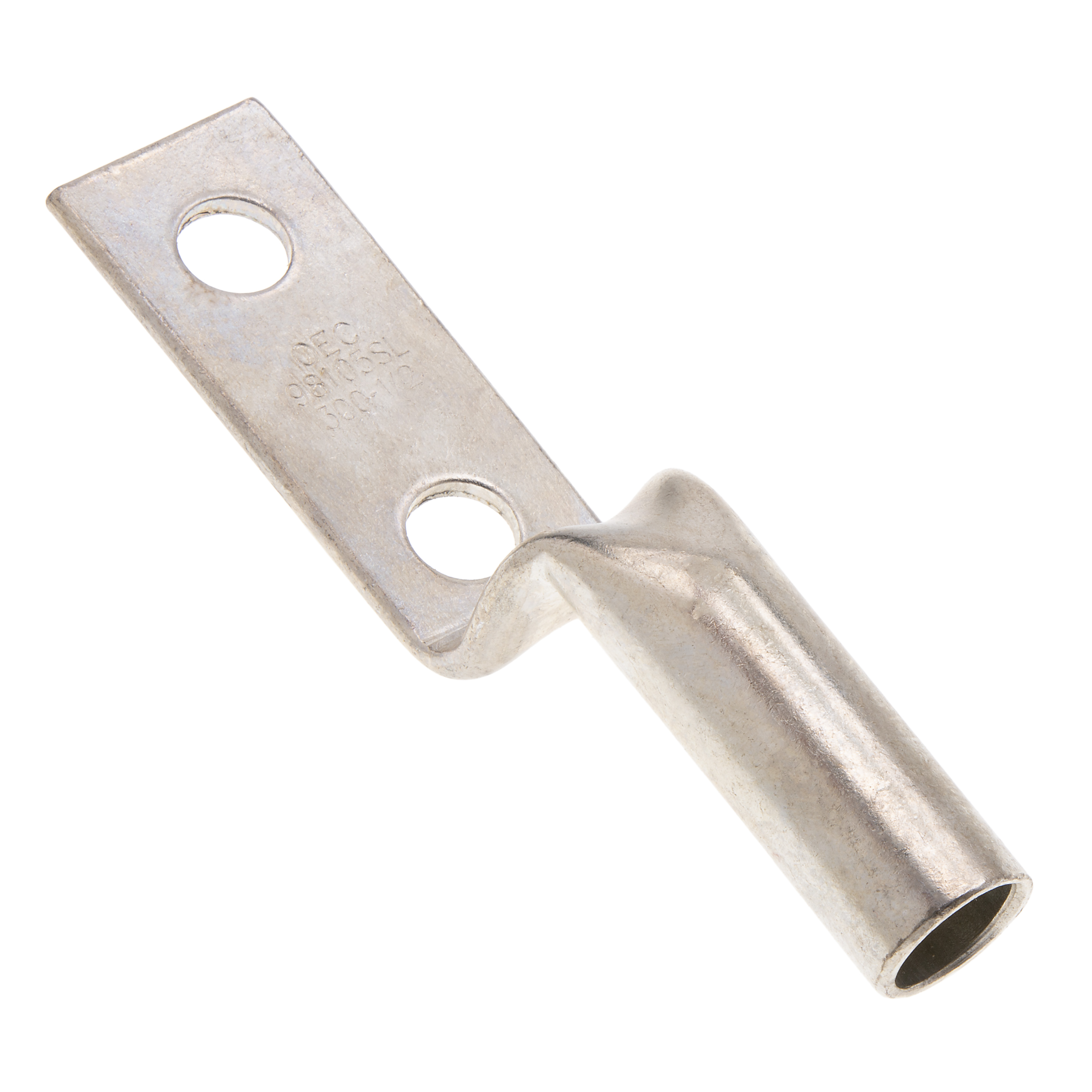

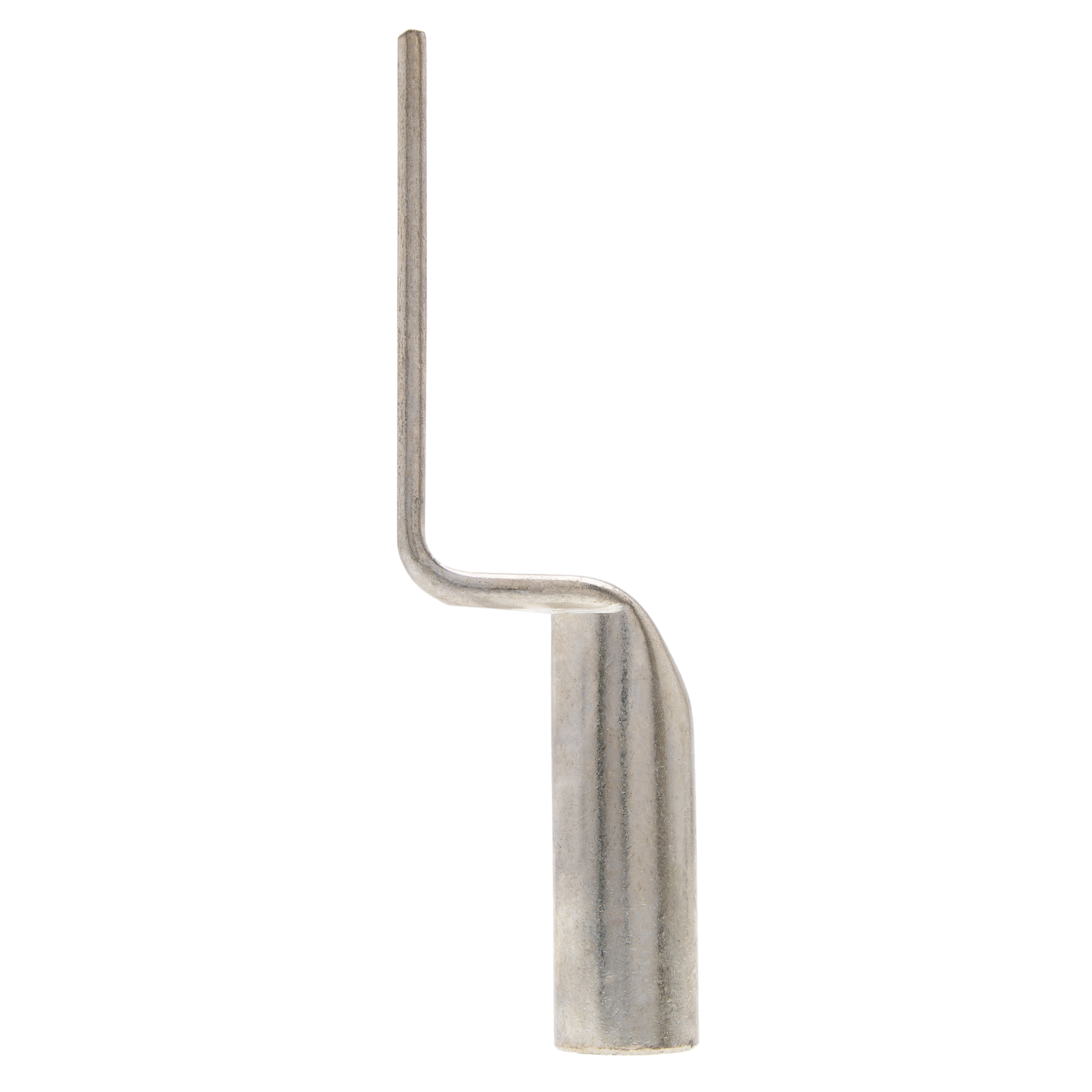

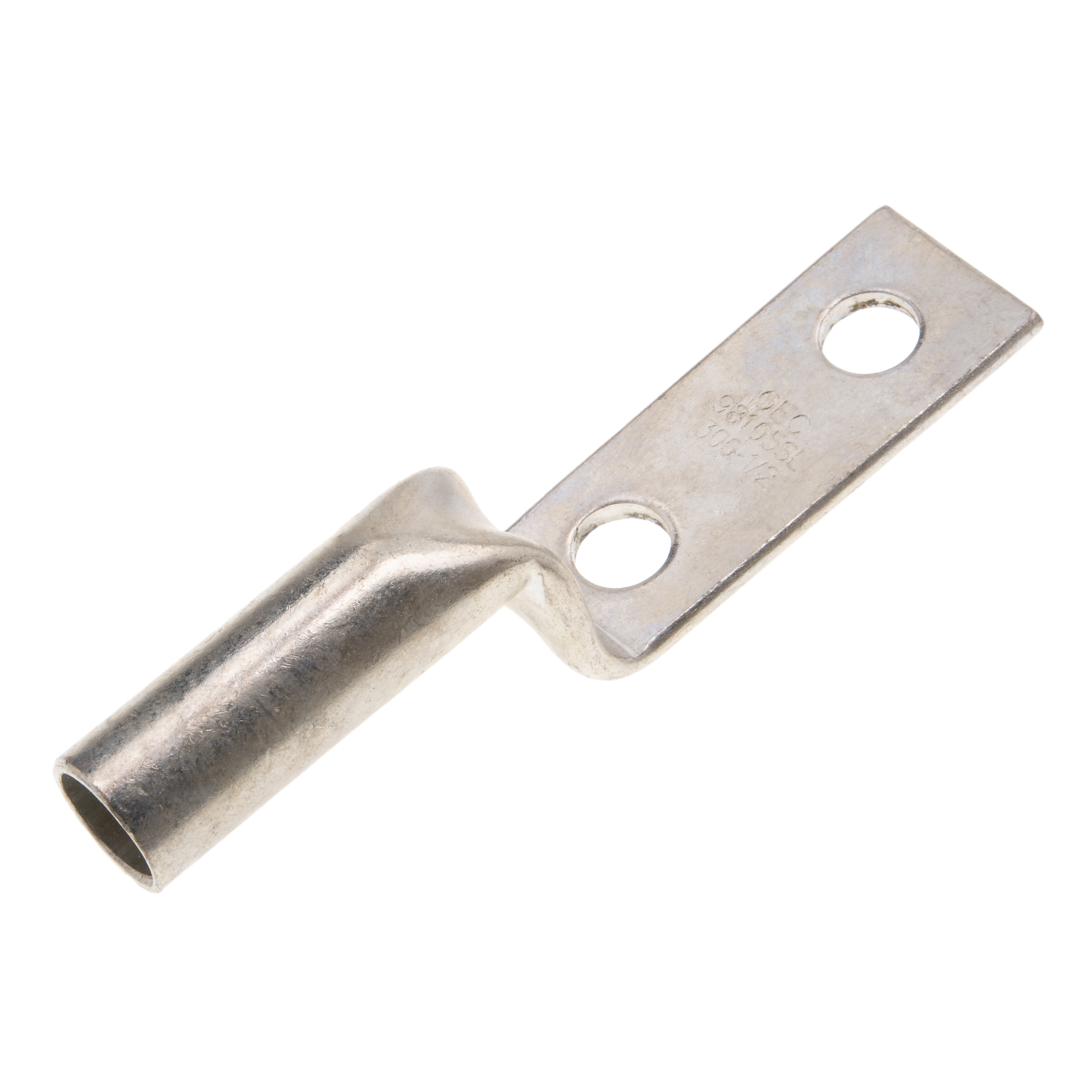

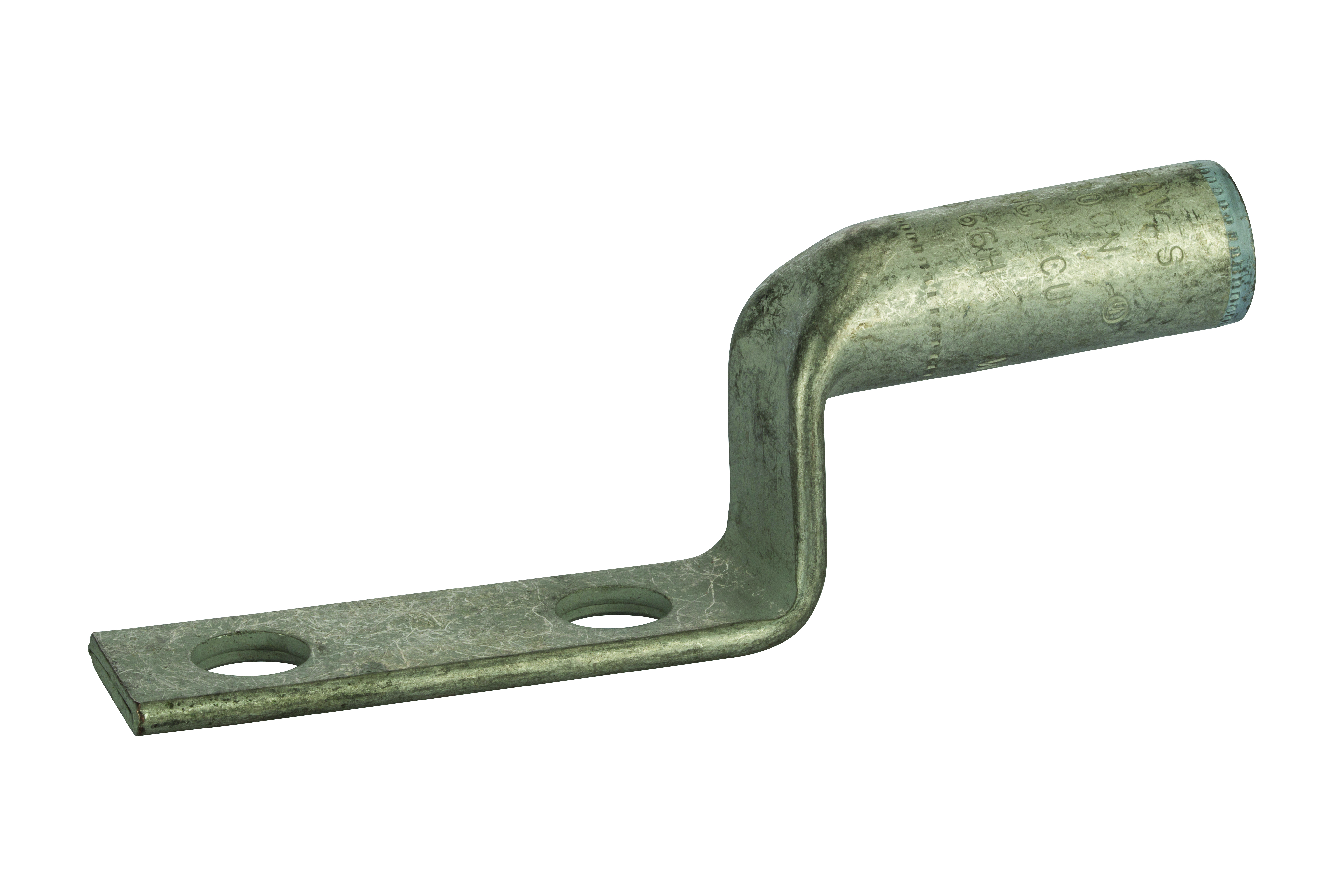

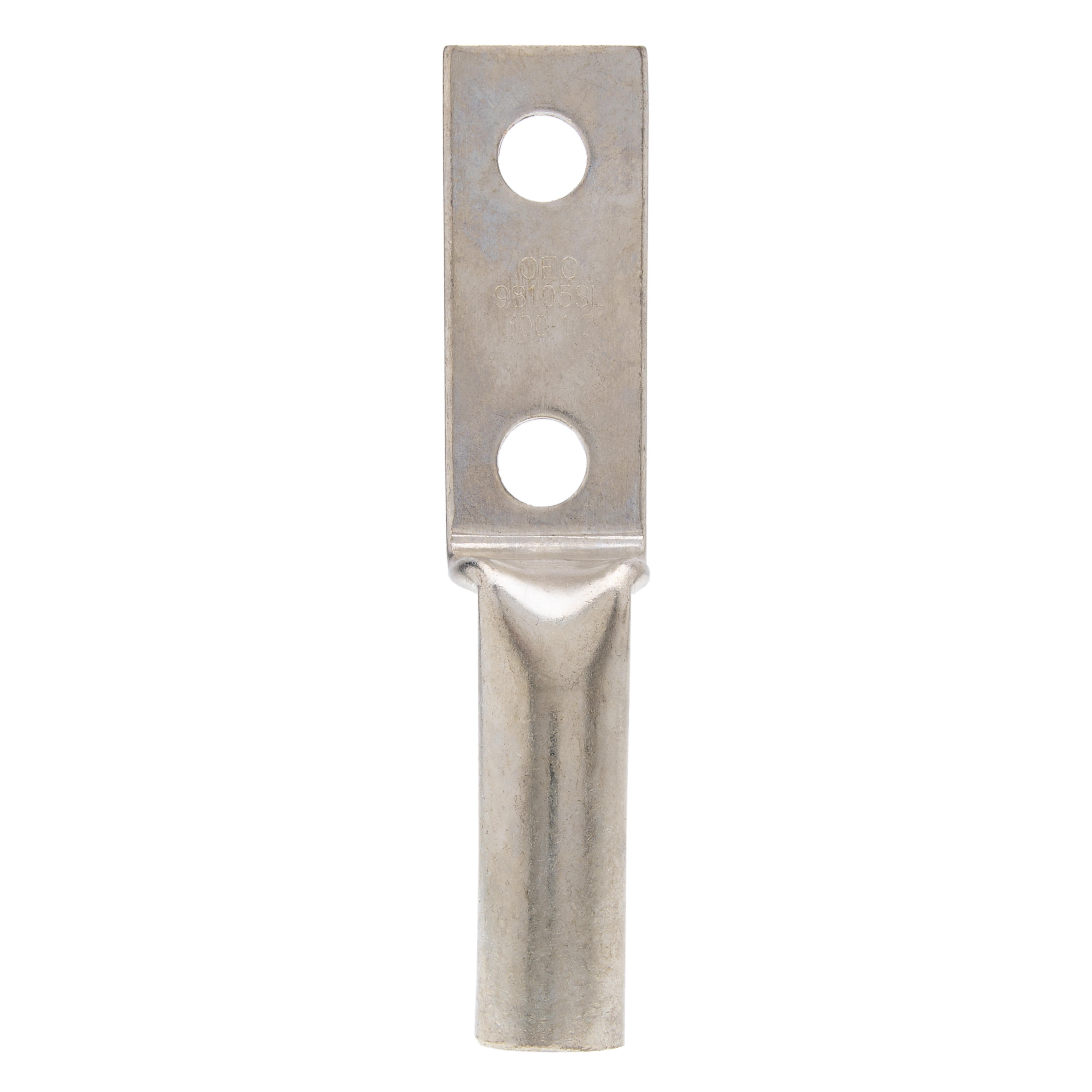

Polaris SL300N 300 Mcm Cu Stacked Comp. Lug

#SL300N

The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.

  • Designed for use with the L-N Series
  • High conductivity copper tubing and corrosion resistant tin-plated finish
  • Marked with die index and color coded
  • Listed for 35kV maximum when properly installed
  • UL486A Listed Wire Connector

Product Information

Max Torque Value 360.0
Assortment Copper Compression Terminations
Material Copper
Mounting-bolt-size-in 1/2
Ul Standard UL 486A
Barrel Length 2.5600
Finish Tin Plated
Tang Length 2.84
Conductor Type Copper
Voltage Rating 600V
Conductor Cu Size Range 250 MCM – 6 AWG
Conductor Al Size Range 250 MCM – 6 AWG
Expanded Wire Range 300 MCM – 2/0 AWG
Wire Cable Class Class B,Class C
Die Color Code White
UNSPSC 39121405
Wire Range 300 MCM
EAN/UCC-13 6.62381E+11
GTIN 6.62381E+11
Prop 65 Flag Yes
UPC 662381035561

Resources

Documents

  • POL_TermLugs_CMP_ProdSheet_DIGITAL.pdf Download
  • POL_Compression_CMP_CatBro_DIGITAL.pdf Download
  • POL_SL300N_CMP_ProDraw.pdf Download
  • POL_AL-CUInstallQR_CMP_ProdInstall_DIGITAL.pdf Download
