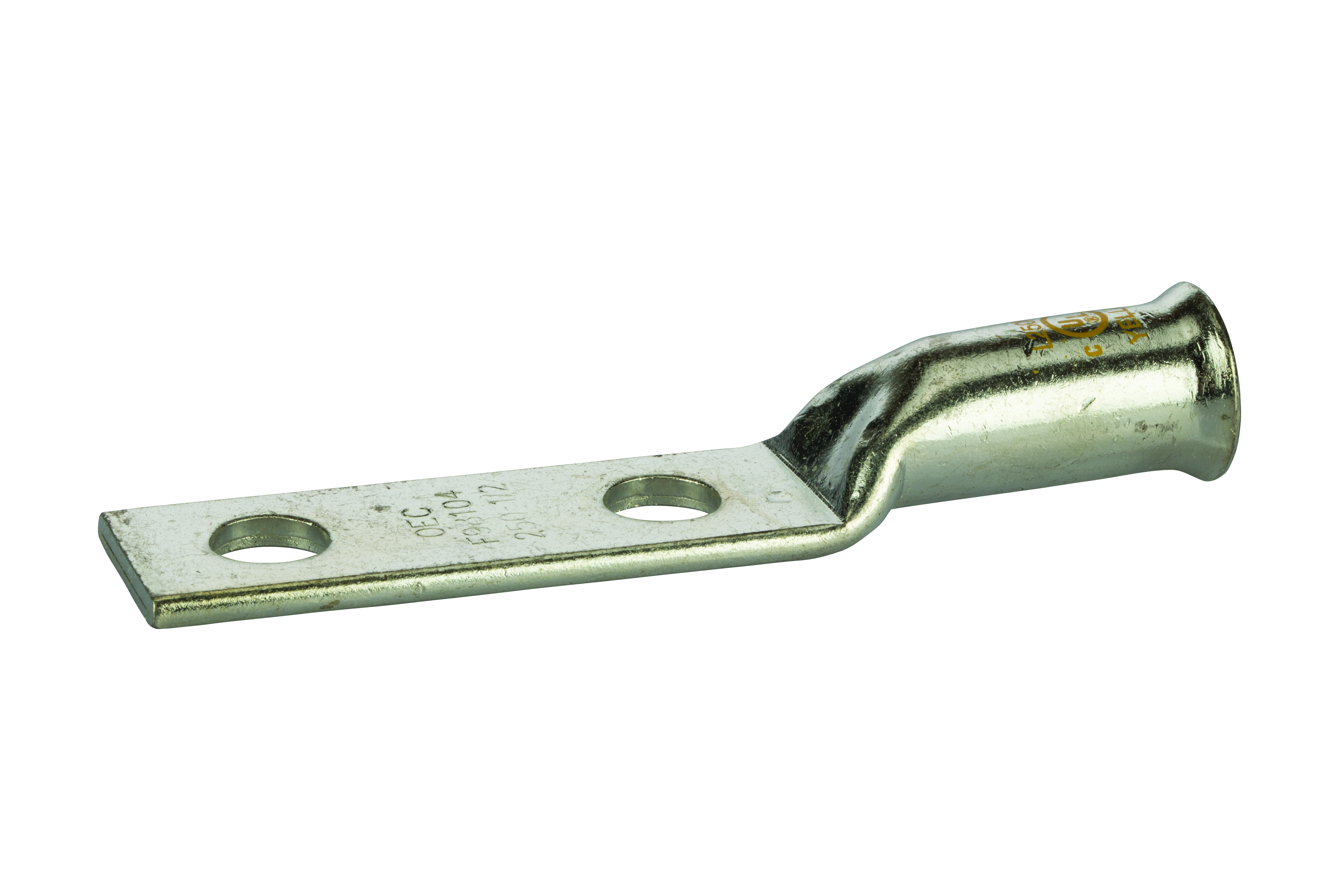

Polaris L250NB CMP Lug Cu Long 250 MCM Nema Mtg-Bell
#L250NB
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Flared bell end ensures easy insertion of flexible cables and reduced chafing
- Flex rated for use with K, H, G, I, M and DLO cable
- UL/cULus listed and rated for B/C class wire
Product Information
| Max Torque Value | 360.0 |
|---|---|
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Finish | Tin Plated |
| Mounting-bolt-size-in | 1/2 |
| Ul Standard | UL 486A-486B |
| Tang-thickness-in | 0.15 |
| Barrel Length | 5.0000 |
| Tang Length | 2.992 |
| Voltage Rating | 35kV |
| Conductor Type | Copper |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Expanded Wire Range | 250 MCM – 1/0 AWG |
| Wire Cable Class | Class B,Class C |
| Die Color Code | Yellow |
| UNSPSC | 39121405 |
| Wire Range | 250 MCM |
| EAN/UCC-13 | 0662381339058 |
| GTIN | 662381336620 |
| Prop 65 Flag | Yes |
| UPC | 662381336620 |
