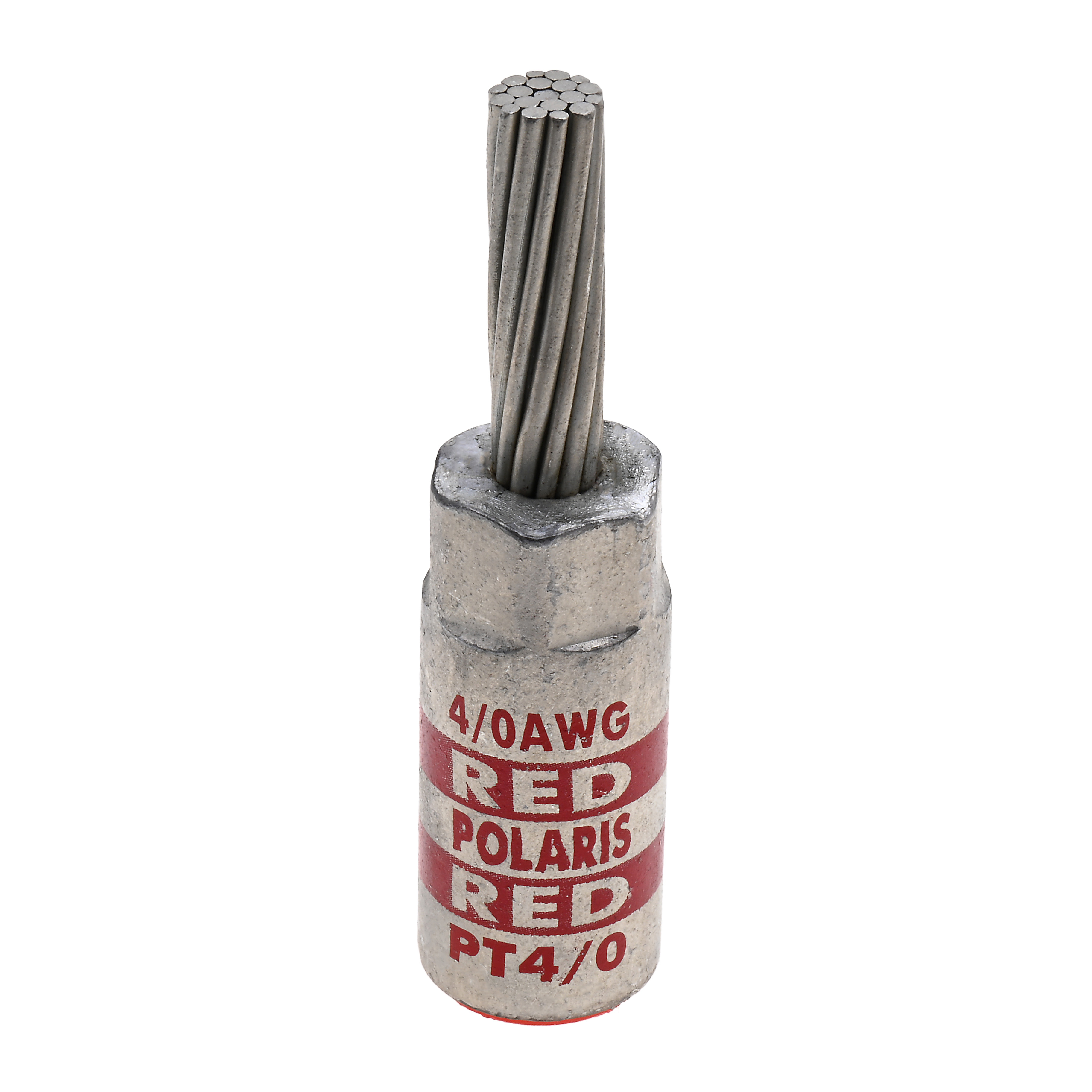

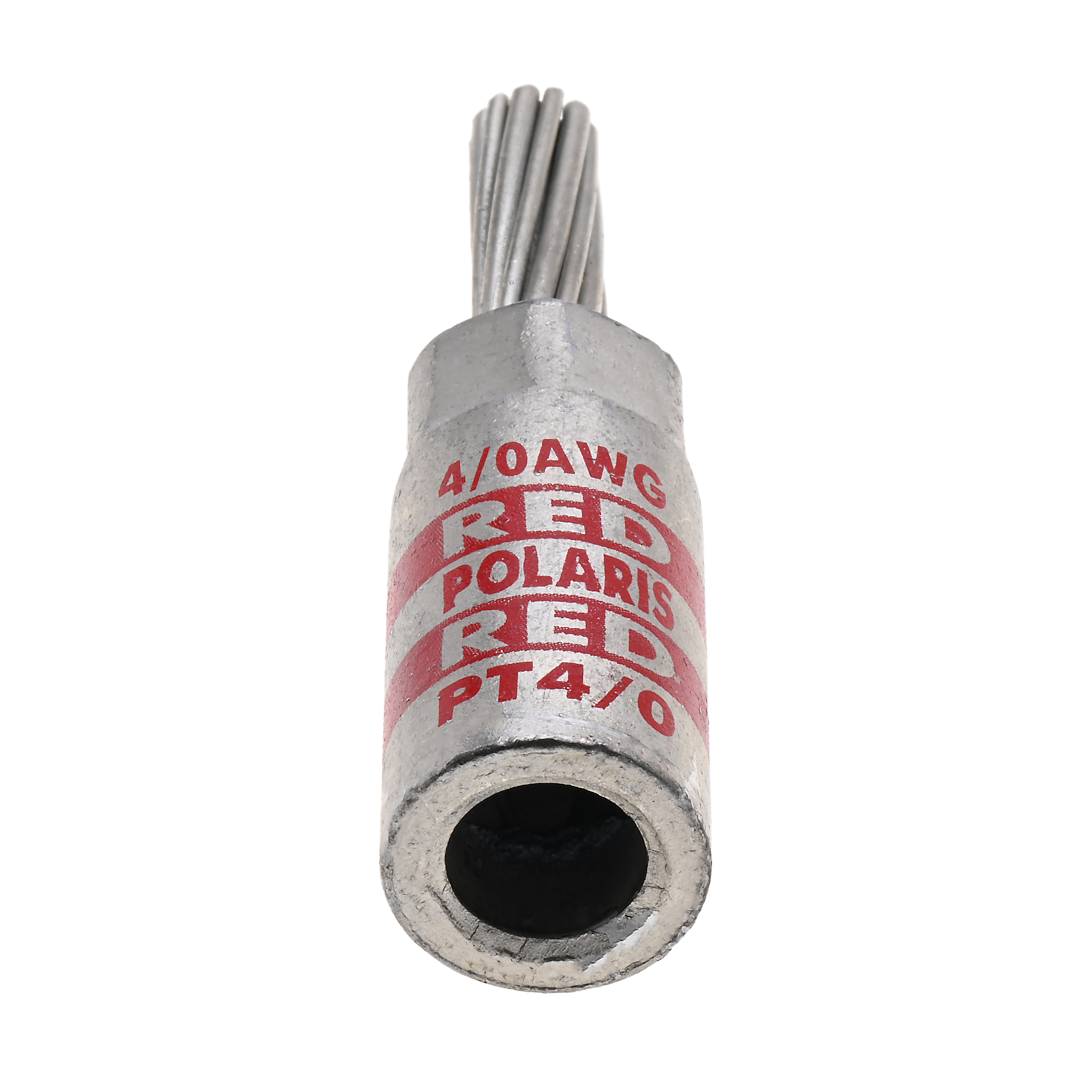

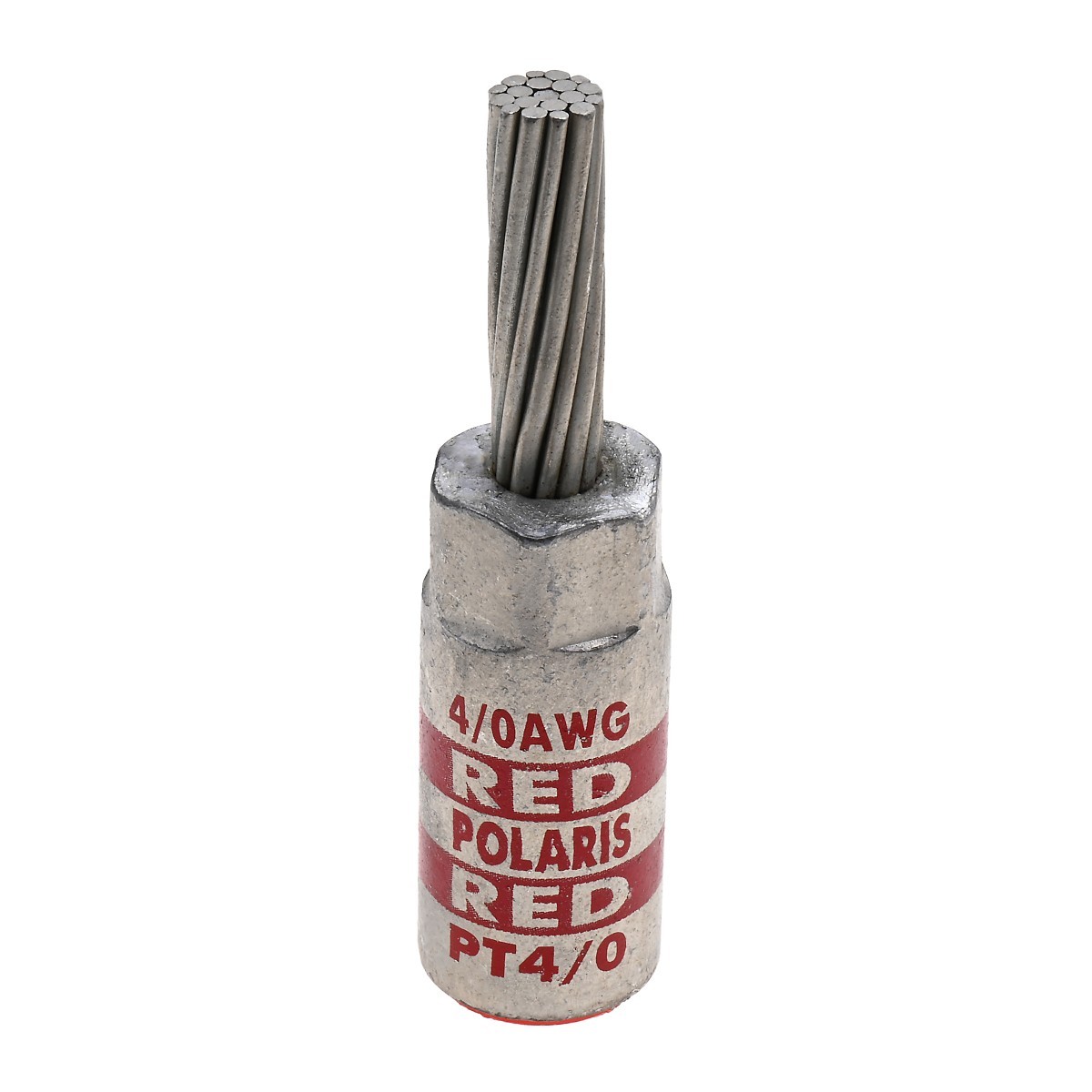

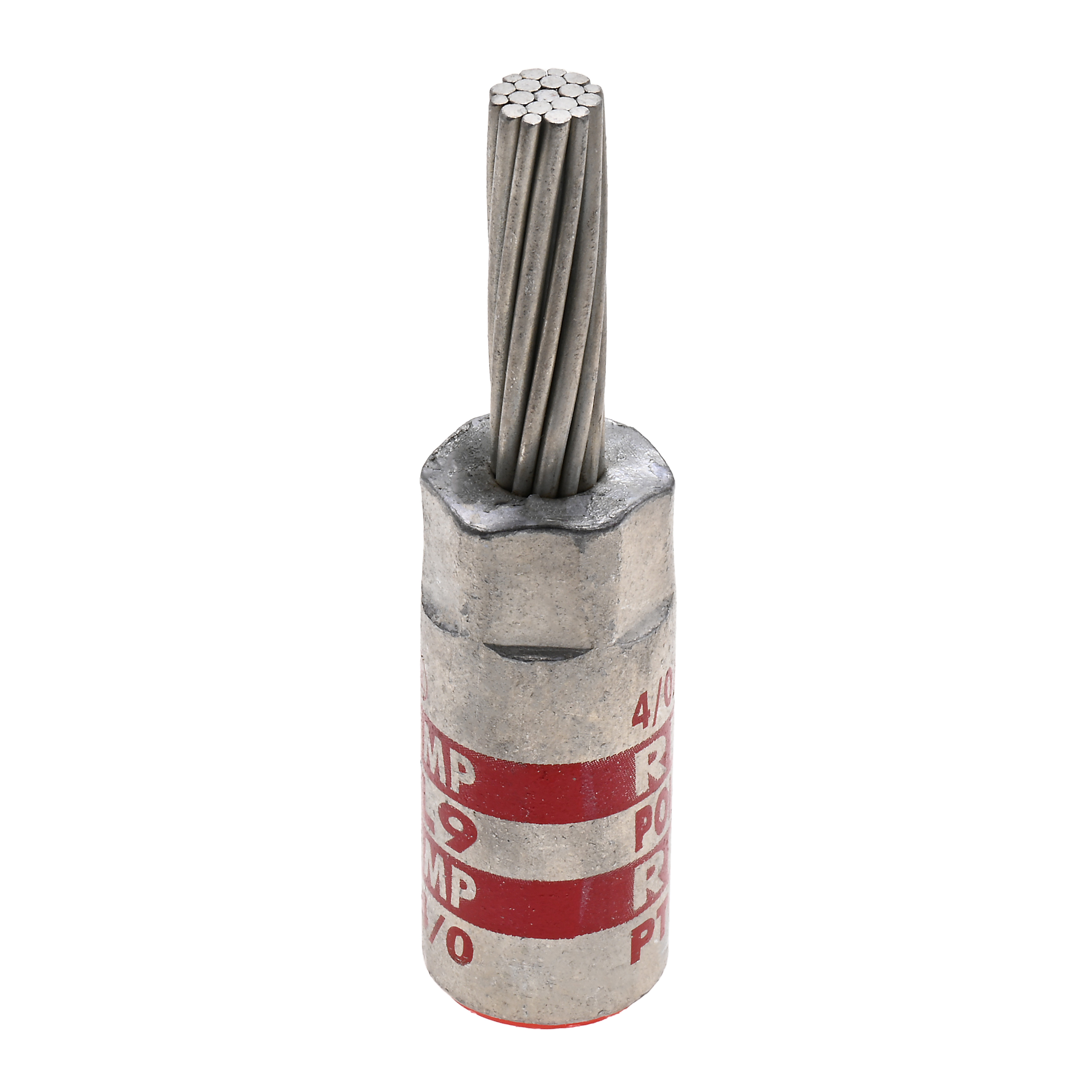

Polaris PT4/0 Al Pin Terminal Cu Pin 4/0 AWG
#PT4/0
These copper pin aluminum connectors are rated for aluminum conductors with a pigtail type copper pin designed to facilitate termination of aluminum conductors into copper connectors. The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance.
- Facilitates termination of aluminum conductors
- Stranded copper, tin plated pin providing high conductivity and corrosion resistance

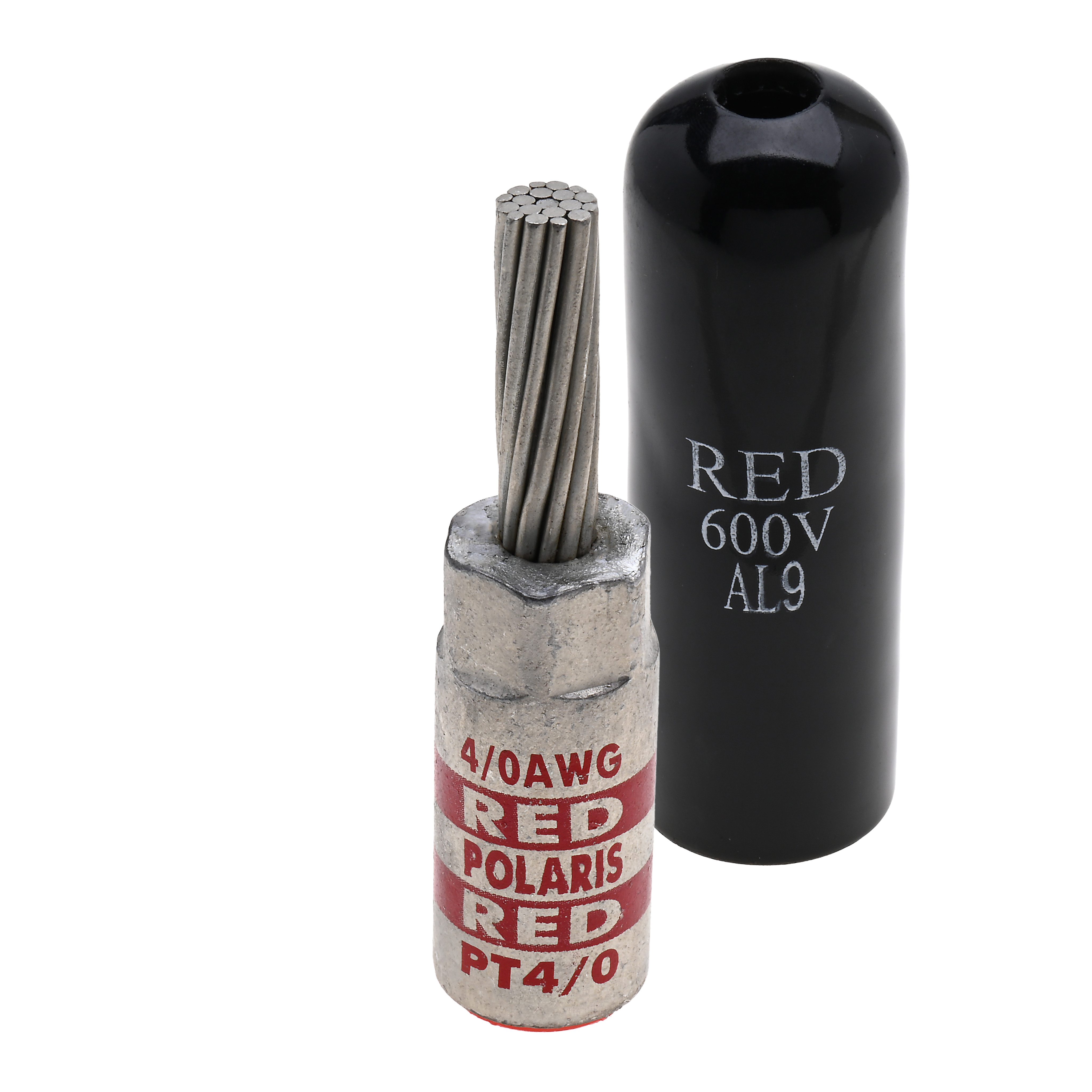

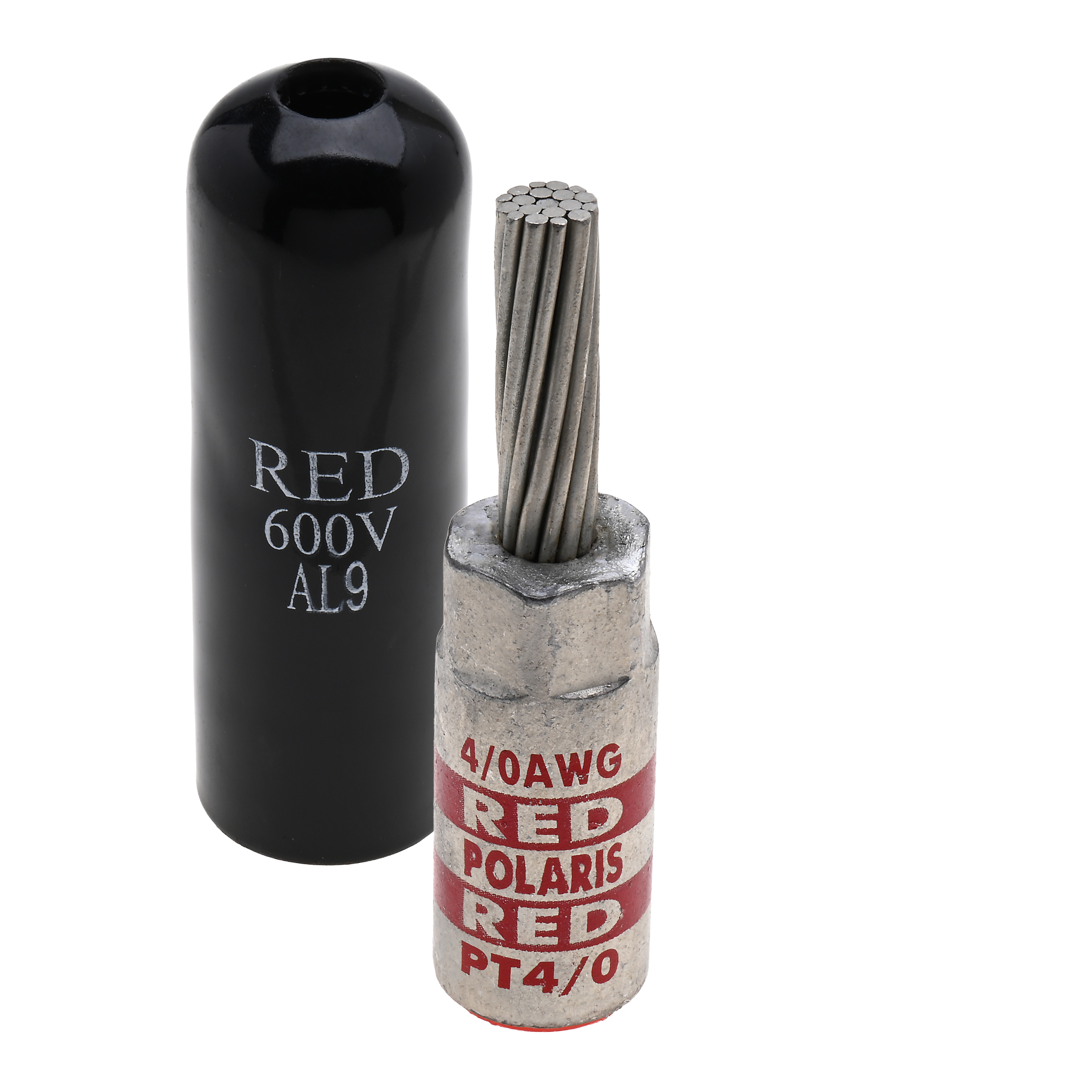

- Supplied with PVC insulating cover
- Connector bores coated with oxide inhibitor
- Marked with die index and color coded
Product Information
| Body Length | 2.05 |
|---|---|
| Assortment | Pin Terminals |
| Material | Aluminum |
| Finish | Tin Plated |
| Ul Standard | UL 486A-486B |
| Pin Length | 1.46 |
| Barrel Length | 2.0600 |
| Pin Diameter | 0.4 |
| Pin Size | 2/0 AWG |
| Voltage Rating | 35kV |
| Conductor Type | Aluminum |
| Wire Cable Class | Class B,Class C |
| Die Color Code | Red |
| UNSPSC | 39121432 |
| Wire Range | 4/0 AWG |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381033079 |
