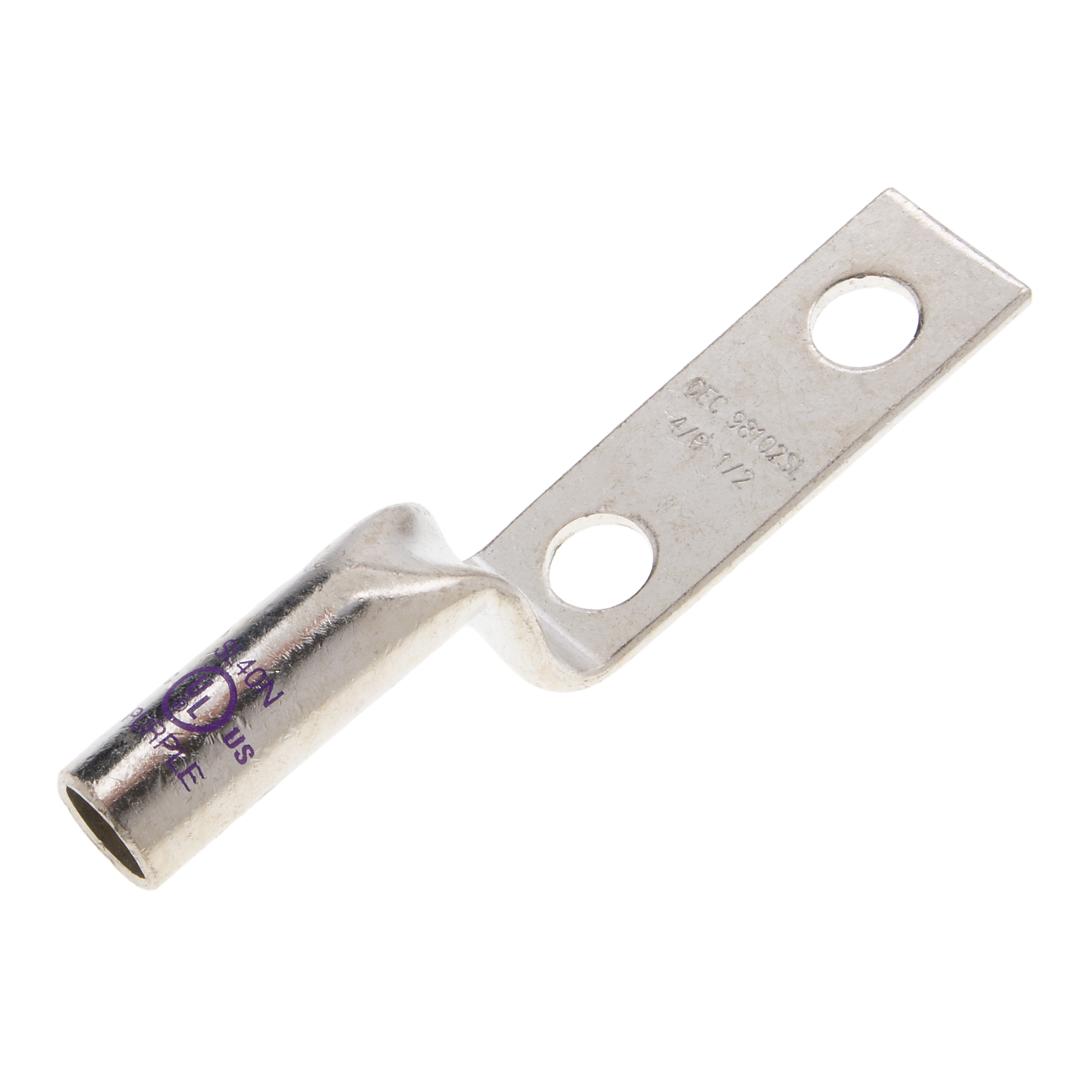

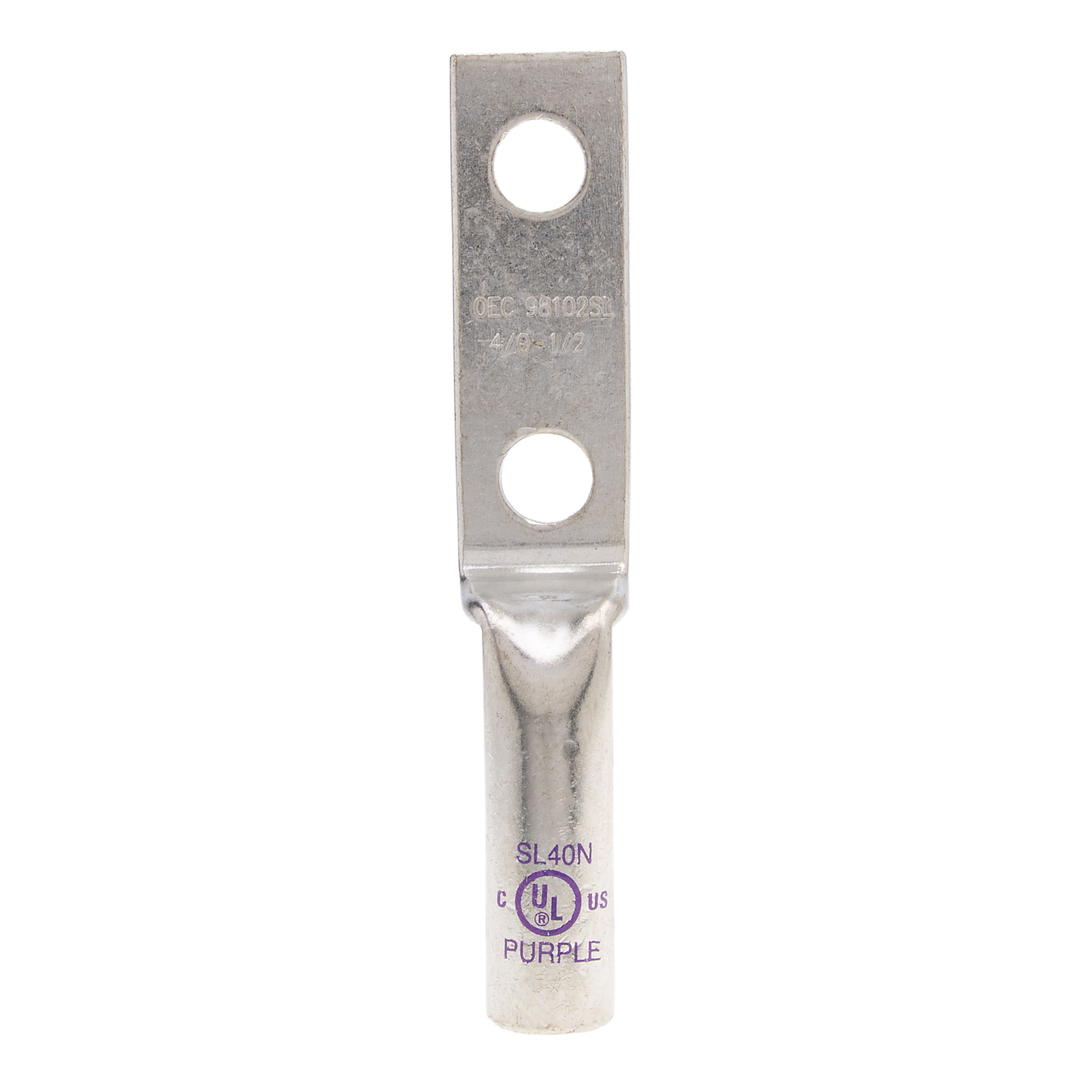

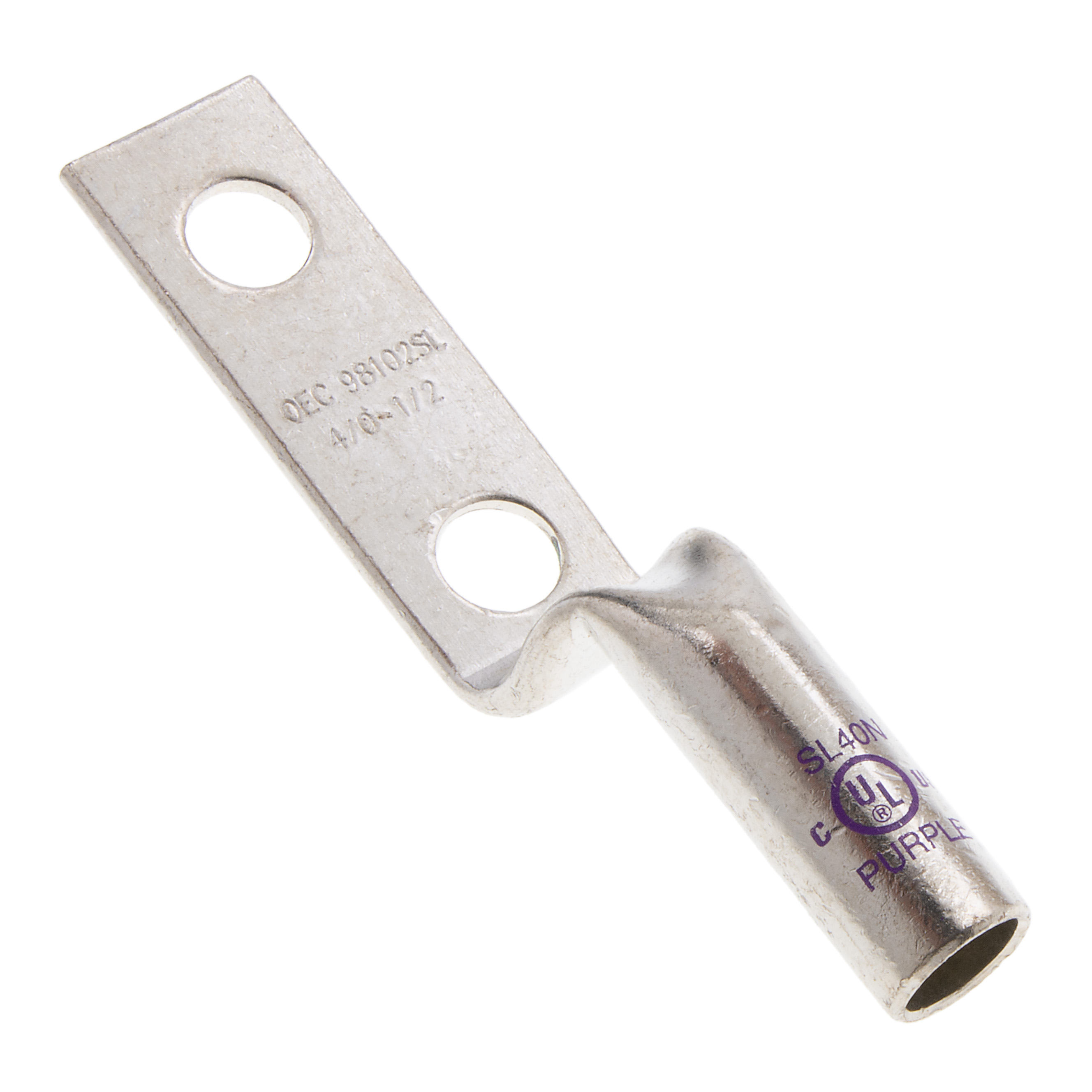

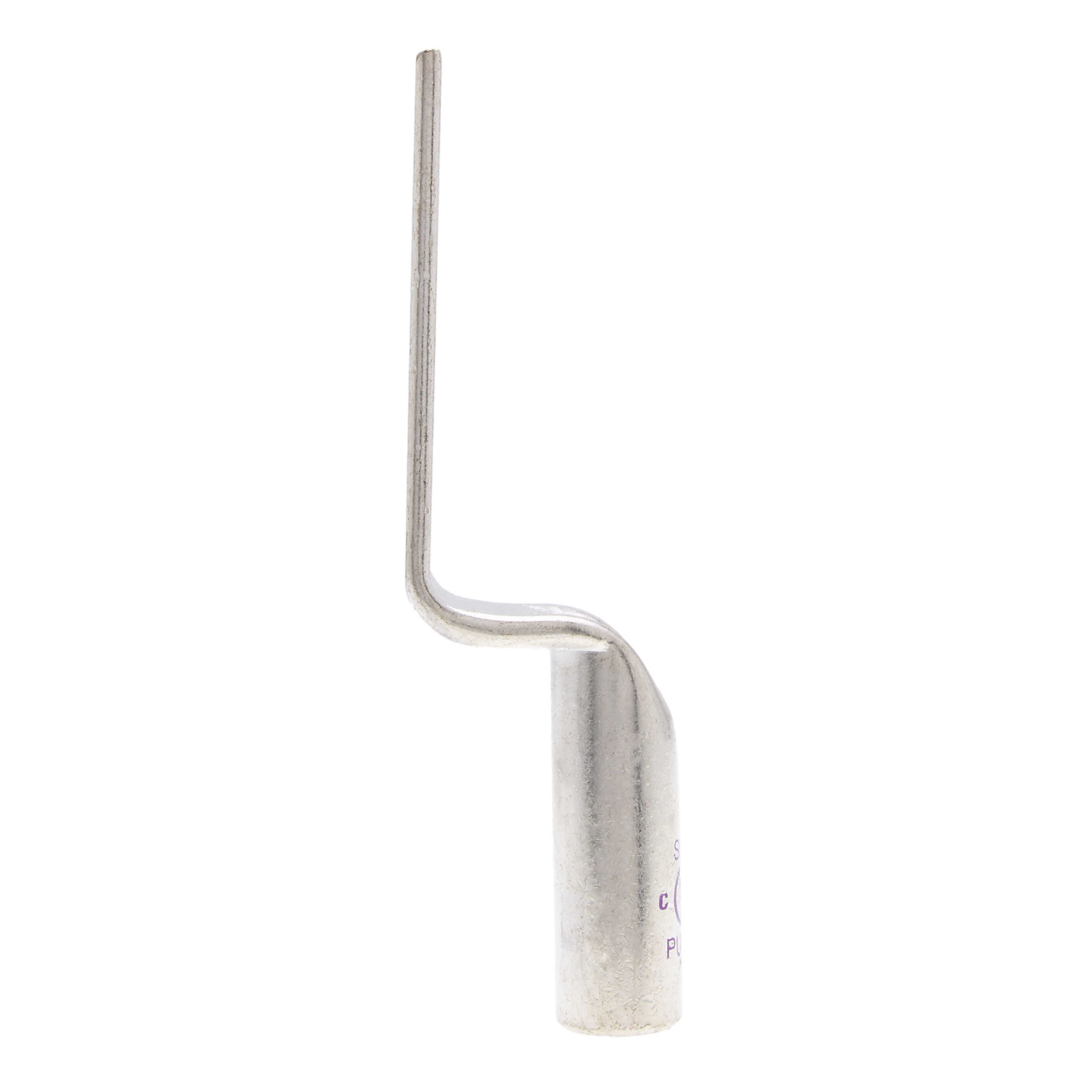

Polaris SL40N CMP Lug Copper Stack 4/0 AWG
#SL40N
The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.
- Designed for use with the L-N Series
- High conductivity copper tubing and corrosion resistant tin-plated finish
- Marked with die index and color coded
- Listed for 35kV maximum when properly installed
- UL486A Listed Wire Connector
Product Information
| Max Torque Value | 360.0 |
|---|---|
| Assortment | Copper Compression Terminations |
| Material | Copper |
| Mounting-bolt-size-in | 1/2 |
| Ul Standard | UL 486A |
| Barrel Length | 1.7500 |
| Finish | Tin Plated |
| Tang Length | 2.84 |
| Conductor Type | Copper |
| Voltage Rating | 600V |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Expanded Wire Range | 4/0 AWG – 1 AWG |
| Wire Cable Class | Class B,Class C |
| Die Color Code | Purple |
| UNSPSC | 39121405 |
| Wire Range | 4/0 AWG |
| EAN/UCC-13 | 6.62381E+11 |
| GTIN | 6.62381E+11 |
| Prop 65 Flag | Yes |
| UPC | 662381035523 |
